Elkhart Plastics/Ameri-Kart

37 Gallon RV Holding Tank 68" x 20" x 9" EPI 3200

4 customers have ordered this

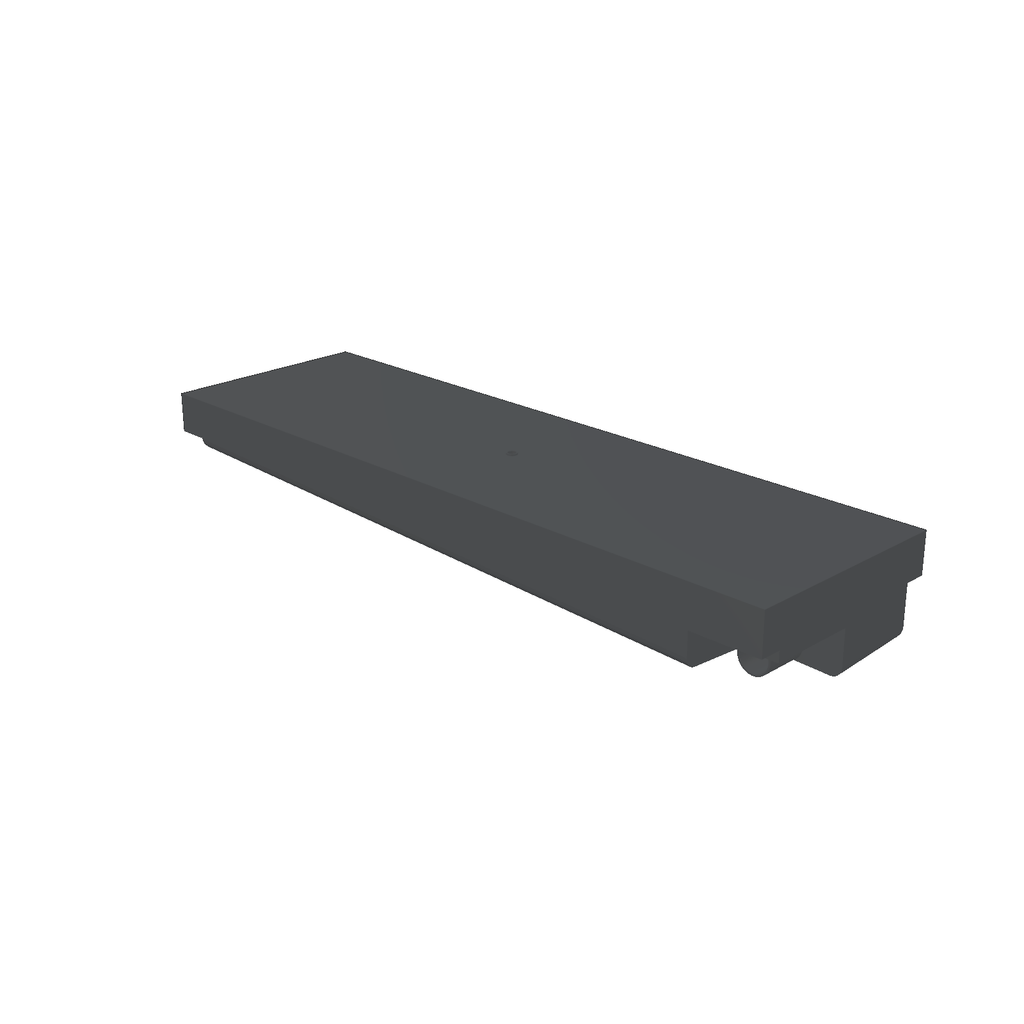

EPI 3200 — print-based front view

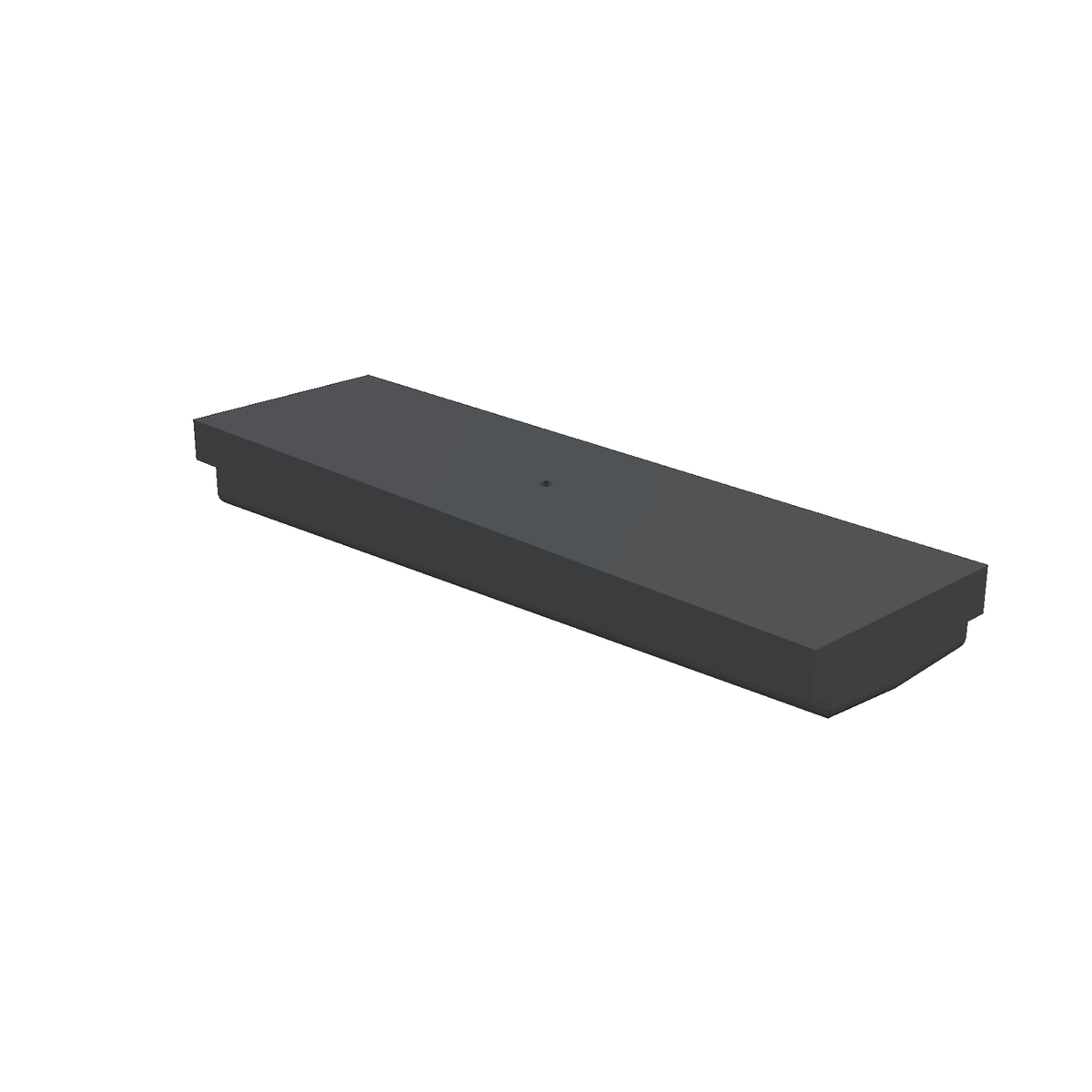

EPI 3200 — print-based rear view

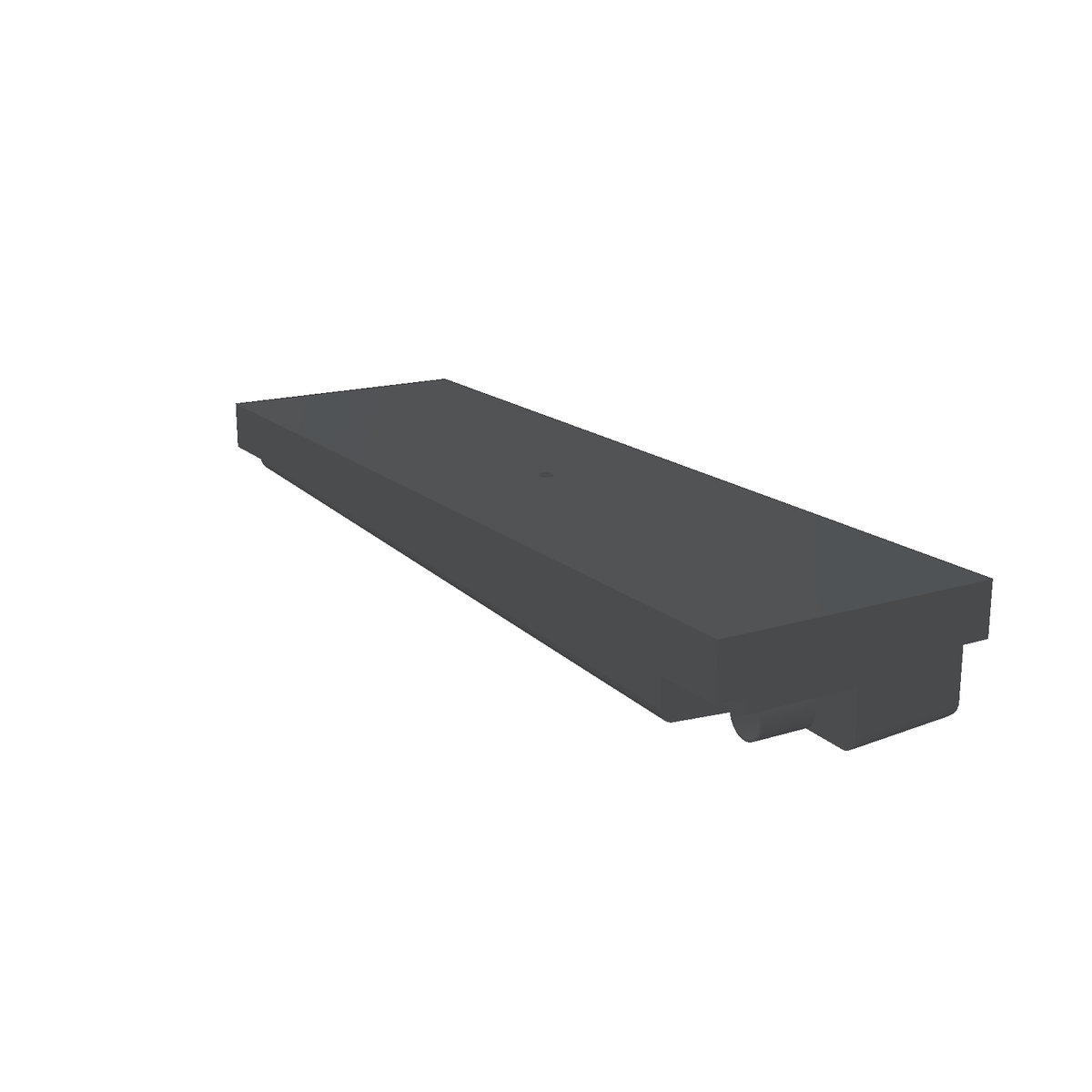

EPI 3200 — print-based side view

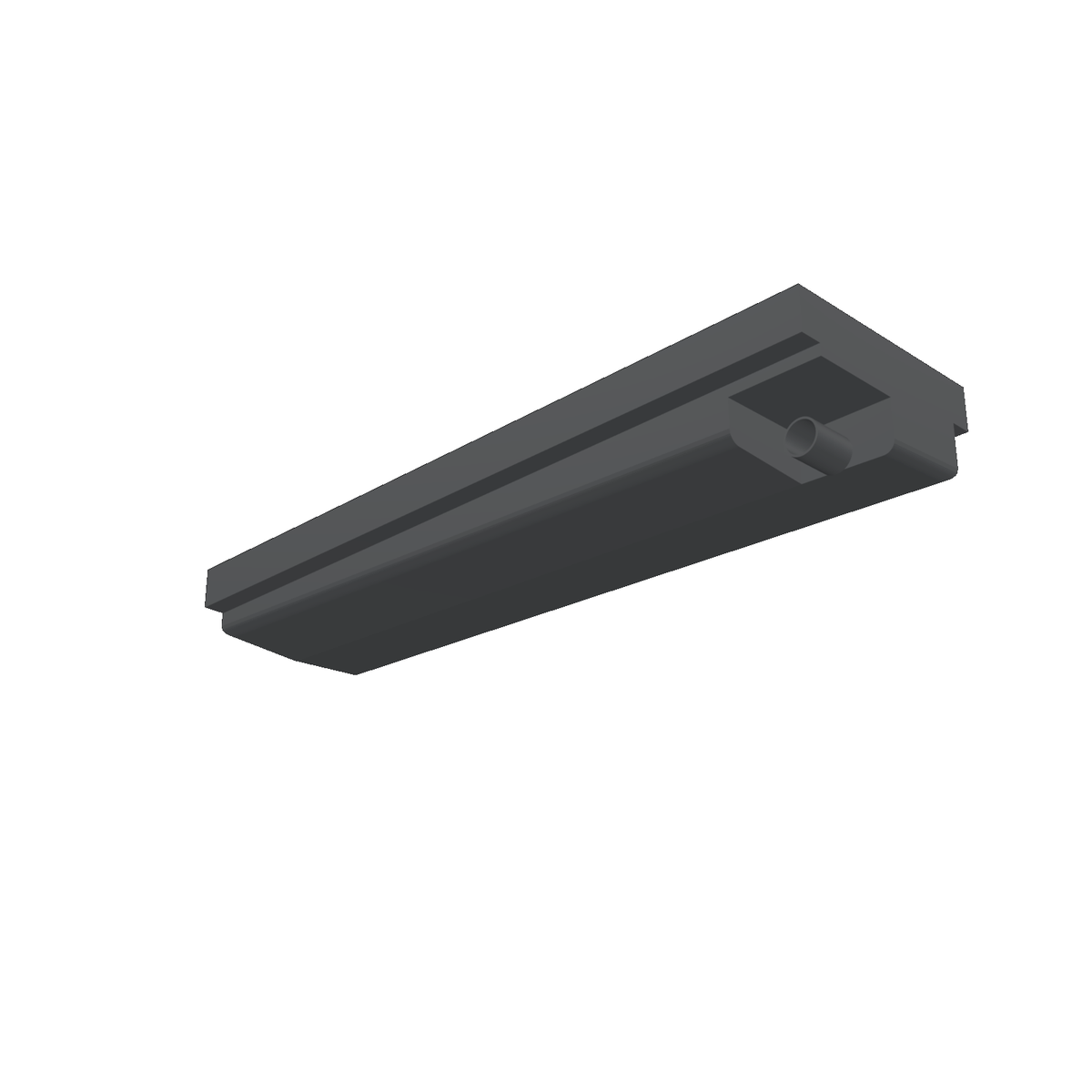

EPI 3200 — print-based underside showing sloped bottom
37 Gallon RV Holding Tank 68" x 20" x 9" EPI 3200
Roll over image to zoom in Click on image to zoom

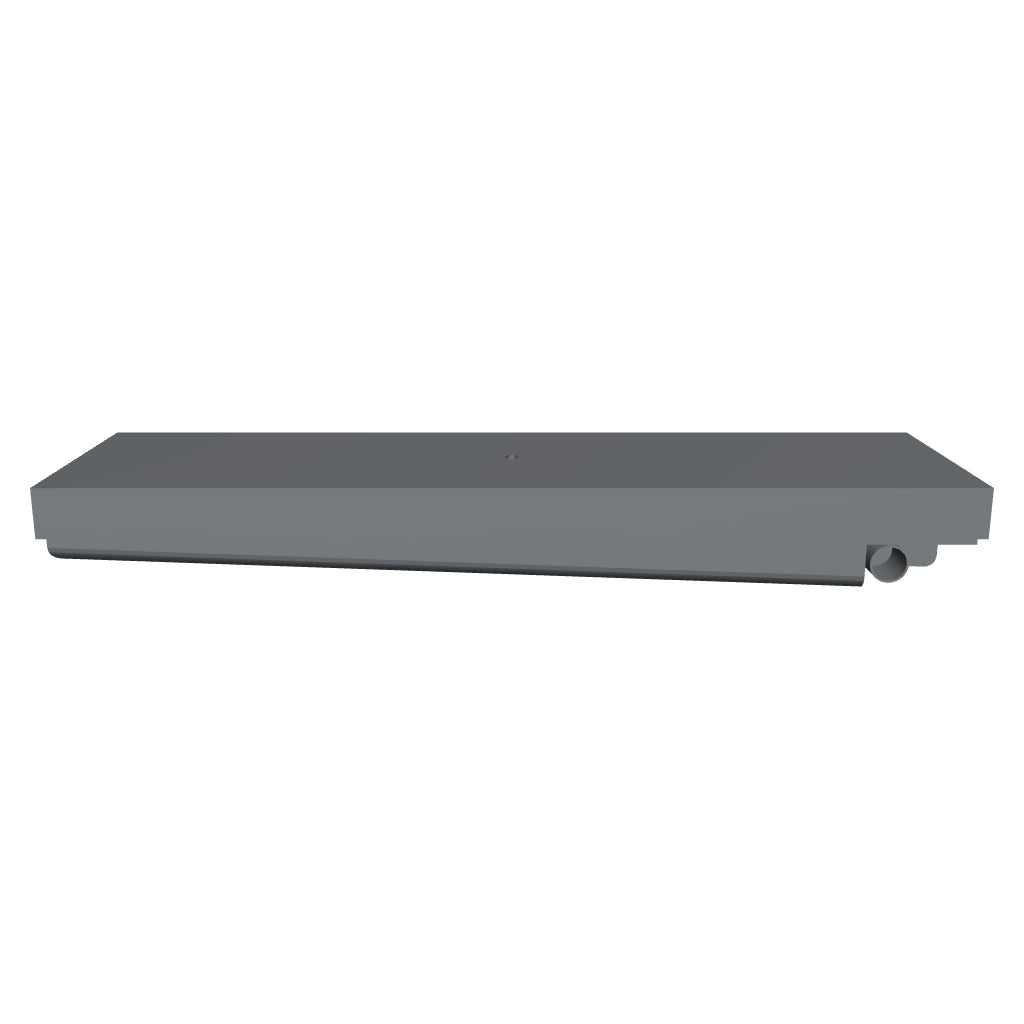

EPI 3200 — print-based front view EPI 3200 — rotatable print-based tank with recessed outletEPI 3200 — print-based rear viewEPI 3200 — print-based side viewEPI 3200 — print-based underside showing sloped bottom37 Gallon RV Holding Tank 68" x 20" x 9" EPI 3200

Pairs well with

Elkhart RV Parts - Universal Holding Tank Fittings Kit - Black & Grey Water - 4 Sensors - 3" & 1.5" Couplers - Complete DIY Installation Kit
Elkhart RV Parts Elkhart RV Parts - Universal Holding Tank Fittings Kit - Black & Grey Water - 4 Sensors - 3" & 1.5" Couplers - Complete DIY Installation Kit
$44.95 $55.48
251 ordered
Adcoseal - B-100 Butyl Rubber Sealant - 10.3 oz Cartridge - Black - Exterior RV Tank Sealant
Elkhart RV Parts Adcoseal - B-100 Butyl Rubber Sealant - 10.3 oz Cartridge - Black - Exterior RV Tank Sealant
$28.95 $45.95
270 ordered
QAI Listed — REC 559-1
SKU: 3200
Added to catalog: March 17, 2020
Last product update: July 13, 2026 at 9:20 PM
$208.33 $411.11
| Found it cheaper? Get an answer in seconds.
Available to order
FREE Delivery Estimate November 19 – November 22
1-Hour Cancellation Window

1-Hour Cancellation Window

You'll have 1 hour after placing your order to update your shipping address or cancel completely.

After that, we begin coordinating with our vendors to fulfill your order — at that point, cancellations and address changes usually aren't possible.

If you're unsure about anything, please reach out before ordering or cancel within the window.

Read full policy →
Saved items

37 gal · 68 x 20 x 9
Tank Type
Holding/Waste $208.33 Selected
Capacity
9 gal $297.50 19 gal $199 20 gal $249.97 23 gal $299.97 27 gal $343.47 29 gal $287.11 30 gal $283.83 31 gal $249.97 32 gal $339.63 35 gal $458.46 37 gal $208.33 Selected 40 gal $308.90 41 gal $299.95 42 gal $398.95 43 gal $381.94 45 gal $299.97 46 gal $547.16 50 gal $364.10 52 gal $299.95 53 gal $369.97
Dimensions
22.5 x 16.5 x 9 $297.50 40 x 14 x 11 $199 23.75 x 19 x 13.625 $249.97 56 x 16 x 8 $299.97 33.5 x 19 x 12.75 $343.47 60 x 28 x 6.125 $295.95 60 x 28 x 7 $287.11 54 x 22 x 8 60 x 28 x 6 27.5 x 20.5 x 18.5 34 x 19.5 x 13 $249.97 26 x 19 x 21 26.5 x 20.5 x 17.5 $339.63 30 x 21 x 13 38 x 21 1/2 x 13 1/2 40 x 20 x 12 55 x 27 x 7.5 54 x 32 x 7.5 $458.46 60 x 24 x 8 68 x 20 x 9 $208.33 Selected 40 x 36 x 8 1/2 63 x 24 x 8 $308.90 56 x 34 x 7.125 $299.95 59 x 28 x 8 56 x 24.5 x 7 66 x 21 x 9 84 x 23 x 12 $398.95 82 7/8 x 21 3/4 x 16 1/8 $381.94 56 x 27 x 9 $299.97 64 x 32 x 8.4375 $547.16 62 x 26 x 10 $364.10 40 1/2 x 36 3/4 x 10 53 x 27 x 10.5 $299.95 58 x 27 x 10.5 28 x 26 x 22.5 $369.97

Frequently needed together

37 Gallon RV Holding Tank 68" x 20" x 9" EPI 3200 Elkhart RV Parts - Universal Holding Tank Fittings Kit - Black & Grey Water - 4 Sensors - 3" & 1.5" Couplers - Complete DIY Installation Kit Adcoseal - B-100 Butyl Rubber Sealant - 10.3 oz Cartridge - Black - Exterior RV Tank Sealant

Total price $282.23

Plunge into Adventure with Our 37-Gallon Blank RV Holding Tank—Your Ultimate Travel Companion

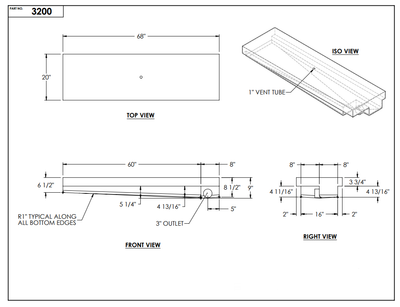

Dimensioned print for 37 Gallon RV Holding Tank 68" x 20" x 9" EPI 3200
This 37-gallon RV holding tank from Elkhart Plastics/Ameri-Kart is designed for maximum reliability and ample waste storage on the road. Measuring 68" x 20" x 9", the original print shows a recessed 3-inch outlet and a 1-inch vent tube. Compare the tank profile and molded connection layout before choosing separate plumbing adapters.
---

37 Gallon RV Holding Tank 68" x  20" x  9"   Myer Part # 3200 (Print shows molded outlet and vent; separate plumbing fittings not included)

ONLY 1 LEFT

PLEASE NOTE:  Returns and refunds are subject to approval.

Dimensioned Print and Gallery Views

The original 3200 print shows a 68-inch length, 20-inch upper width and 9-inch maximum depth. The shallow end is 6 1/2 inches deep. The drawing divides the length into a 60-inch main region and 8-inch end region, with the 3-inch outlet center 5 inches from the end. The body below the flange is 16 inches wide with 2-inch setbacks, and the upper band is 3 3/4 inches. The print also identifies a 1-inch vent tube and 1-inch radius along bottom edges.

Match the recessed outlet region, sloped bottom and mounting layout to your existing tank before ordering. Separate valves and plumbing adapters are not shown as included.

The gallery and rotatable model are reconstructions from the print, not measured manufacturing CAD. Undimensioned recess transitions, connection projections, wall thickness and vent projection follow drawing proportions. Use the retained original blueprint as the fitment reference.
