Why this fixes a non-retracting shade
- Restores tension: New spring brings back the pull-up force the shade needs.
- OEM-style fit: Sized for Irvine Shade tubes (choose the correct tube and width above).
- DIY-friendly: Replace the spring assembly on one end; no special tools.
Learn more
The "auto-stop" piece controls stopping and smoothness, but when the spring itself fatigues, the shade loses power. Installing a full spring replaces the internal mechanism that actually lifts the shade.

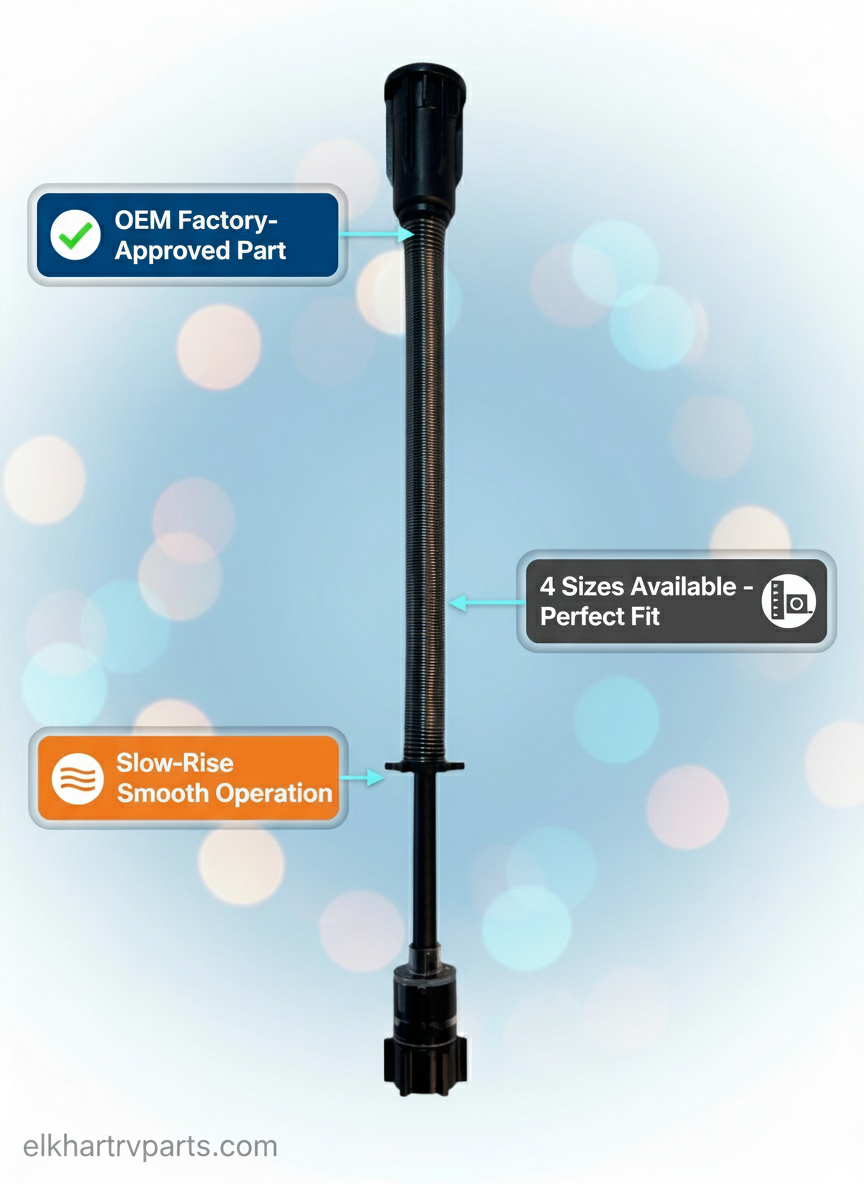

- Factory-approved OEM replacement spring for RV roller shades
- Slow rise version ensures smooth and controlled operation
- Compatible with all sizes of RV roller shades featuring auto-stop
- Durable construction for long-lasting performance

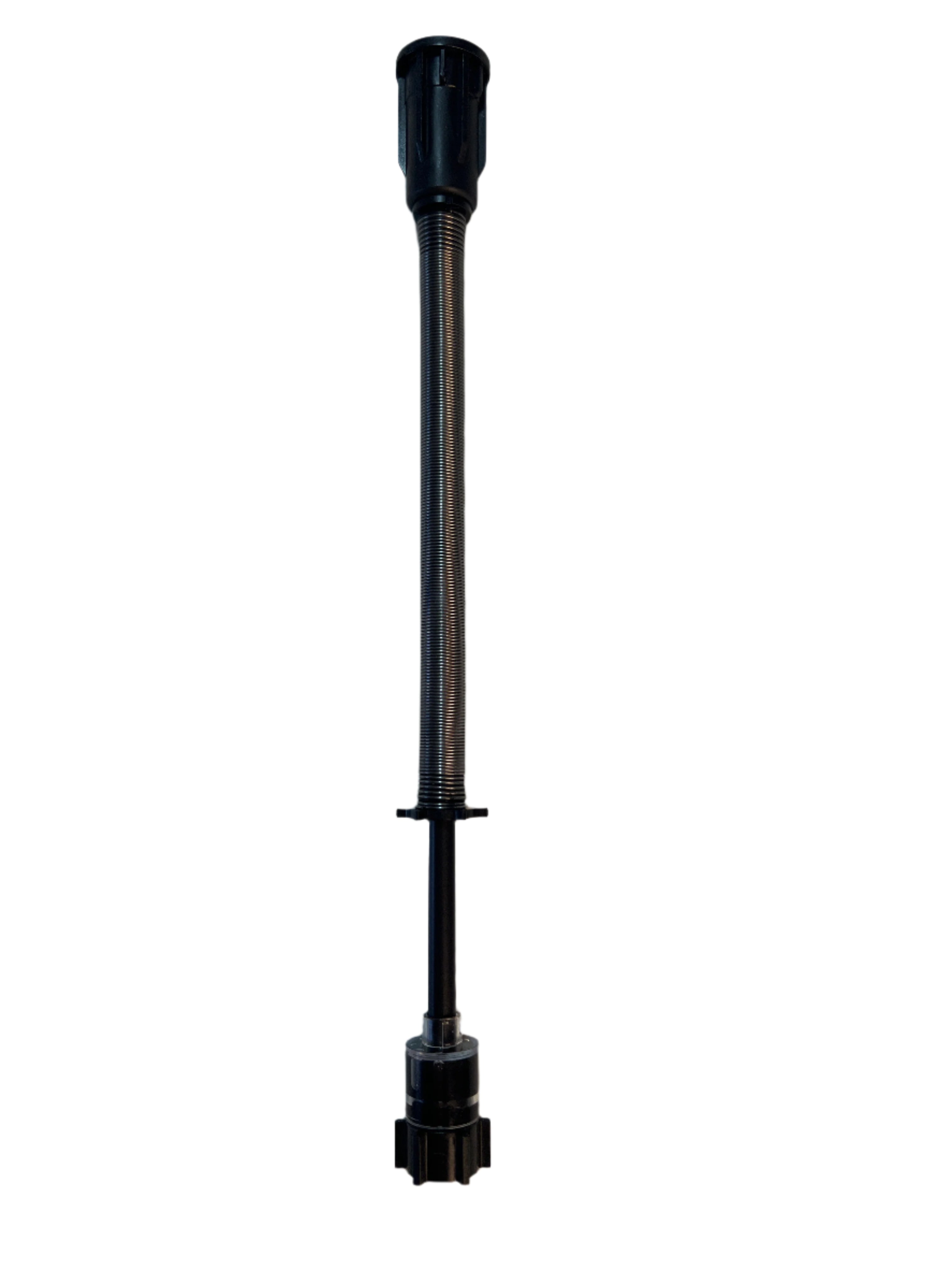

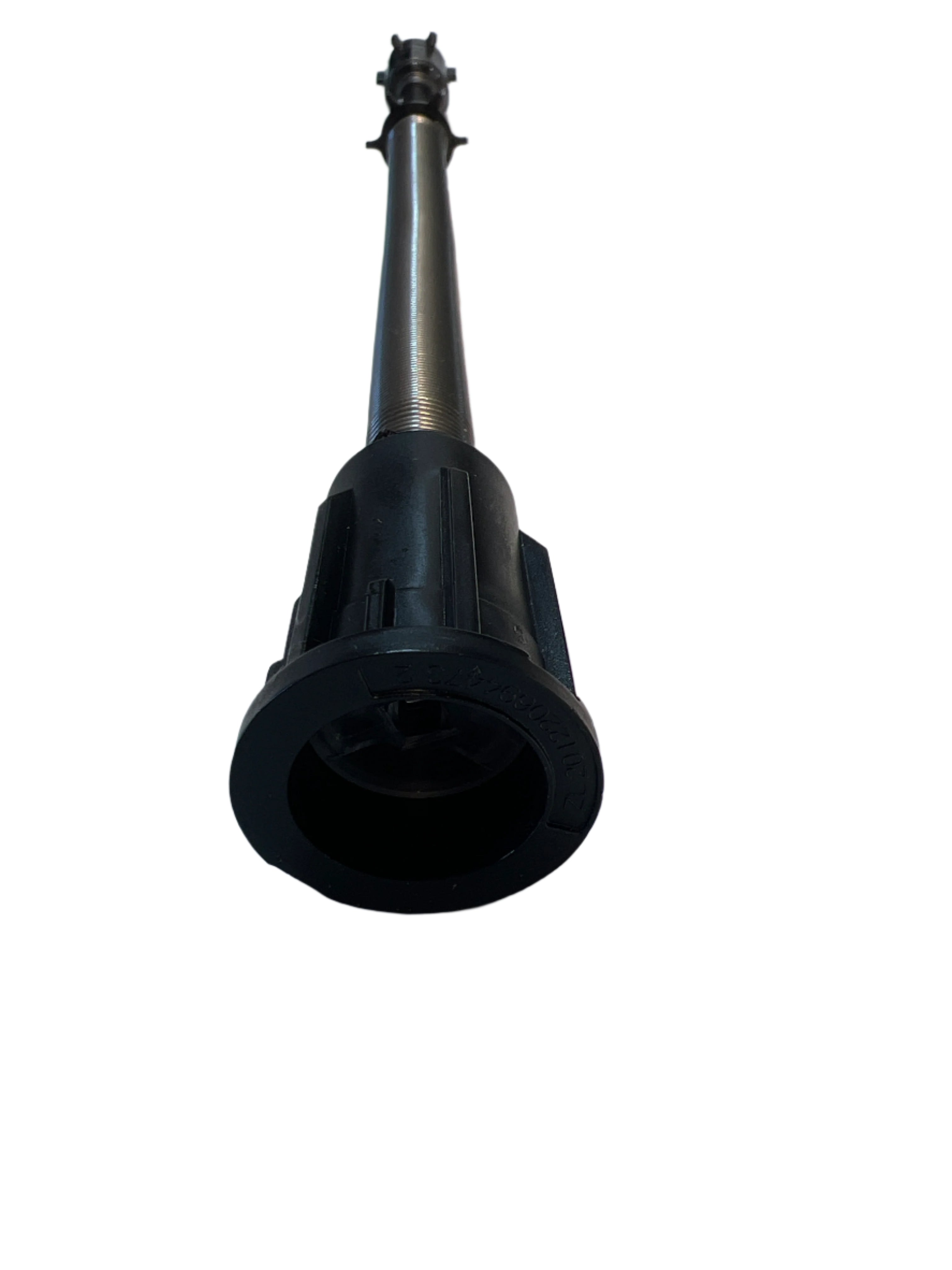

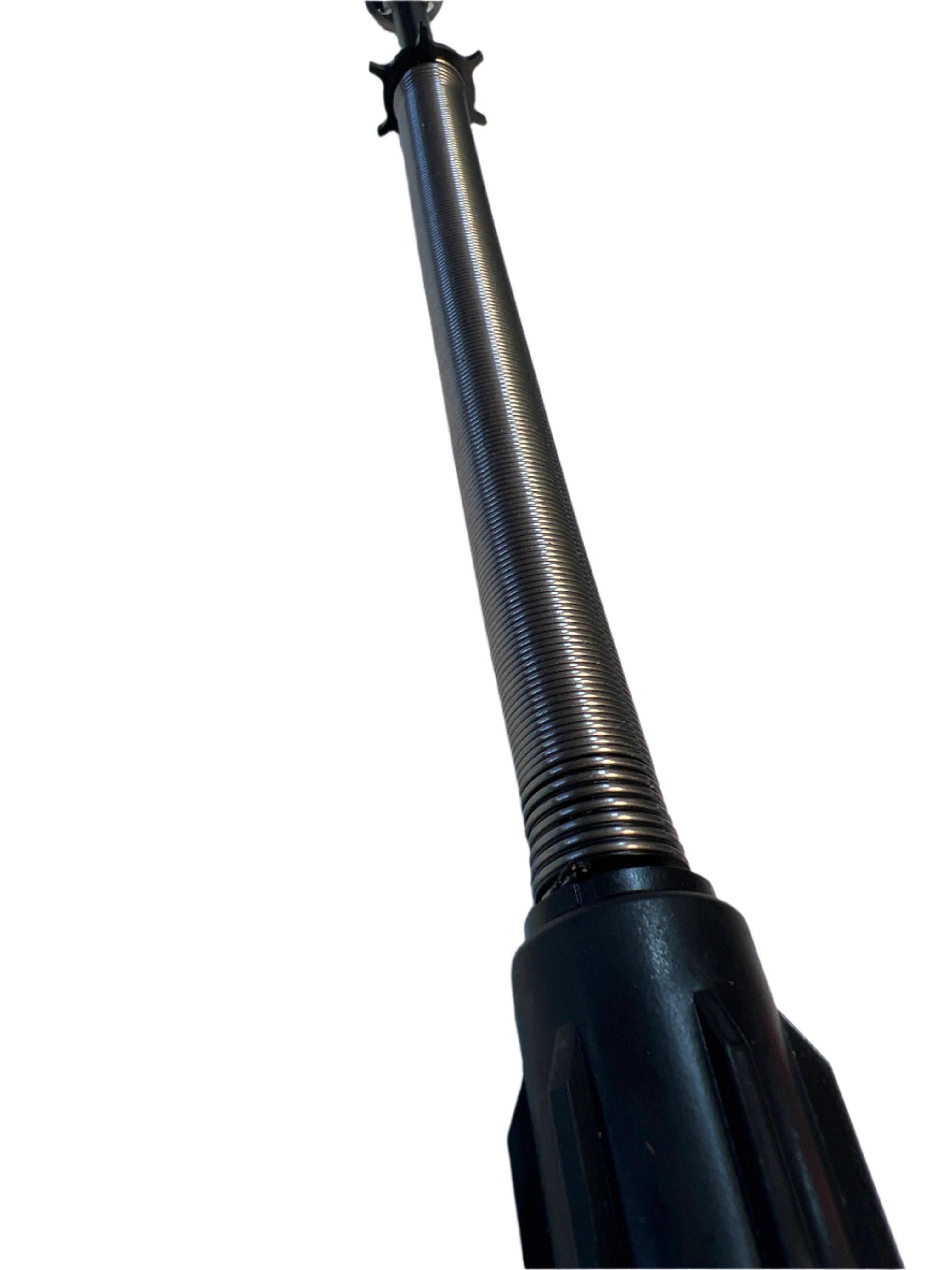

Upgrade or repair your RV roller shades with the Irvine Replacement Spring (Slow Rise Version). This factory-approved OEM part is designed to seamlessly fit all sizes of RV roller shades equipped with an auto-stop mechanism. If your RV roller shades are not working properly, there's no need to replace the entire unit—start by simply replacing the roller mechanism with this high-quality spring. The slow rise feature provides a smooth and controlled operation, enhancing your RV living experience.

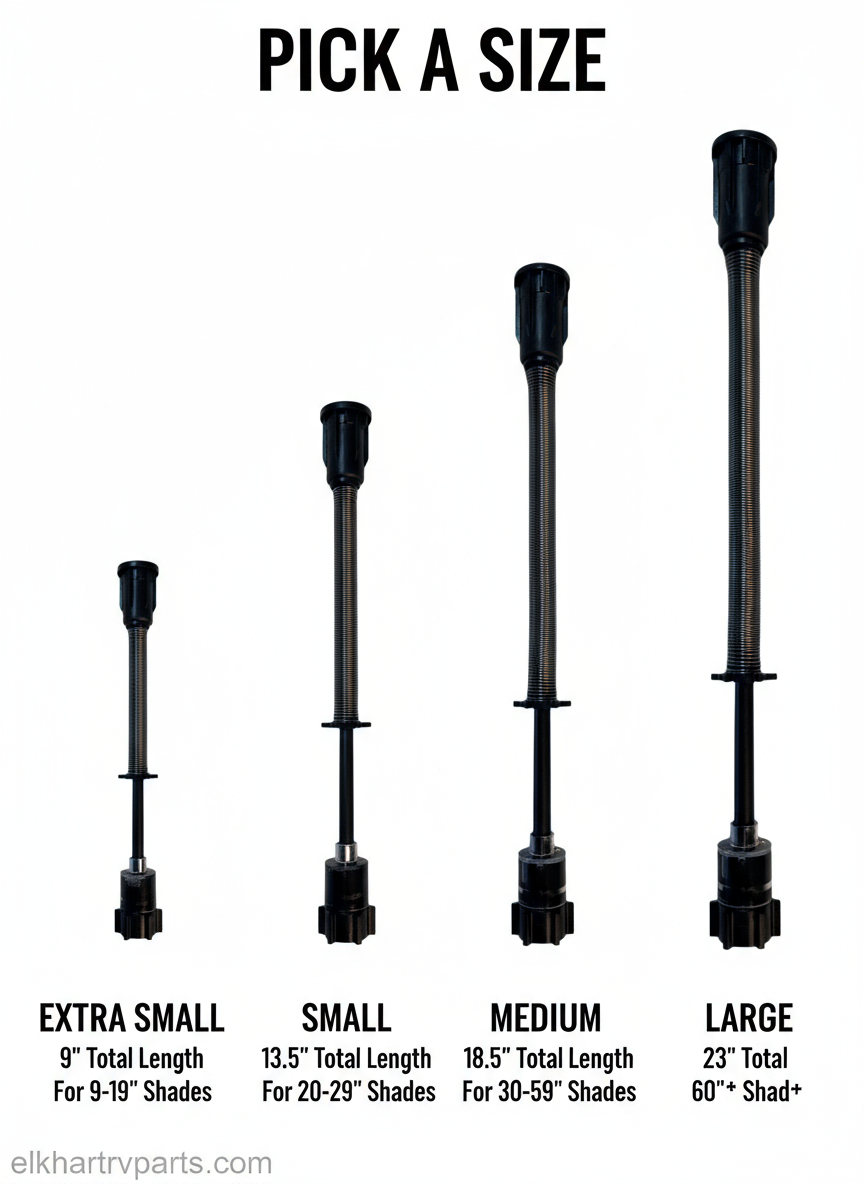

Crafted with durability in mind, this replacement spring ensures reliable performance for years to come. To ensure the perfect fit, customers should measure the overall length of their roller shade to determine the correct size needed. Restore the functionality of your RV roller shades with this cost-effective and high-quality Irvine replacement spring.
NOTE: How to Measure Tubes and Top Rails

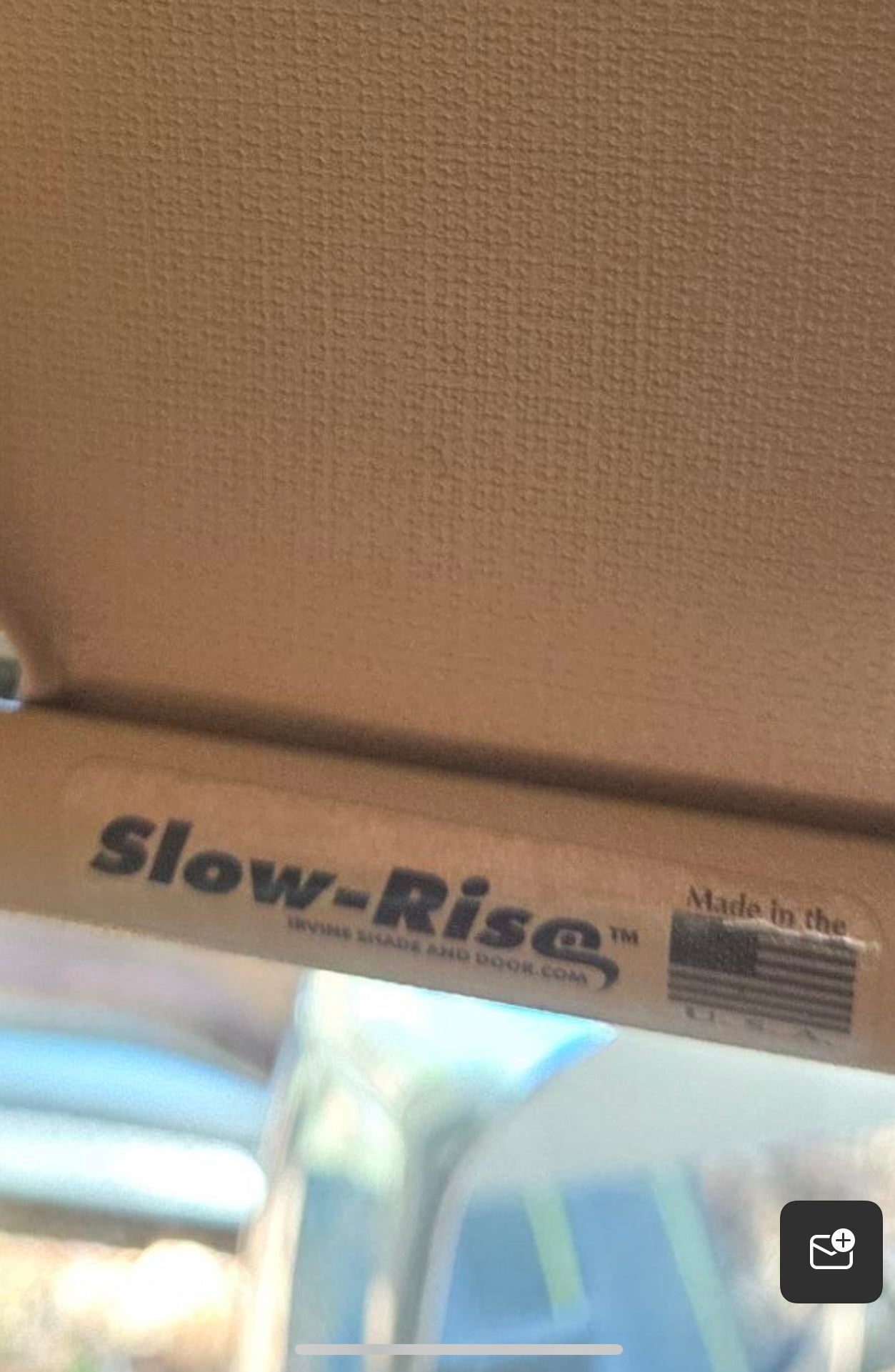

- Tag: Located on the top header mounting rail, it resembles a price tag and contains a 6-digit number (see image below).

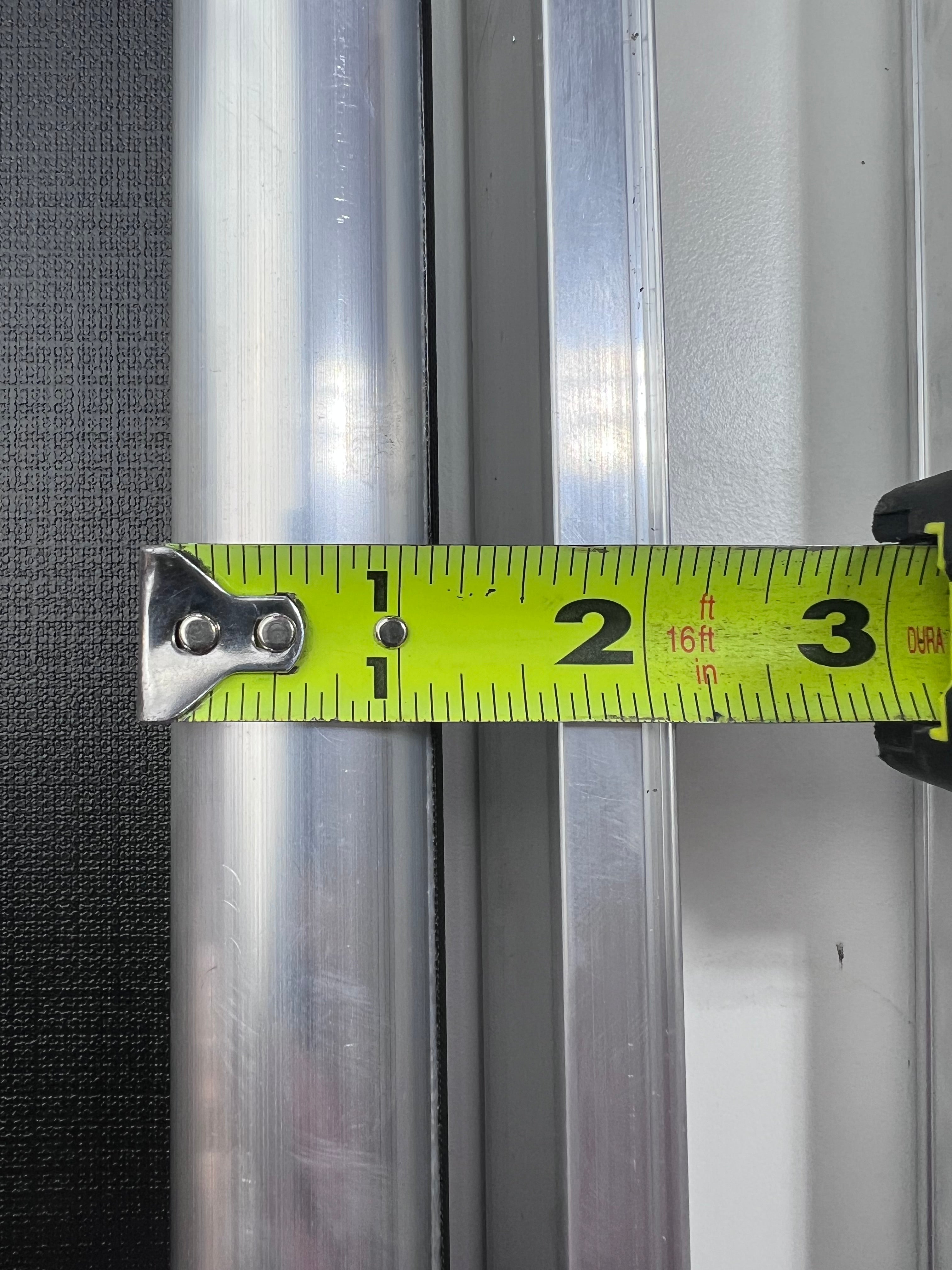

- Measuring a Top Header Rail: If the width is 1 3/8 inches, the tube is likely a 1 1/4-inch outside diameter. If the width is 1 inch, the tube is typically a 3/4-inch or 1-inch outside diameter.

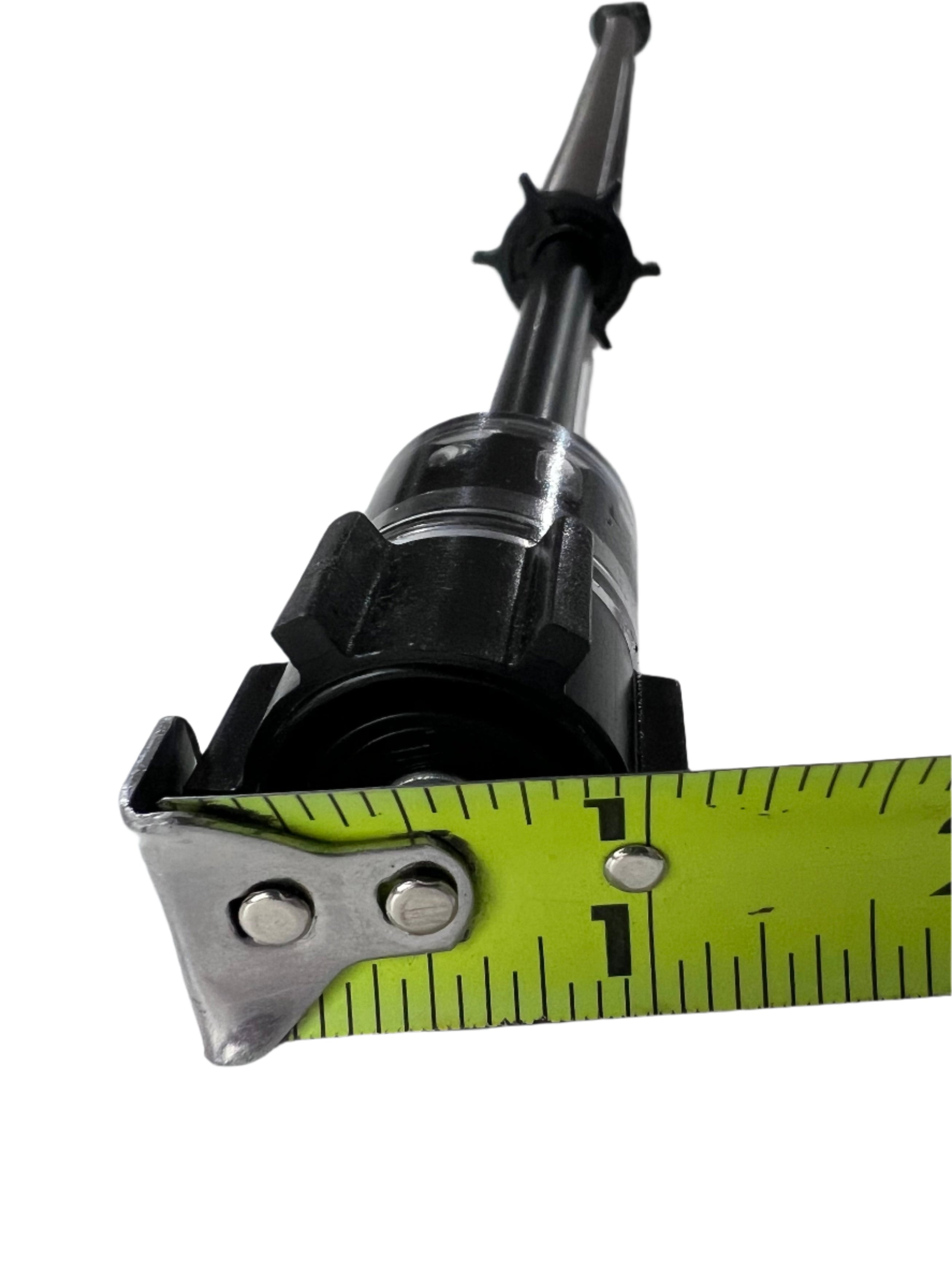

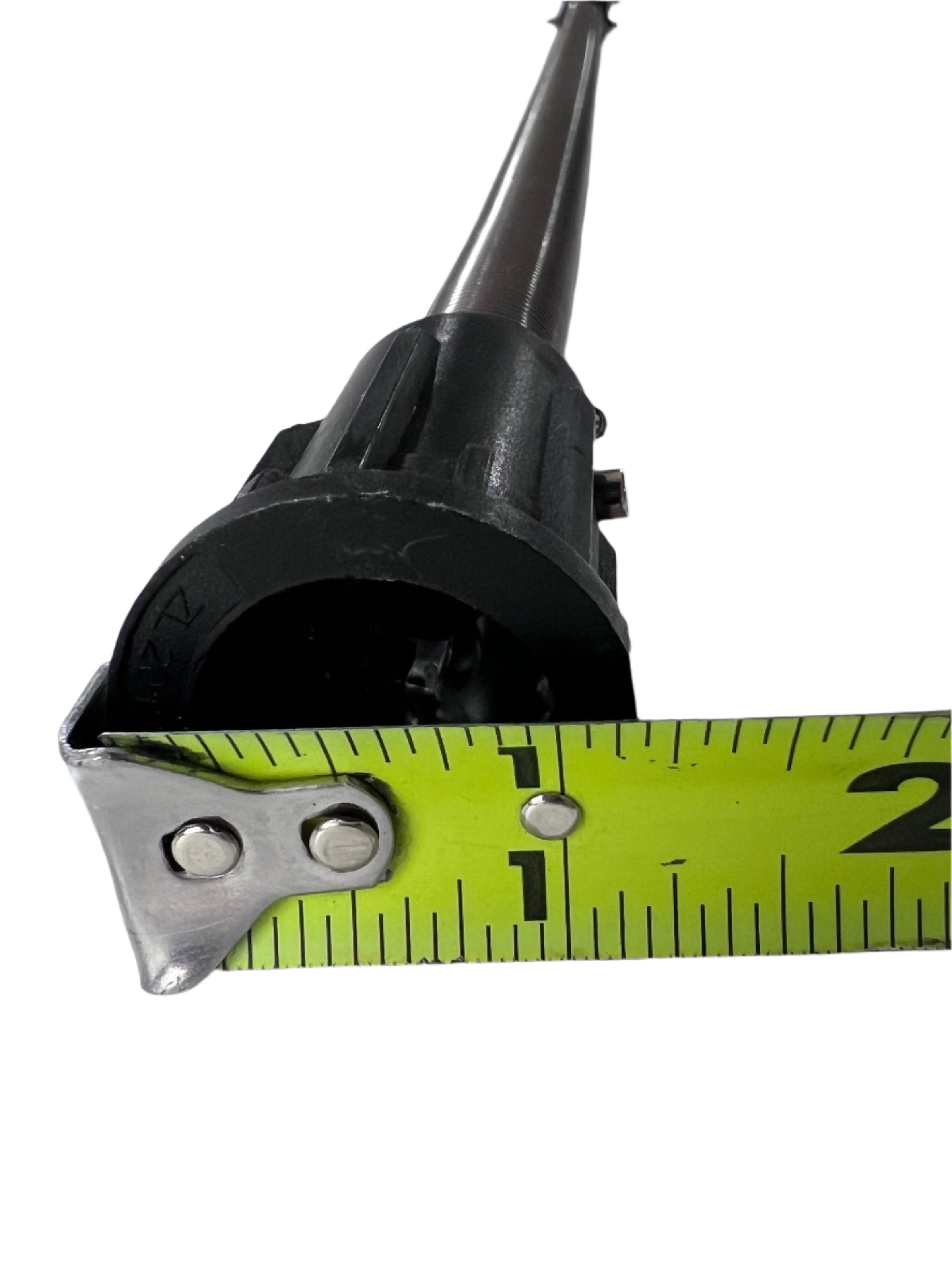

- Measuring a Tube: Measure the outside diameter of the aluminum tube that the fabric wraps around. Pull the fabric down to measure (do not remove the fabric from the tube if it’s still attached).
How to Adjust the Spring Tension on Your RV Roller Shade
Over time, your RV roller shades may start to retract too slowly or snap back too fast. Luckily, adjusting the internal spring tension is a simple fix you can do yourself. Follow the step-by-step instructions below to safely adjust the shade tension and restore smooth operation.
🔧 What You’ll Need:
- Phillips screwdriver (or drill with bit)
- Your roller shade removed from the mounting brackets
- A clean, flat work surface
📺 Quick Video Guide
Prefer to watch? Here’s the official tutorial video from Irvine Shade & Door:
🛠️ Step-by-Step Instructions
-
Remove the shade from the window.
Gently unclip or unscrew the roller shade from its mounting hardware and lay it flat on a table. -
Identify the spring-loaded end.

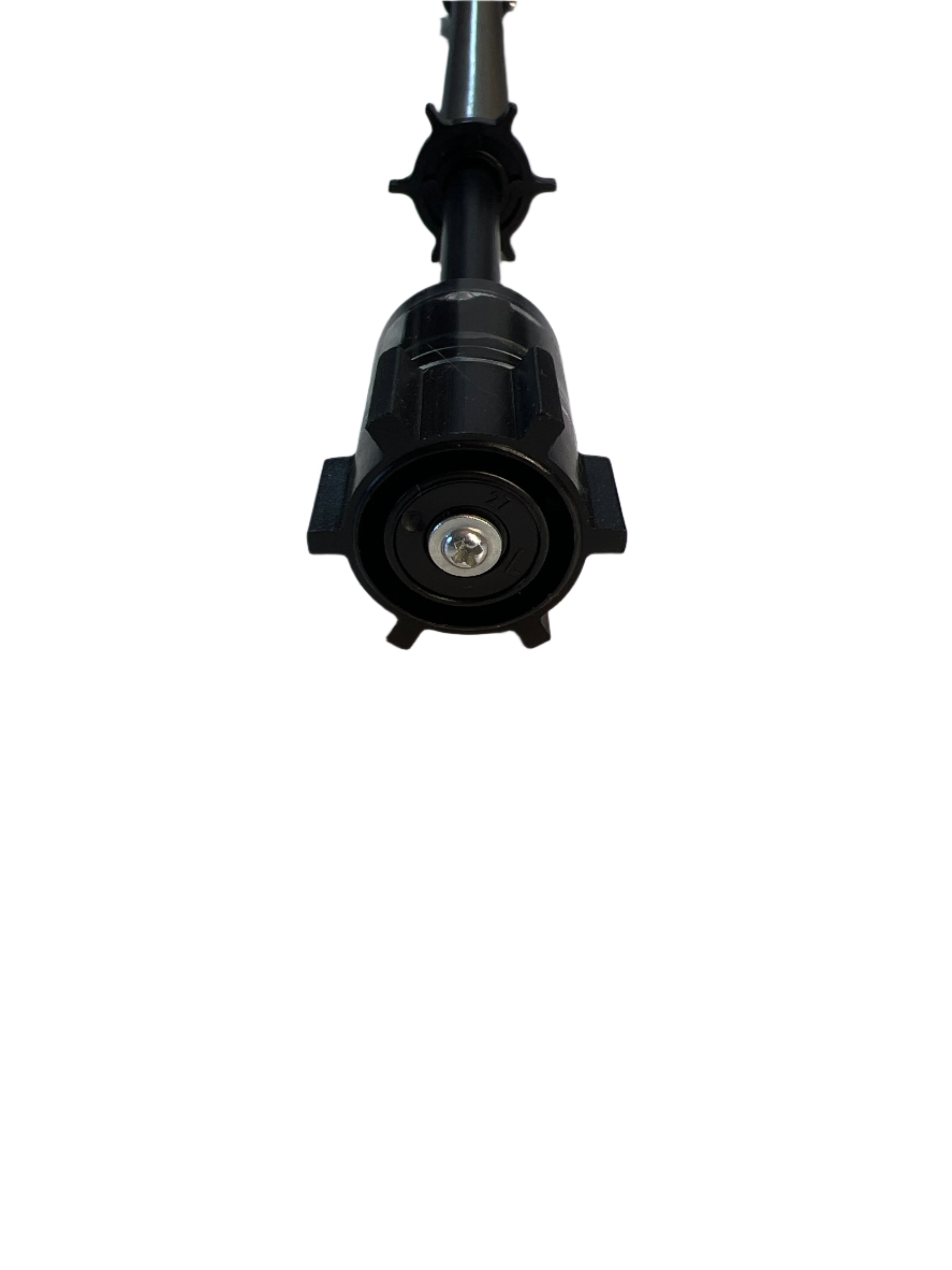

One end of the shade has a spring mechanism (usually with a small tab or flat metal arm). -
Unroll the fabric completely.
Pull the fabric down so the shade is fully extended and there’s no spring tension inside the roller. -
Manually wind the spring.
While keeping the shade unrolled, turn the spring-loaded end of the roller counter-clockwise to increase tension. Each full turn adds more tension. Typically, 10–20 rotations work best. -
Test and rewind.
After winding, slowly guide the fabric back onto the roller to test the new tension. If it recoils too fast or too slowly, repeat steps 3–5 and adjust accordingly. -
Reinstall the shade.
Once you’re happy with the tension, remount the shade to the window bracket using your original screws or clips.
🛍️ Replacement Springs Available
If your spring is broken or worn out, replace it with an OEM part:
- 3/4" Spring – For Valu-Line Roller Shades
- 1" Spring – For Valu-Line Roller Shades
- Slow-Rise Spring – For Premium RV Shades
💬 Frequently Asked Questions
A: Check the diameter of the roller tube. Most Valu-Line shades use 3/4" or 1" springs. Premium models with smooth, soft recoil often use the Slow-Rise version. When in doubt, match your part visually or email us a photo.
A: Start with 12–15 full turns. If the shade retracts too weakly or too quickly, adjust in increments of 2–3 turns until you find the sweet spot.
A: The spring may have come loose or lost internal tension. Remove the shade again, fully unwind the spring, and try re-winding it. If it still doesn’t hold, the spring may need to be replaced.
A: You can, but older springs tend to weaken or warp over time. For smoother operation and reliability, replacing the spring is recommended, especially on frequently used shades.
A: No. These are OEM Irvine Shade & Door springs and are specifically designed for their Valu-Line and Premium roller shades. Compatibility with other brands is not guaranteed.
📦 Need a New Shade?
If adjusting or replacing the spring doesn’t resolve the issue, you may need a whole new shade. We offer custom and OEM roller shades built to order—perfect fit, every time.
Blog content based on official tutorial by Irvine Shade & Door. Video embedded under fair use for educational purposes.
| Material | Durable metal |
|---|---|
| Compatibility | RV roller shades with auto-stop |
| Operation type | Slow rise |
| Length (inches) | 60+ |

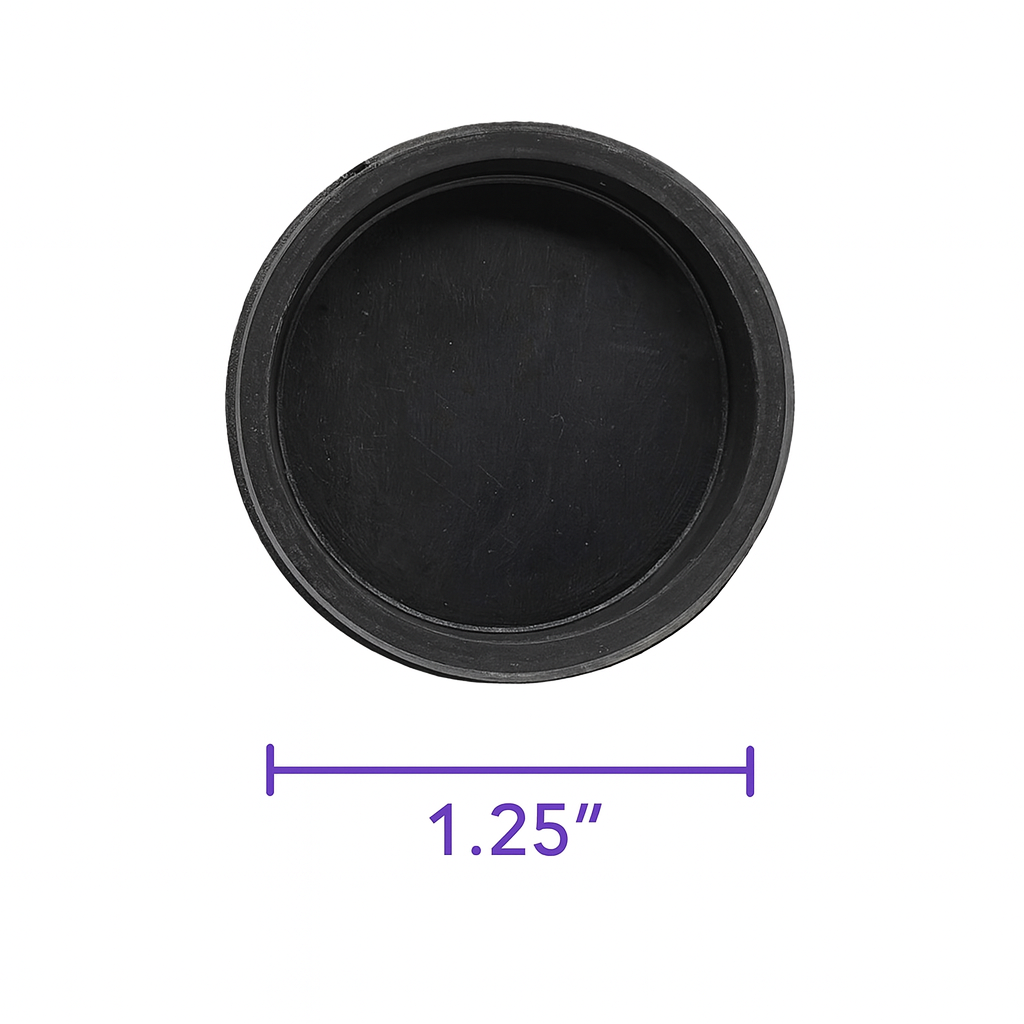

| Spring diameter (inches) | 1.25 |
- Is this replacement spring compatible with all sizes of rv roller shades? Yes, the Irvine Replacement Spring (Slow Rise Version) is compatible with all sizes of RV roller shades that feature an auto-stop mechanism.
- What does the slow rise version mean for the operation of the roller shades? The slow rise version ensures a smooth and controlled operation, allowing the roller shade to rise gradually and preventing it from snapping up quickly.
- How do i measure to make sure i get the correct size replacement spring? Measure the overall length of your roller shade. For tubes, measure the outside diameter of the aluminum tube that the fabric wraps around without removing the fabric. Refer to the top header rail width to estimate the tube diameter.
- Can i fix my rv roller shade by replacing just this spring instead of the entire shade? Yes, if your RV roller shade is not working properly, you can upgrade or repair it by replacing the roller mechanism with this high-quality replacement spring instead of replacing the entire shade.
- Is this replacement spring an original equipment manufacturer (oem) part? Yes, this spring is a factory-approved OEM replacement part designed specifically for premium RV roller shades.
