45 Gallon RV Black Water Holding Tank - Premium Elkhart Plastics Quality
The Elkhart Plastics 45-gallon RV holding tank (EPI 4793 / H1240002) delivers professional-grade waste water storage for motorhomes, travel trailers, and fifth wheels. Measuring 56" x 27" x 9", this seamless roto-molded tank provides reliable black water or grey water containment with the durability RV owners demand.
Why Choose This 45 Gallon Holding Tank?
OEM-Grade Construction: Manufactured by Elkhart Plastics/Ameri-Kart using seamless rotational molding technology, this tank features 0.180" wall thickness for superior strength and leak-proof performance. The same quality trusted by major RV manufacturers.
Printed Connection Layout: The original print shows a molded end outlet and a 1-inch vent tube. Their positions are part of the tank geometry. Match the print to your RV before choosing separate valves, adapters and mounting hardware.
Premium Black Polyethylene: UV-resistant black polyethylene construction prevents algae growth, resists chemical degradation from waste treatment products, and maintains structural integrity through temperature extremes.
Verified Authentic: When you order from ElkhartRVParts.com, you receive genuine Elkhart Plastics products with full manufacturer backing - not inferior knockoffs or questionable aftermarket alternatives.
Technical Specifications
- Capacity: 45 gallons
- Dimensions: 56" Length x 27" Width x 9" Height
- Part Numbers: EPI 4793, H1240002
- Material: Black polyethylene
- Wall Thickness: 0.180 inches
- Outlet: 3" outlet; separate plumbing fittings not included
- Construction: Seamless one-piece roto-molded
- Weight: 24 lbs
- Manufacturer: Elkhart Plastics/Ameri-Kart
- Country of Origin: USA
Compatible Applications
This 45-gallon holding tank works perfectly for:
- Class A, B, and C motorhomes requiring mid-capacity waste storage
- Travel trailers and fifth wheels with 56" x 27" x 9" tank compartment space
- Black water holding tank replacement for aging or damaged tanks
- Grey water holding tank upgrades for extended dry camping
- RV installations with matching tank profile and connection layout
- RV repair shops and mobile service technicians
Complete Your Holding Tank Setup
Choose plumbing components only after matching the printed outlet/vent layout and checking adapter requirements. The following links are installation accessories to assess independently:
Universal Holding Tank Fittings Kit with Level Sensors - Complete kit with drain valve, vent fitting, and tank level sensors for professional installation.
Alternative Capacity Options:
- 40 Gallon RV Holding Tank (42" x 40" x 7") - Compact alternative for tighter spaces
- 40 Gallon RV Holding Tank (59" x 28" x 8") - Similar footprint with slightly different dimensions
- 50 Gallon RV Holding Tank (62" x 26" x 10") - Increased capacity for extended trips
Browse More Options: View All RV Holding Tanks | Shop Replacement Parts & Fittings
Compare Similar Holding Tanks
| Model | Capacity | Dimensions (L x W x H) | Part Numbers | Best For | Details |
|---|---|---|---|---|---|
| 45 Gallon (Current) | 45 gallons | 56" x 27" x 9" | EPI 4793 / H1240002 | Mid-size RVs, standard installations | Current Product |
| 37 Gallon | 37 gallons | 60" x 24" x 8" | EPI 2006 / H1231002 | Smaller RVs, side drain configuration | View Details |
| 40 Gallon (Compact) | 40 gallons | 42" x 40" x 7" | VR40427HBLANK | Tight spaces, wider footprint | View Details |
| 40 Gallon (Extended) | 40 gallons | 59" x 28" x 8" | VR28598HRBLANK | Similar footprint, slightly less capacity | View Details |
| 50 Gallon | 50 gallons | 62" x 26" x 10" | EPI 992H | Extended trips, larger capacity needs | View Details |
Pro Tip: Measure your RV's tank compartment carefully before ordering. Consider not just the tank dimensions, but also clearance needed for fittings, mounting straps, and removal access.
Installation Considerations
Custom Fitting Installation: The molded outlet and 1-inch vent tube are shown in the retained print. Match these positions to your installation; do not assume the drain and vent can be placed arbitrarily.
Professional Installation Recommended: While experienced DIYers can install this tank, professional installation ensures proper fitting placement, secure mounting, leak-free connections, and compliance with RV plumbing standards.
Mounting and Support: Ensure adequate support straps or brackets to prevent tank movement during travel. The tank should be fully supported across its bottom surface to prevent stress cracking.
Frequently Asked Questions
Q: Does this tank come with fittings installed?
A: The print shows molded outlet and vent connections. Separate plumbing fittings and mounting hardware are not included. Check the original drawing before choosing valves and adapters.
Q: Can this be used for fresh water storage?
A: This tank is manufactured from black polyethylene and is designed for black water or grey water holding (waste water). For fresh water storage, you should use tanks made from FDA-approved white or natural polyethylene specifically designed for potable water.
Q: What size fittings does this tank accept?
A: The listing specifies a 3-inch outlet; the print identifies a 1-inch vent tube. Verify the required valves, adapters and sensors against your plumbing and the original drawing.
Q: Is this tank compatible with my RV model?
A: Compatibility depends on your RV's tank compartment dimensions. Measure your existing tank or available space carefully. This tank measures 56" x 27" x 9" and holds 45 gallons. If you need help with product identification or compatibility questions, use our AI Live Chat for deep product knowledge and assistance.
Q: How long will this tank last?
A: With proper installation and maintenance, Elkhart Plastics holding tanks typically last 15-20+ years. The seamless roto-molded construction and 0.180" wall thickness provide exceptional durability and resistance to cracking, warping, and chemical degradation.
Why Buy From ElkhartRVParts.com?
- Authorized Dealer: Direct relationship with Elkhart Plastics ensures authentic OEM products
- Expert Support: Use our AI Live Chat for product guidance and technical assistance
- Quality Guarantee: 100% genuine parts backed by manufacturer warranty
- Fast Shipping: Quick processing and reliable delivery to get your RV back on the road
- Competitive Pricing: Fair pricing on premium OEM components
Ready to upgrade your RV's holding tank system? Add this premium 45-gallon Elkhart Plastics holding tank to your cart today and experience the quality difference that OEM-grade components provide.

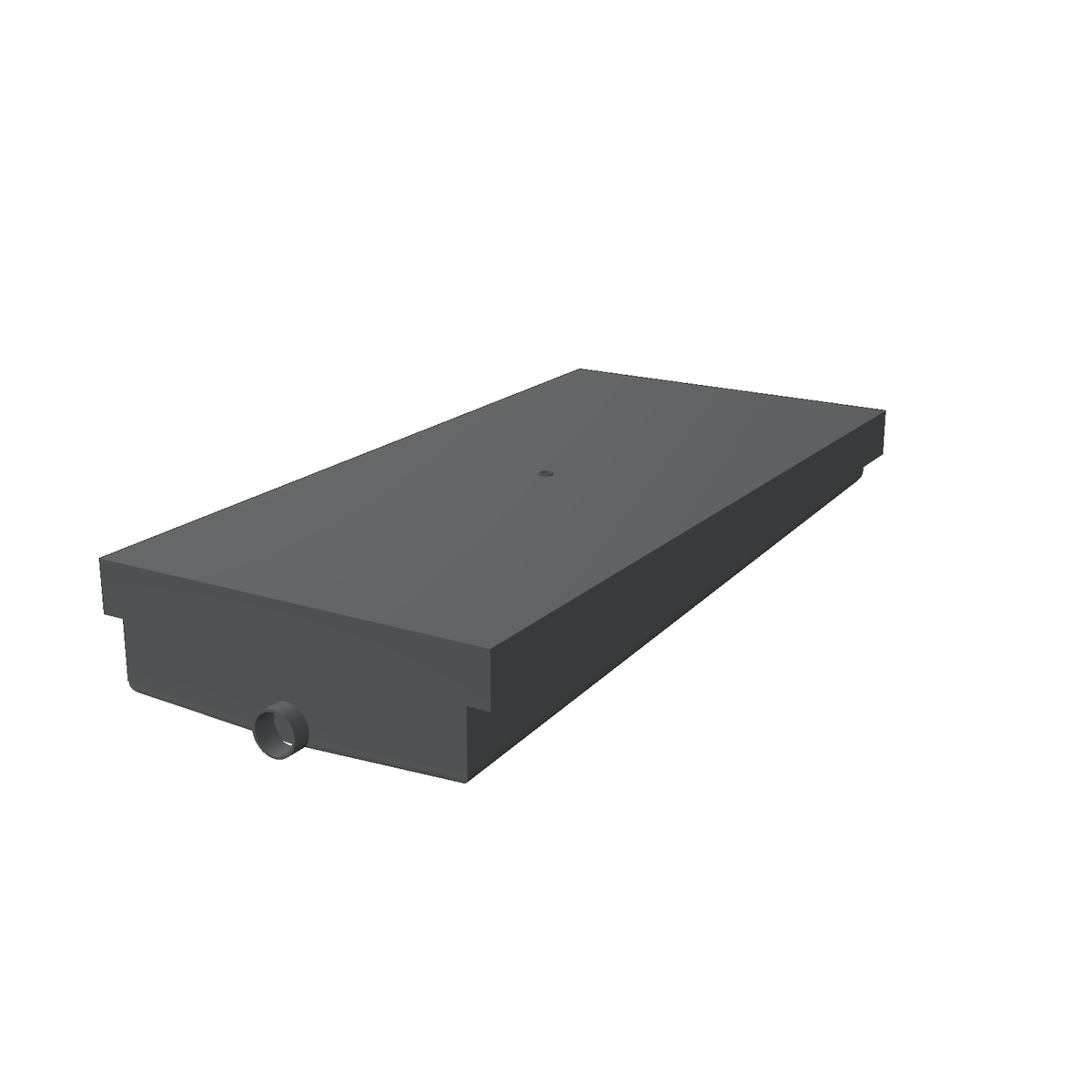

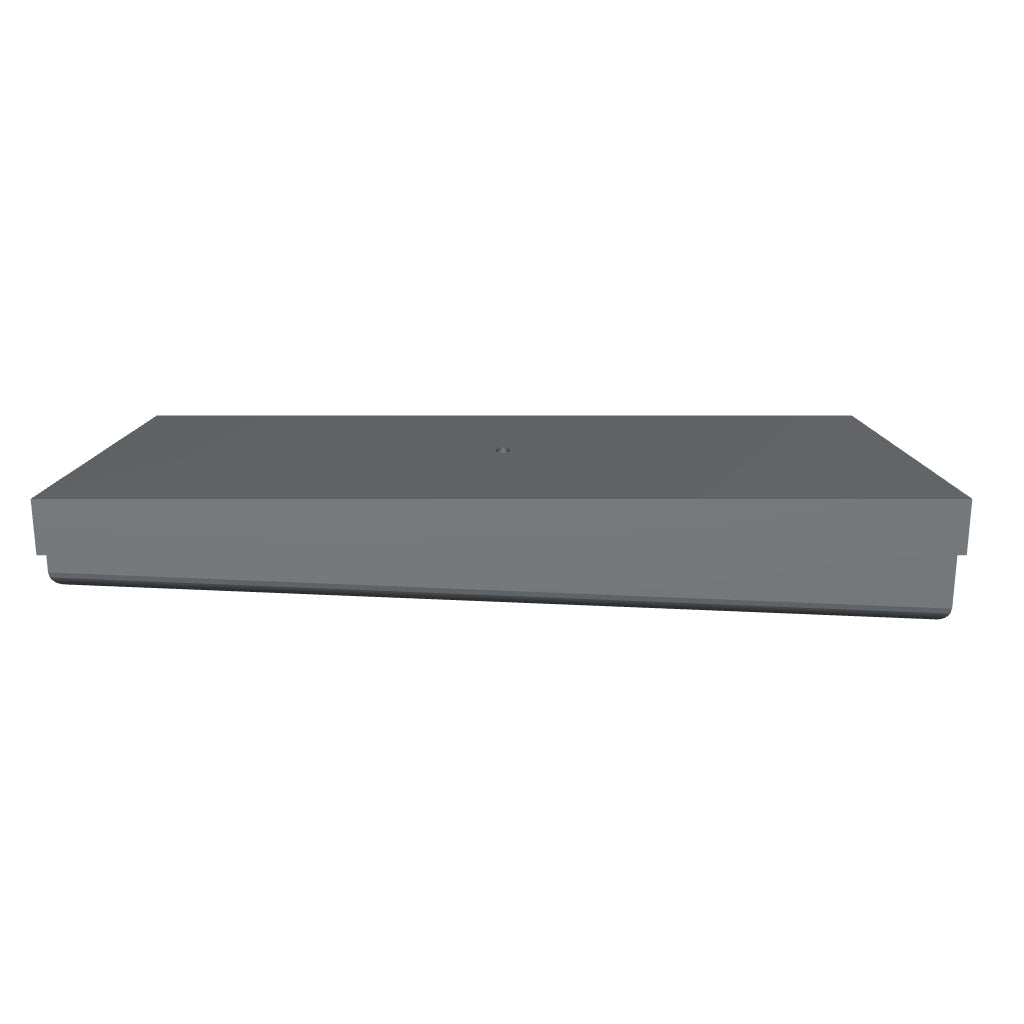

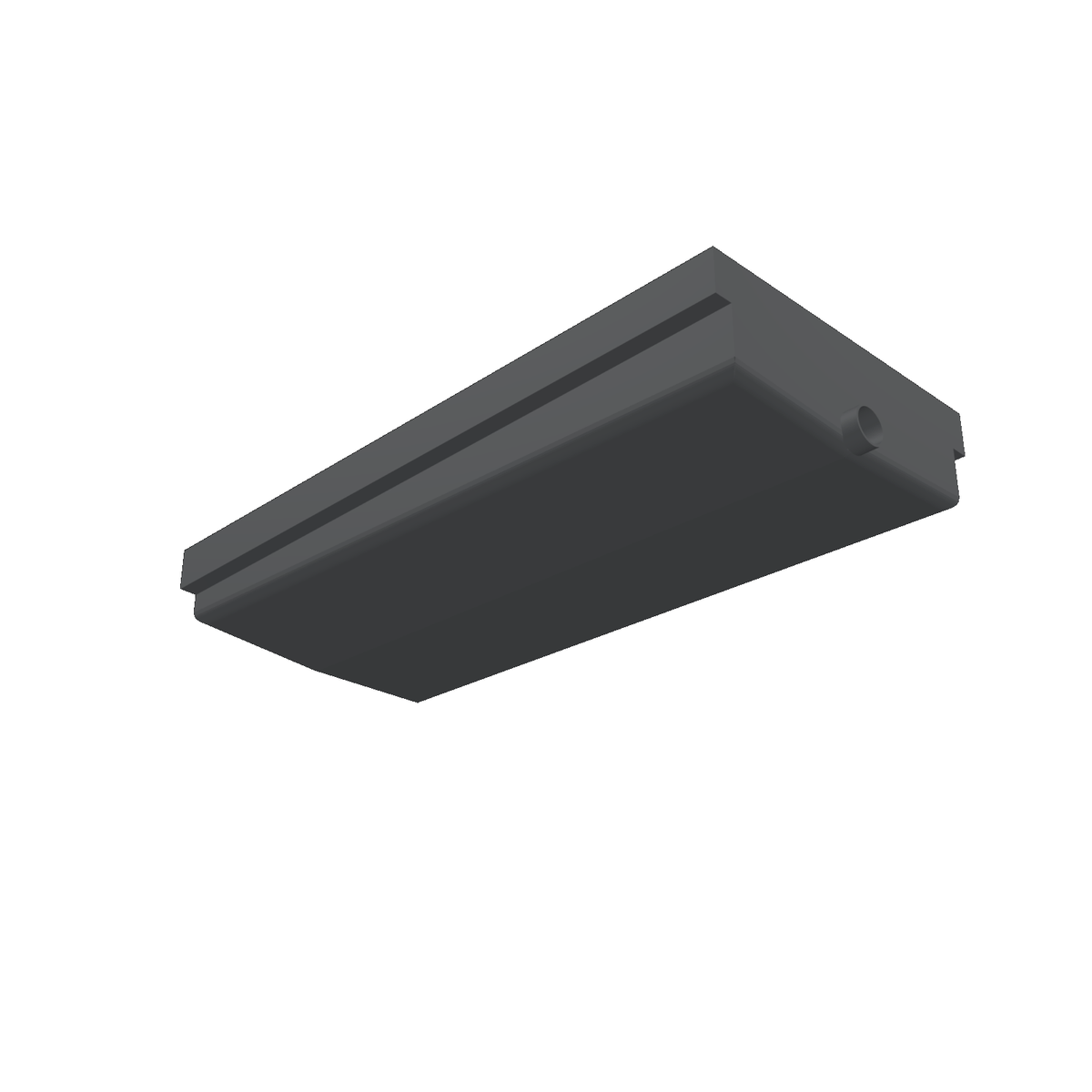

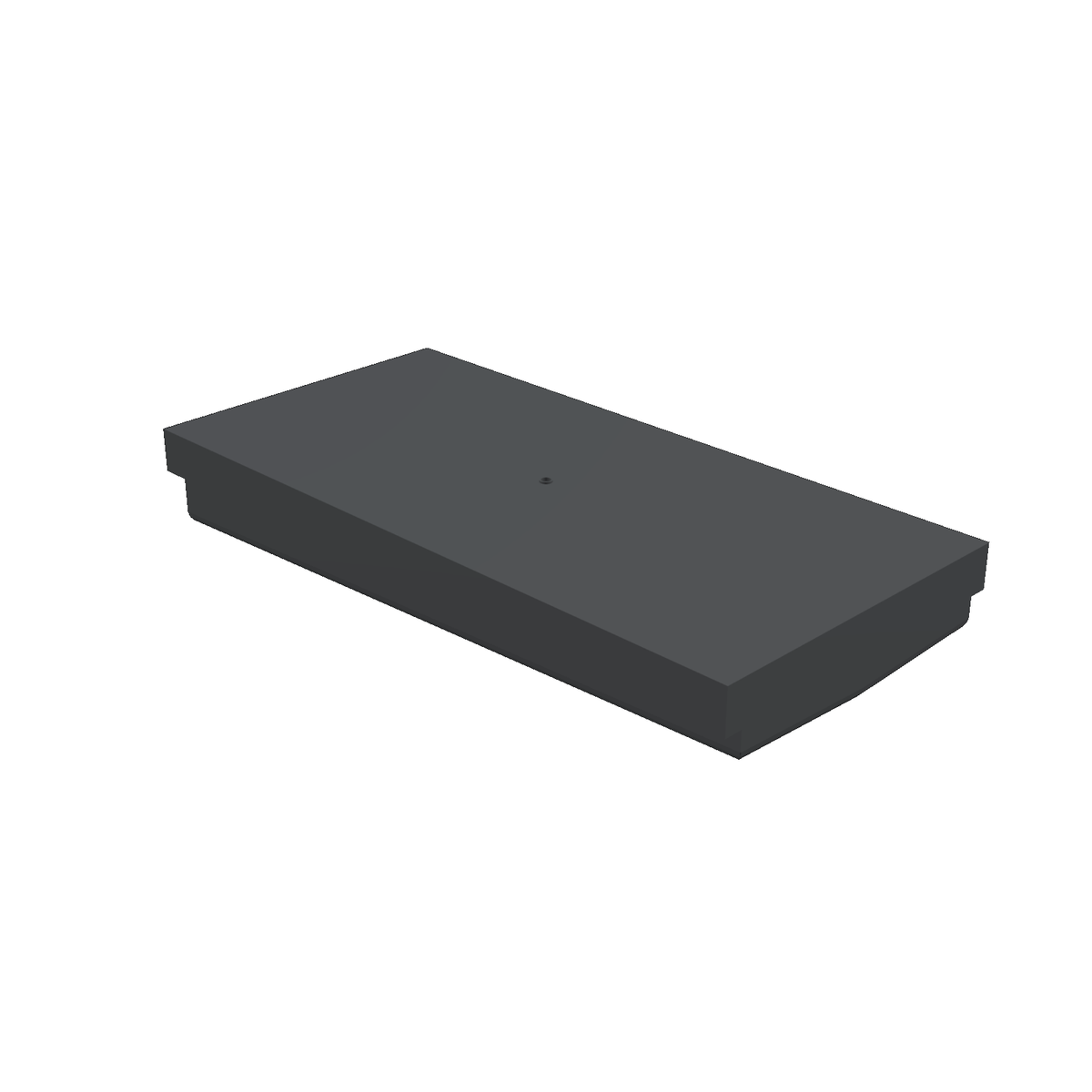

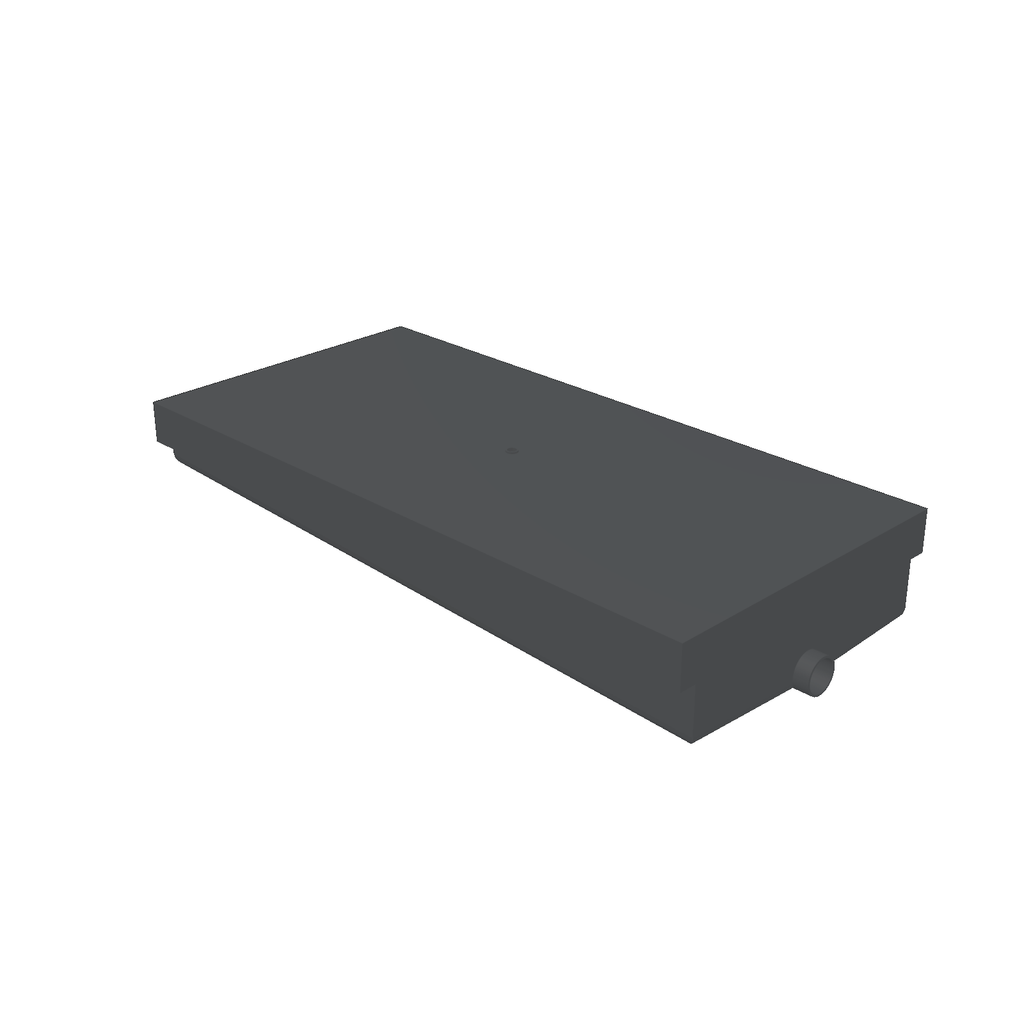

Dimensioned Print and Gallery Views
The original print shows a 56-inch length, 27-inch upper width and 9-inch maximum tank depth. The body below the flange is 24 inches wide, with 1 1/2-inch setbacks; its outlet is centered 12 inches from either body edge. The shallow end is 6 5/8 inches deep, with a 2 3/8-inch drop toward the outlet. The end view marks 8 7/16 inches at the deeper section and a 3 1/2-inch upper band. A 1-inch vent tube and R1 bottom edges are called out.
Rendered views and the rotatable model are reconstructions from the original print, not measured manufacturing CAD. Undimensioned connection projections, wall thickness, vent projection and transition blends follow drawing proportions. Allow clearance for connections and plumbing; retain the original print as the fitment reference.
| QAI Certification | REC 559-1 |
|---|---|
| Part number | H1240002/4793 |
| Capacity (gallons) | 45 |
| Dimensions (inches) | 56 x 27 x 9 |
| Lead time | |
| Best for | Motorhomes and travel trailers |
- What are the dimensions of the 45 gallon rv holding tank? The dimensions of the tank are 56 inches in length, 27 inches in width, and 9 inches in height.
- Is the 45 gallon rv holding tank equipped with fittings? The print shows a 1-inch vent tube and a centered molded outlet. The listing specifies a 3-inch outlet. Separate valves, adapters and mounting hardware are not included; compare the retained print to your installation.
- What material is the rv holding tank made from? The tank is made from black polyethylene with a wall thickness of 0.180 inches.
- What is the purpose of the sealed hole on top of the tank? The sealed hole on top of the tank is a venting hole used during the manufacturing process and has no functional use for the end-user.
- How is the tank manufactured to ensure durability? The tank is manufactured using a roto-molding process, which creates a seamless tank with equal wall thickness and no weak spots, making it very strong and durable.
