42 Gallon RV Holding Tank 84 x 23 x 11 9/16 EPI 4430
Frequently needed together
- This item: 42 Gallon RV Holding Tank 84 x 23 x 11 9/16 EPI 4430 $398.95
- Elkhart RV Parts - Universal Holding Tank Fittings Kit - Black & Grey Water - 4 Sensors - 3" & 1.5" Couplers - Complete DIY Installation Kit $44.95
- Adcoseal - B-100 Butyl Rubber Sealant - 10.3 oz Cartridge - Black - Exterior RV Tank Sealant $28.95
Total price $472.85
---
42 Gallon RV Holding Tank 84" x 23" x 11 9/16" maximum EPI 4430
Wall thickness is 0.180" in black polyethylene
Elkhart Plastic tanks are manufactured to meet quality and health safety standards. With fewer impurities, these tanks are strong enough to take the bumps and bangs without compromising the security of your waste-water holding system. Elkhart Plastics uses a process called roto-molding in which high-density plastic is rotated and molded into shape. This process creates a seamless tank in which the walls are of equal thickness, with no weak spots to cause trouble later. It is this process that has earned Elkhart Plastics the reputation for quality tanks.
PLEASE NOTE: All returns are subject to approval.
Dimensioned Print and Gallery Views

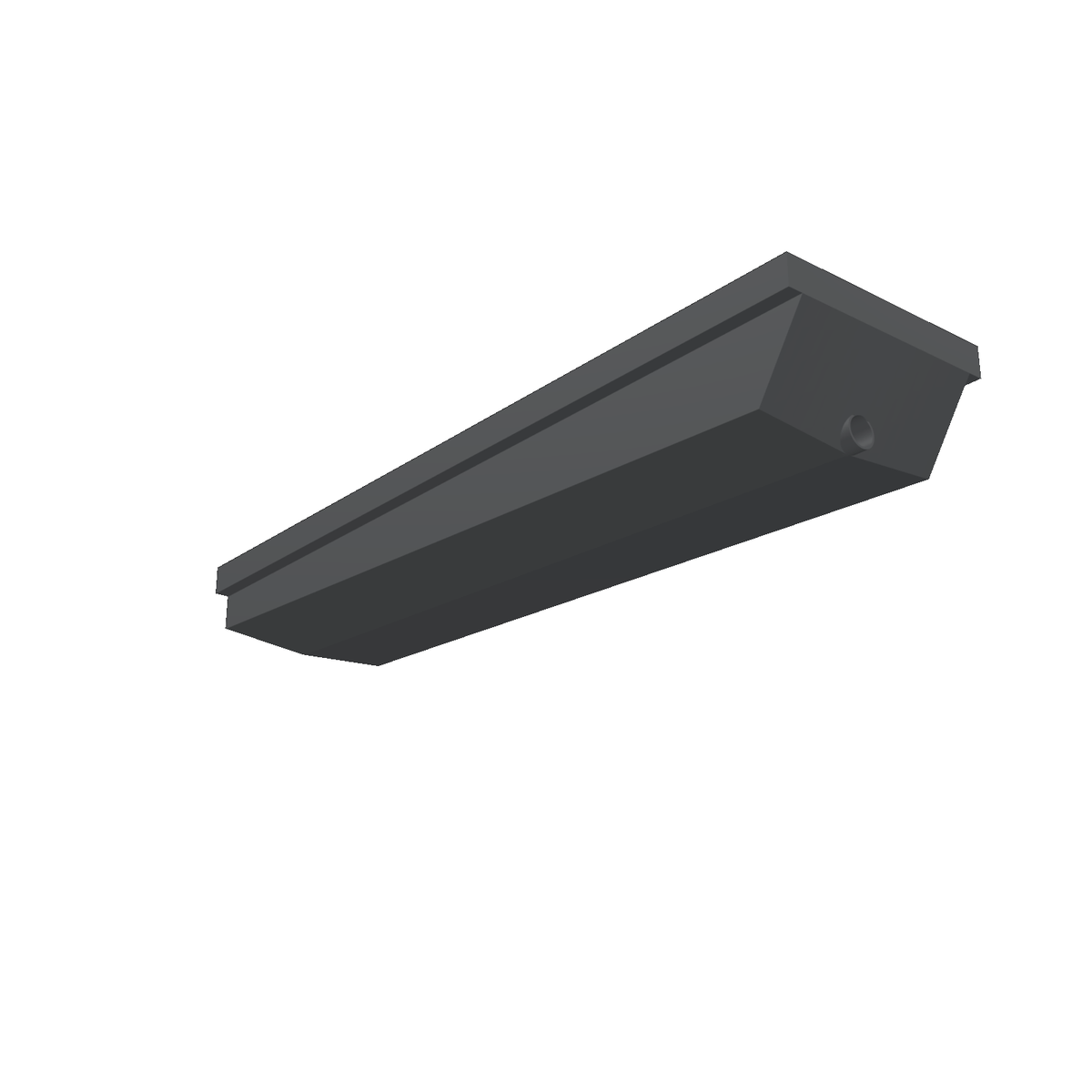

The retained print shows an84 x23-inch overall footprint,11 9/16-inch maximum depth and7 1/2-inch shallow-end depth. The upper band is3 inches deep; the body below it is20 inches wide. The sloped underside and inset outlet end are important clearance details. Earlier12-inch display depth has been corrected to the print dimension.
Compare the entire drawing with your existing tank, mounting supports and plumbing. The print shows an outlet at the deep end but does not dimension its bore diameter, projection or every molded transition. It does not locate top openings; no top fittings were added to the visualization.

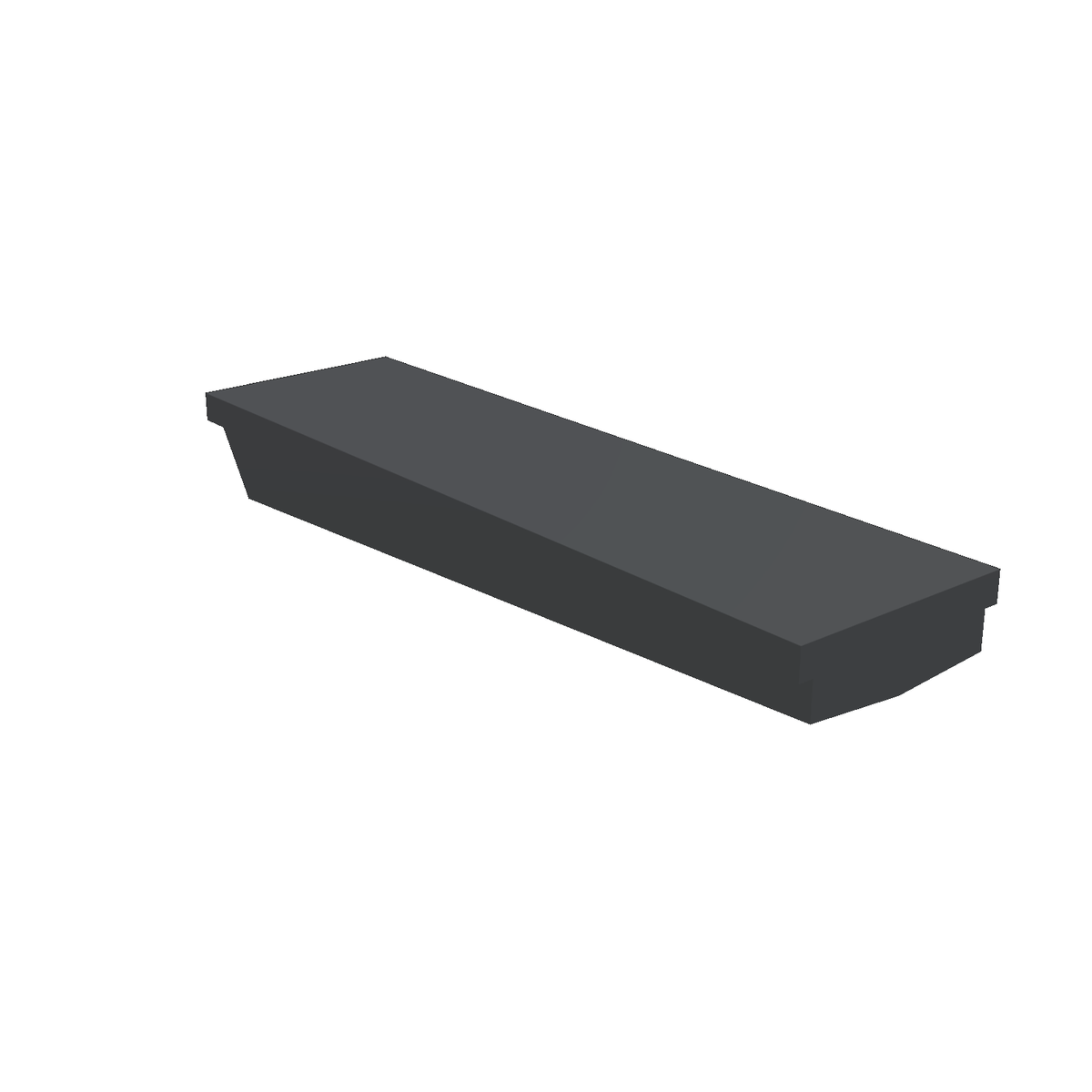

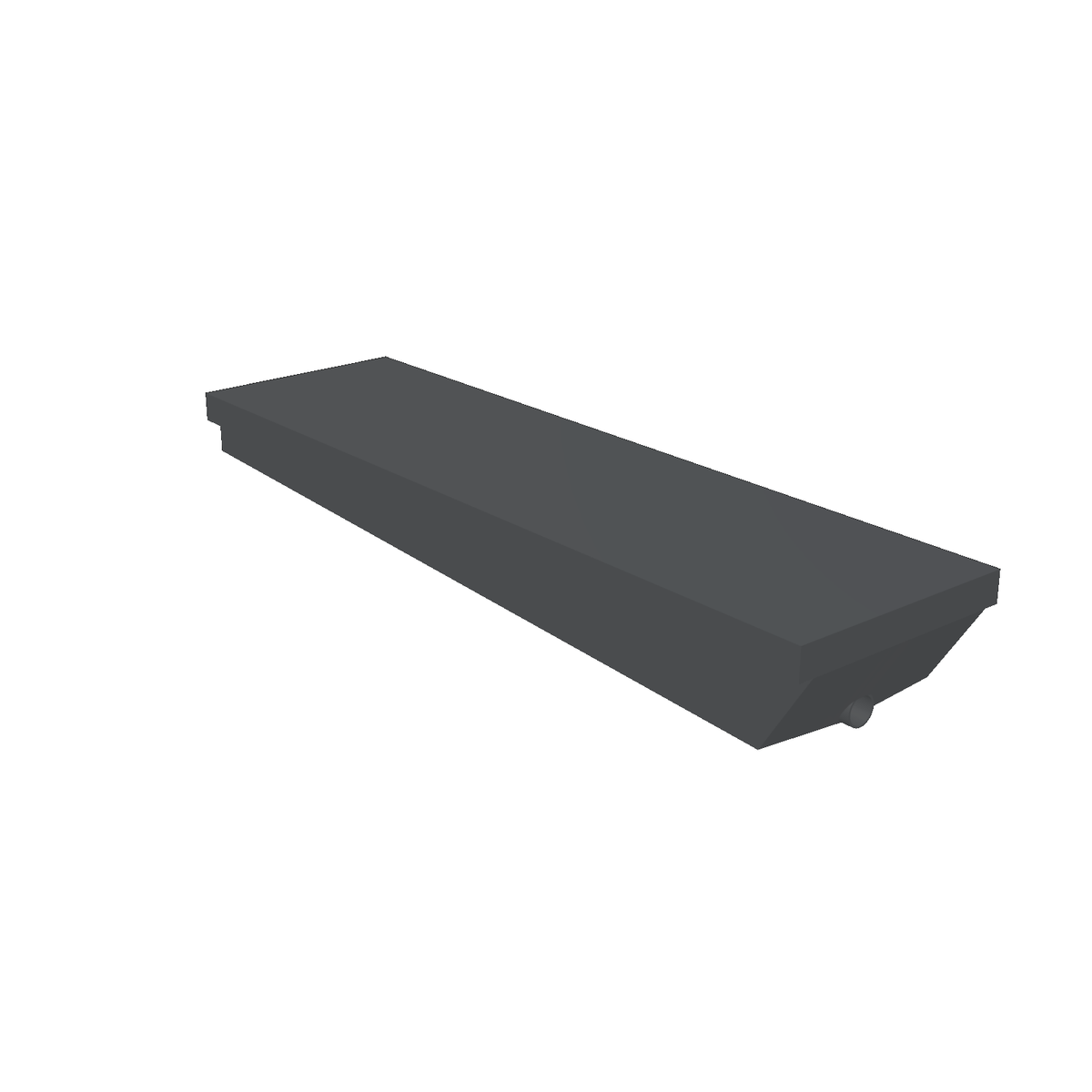

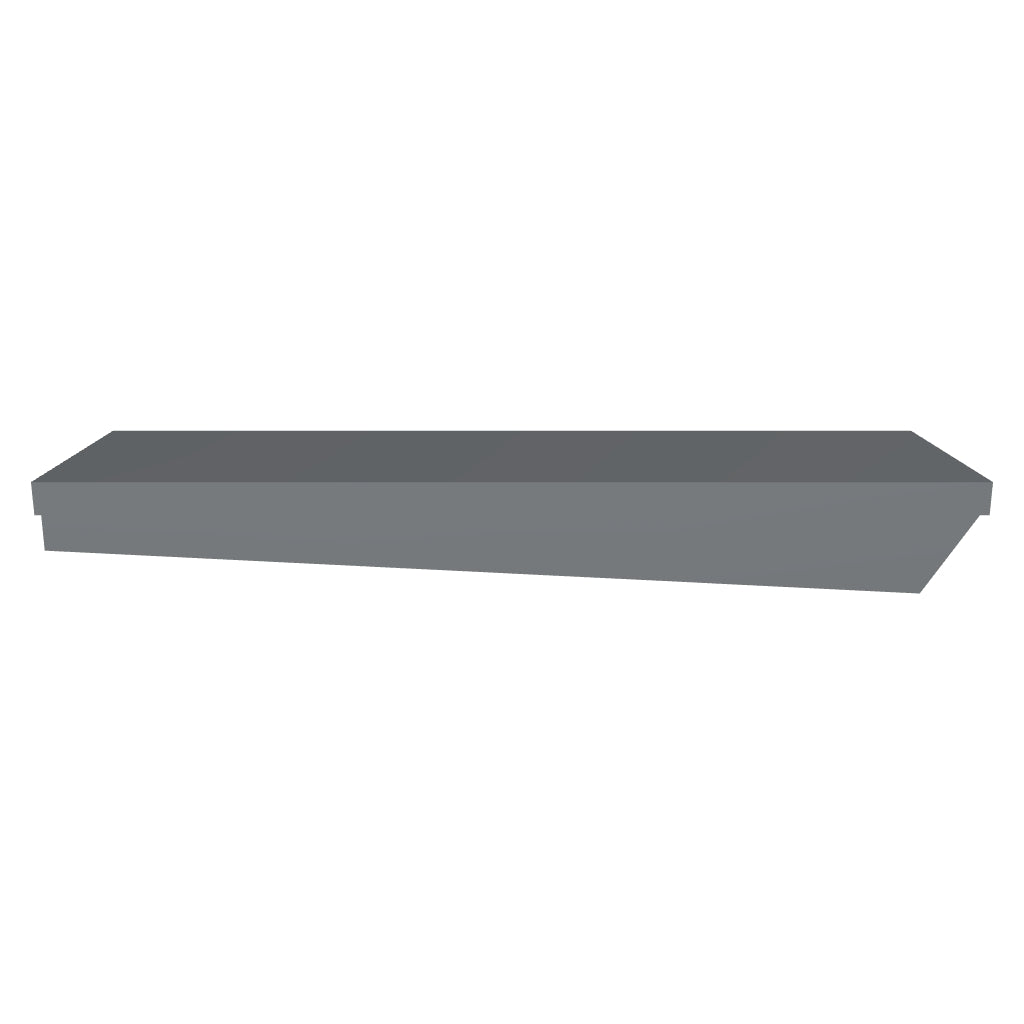

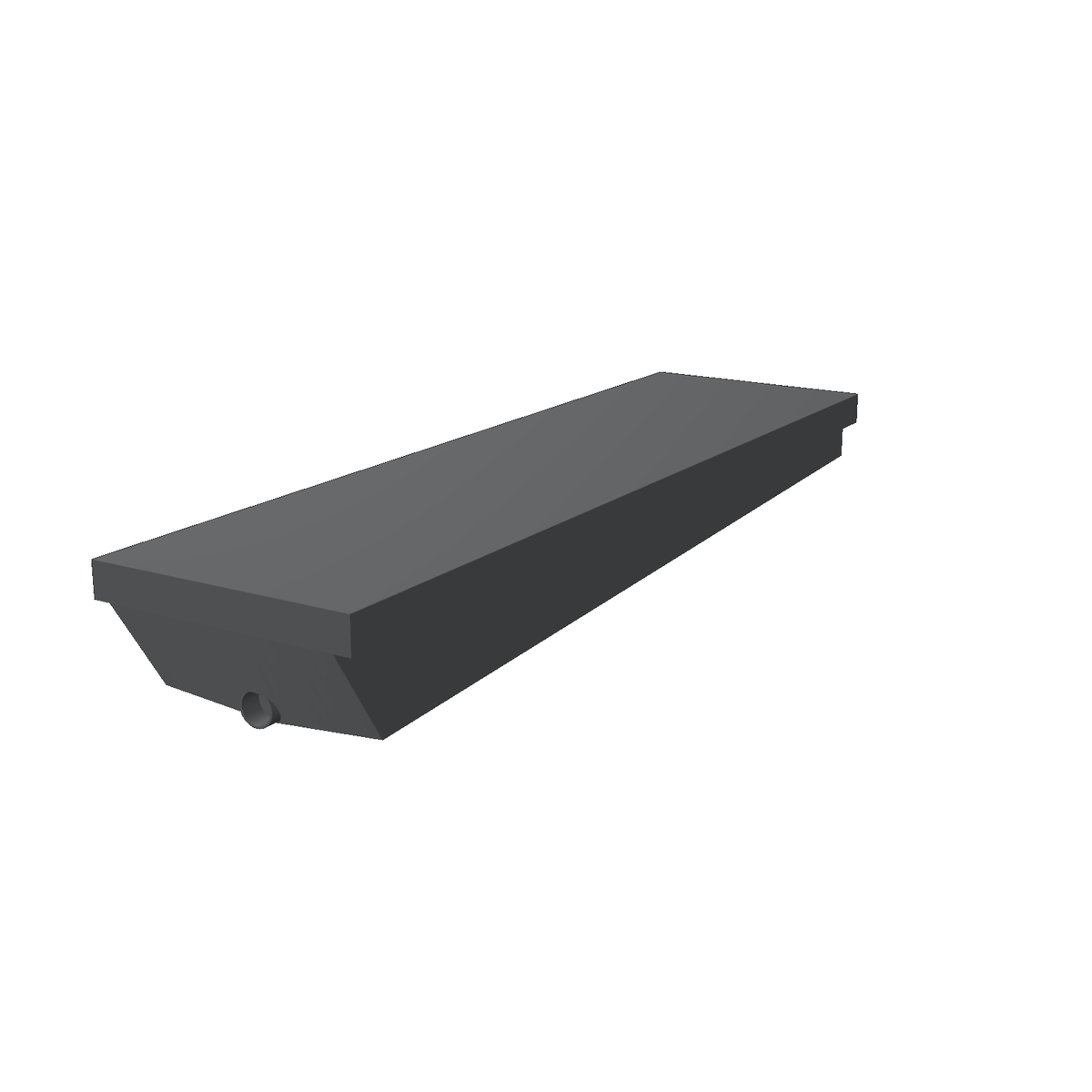

The four views and rotatable model are reconstructed from the print, not measured manufacturing CAD. Undimensioned outlet details, end setback, cross-slope and edge blending are illustrative. The original dimensioned blueprint remains the fitment reference.
| QAI Certification | REC 559-1 |
|---|---|
| Part number | 4430 |
| Capacity (gallons) | 42 |
| Dimensions (inches) | 84 x23 x11 9/16 maximum |
| Lead time | |
| Best for | RV waste-water holding; compare original print |
- What is the capacity of the rv holding tank? The RV holding tank has a capacity of 42 gallons.
- What are the dimensions of this holding tank? The retained print shows an 84 x23-inch overall footprint and11 9/16-inch maximum depth, with7 1/2-inch shallow-end depth. The body below the upper band is20 inches wide.
- What material is the holding tank made from? The tank is made from black polyethylene with a wall thickness of 0.180 inches.
- How is the tank constructed to ensure durability? The tank is made using roto-molding, a process that creates a seamless tank with walls of equal thickness, making it strong and free from weak spots.
