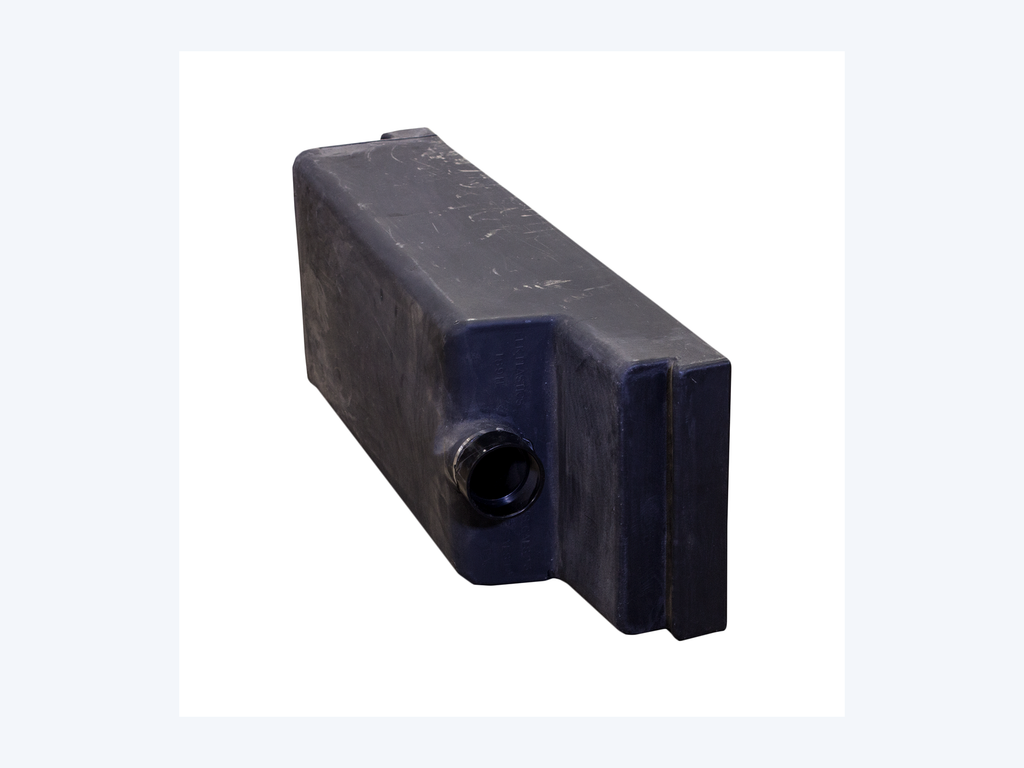

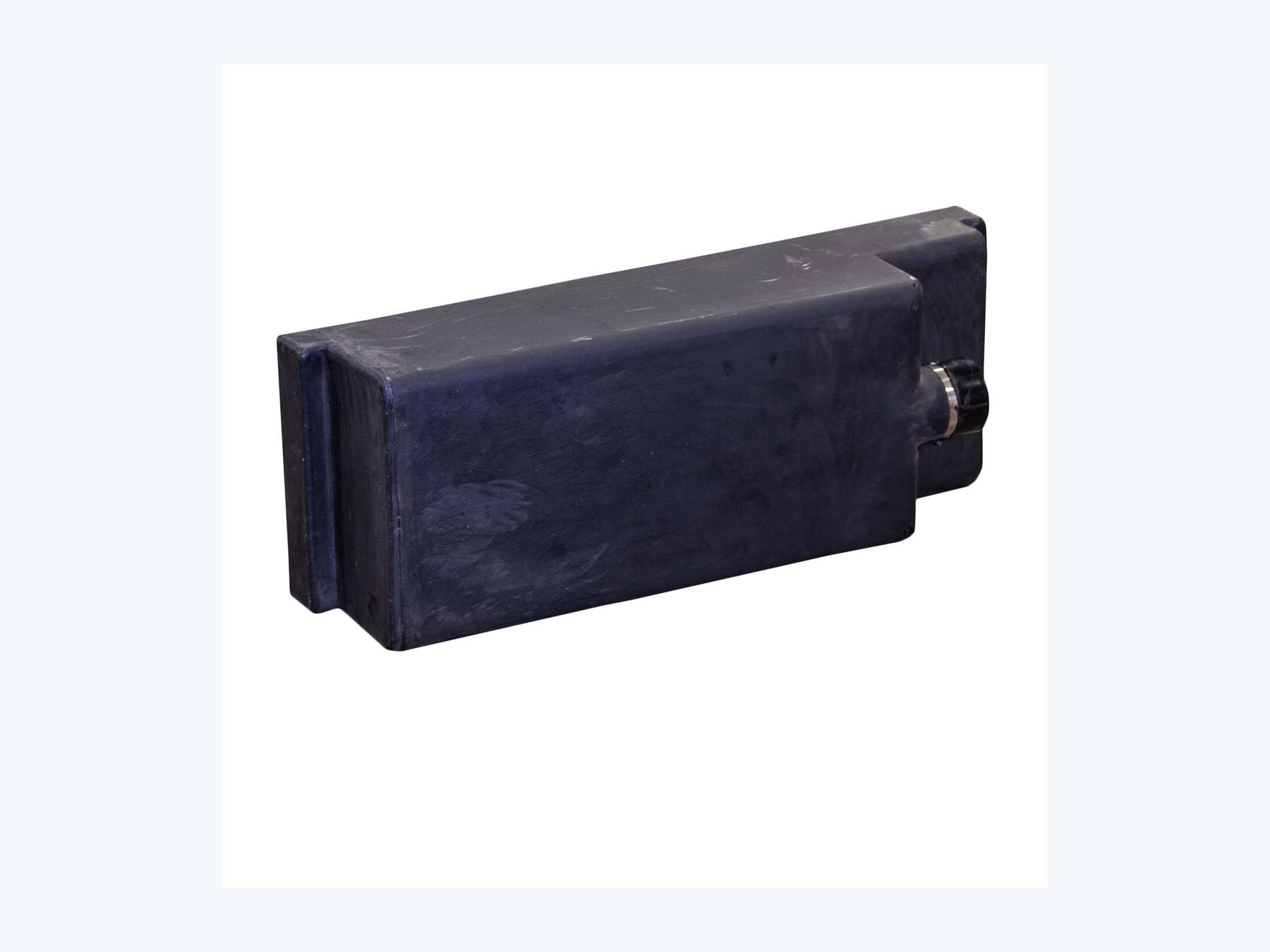

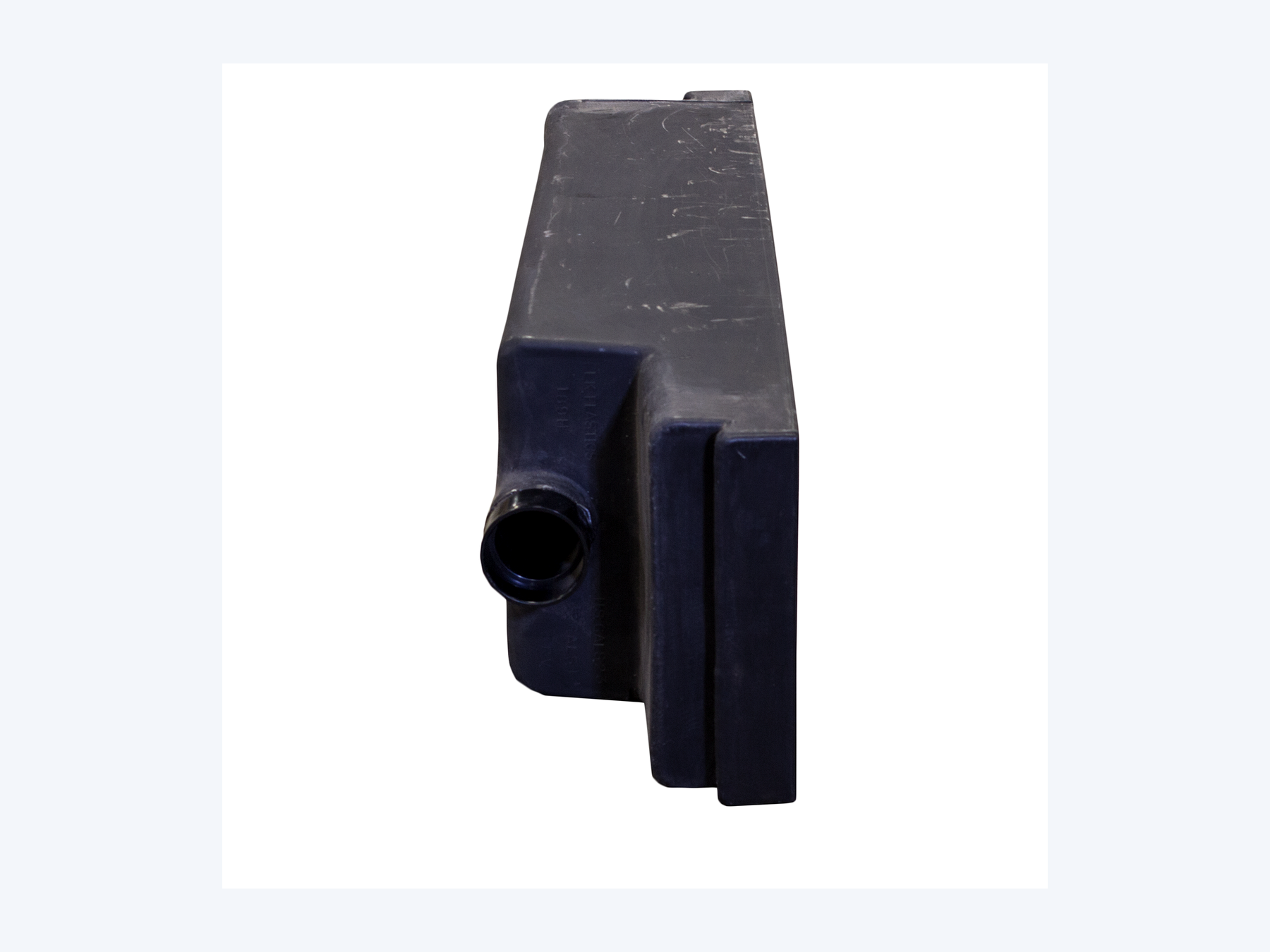

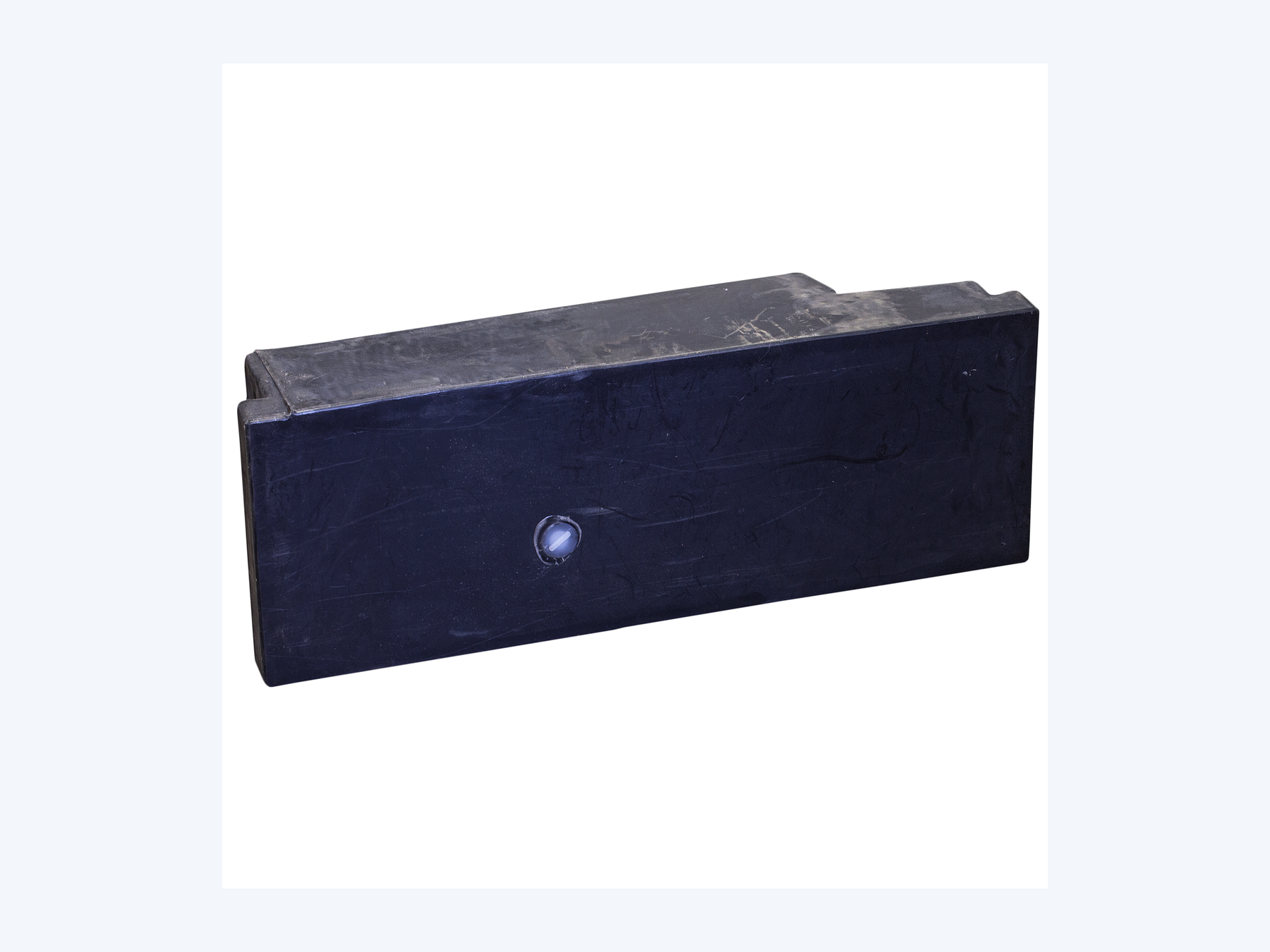

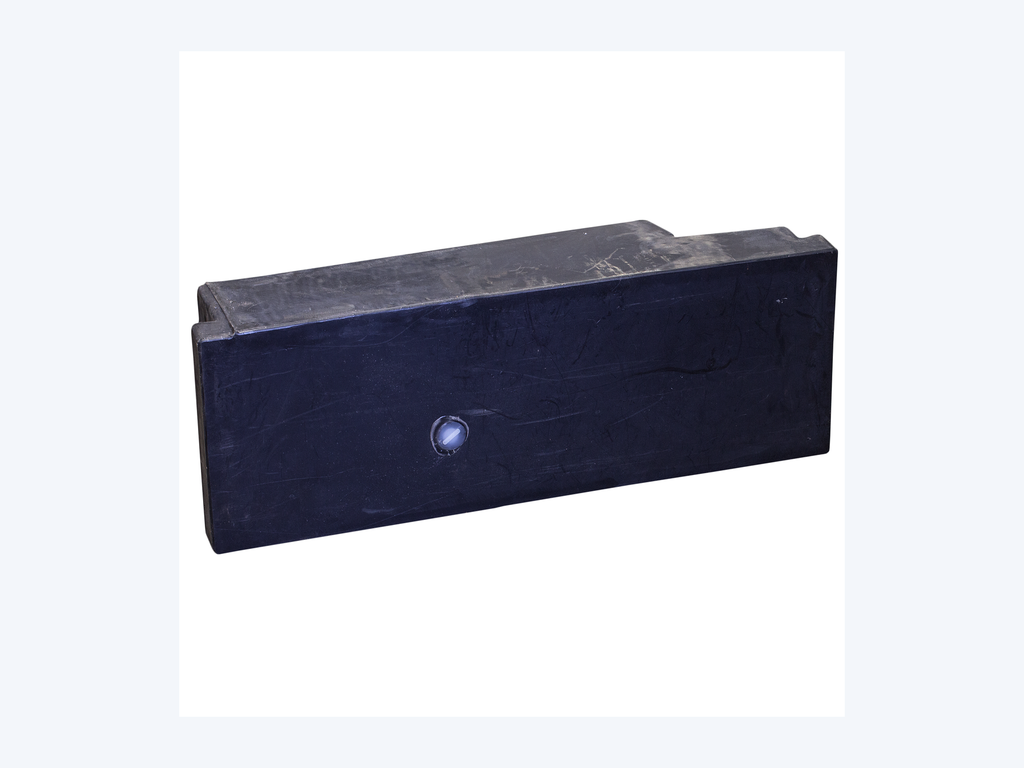

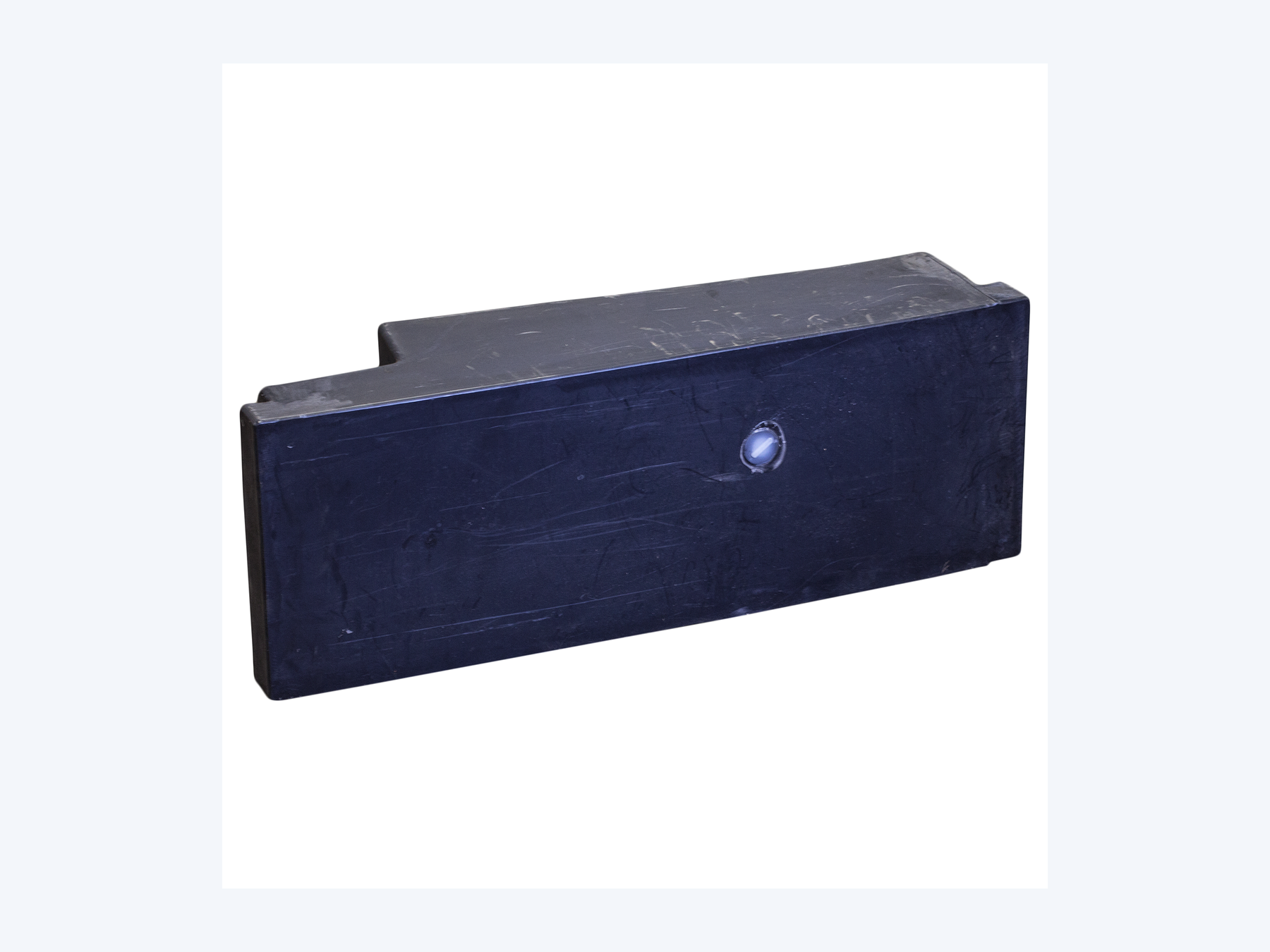

Premium 19 Gallon RV Holding Tank by Elkhart Plastics
The Elkhart Plastics EPI 0189H H1320 is a premium 19-gallon RV holding tank engineered for reliable black water and gray water storage in recreational vehicles. This rotomolded seamless tank features professional-grade construction with 0.180" wall thickness and a 3-inch drain fitting, making it the ideal replacement or upgrade for RV restoration projects and custom builds.
Why Choose This Elkhart Plastics Holding Tank
Elkhart Plastics has been the trusted name in RV holding tanks for decades, and this 19-gallon model exemplifies their commitment to quality. The seamless rotomolded construction eliminates weak points and potential leak areas, while the durable black polyethylene material resists chemicals, odors, and UV degradation. With compact 40x14x11 dimensions, this tank fits tight spaces while providing ample 19-gallon capacity for extended trips. The 3-inch drain ensures fast, efficient emptying at dump stations.
Whether you're replacing a failed tank, upgrading to OEM quality, or building a custom RV system, this Elkhart Plastics tank delivers the durability and reliability you need. Backed by our authenticity guarantee and 30-day return policy, you can purchase with confidence knowing you're getting a genuine Elkhart Plastics product.
Compare Similar Capacity RV Holding Tanks
| Model | Capacity | Dimensions (L×W×H) | Part Numbers | Best For | View Details |
|---|---|---|---|---|---|
| Elkhart Plastics 0189H | 19 Gallons | 40" × 14" × 11" | EPI 0189H, H1320 | Compact spaces, standard RVs | Current Product |
| Elkhart Plastics 1299 | 20 Gallons | 23.75" × 19" × 13.625" | EPI 1299 | Compact footprint, taller profile | View Details |
| MAKS 32×32×5 | 20 Gallons | 32" × 32" × 5" | MAKS | Low-profile, wide footprint | View Details |
| ICON HT706-ED | 15 Gallons | 46.5" × 16.5" × 8" | HT706-ED | Narrow spaces, lower capacity | View Details |
| Alpha VR32325H | 15 Gallons | 32" × 32" × 5.125" | VR32325HBLANK | Low-profile alternative | View Details |
| ICON H3826 | 25 Gallons | 54.25" × 25" × 6" | H3826, 600211027 | Higher capacity, low-profile | View Details |
💡 Helpful Tip: When selecting a holding tank, measure your available space carefully and consider both capacity needs and physical dimensions. The 19-gallon capacity is ideal for weekend trips and smaller RVs, while the compact 40×14×11 footprint fits most standard installations.

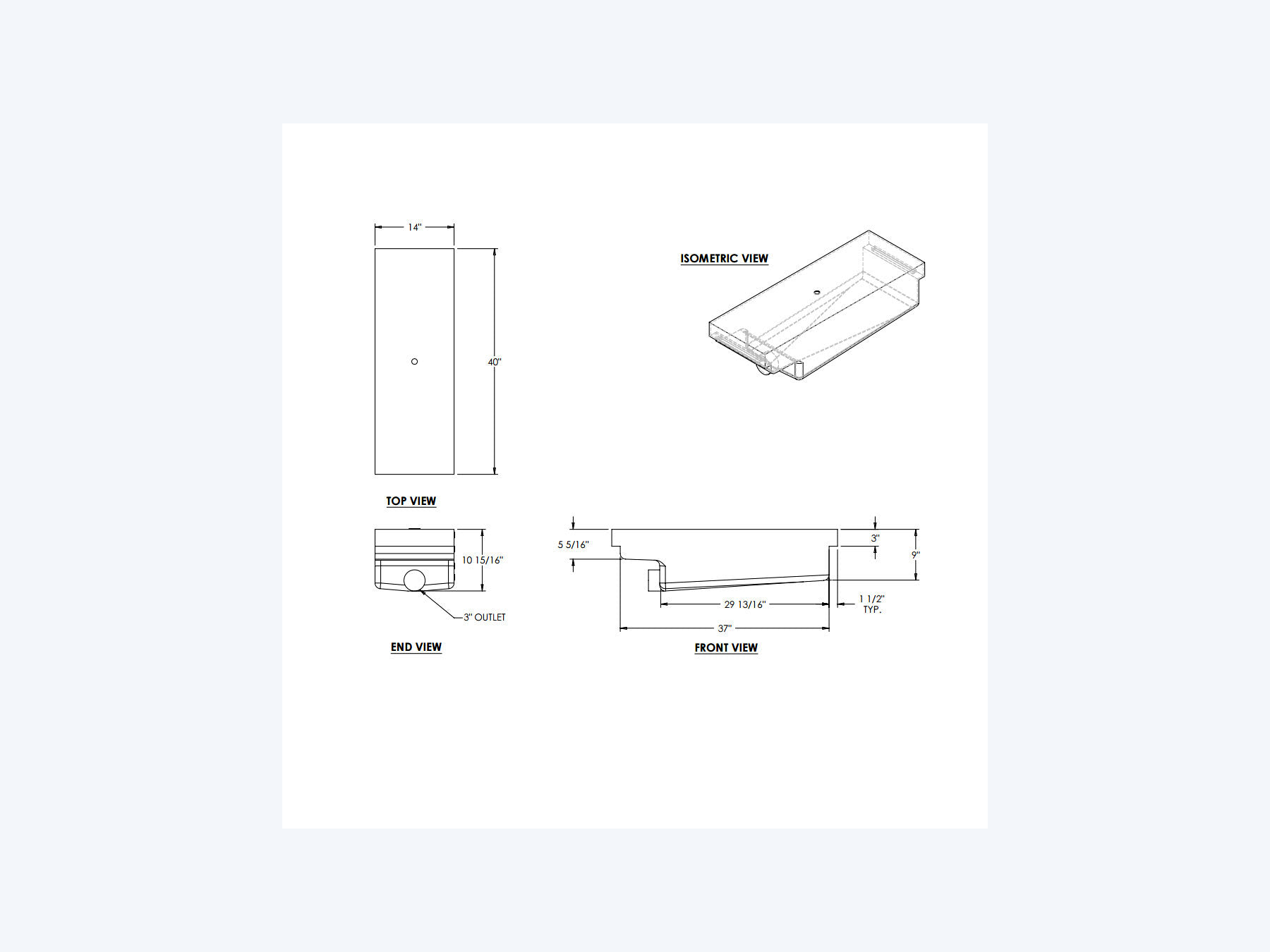

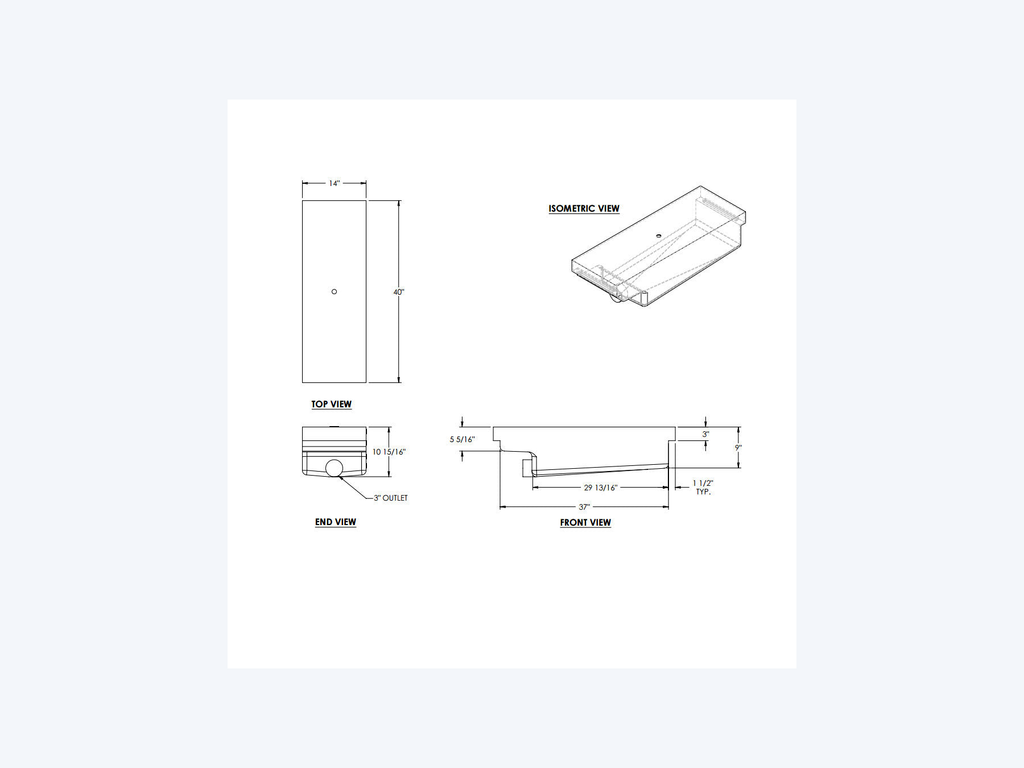

Technical Specifications
- Capacity: 19 Gallons
- Dimensions: 40" Length × 14" Width × 11" Height
- Material: Black Polyethylene (UV-resistant, chemical-resistant)
- Construction: Rotomolded Seamless Design
- Wall Thickness: 0.180" (Heavy-duty construction)
- Drain Size: 3 Inch
- Weight: 35 lbs (shipping weight)
- Part Numbers: EPI 0189H, H1320, QT #230403-1
- Manufacturer: Elkhart Plastics/Ameri-Kart
- Tank Type: Blank (no pre-installed fittings except drain)
- HS Code: 392510
Key Features and Benefits
Seamless Rotomolded Construction
Unlike welded or seamed tanks that can develop leaks over time, this Elkhart Plastics tank features one-piece rotomolded construction. This manufacturing process creates a seamless, uniform wall thickness throughout the entire tank, eliminating weak points and ensuring long-term reliability even under the stress of road vibration and temperature fluctuations.
Premium 0.180 Inch Wall Thickness
The heavy-duty 0.180" wall thickness provides superior strength and durability compared to thinner-walled competitors. This robust construction resists punctures, cracks, and deformation, ensuring your tank maintains its integrity for years of reliable service.
Compact Dimensions for Tight Spaces
Measuring 40" × 14" × 11", this tank is specifically designed to fit into the tight spaces common in RV construction. The elongated profile makes it ideal for installation under beds, in storage compartments, or in narrow chassis spaces where traditional square tanks won't fit.
Efficient 3 Inch Drain Fitting
The 3-inch drain fitting ensures fast, complete emptying at dump stations. Larger than standard 1.5" or 2" drains, the 3-inch opening reduces dumping time and helps prevent clogs from solid waste materials.
Blank Tank Design for Custom Installations
This blank tank configuration gives you complete flexibility to add fittings, sensors, and vents exactly where you need them for your specific installation. Whether you're doing a direct replacement or a custom build, you control the final configuration.
Chemical and Odor Resistant Material
The black polyethylene material is specifically formulated to resist the harsh chemicals used in RV waste treatment systems. It won't degrade, crack, or absorb odors over time, maintaining a sanitary and odor-free system.
Compatible Applications and Use Cases
RV Black Water Systems
Perfect for toilet waste storage in travel trailers, fifth wheels, motorhomes, and camper vans. The 19-gallon capacity provides adequate storage for weekend trips or as a secondary tank in larger systems.
RV Gray Water Systems
Ideal for collecting sink, shower, and washing machine drainage. The chemical-resistant construction handles detergents, soaps, and cleaning products without degradation.
RV Restoration Projects
When restoring vintage RVs or replacing failed original equipment, this OEM-quality Elkhart Plastics tank provides a reliable, long-lasting solution that meets or exceeds original specifications.
Custom RV Builds
For DIY RV conversions, van builds, and custom trailer projects, this blank tank gives you the flexibility to create a waste system tailored to your specific layout and needs.
Marine and Portable Applications
While designed for RVs, this tank is also suitable for marine heads, portable toilet systems, and off-grid cabin installations where reliable waste storage is needed.
Installation Guidance
This holding tank should be installed in a secure, level location with adequate support underneath. Use appropriate mounting straps or brackets to prevent movement during travel. Ensure proper venting to prevent vacuum lock during draining and to allow gases to escape safely. Install a gate valve on the drain fitting for controlled emptying at dump stations.
For custom installations, you'll need to drill and install fittings for the inlet (from toilet or drains), vent pipe, and any sensors or monitoring equipment. Use appropriate sealants rated for waste system applications to ensure leak-free connections.
Health, Safety, and Quality Standards
Elkhart Plastics manufactures this holding tank to meet rigorous industry standards for RV waste systems. The polyethylene material is NSF-approved for waste water applications and meets RVIA (Recreational Vehicle Industry Association) standards for RV holding tanks. The seamless construction and heavy wall thickness exceed minimum safety requirements, providing peace of mind for you and your family.
Complete Your RV Waste System
Looking for additional components to complete your holding tank installation? Browse our complete selection of replacement parts and fittings for RV holding tanks including gate valves, vent caps, tank sensors, and mounting hardware. You can also explore our full range of RV grey and black water holding tanks to find the perfect capacity and dimensions for your specific needs.
What Customers Are Saying
⭐⭐⭐⭐⭐ 4.9/5 Stars (Based on 9 verified customer reviews)
"Perfect fit for my vintage Airstream restoration. The quality is outstanding - much better than the cheap aftermarket tanks I looked at. The 3-inch drain makes dumping so much faster." - Leonard J., Verified Purchase
"Elkhart Plastics is the gold standard for RV tanks. This 19-gallon model fit perfectly in the tight space under my trailer. Installation was straightforward and it's been leak-free for over a year now." - RV Restoration Customer
Frequently Asked Questions
What is the difference between a black water and gray water holding tank?
This tank can be used for either application. Black water tanks store toilet waste, while gray water tanks collect sink and shower drainage. The tank itself is identical - the difference is in what you connect to it and how you label it in your system.
Does this tank come with fittings installed?
This is a blank tank with only the 3-inch drain fitting installed. You'll need to drill and install your own inlet fittings, vent fittings, and sensor fittings based on your specific installation requirements. This gives you complete flexibility for custom installations.
How do I know if this tank will fit my RV?
Measure your available space carefully, accounting for clearance around the tank for fittings and hoses. This tank measures 40" × 14" × 11". If you're replacing an existing tank, compare these dimensions to your current tank. If you're doing a custom installation, ensure you have adequate space plus room for connections.
Is this tank suitable for marine applications?
Yes, while designed for RVs, this tank is suitable for marine waste systems, portable toilets, and off-grid applications. The chemical-resistant polyethylene construction handles marine waste treatment chemicals effectively.
What is the warranty on this Elkhart Plastics holding tank?
Elkhart Plastics stands behind their manufacturing quality. We offer a 30-day return policy, and the tank is covered against manufacturing defects. Proper installation and use are essential for warranty coverage.
How long will this holding tank last?
With proper installation and maintenance, Elkhart Plastics holding tanks typically last 15-20+ years. The seamless rotomolded construction and heavy wall thickness ensure long-term durability even under harsh conditions.
Why Buy from Elkhart RV Parts?
- Authorized Elkhart Plastics Dealer: 100% authentic OEM parts, never knockoffs or seconds
- Expert Product Knowledge: Our team understands RV systems and can help you choose the right tank
- Fast Shipping: In-stock items ship quickly to get your project moving
- 30-Day Return Policy: Purchase with confidence knowing you can return if it doesn't fit
- Competitive Pricing: Premium quality at fair prices
- AI Live Chat Support: Get instant answers to product questions and installation guidance
Order Your Elkhart Plastics 19 Gallon Holding Tank Today
Don't settle for inferior aftermarket tanks that may leak or fail prematurely. Invest in genuine Elkhart Plastics quality and enjoy years of reliable, trouble-free service. This 19-gallon holding tank is in stock and ready to ship. Order now and get your RV waste system upgrade or restoration project completed with confidence.
Need help selecting the right tank or have installation questions? Use our AI Live Chat for instant product guidance and technical support. Our system has deep knowledge of all our products and can help you make the right choice for your specific application.
| Material | Black polyethylene |
|---|---|
| Width (inches) | 14 |
| Height (inches) | 11 |
| Length (inches) | 40 |
| Capacity (gallons) | 19 |
| Drain size (inches) | 3 |
| Wall thickness (inches) | 0.18 |
- What is the capacity of the rv holding tank? The RV holding tank has a capacity of 19 gallons.
- What are the dimensions of the 19 gallon rv holding tank? The tank measures 40 inches in length, 14 inches in width, and approximately 11 inches in height.
- Does the tank come with fittings installed? No, the tank is blank with no fittings installed. Fittings can be added upon request and quoted separately.
- What material is the rv holding tank made from? The tank is made from black polyethylene with a wall thickness of 0.180 inches.
- Is the sealed hole on top of the tank functional for venting? No, the sealed hole on top of the tank is a venting hole used during the manufacturing process and has no functional use for the end-user.
