41 Gallon RV Holding Tank - Premium OEM Replacement by Elkhart Plastics
Replace your worn or damaged RV holding tank with this authentic 41 gallon black water holding tank manufactured by Elkhart Plastics/Ameri-Kart. Engineered with precision roto-molding technology and heavy-duty 0.180" wall thickness, this EPI 4327 (H1284) holding tank delivers the same OEM quality and durability as your original equipment.

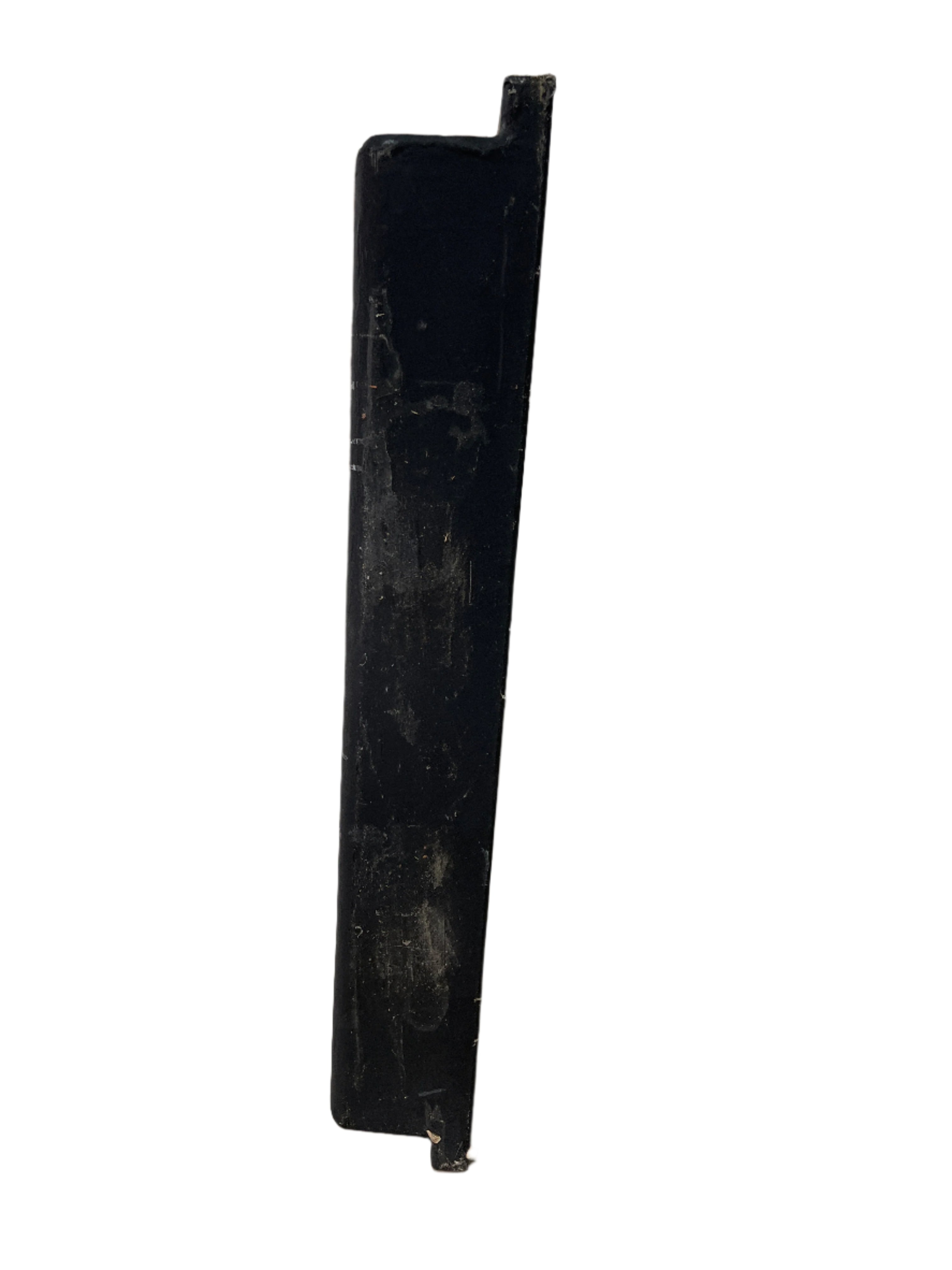

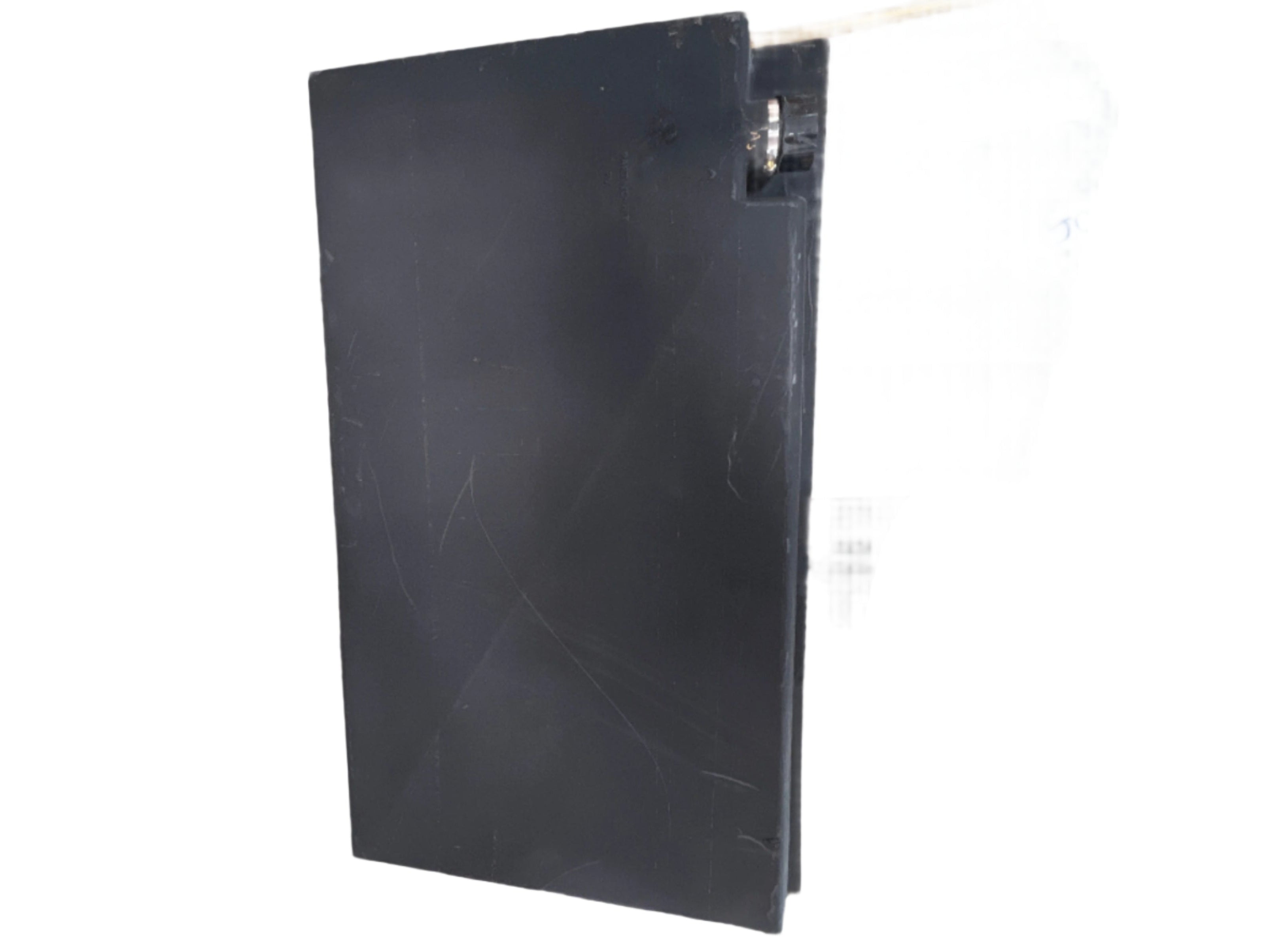

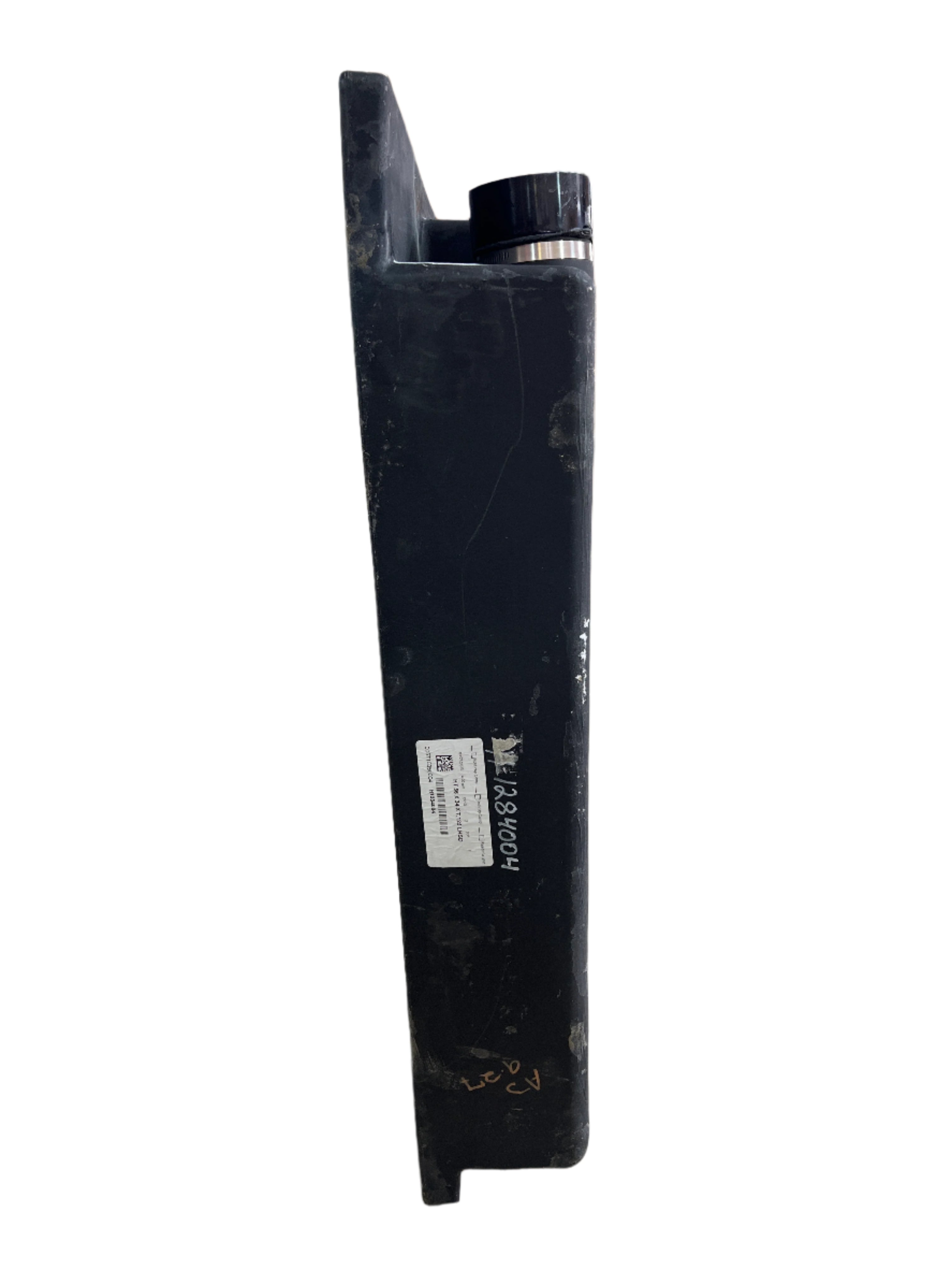

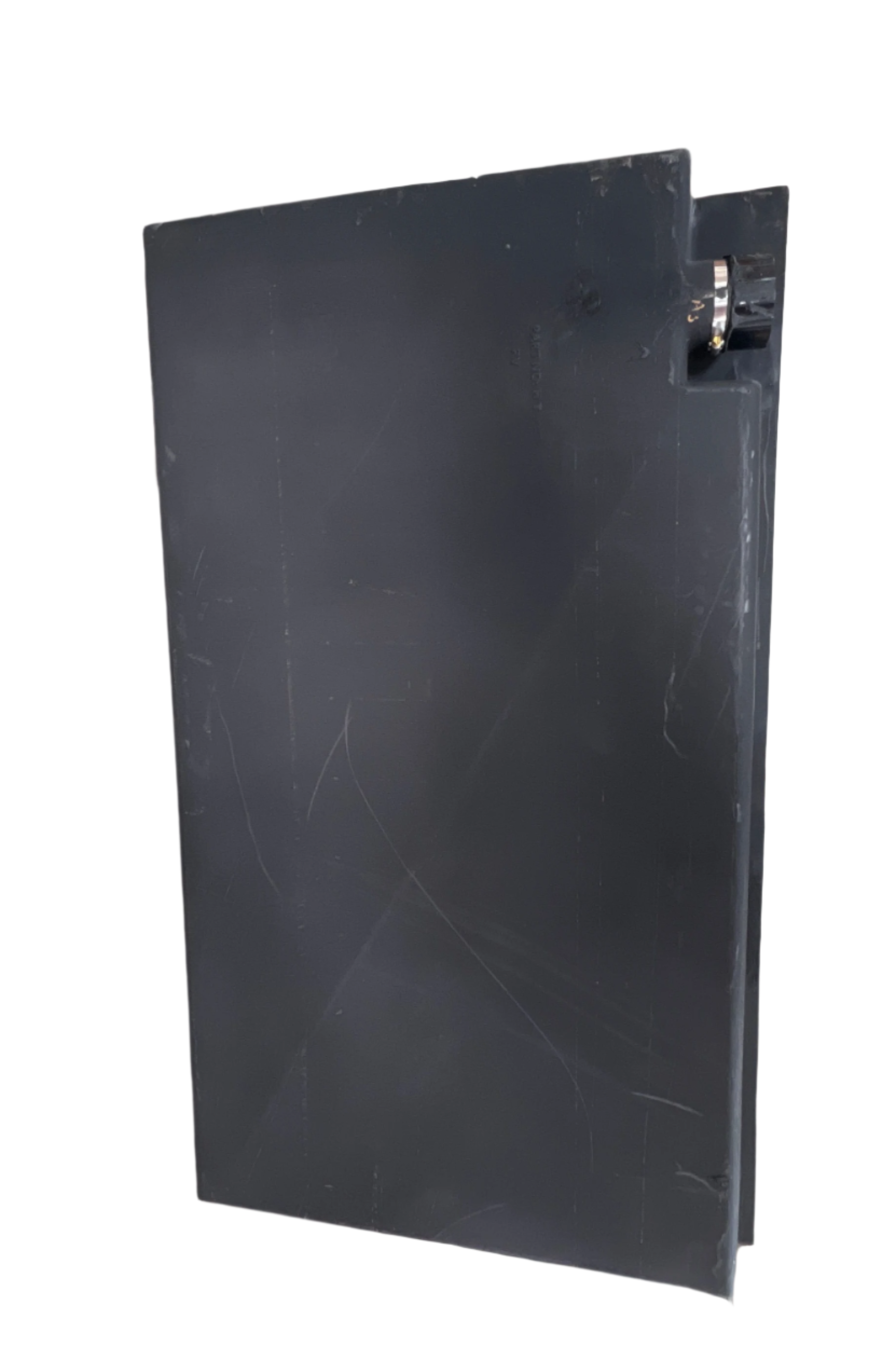

Measuring 56" x 34" x 7.125", this low-profile holding tank is designed for RVs, travel trailers, and motorhomes where space is at a premium but capacity cannot be compromised. The black polyethylene construction resists corrosion, odors, and UV degradation for years of reliable waste storage.
Why Choose This Elkhart Plastics Holding Tank?
✓ Authentic OEM Manufacturing: Made by Elkhart Plastics/Ameri-Kart, the same manufacturer that supplies major RV brands with original equipment tanks. You're getting factory-grade quality, not an aftermarket imitation.
✓ Heavy-Duty Construction: Precision roto-molded from virgin black polyethylene with a robust 0.180" wall thickness that resists punctures, cracks, and leaks even under the stress of road travel and temperature extremes.
✓ Space-Efficient Design: The 56" x 34" x 7.125" dimensions provide maximum 41-gallon capacity in a low-profile configuration, perfect for tight underbelly installations where vertical clearance is limited.
✓ Verified Compatibility: Direct replacement for EPI part numbers 4327 and H1284. If your existing tank bears either of these numbers, this is your exact match replacement.
✓ Ready to Install: Arrives with standard fittings and mounting provisions. The sealed hole on top is a manufacturing vent (not functional) - all connections are pre-positioned for straightforward installation.
Technical Specifications
- Capacity: 41 Gallons

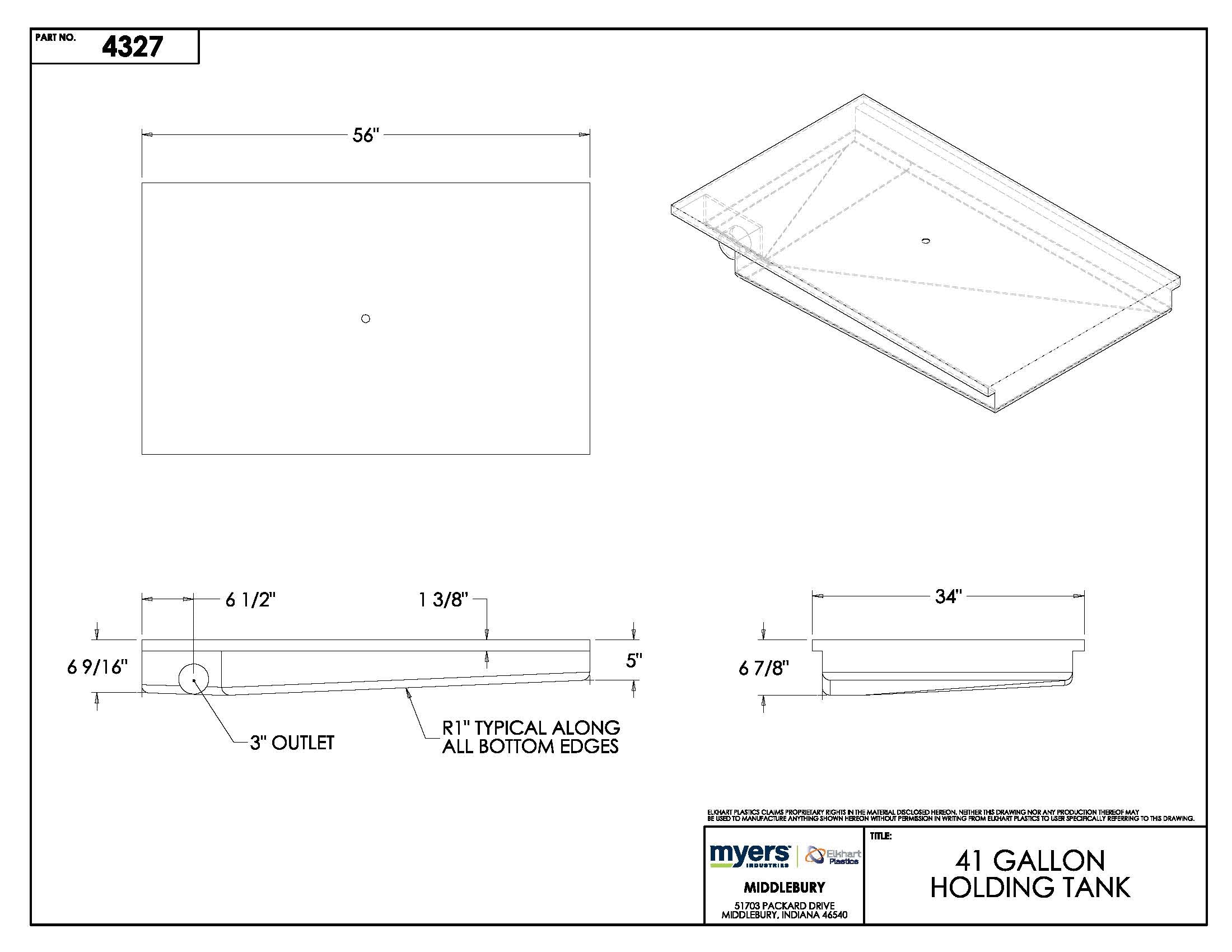

- Dimensions: 56" Length x 34" Width x 7.125" Height
- Wall Thickness: 0.180" (Heavy Duty)
- Material: Black Polyethylene (UV Resistant)
- Manufacturing Process: Precision Roto-Molding
- Part Numbers: EPI 4327, H1284
- SKU: H1284004
- Weight: 79 lbs
- Country of Origin: USA
- Manufacturer: Elkhart Plastics/Ameri-Kart
Compatible RV Models & Applications
This 41-gallon holding tank is commonly found in:
- Travel trailers and fifth wheels requiring low-profile waste storage
- Class A, B, and C motorhomes with limited underbelly clearance
- RVs originally equipped with EPI 4327 or H1284 tanks
- Custom RV builds and renovations needing reliable black water capacity
- Replacement installations where the original tank has cracked, leaked, or degraded
Important Note: The small sealed hole visible on the top surface is a manufacturing vent created during the roto-molding process. It serves no functional purpose and should remain sealed. All inlet, outlet, and vent connections are located in their designated positions.
Complete Your RV Holding Tank System
Maximize the performance and longevity of your new holding tank with these compatible products:
- 3" Barbed Coupler for RV Holding Tanks - Essential fitting for secure hose connections
- Replacement Parts & Fittings for RV Holding Tanks - Browse valves, sensors, and accessories
- All RV Water and Holding Tanks - Explore our complete tank inventory
Compare Similar Capacity Holding Tanks
| Model | Capacity | Dimensions (L x W x H) | Part Numbers | Best For | View Details |
|---|---|---|---|---|---|
| EPI 4327 / H1284 | 41 Gallons | 56" x 34" x 7.125" | 4327, H1284 | Low-profile wide installations | Current Product |
| EPI 366H / H1253 | 42 Gallons | 66" x 21" x 9" | 366H, H1253 | Narrow, longer installations | View Details |
| EPI 4430 | 42 Gallons | 84" x 23" x 12" | 4430 | Extra-long chassis applications | View Details |
| EPI 1950 | 45 Gallons | 62" x 24" x 10.5" | 1950 | Slightly larger capacity needs | View Details |
| EPI 614H / H858003 | 46 Gallons | 64" x 32" x 9" | 614H, H858003 | Balanced dimensions, higher capacity | View Details |
| EPI 992H | 50 Gallons | 62" x 26" x 10" | 992H | Maximum capacity upgrade | View Details |
💡 Helpful Tip: When selecting a replacement holding tank, always verify your available space dimensions first. Measure length, width, and height clearance in your RV's underbelly before ordering. If your existing tank is labeled with EPI 4327 or H1284, this is your direct replacement.
Frequently Asked Questions
What is the sealed hole on top of the tank?
The sealed hole on the top surface is a manufacturing vent created during the roto-molding process. It has no functional purpose and should remain sealed. All necessary inlet, outlet, and vent connections are located in their designated positions on the tank.
Is this tank compatible with my RV?
This tank is a direct replacement for any RV originally equipped with EPI part number 4327 or H1284. If your existing tank has either of these numbers stamped or labeled on it, this is your exact replacement. Always verify your available space dimensions (56" x 34" x 7.125") before ordering.
What is the wall thickness of this holding tank?
This tank features a heavy-duty 0.180" wall thickness, providing superior strength and durability compared to thinner aftermarket alternatives. The robust construction resists punctures, cracks, and leaks.
Where is this holding tank manufactured?
This tank is manufactured in the USA by Elkhart Plastics/Ameri-Kart, a leading OEM supplier to the RV industry. You're getting the same quality tank that RV manufacturers install at the factory.
How do I install this RV holding tank?
Installation requires removing your old tank, positioning the new tank in the same location, securing it with appropriate mounting straps or brackets, and connecting the inlet, outlet, and vent lines. We recommend professional installation if you're not experienced with RV plumbing systems. Don't forget to order any necessary fittings and couplers for your installation.
Can I use this as a fresh water tank instead of a holding tank?
This tank is specifically designed and manufactured as a black water holding tank (waste storage). For fresh water applications, please browse our selection of fresh water tanks that are manufactured from food-grade materials.
Order Your Authentic Elkhart Plastics Holding Tank Today
Don't settle for inferior aftermarket tanks that may crack, leak, or fail prematurely. Invest in authentic OEM quality from Elkhart Plastics/Ameri-Kart - the same manufacturer trusted by major RV brands. With heavy-duty 0.180" wall construction, precision roto-molding, and verified compatibility with EPI 4327 and H1284 part numbers, this 41-gallon holding tank delivers reliable performance for years to come.
Need help with product identification or have questions? Use our AI Live Chat for deep product knowledge and expert assistance with finding the right parts for your RV.
✓ In Stock and Ready to Ship
Order now for fast, reliable delivery of your authentic Elkhart Plastics holding tank.
| Material | black polyethylene |
|---|---|
| Width (inches) | 34 |
| Height (inches) | 7 |
| Length (inches) | 55 |
| Weight (pounds) | 65 |
| Capacity (gallons) | 41 |
| Wall thickness (inches) | 0.18 |
- What is the capacity of the 41 gallon rv holding tank? The holding tank has a capacity of 41 gallons.
- What are the dimensions of the rv holding tank? The tank measures 55 inches in length, 34 inches in width, and 7 inches in height.
- Is the tank ready to use with fittings or does it come blank? The tank comes blank with no fittings, but fittings can be added upon request with a quote.
- What material is the rv holding tank made from? The tank is made from black polyethylene with a wall thickness of 0.180 inches.
- What is the purpose of the sealed hole on top of the tank? The sealed hole on top is a venting hole used during the manufacturing process and has no functional use for the end-user.
