The Furrion Chill Cube 18K ducted air distribution box is the interior ceiling assembly for Furrion Chill Cube R32 ducted RV air conditioners. It gives the rooftop unit a clean white interior finish, distributes cooled air through the RV ductwork, and adds panel controls plus the included handheld remote for easier temperature control.
Use this part when you are installing or replacing the ducted ADB for a Furrion Chill Cube 18K R32 system. It is not the rooftop air conditioner by itself, and it is not the right choice for a non-ducted ceiling assembly or an older R410A-based Furrion system.
Features & Specifications
- Genuine Furrion / Lippert part: manufacturer reference FACT18VSDA-PS-AM; ERVP SKU 2024040312.
- Ducted RV AC application: designed for Furrion Chill Cube 18K R32 rooftop air conditioners used with RV ductwork.

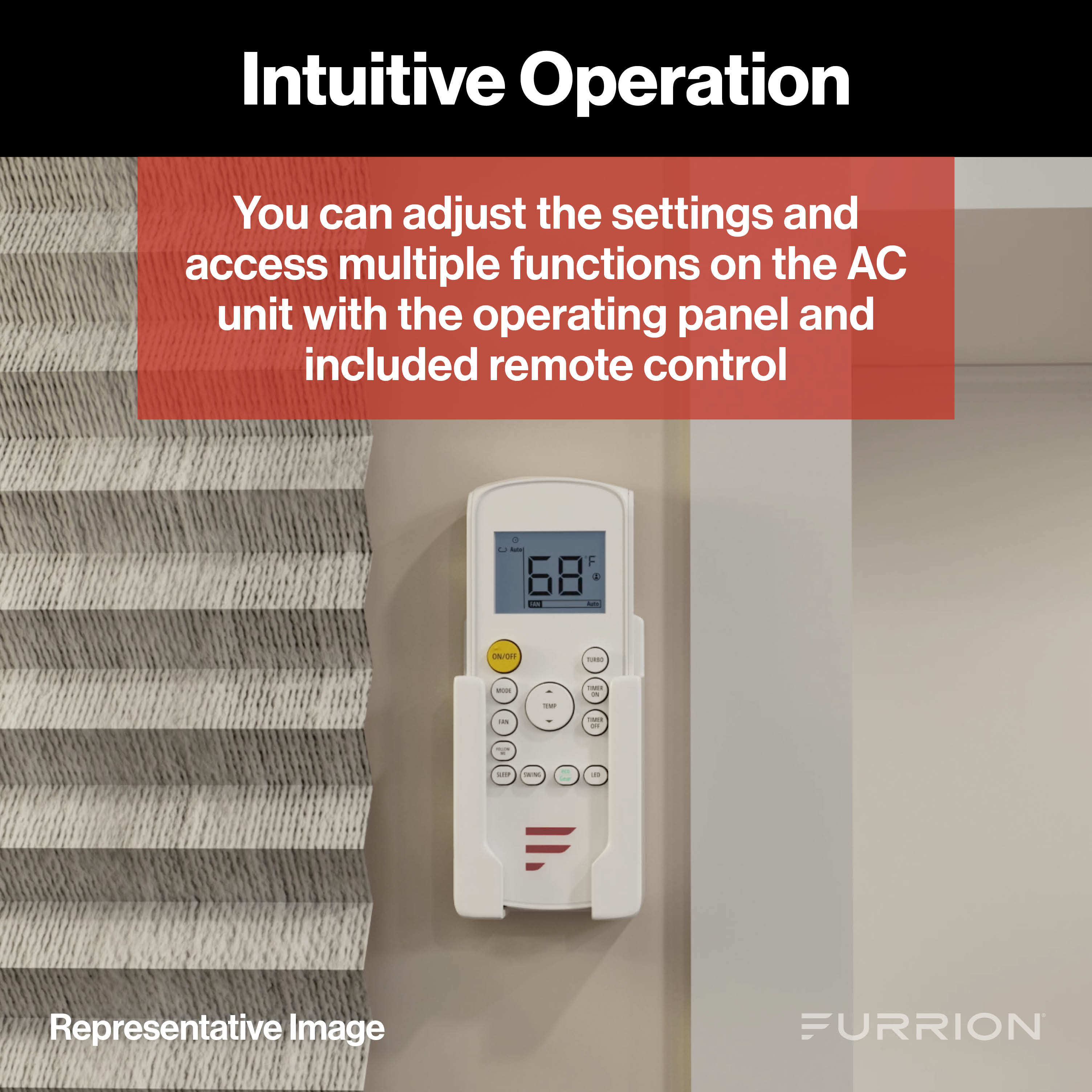

- Includes remote control: supports convenient control from inside the coach, including Follow Me temperature sensing when the remote is within line of sight.
- Operating modes: Auto, Eco, Gear, and Turbo modes for comfort, power management, and fast airflow boost.
- Three fan speeds plus turbo: gives the owner more control over airflow and noise level.

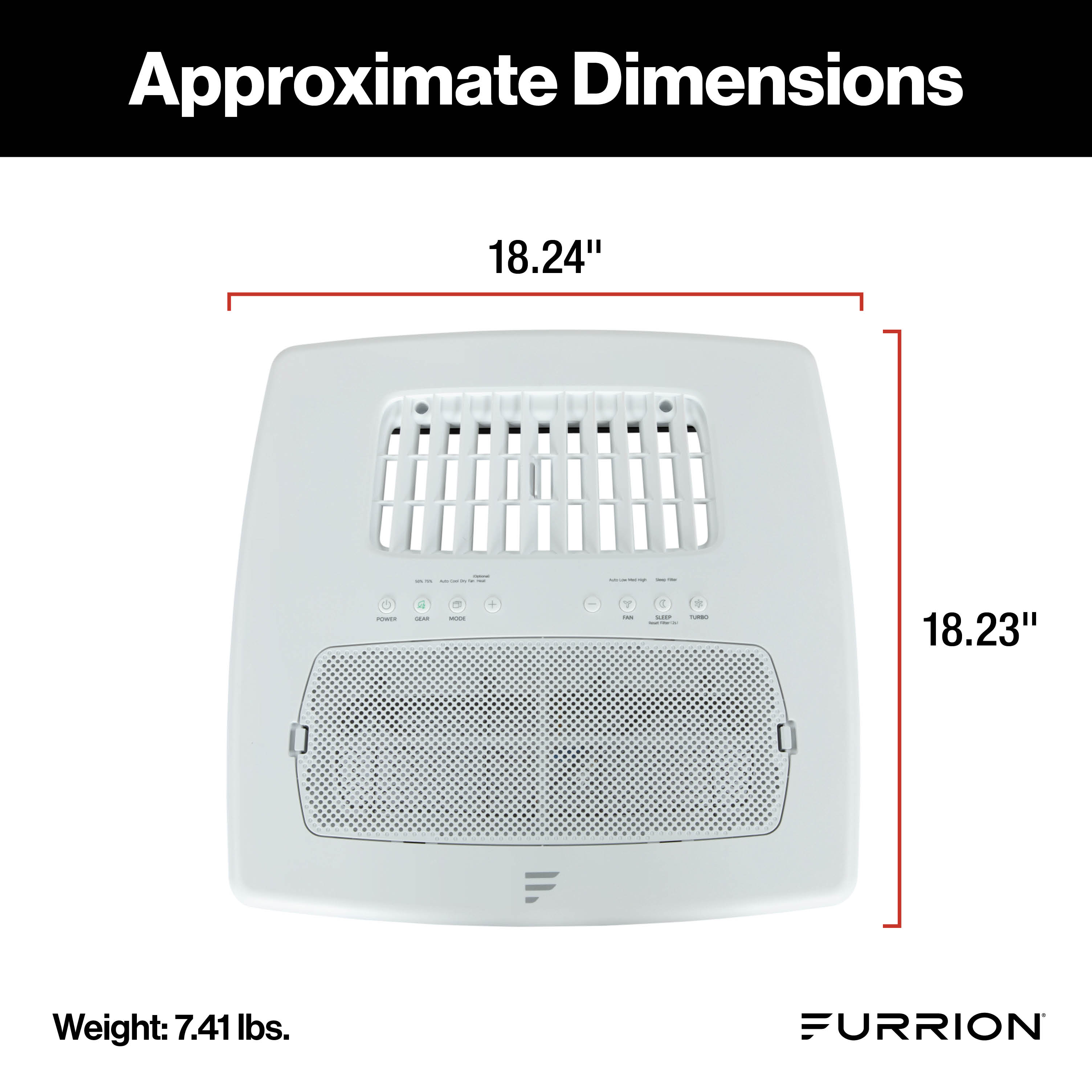

- Low-profile white ceiling assembly: about 18.23" L x 18.24" W x 4.05" H, with a detachable filter for cleaning.
- Installation range: made for a standard 14" roof opening and RV roof thickness from 3" to 6".
Why Choose This Furrion Ducted Air Distribution Box?
This is the ducted interior air distribution box for the Furrion Chill Cube 18K R32 platform, so it matters that you match the ceiling assembly to the rooftop unit and refrigerant generation. The R32 Chill Cube parts are not interchangeable with older R410A equipment, and the ducted ceiling assembly is different from the non-ducted ADB used when air dumps directly into one room.
For owners replacing a damaged ceiling assembly, upgrading controls, or finishing a Chill Cube installation, this part keeps the system matched around the correct Furrion platform instead of mixing pieces that look similar but do not belong together.
Compare Furrion RV Air Distribution Box Options
Not sure which Furrion ceiling assembly is right for your RV? Start with whether your coach uses ductwork, then confirm refrigerant generation and control style.
| Model / SKU | System Type | Control Style | Best For | View Details |
|---|---|---|---|---|
| FACT18VSDA-PS-AM / 2024040312 | Chill Cube 18K R32 ducted | Panel + included remote | RVs that distribute cooled air through ceiling ducts | Current Product |
| Non-ducted ADB — verify current model and SKU | Chill Cube R32 non-ducted | Panel + included remote | Single-room cooling where air blows directly from the ceiling assembly | View Details |
| 2021123784 | Furrion Chill standard ducted ADB | Manual control | Older/manual-control ducted Furrion Chill installations | View Details |
| 2021123796 | Furrion Chill electronic-control ADB | Electronic control / thermostat with LED light | Electronic-control Furrion Chill systems that are not the Chill Cube R32 ducted setup | View Details |
Tip: If your RV has ceiling duct vents in multiple rooms, you are usually shopping ducted. If the ceiling assembly dumps air directly into one room, compare the non-ducted Furrion Chill Cube ADB instead.
Technical Specifications
- Brand: Furrion
- Series: Chill Cube
- Part number / MPN: FACT18VSDA-PS-AM
- ERVP SKU: 2024040312
- BTU platform: 18,000 BTU Chill Cube system
- Refrigerant generation: R32
- Application: ducted RV air conditioner ceiling air distribution box
- Color: white
- Input power: 115V AC
- Indoor sound pressure level: 60 dB
- Air outlet: two-way air outlet
- Approximate dimensions: 18.23" L x 18.24" W x 4.05" H
- Product weight: approximately 7.5 lb
- Roof opening: 14"
- Roof thickness range: 3" to 6"
- Warranty term: 2 years from manufacturer when eligible
What's Included
- Furrion Chill Cube ducted air distribution box
- Electrical box
- Electrical box cover
- Long and short mounting bolts
- Adhesive insulation foam
- Remote control
- Wall-mount holder for remote
Confirmed Compatible Ducted Rooftop Models
Furrion identifies this FACT18VSDA-PS-AM / 2024040312 air distribution box for the following aftermarket Chill Cube 18K R32 ducted systems. The ceiling assembly is white with either exterior rooftop color. Match the complete rooftop model, ducting and controls before ordering.
| Rooftop model | Lippert SKU | Rooftop color | System |
|---|---|---|---|
| FACR18VSDA-PS-AM | 2024039645 | White | Cooling only |
| FACR18VSDA-BL-AM | 2024039646 | Black | Cooling only |
| FACR18HEDA-PS-AM | 2025008216 | White | Heat pump |
| FACR18HEDA-BL-AM | 2025008215 | Black | Heat pump |
Manufacturer references: Chill Cube 18K component chart, AM-RC, page 1 and Chill Cube 18K with Heat Pump component chart, AM-RD, page 1, Ducted columns. These charts do not approve this ADB for non-ducted units, Chill HE/low-profile models, older equipment or every Furrion air conditioner. Roof dimensions alone do not establish compatibility.
Complete bundles already include this ADB
The following ERVP ducted bundles contain rooftop unit and ADB 2024040312. Buy this separate ADB only if you need a replacement or are purchasing a standalone compatible rooftop; do not add a second one to a new complete bundle.
- White cooling only ducted bundle — rooftop 2024039645
- Black cooling only ducted bundle — rooftop 2024039646
- White heat pump ducted bundle — rooftop 2025008216
- Black heat pump ducted bundle — rooftop 2025008215
Compatible Models & Alternatives
- Use the Furrion Chill Cube non-ducted ADB if your RV does not use ceiling ductwork.
- Add the Furrion Chill Cube ducted single-zone wall thermostat when the installation calls for wall thermostat control.
- If only the handheld controller is missing or damaged, order the Furrion Chill Cube ducted ADB replacement remote instead of replacing the full ceiling assembly.
- For a complete preconfigured setup, compare the Furrion 18K Chill Cube white ducted heat pump RV AC bundle.
Frequently Asked Questions
Is this the rooftop air conditioner or the inside ceiling assembly?
This listing is for the interior ducted air distribution box, not the rooftop air conditioner. It installs inside the RV ceiling and works with the matching Furrion Chill Cube 18K R32 ducted rooftop unit.
Will this fit every Furrion Chill air conditioner?
No. Confirm one of the four documented ducted rooftop models above. Do not infer compatibility with non-ducted, Chill HE, low-profile, older R410A or other generations from the Furrion name, capacity or roof opening. Follow the installation instructions for the exact equipment.
What is the difference between ducted and non-ducted?
A ducted setup sends cooled air through vents in the RV ceiling. A non-ducted setup blows air directly from the ceiling assembly into the room. This product is the ducted version.
Does this Furrion air distribution box include the remote?
Yes. This FACT18VSDA-PS-AM air distribution box includes the remote control and wall-mount holder.
What roof opening does it fit?
It is designed around a standard 14" RV roof opening and roof thickness from 3" to 6".
Can I buy just the replacement remote?
Yes. If the air distribution box works and only the remote is missing or damaged, use the linked Furrion Chill Cube ducted ADB replacement remote instead.
Why Buy from Elkhart RV Parts?
- RV-parts focused: ERVP specializes in hard-to-find RV replacement parts, not generic home HVAC parts.
- Elkhart, Indiana advantage: we operate in the RV capital of the world with direct access to major RV parts supply channels.
- Real product matching: our catalog connects the air distribution box, rooftop unit, thermostat, controller, and replacement remote so buyers can avoid mismatched Furrion components.
- Fast fulfillment when available: live stock and supplier availability help keep RV repairs moving.
- AI Live Chat: use it on the page if you want help checking ducted vs. non-ducted, R32 vs. R410A, or matching accessory parts before ordering.
Order the Furrion Chill Cube 18K ducted air distribution box with remote today, or use AI Live Chat to compare it with the non-ducted ADB, matching rooftop unit, thermostat, or replacement remote.
The first 11 gallery images are AI-composed buying guides based on this product and its reference photography. Original product photos follow. Illustrative diagrams are not installation drawings; confirm part numbers and follow the manufacturer's manual. Order and pairing counts are dated November 3, 2026.
| Ducted | true |
|---|---|
| Refrigerant | R-32 |
| Weight (lbs) | 7.41 |
| Height (inches) | 4.05 |
| Width (inches) | 18.24 |
| Length (inches) | 18.23 |
| Color | White |
| Material | Not specified |
| Fan speeds | Three plus turbo |
| Filter type | Detachable |
| Physical weight (pounds) | 7.41 |
| Dimensional weight (pounds) | 8.11 |
| Roof opening diameter (inches) | 14 |
| Roof thickness compatibility (inches) | 3 to 6 |
- Is the furrion 18k chill cube ducted air distribution box compatible with all furrion chill rv rooftop air conditioners? No. Lippert component charts identify this ADB for the R32 ducted aftermarket rooftop models FACR18VSDA-PS-AM (2024039645), FACR18VSDA-BL-AM (2024039646), FACR18HEDA-PS-AM (2025008216) and FACR18HEDA-BL-AM (2025008215). These cover white/black cooling-only and heat-pump models. Match the complete equipment model and controls; a shared brand or roof opening does not establish fitment with other units.
- Does the furrion chill cube air distribution box come with a remote control? Yes, it includes a remote control that allows you to adjust settings, access multiple functions, and use features like 'Follow Me' mode for precise temperature control.
- What are the fan speed options available on this air distribution box? The unit offers three fan speeds plus a turbo mode for an airflow boost, allowing you to customize the cooling to your preference.
- Can the filter on the furrion chill cube air distribution box be removed for cleaning? Yes, the air distribution box comes with a detachable filter that makes maintenance and cleaning easy.
- What special modes does this air distribution box support to optimize power consumption? It supports 'Auto' mode for maximum comfort and efficiency, 'Eco' mode for minimal power use, and 'Gear' mode which limits power consumption to 75% or 50%, allowing users to manage energy use effectively.
- Do the complete ducted chill cube bundles already include this air distribution box? Yes. The four linked ERVP ducted bundles with rooftop SKUs 2024039645, 2024039646, 2025008215 and 2025008216 include ADB 2024040312. Do not add a second ADB to a new bundle; order this separate part only when needed as a replacement or with a standalone compatible rooftop.
