The Elkhart Plastics EPI 992H / H992004 is a 50-gallon RV wastewater holding tank with a sloped bottom and recessed outlet. Its printed overall dimensions are 62 inches long, 26 inches wide and 10 inches deep. Compare the original dimensioned drawing with your existing tank and plumbing before ordering.
Specifications
- Part number: EPI 992H / H992004
- Capacity: 50 gallons
- Overall dimensions: 62" L × 26" W × 10" maximum depth
- Material: Black polyethylene
- Wall thickness: 0.180"
- Construction: Seamless, rotationally molded tank
- Outlet: 3" outlet in the recessed region shown on the drawing
Check Fit Before Ordering
Capacity and overall dimensions alone do not establish interchangeability. Check the tank profile, mounting clearance, recessed outlet and plumbing connections against the original drawing. Separate valves and plumbing adapters are not included.
The tank is not a rectangular box of uniform depth. The drawing shows a 7½" shallow profile, a 9½" side profile and a 9 27/64" end profile, within the 10" maximum depth. Upper-band callouts are 3" and 3½" in the respective views.
Plumbing Notes From the Drawing
- Inlet: 3" IPS minimum.
- Vent: 1½" minimum, at the highest point on top of the tank.
- Outlet: 3" IPS minimum, at the lowest point of the tank.
- Bottom profile: 1" minimum edge radius and a ½"-per-foot slope toward the outlet.
These are the drawing's black-water requirements. The top view does not locate the inlet or vent openings; do not assume drilling locations from the rendered images.
Gallery and Technical Drawing

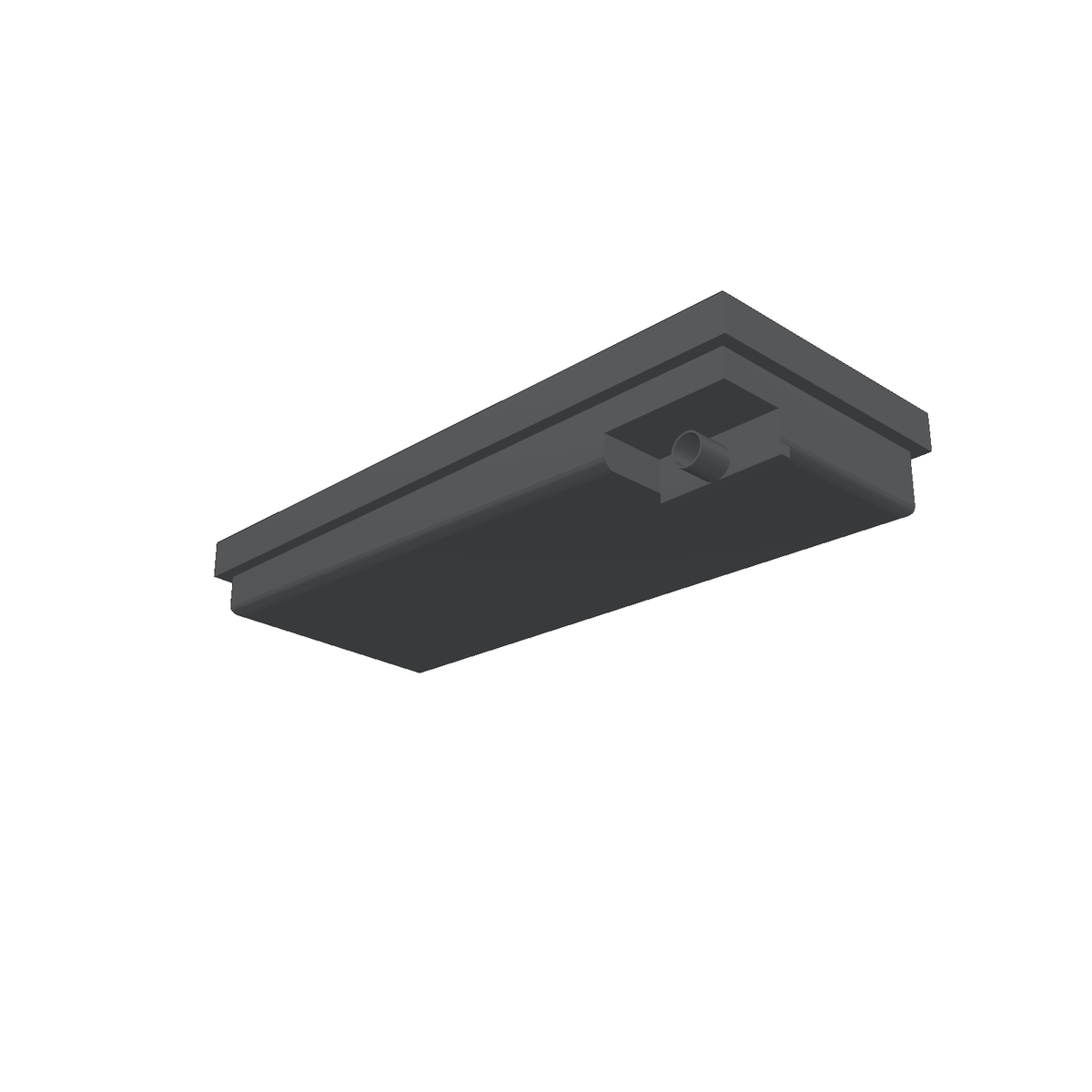

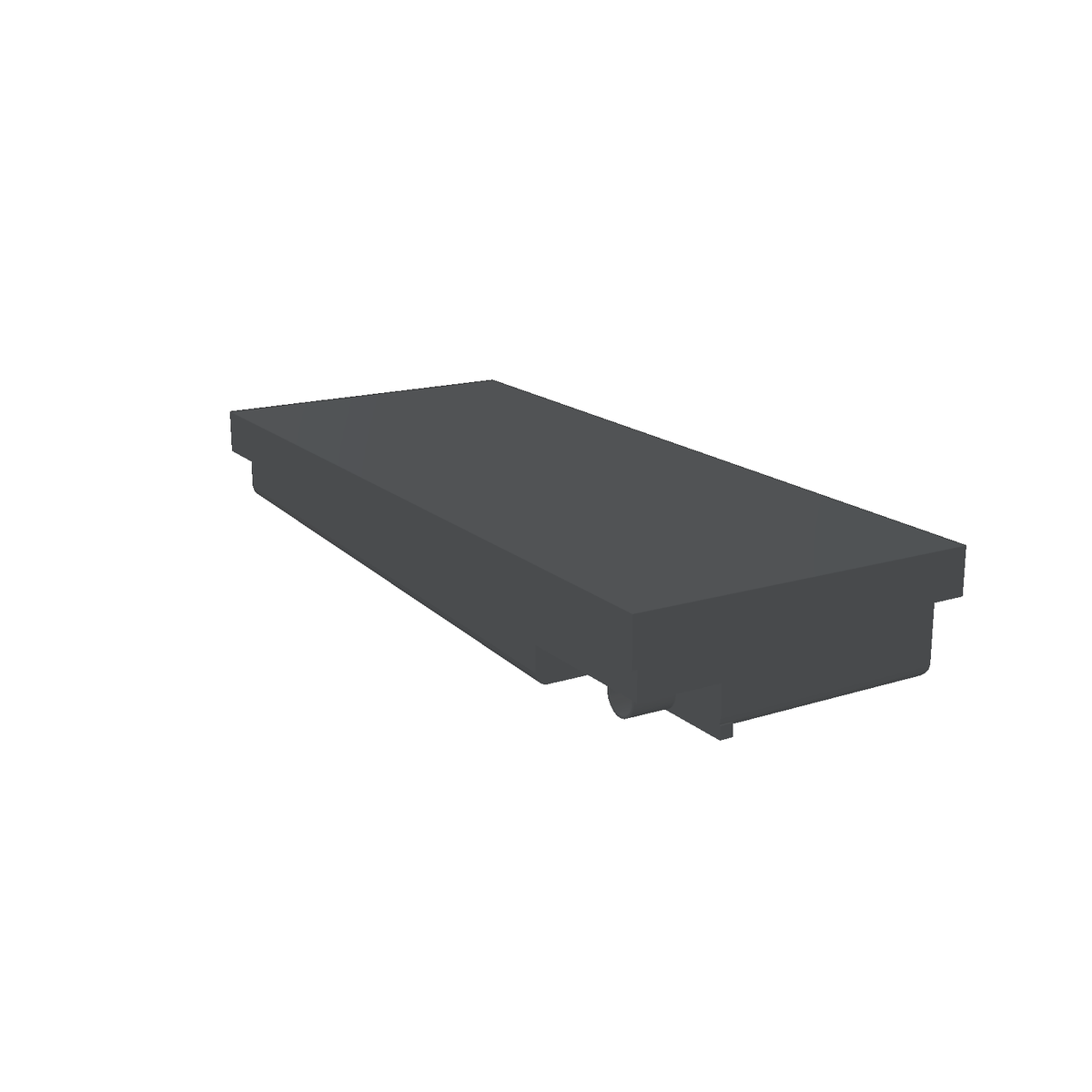

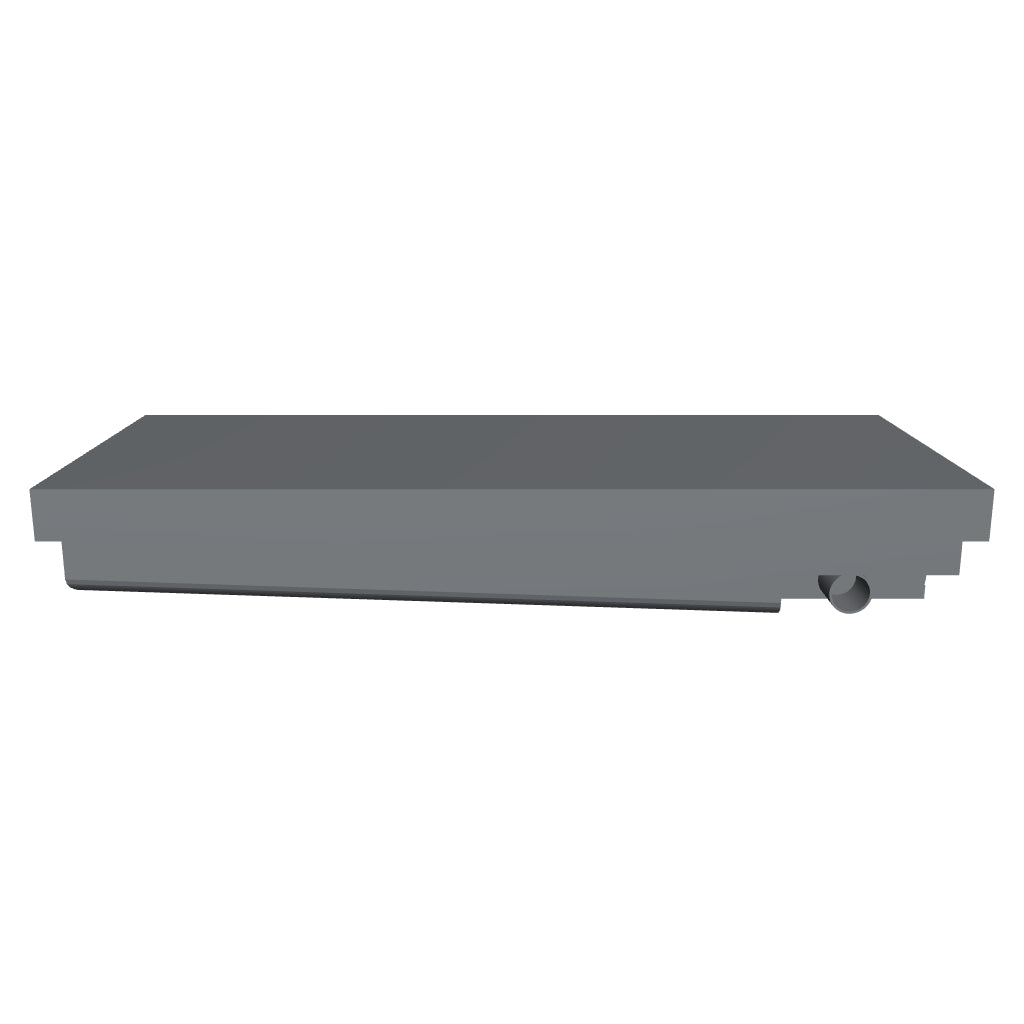

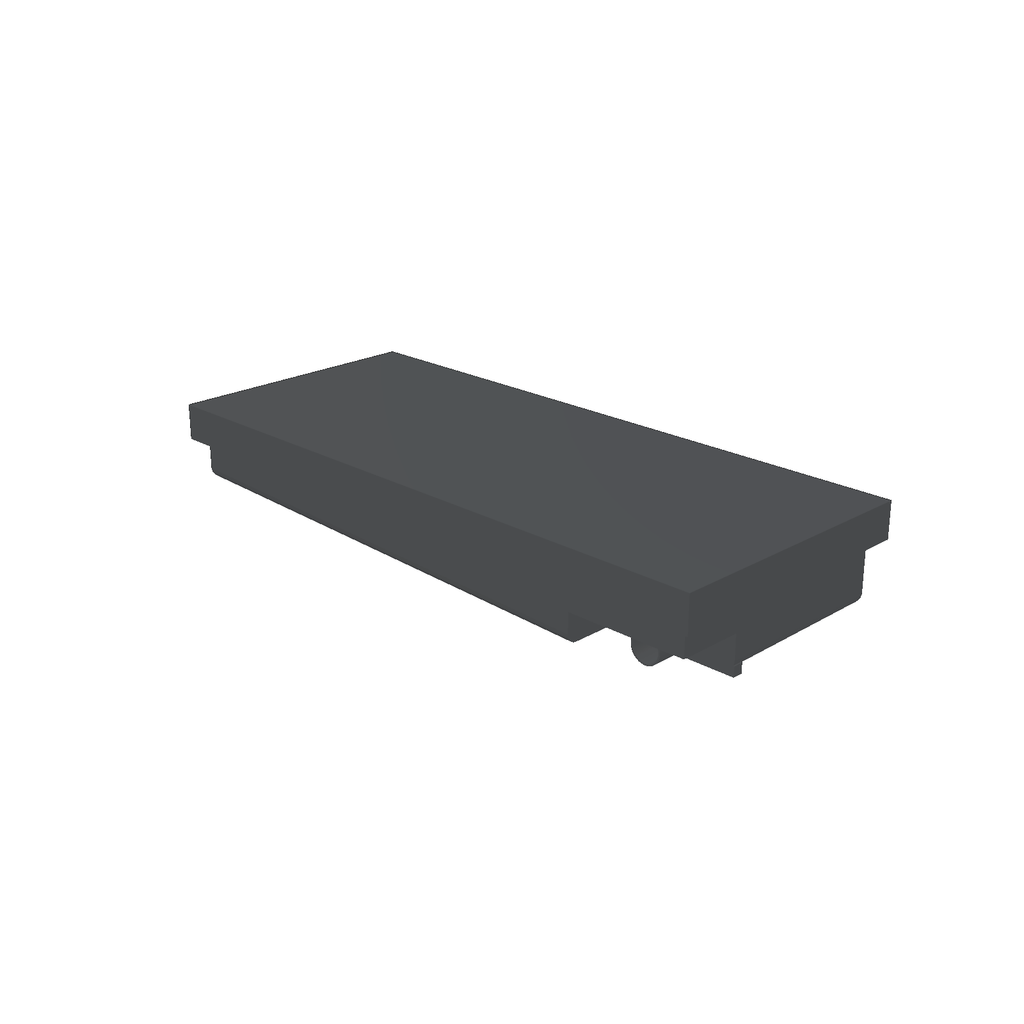

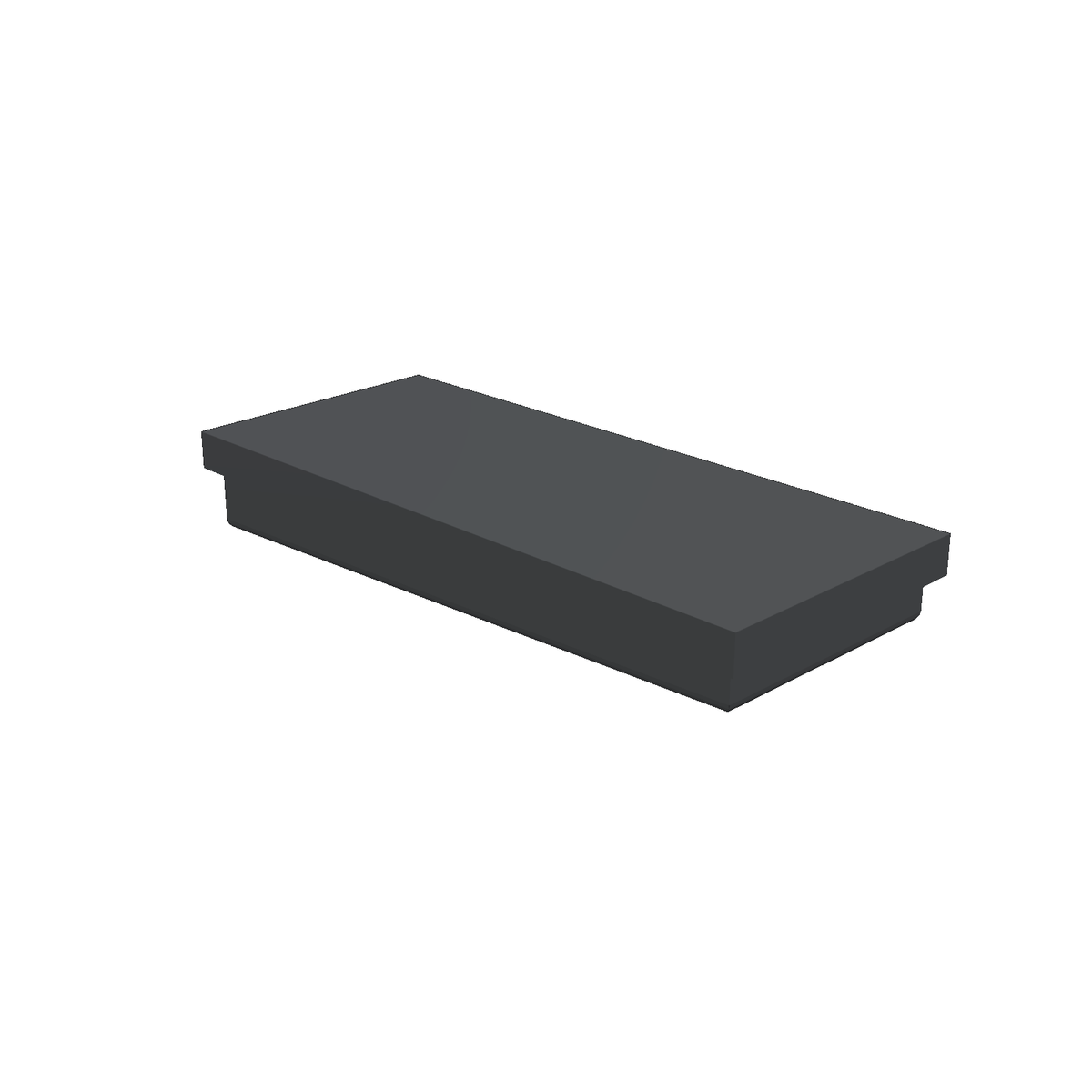

The gallery includes four rendered views, a rotatable 3D model and the original dimensioned blueprint. The renders illustrate the printed shape; undimensioned outlet and recess details follow drawing proportions. Use the original blueprint as the fitment reference, rather than treating the model as measured manufacturing CAD.
Returns
All returns are subject to approval.
| QAI Certification | REC 559-1 |
|---|---|
| Part number | H992004/992H |
| Capacity (gallons) | 50 |
| Dimensions (inches) | 62 x 26 x 10 |
| Lead time | |
| Best for | RV black-water holding applications; compare original print |
- What are the dimensions of the 50 gallon rv holding tank? The tank measures 62 inches in length, 26 inches in width, and 10 inches in height.
- Is the 50 gallon rv holding tank pre-fitted with plumbing connections? The drawing shows a recessed outlet region. Separate valves, adapters and mounting hardware are not included. The print’s black-water notes specify a 3-inch IPS minimum outlet at the low point; compare the full print to your installation.
- What material is the holding tank made from? The tank is made from black polyethylene with a wall thickness of 0.180 inches.
- How is the tank manufactured to ensure durability? The tank is manufactured using a roto-molding process which creates a seamless tank with walls of equal thickness and no weak spots, enhancing its strength and durability.
- Does the print locate top inlet and vent openings? No. The top view does not locate openings. General drawing notes specify a 3-inch IPS minimum inlet and a 1 1/2-inch minimum vent at the highest top point. These notes are not dimensioned hole locations.
