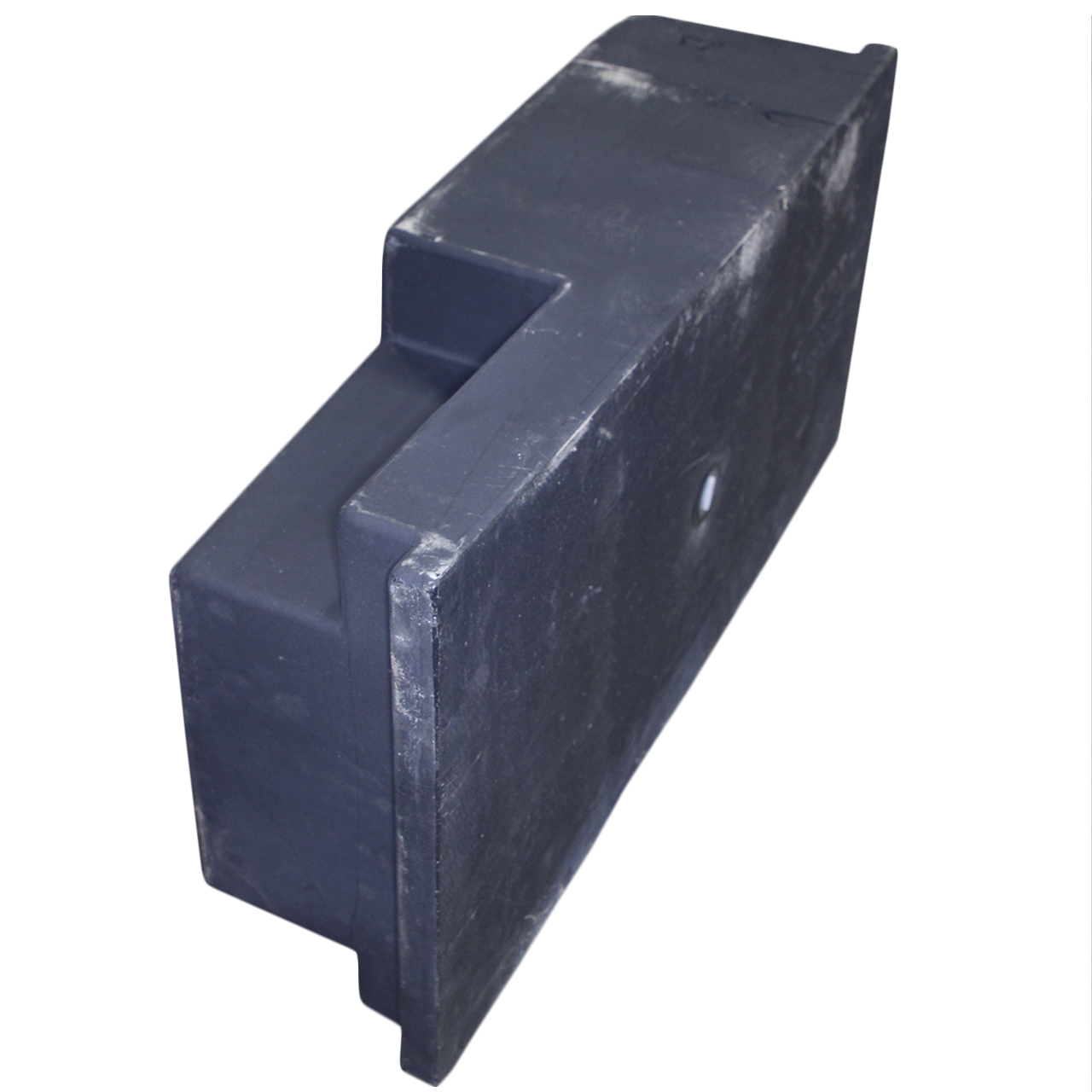

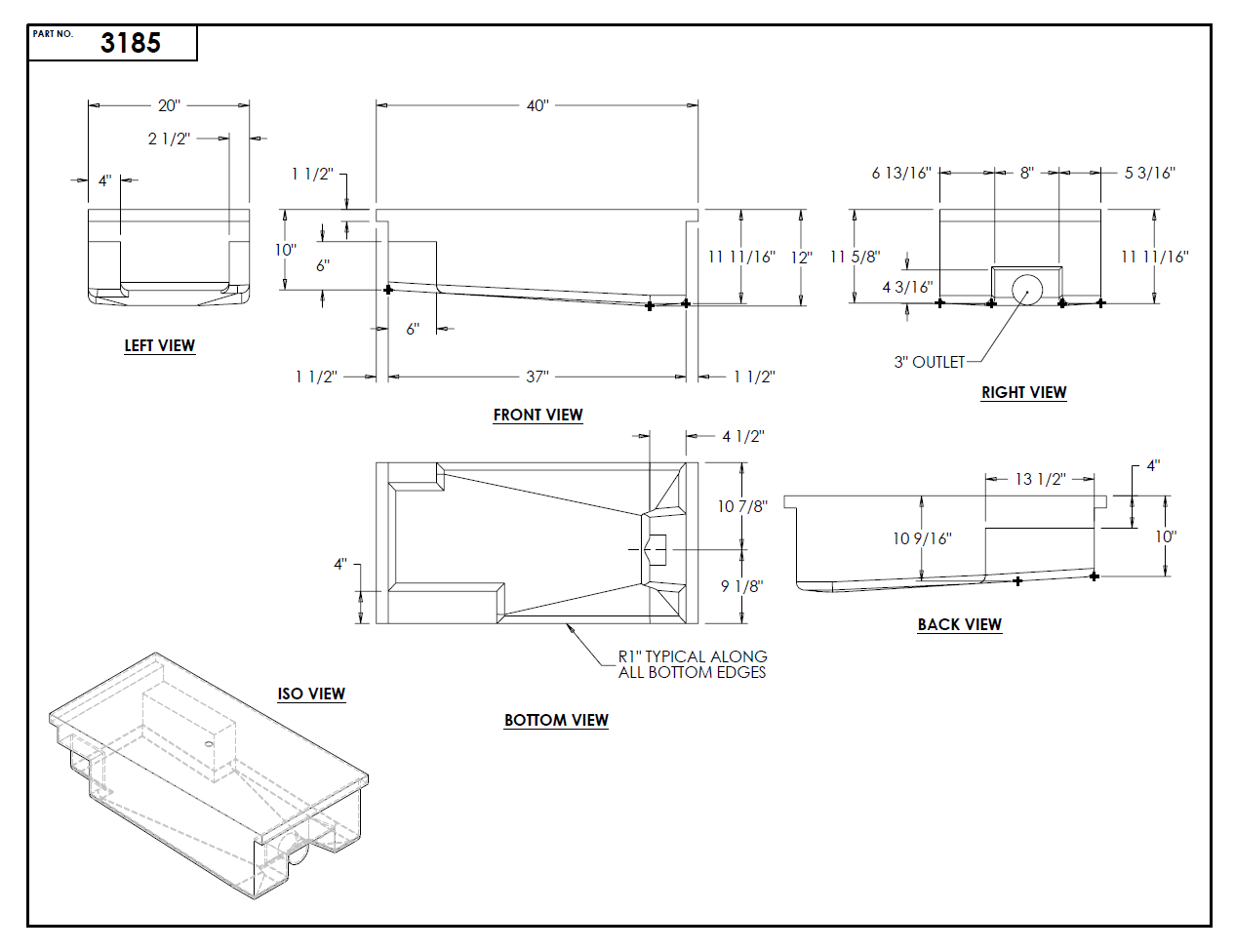

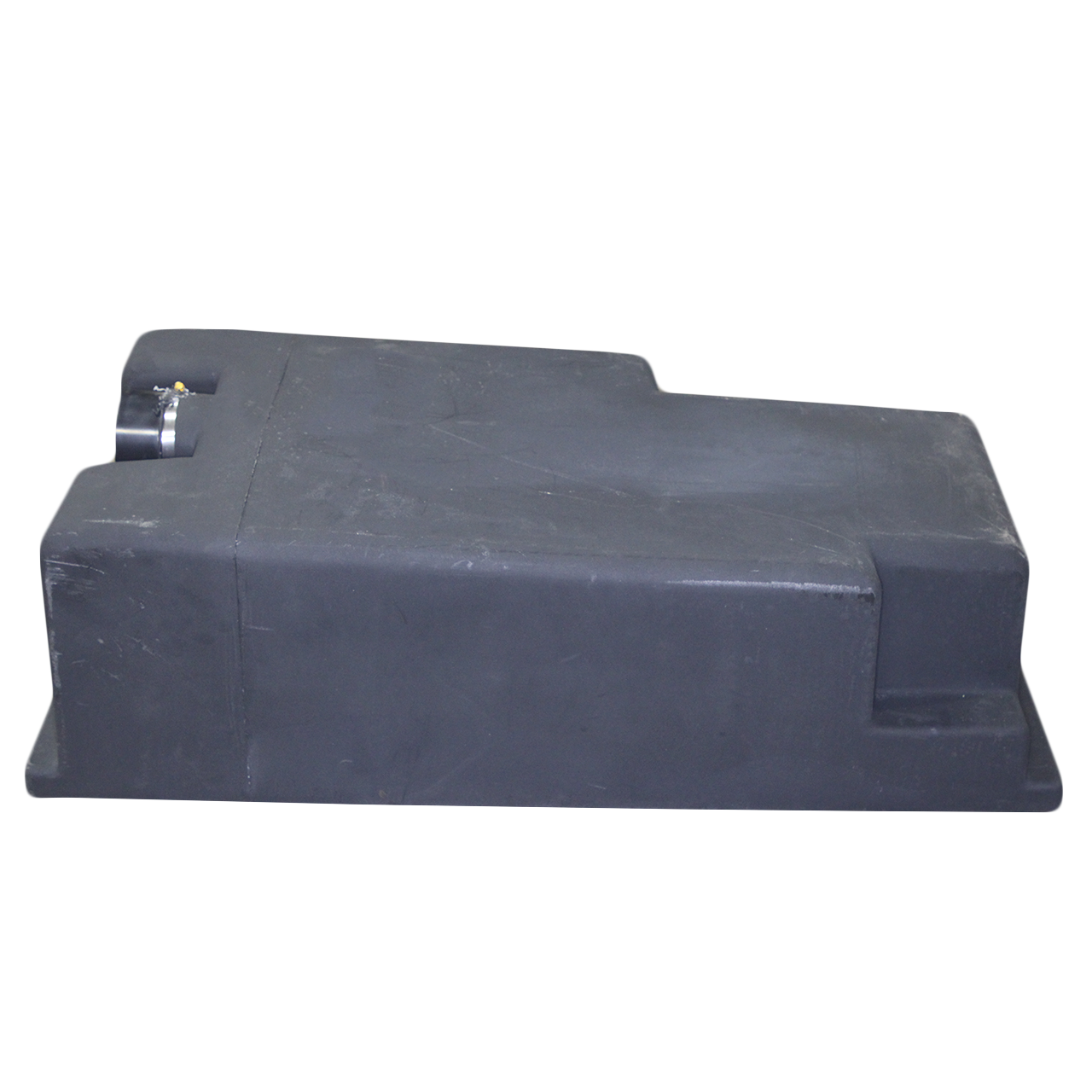

32 Gallon RV Holding Tank 40" x 20" x 12" w/3" outlet. (Blank Tank w/no fittings, Fittings can be added per quote) H1233000 or H1233
Wall thickness is 0.180" in black polyethylene
Elkhart Plastic tanks are manufactured to meet quality and health safety standards. With fewer impurities, these tanks are strong enough to take the bumps and bangs without compromising the security of your fresh water storage. Elkhart Plastics uses a process called roto-molding in which high-density plastic is rotated and molded into shape. This process creates a seamless tank in which the walls are of equal thickness, with no weak spots to cause trouble later. It is this process that has earned Elkhart Plastics the reputation for quality tanks.
THE SEALED HOLE ON TOP OF THE TANK IS FROM THE MANUFACTURING PROCESS. IT IS A VENTING HOLE USED DURING THE CREATION OF THE TANK. IT HAS NO FUNCTIONAL USE FOR THE END-USER.
PLEASE NOTE: All returns are subject to approval.
| Material | black polyethylene |
|---|---|
| Width (inches) | 20 |
| Height (inches) | 12 |
| Length (inches) | 40 |
| Capacity (gallons) | 32 |
| Wall thickness (inches) | 0.18 |
| Outlet diameter (inches) | 3 |
- What is the capacity of the 32 gallon rv holding tank? The holding tank has a capacity of 32 gallons.
- What are the dimensions of this rv holding tank? The tank dimensions are 40 inches in height, 20 inches in width, and 12 inches in length.
- Is the holding tank pre-fitted with plumbing connections? No, the tank comes blank with no fittings. Fittings can be added upon request with a quote.
- What material is the rv holding tank made from? The tank is made from black polyethylene with a wall thickness of 0.180 inches.
- What is the purpose of the sealed hole on top of the tank? The sealed hole on top is a venting hole used during the manufacturing process and has no functional use for the end-user.
