Alpha - 48 Gallons Fresh Water Tank - 54" x 38" x 6 1/2" * - 672BLANK

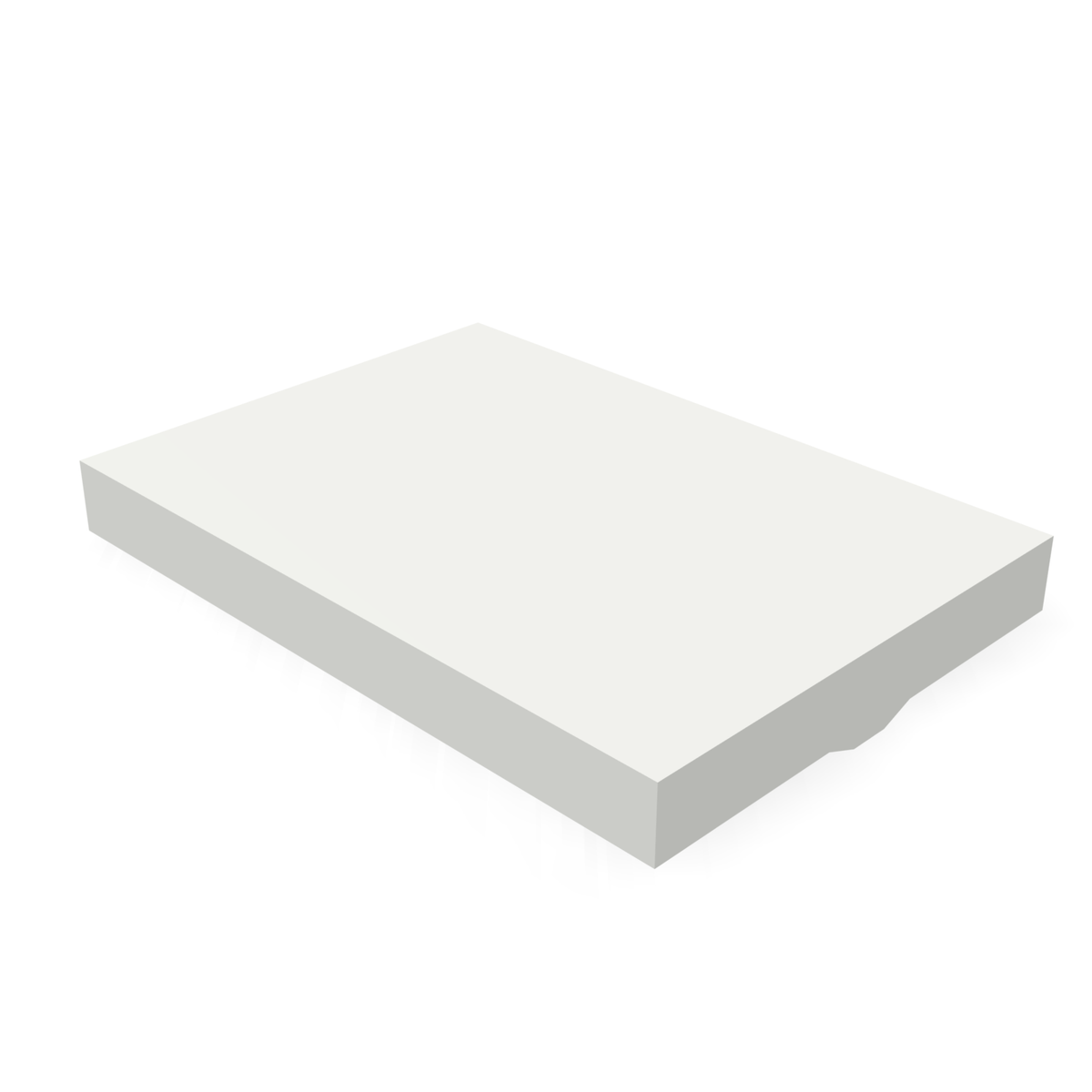

Alpha 672BLANK — print-based front view

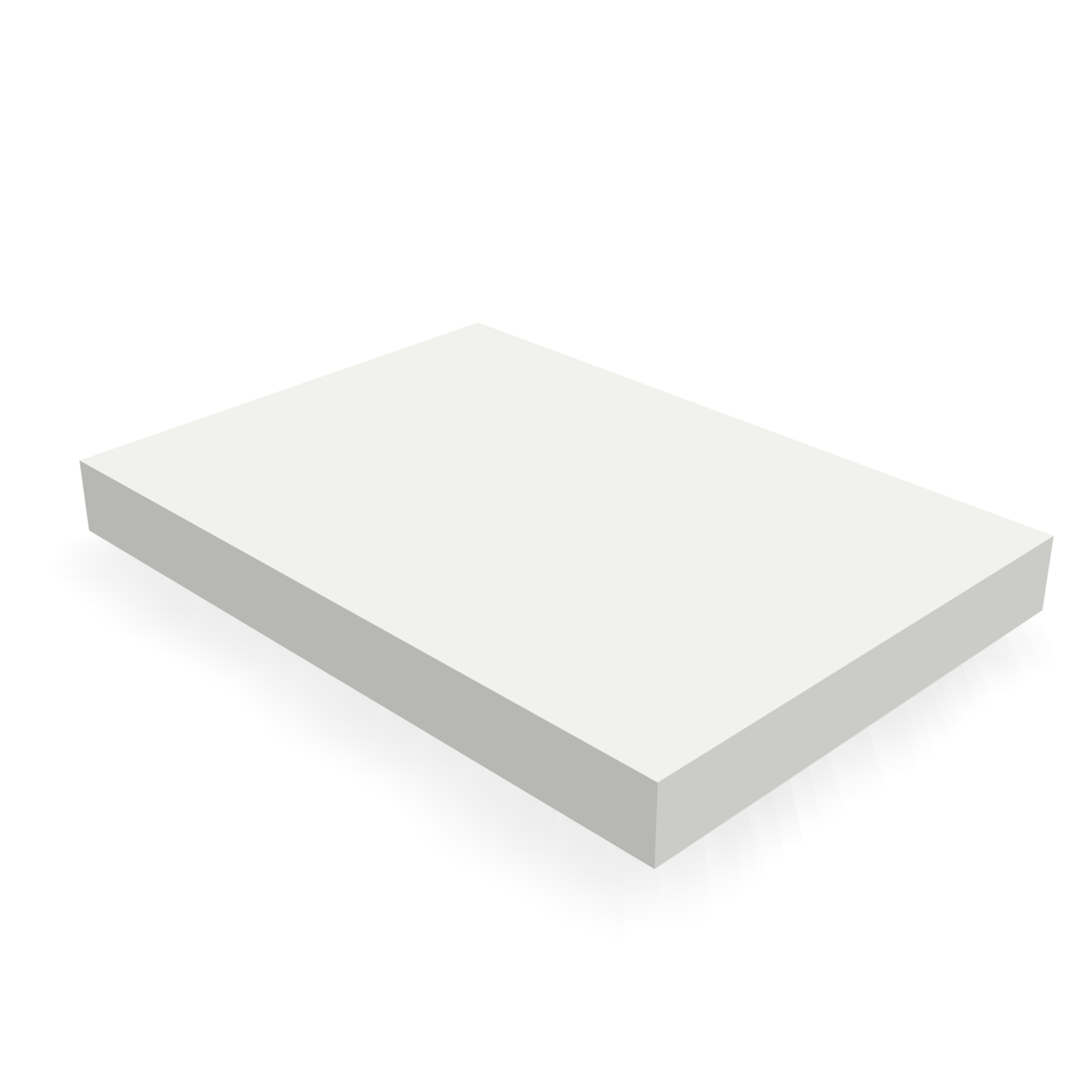

Alpha 672BLANK — print-based rear view

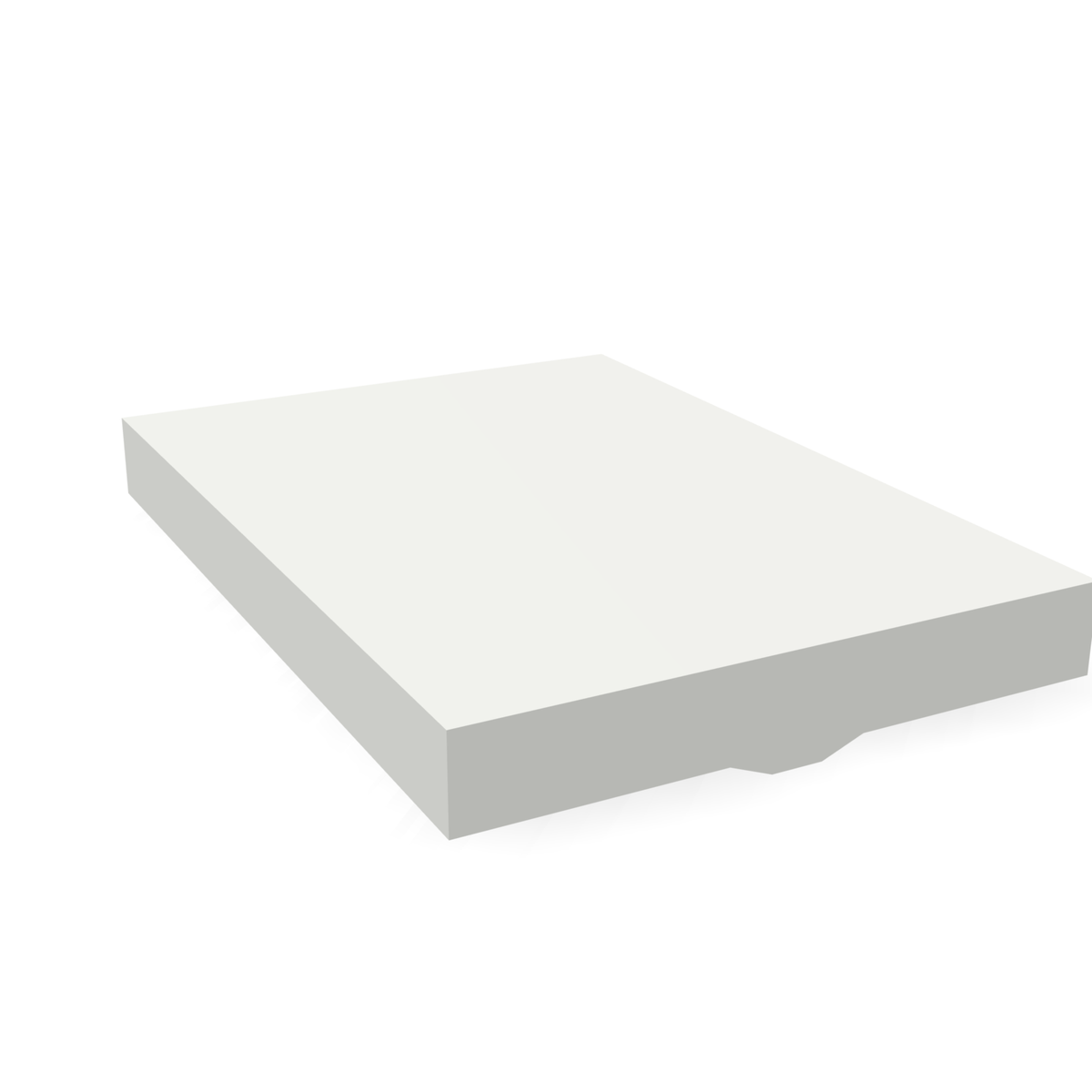

Alpha 672BLANK — print-based side view

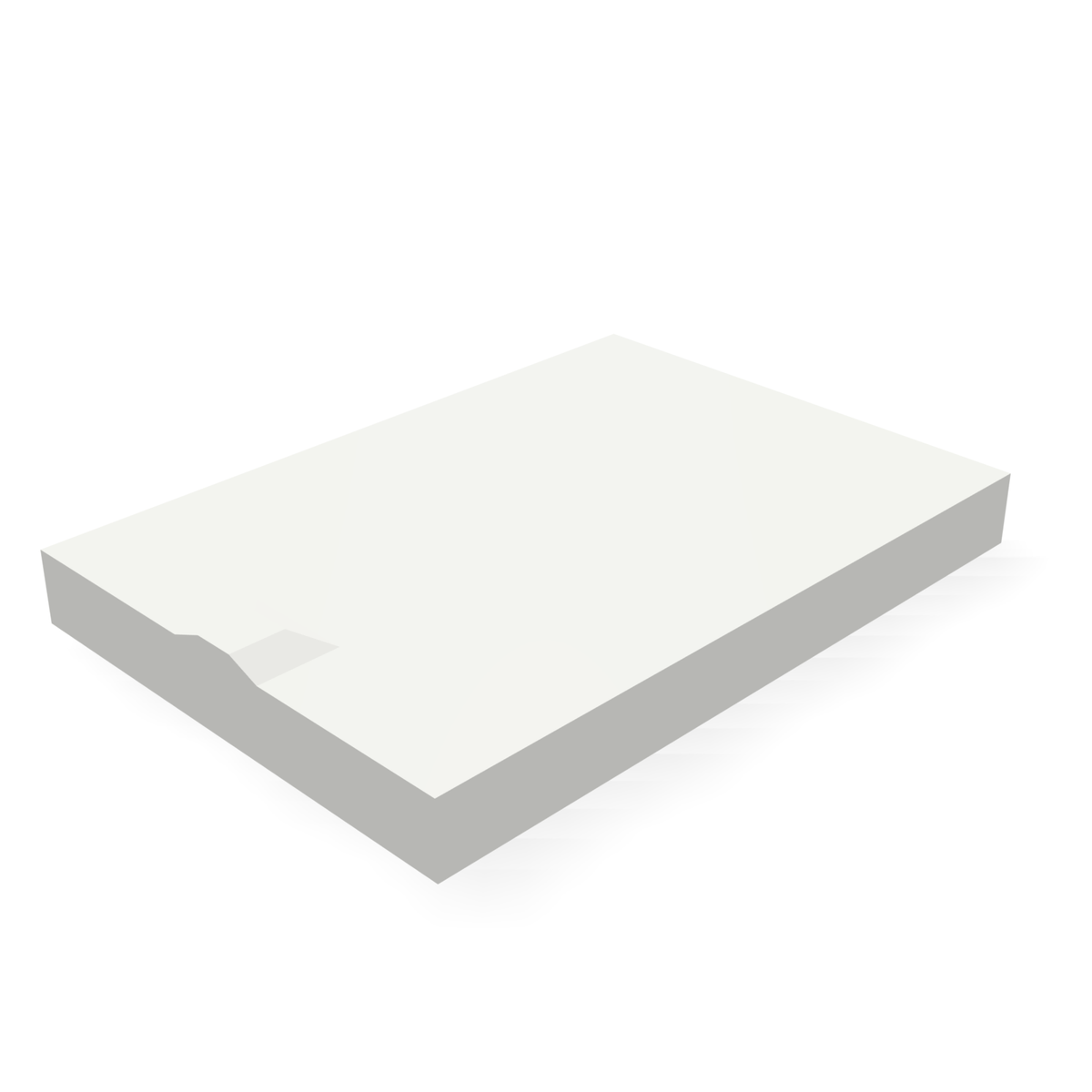

Alpha 672BLANK — print-based underside view of stepped blank body
Alpha - 48 Gallons Fresh Water Tank - 54" x 38" x 6 1/2" * - 672BLANK
Roll over image to zoom in Click on image to zoom
Alpha 672BLANK — print-based front view Alpha 672BLANK — rotatable print-based stepped blank tankAlpha 672BLANK — print-based rear viewAlpha 672BLANK — print-based side viewAlpha 672BLANK — print-based underside view of stepped blank bodyAlpha - 48 Gallons Fresh Water Tank - 54" x 38" x 6 1/2" * - 672BLANK

Pairs well with

Elkhart RV Parts - Universal Fresh Water Tank Fittings Kit with Water Level Sensors for RV Tanks
Elkhart RV Parts Elkhart RV Parts - Universal Fresh Water Tank Fittings Kit with Water Level Sensors for RV Tanks
$44.95 $55.48
205 ordered
Adcoseal - B-100 Butyl Rubber Sealant - 10.3 oz Cartridge - Black - Exterior RV Tank Sealant
Elkhart RV Parts Adcoseal - B-100 Butyl Rubber Sealant - 10.3 oz Cartridge - Black - Exterior RV Tank Sealant
$28.95 $45.95
263 ordered
SKU: 672BLANK
Added to catalog: March 18, 2025
Last product update: July 13, 2026 at 9:27 PM
$475.53 $707.19
| Found it cheaper? Get an answer in seconds.
Available to order
FREE Delivery Estimate October 25 – November 4
1-Hour Cancellation Window

1-Hour Cancellation Window

You'll have 1 hour after placing your order to update your shipping address or cancel completely.

After that, we begin coordinating with our vendors to fulfill your order — at that point, cancellations and address changes usually aren't possible.

If you're unsure about anything, please reach out before ordering or cancel within the window.

Read full policy →
Saved items

About this item

  • Dimensions: 54" x 38" x 6 1/2"
  • Capacity: 48 Gallons
  • Material: Polyethylene
46 gal · 54 x 38 x 6 1/2 · 672BLANK
Tank Type
Fresh Water $475.53 Selected
Capacity
40 gal $216.40 41 gal $416.28 42 gal $424.86 43 gal $375.94 44 gal $527.54 46 gal $475.53 Selected 48.5 gal $508.07 50 gal $329.95 52 gal $678.55 54 gal $571.93 55 gal $439.95 57 gal $590.27
Dimensions
39 x 18 x 14 $216.40 42 x 23 1/2 x 10 $363.47 54 x 19.75 x 9 $345.09 59 x 24 x 9 1/4 $469.48 53 1/2 x 27 3/4 x 8 5/8 $416.28 48 x 24 x 12 $424.86 48 x 24 x 9 $397.73 35 1/2 x 22 3/4 x 13 $375.94 59 3/4 x 31 3/4 x 8 1/2 $539.53 63 x 24 x 9 1/4 $527.54 54 x 38 x 6 1/2 $475.53 Selected 53 x 24.75 x 11 $508.07 38 x 22 1/4 x 14 $400.01 57 x 31 x 9 $329.95 54 x 45 x 6 1/2 $678.55 63 x 27 1/2 x 8 3/4 $547.79 59 x 29 1/2 x 8 7/8 $571.93 59 x 31 x 8 7/8 $466.39 56 x 32 x 7 1/2 $439.95 67 x 38 1/2 x 6 3/4 $590.27
Part Number
388BLANK $216.40 VR234210WBLANK $363.47 VR20549WBLANK $345.09 VR24597WBLANK $469.48 VB28547WBLANK $416.28 502BLANK $424.86 833BLANK $397.73 203BLANK $375.94 VR326055WBLANK $539.53 VR24637WBLANK $527.54 672BLANK $475.53 Selected 427BLANK $508.07 205BLANK $400.01 VR31577WBLANK $329.95 742BLANK $678.55 VR27638WBLANK $547.79 VR295975WBLANK $571.93 192BLANK $466.39 475BLANK $439.95 349BLANK $590.27

Frequently needed together

Alpha - 48 Gallons Fresh Water Tank - 54" x 38" x 6 1/2" * - 672BLANK Elkhart RV Parts - Universal Fresh Water Tank Fittings Kit with Water Level Sensors for RV Tanks Adcoseal - B-100 Butyl Rubber Sealant - 10.3 oz Cartridge - Black - Exterior RV Tank Sealant

Total price $549.43

Quench Your Thirst for Adventure with the Ultimate 48-Gallon Fresh Water Tank
Dimensioned print for Alpha - 48 Gallons Fresh Water Tank - 54" x 38" x 6 1/2" * - 672BLANK
Upgrade your RV’s water system with this 48-gallon Alpha fresh water tank, crafted from FDA-approved polyethylene for safe, durable storage. Its seamless, one-piece design ensures leak-proof performance and resists stains, corrosion, and rust for lasting reliability. Perfect for RVs, trailers, or marine use, this tank delivers OEM-quality that you can trust.
---
  • 100% Authentic OEM-Quality Parts: These rotational molded fresh water tanks are crafted to meet or exceed factory standards, making them a perfect upgrade or replacement for your RV, horse trailer, or marine vessel.
  • Premium FDA-Approved Material: Made from high-quality, durable polyethylene that's fully approved for safe drinking water storage—better than many stock tanks installed in factory-built RVs.
  • Seamless One-Piece Construction: Engineered without seams or joints for superior strength and leak-proof reliability, outlasting and outperforming typical OEM tanks.
  • Stain, Corrosion, and Rust Resistant: Designed to stay clean and functional even after years of use, ensuring your water stays fresh and your tank stays dependable.
  • Versatile Compatibility: Ideal for RV enthusiasts, horse trailer owners, or marine adventurers looking for a long-lasting, hassle-free water storage solution.
  • Enhanced Durability: Built tougher than many standard factory-installed tanks, offering peace of mind whether you're replacing an old tank or upgrading your setup.

Original Blueprint and Gallery Views

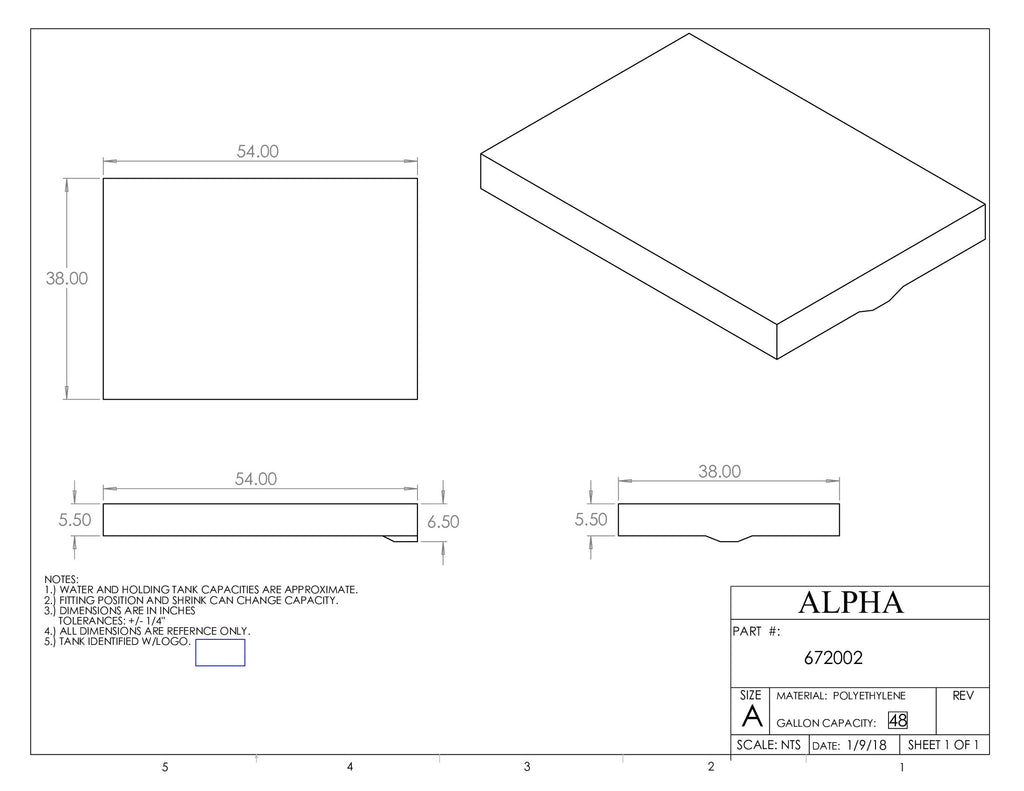

The retained Alpha 672002 drawing dated January 9, 2018 specifies approximately 48 US gallons and a 54 x 38-inch plan for the blank shell. Its main body is 5.5 inches deep, with a lower channel extending the maximum depth to 6.5 inches. Allow clearance for that underside feature rather than treating the tank as a uniform rectangular box. This drawing corrects the previous 46-gallon capacity description.

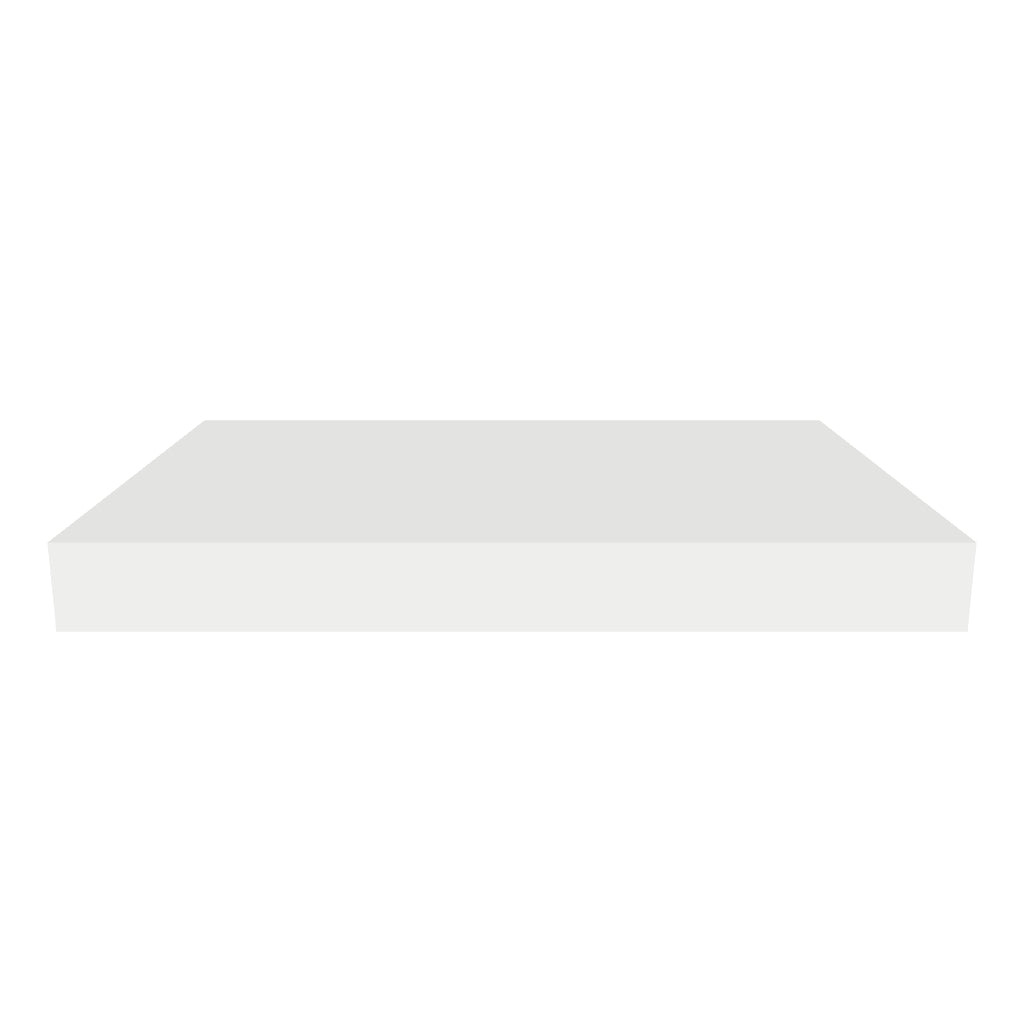

The four shadowed views and native rotatable model reconstruct the original drawing for this 672BLANK listing. The channel width, run, flat and tapered transitions are not separately dimensioned in the print; their outlines are traced proportionally for visualization. Natural polyethylene color and finish are illustrative. No ports or fittings are added. The underside view is flipped for display. Reference dimensions have ±1/4-inch tolerance and capacity is approximate. Use the retained original drawing and exact part identity to verify fitment; this is not measured manufacturing CAD.
