Alpha

Alpha - 53 Gallons Fresh Water Tank - 59" x 29 1/2" x 8 7/8" * - VR295975WBLANK

5 customers have ordered this
Alpha VR295975WBLANK — print-based front view
Alpha VR295975WBLANK — print-based rear view
Alpha VR295975WBLANK — print-based side view
Alpha VR295975WBLANK — print-based underside view of stepped blank body
Alpha - 54 Gallons Fresh Water Tank - 59" x 29 1/2" x 8 7/8" * - VR295975WBLANK
Roll over image to zoom in Click on image to zoom
Alpha VR295975WBLANK — print-based front view Alpha VR295975WBLANK — rotatable print-based stepped blank tankAlpha VR295975WBLANK — print-based rear viewAlpha VR295975WBLANK — print-based side viewAlpha VR295975WBLANK — print-based underside view of stepped blank bodyAlpha - 54 Gallons Fresh Water Tank - 59" x 29 1/2" x 8 7/8" * - VR295975WBLANK

Pairs well with

Elkhart RV Parts - Universal Fresh Water Tank Fittings Kit with Water Level Sensors for RV Tanks
Elkhart RV Parts Elkhart RV Parts - Universal Fresh Water Tank Fittings Kit with Water Level Sensors for RV Tanks
$44.95 $55.48
207 ordered
Adcoseal - B-100 Butyl Rubber Sealant - 10.3 oz Cartridge - Black - Exterior RV Tank Sealant
Elkhart RV Parts Adcoseal - B-100 Butyl Rubber Sealant - 10.3 oz Cartridge - Black - Exterior RV Tank Sealant
$28.95 $45.95
266 ordered
SKU: VR295975WBLANK
Added to catalog: March 18, 2025
Last product update: July 13, 2026 at 9:17 PM
$571.93 $850.58
| Found it cheaper? Get an answer in seconds.
Available to order
FREE Delivery Estimate October 26 – November 5
1-Hour Cancellation Window

1-Hour Cancellation Window

You'll have 1 hour after placing your order to update your shipping address or cancel completely.

After that, we begin coordinating with our vendors to fulfill your order — at that point, cancellations and address changes usually aren't possible.

If you're unsure about anything, please reach out before ordering or cancel within the window.

Read full policy →
Saved items

About this item

  • Dimensions: 59" x 29 1/2" x 8 7/8"
  • Capacity: 53 Gallons
  • Material: Polyethylene
54 gal · 59 x 29 1/2 x 8 7/8 · VR295975WBLANK
Tank Type
Fresh Water $571.93 Selected
Capacity
40 gal $216.40 41 gal $416.28 42 gal $424.86 43 gal $375.94 44 gal $527.54 46 gal $475.53 48.5 gal $508.07 50 gal $329.95 52 gal $678.55 54 gal $571.93 Selected 55 gal $439.95 57 gal $590.27
Dimensions
39 x 18 x 14 $216.40 42 x 23 1/2 x 10 $363.47 54 x 19.75 x 9 $345.09 59 x 24 x 9 1/4 $469.48 53 1/2 x 27 3/4 x 8 5/8 $416.28 48 x 24 x 12 $424.86 48 x 24 x 9 $397.73 35 1/2 x 22 3/4 x 13 $375.94 59 3/4 x 31 3/4 x 8 1/2 $539.53 63 x 24 x 9 1/4 $527.54 54 x 38 x 6 1/2 $475.53 53 x 24.75 x 11 $508.07 38 x 22 1/4 x 14 $400.01 57 x 31 x 9 $329.95 54 x 45 x 6 1/2 $678.55 63 x 27 1/2 x 8 3/4 $547.79 59 x 29 1/2 x 8 7/8 $571.93 Selected 59 x 31 x 8 7/8 $466.39 56 x 32 x 7 1/2 $439.95 67 x 38 1/2 x 6 3/4 $590.27
Part Number
388BLANK $216.40 VR234210WBLANK $363.47 VR20549WBLANK $345.09 VR24597WBLANK $469.48 VB28547WBLANK $416.28 502BLANK $424.86 833BLANK $397.73 203BLANK $375.94 VR326055WBLANK $539.53 VR24637WBLANK $527.54 672BLANK $475.53 427BLANK $508.07 205BLANK $400.01 VR31577WBLANK $329.95 742BLANK $678.55 VR27638WBLANK $547.79 VR295975WBLANK $571.93 Selected 192BLANK $466.39 475BLANK $439.95 349BLANK $590.27

Frequently needed together

Alpha - 53 Gallons Fresh Water Tank - 59" x 29 1/2" x 8 7/8" * - VR295975WBLANK Elkhart RV Parts - Universal Fresh Water Tank Fittings Kit with Water Level Sensors for RV Tanks Adcoseal - B-100 Butyl Rubber Sealant - 10.3 oz Cartridge - Black - Exterior RV Tank Sealant

Total price $645.83

Quench Your Adventure: The 53-Gallon Fresh Water Tank That Outlasts the Elements
Dimensioned print for Alpha - 53 Gallons Fresh Water Tank - 59" x 29 1/2" x 8 7/8" * - VR295975WBLANK
Enjoy safe, reliable water storage on the road or water with the Alpha 53-Gallon Fresh Water Tank. Crafted from FDA-approved, durable polyethylene, its seamless one-piece design resists leaks, stains, corrosion, and rust. Perfect for RVs, horse trailers, and marine vessels, this tank offers superior strength and long-lasting performance.
---
  • 100% Authentic OEM-Quality Parts: These rotational molded fresh water tanks are crafted to meet or exceed factory standards, making them a perfect upgrade or replacement for your RV, horse trailer, or marine vessel.
  • Premium FDA-Approved Material: Made from high-quality, durable polyethylene that's fully approved for safe drinking water storage—better than many stock tanks installed in factory-built RVs.
  • Seamless One-Piece Construction: Engineered without seams or joints for superior strength and leak-proof reliability, outlasting and outperforming typical OEM tanks.
  • Stain, Corrosion, and Rust Resistant: Designed to stay clean and functional even after years of use, ensuring your water stays fresh and your tank stays dependable.
  • Versatile Compatibility: Ideal for RV enthusiasts, horse trailer owners, or marine adventurers looking for a long-lasting, hassle-free water storage solution.
  • Enhanced Durability: Built tougher than many standard factory-installed tanks, offering peace of mind whether you're replacing an old tank or upgrading your setup.

Original Blueprint and Gallery Views

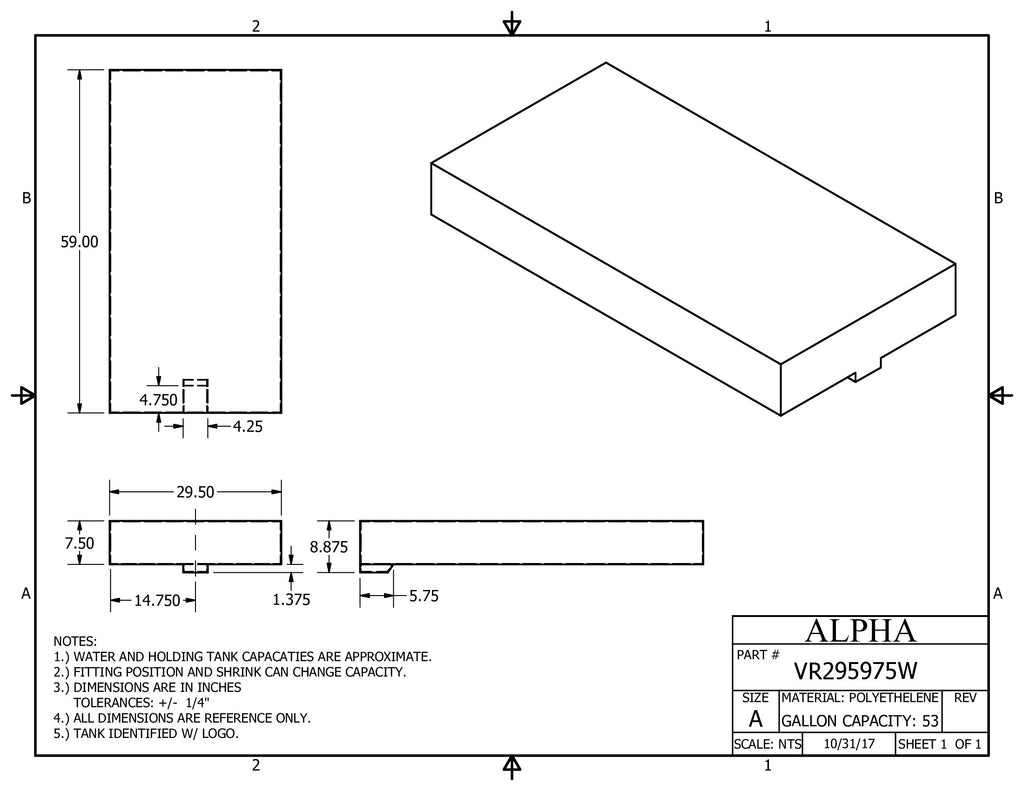

The retained Alpha VR295975W drawing dated October 31, 2017 specifies approximately 53 US gallons and a 59 x 29.5-inch plan. The body is 7.5 inches deep; the centered lower projection extends the maximum depth to 8.875 inches. This lower section is 4.25 inches wide, centered 14.75 inches from the side, with a 4.75-inch flat and a 5.75-inch total terminal run. Allow clearance for that lower profile. The original drawing corrects the previous 54-gallon capacity copy.

The four shadowed views and native rotatable model reconstruct this individual print for VR295975WBLANK. Natural polyethylene color and finish are illustrative. No ports or fittings are added. The underside view is flipped for display. Reference dimensions have ±1/4-inch tolerance and capacity is approximate. Use the retained original drawing and exact part identity to verify fitment; this is not measured manufacturing CAD.
