Alpha - 40 Gallons Fresh Water Tank - 59" x 24" x 9 1/4" * - VR24597WBLANK

Alpha VR24597WBLANK — print-based front view
Alpha VR24597WBLANK — print-based rear view
Alpha VR24597WBLANK — print-based side view
Alpha VR24597WBLANK — print-based underside view of stepped blank body
Alpha - 40 Gallons Fresh Water Tank - 59" x 24" x 9 1/4" * - VR24597WBLANK
Roll over image to zoom in Click on image to zoom
Alpha VR24597WBLANK — print-based front view Alpha VR24597WBLANK — rotatable print-based stepped blank tankAlpha VR24597WBLANK — print-based rear viewAlpha VR24597WBLANK — print-based side viewAlpha VR24597WBLANK — print-based underside view of stepped blank bodyAlpha - 40 Gallons Fresh Water Tank - 59" x 24" x 9 1/4" * - VR24597WBLANK

Pairs well with

Elkhart RV Parts - Universal Fresh Water Tank Fittings Kit with Water Level Sensors for RV Tanks
Elkhart RV Parts Elkhart RV Parts - Universal Fresh Water Tank Fittings Kit with Water Level Sensors for RV Tanks
$44.95 $55.48
205 ordered
Adcoseal - B-100 Butyl Rubber Sealant - 10.3 oz Cartridge - Black - Exterior RV Tank Sealant
Elkhart RV Parts Adcoseal - B-100 Butyl Rubber Sealant - 10.3 oz Cartridge - Black - Exterior RV Tank Sealant
$28.95 $45.95
263 ordered
SKU: VR24597WBLANK
Added to catalog: March 18, 2025
Last product update: July 13, 2026 at 9:22 PM
$469.48 $698.21
| Found it cheaper? Get an answer in seconds.
Available to order
FREE Delivery Estimate October 26 – November 4
1-Hour Cancellation Window

1-Hour Cancellation Window

You'll have 1 hour after placing your order to update your shipping address or cancel completely.

After that, we begin coordinating with our vendors to fulfill your order — at that point, cancellations and address changes usually aren't possible.

If you're unsure about anything, please reach out before ordering or cancel within the window.

Read full policy →
Saved items

About this item

  • Design: Seamless One-Piece
  • Dimensions: 59" x 24" x 9 1/4"
  • Capacity: 40 Gallons
Show moreShow less
  • Material: Polyethylene
40 gal · 59 x 24 x 9 1/4 · VR24597WBLANK
Tank Type
Fresh Water $469.48 Selected
Capacity
40 gal $469.48 Selected 41 gal $416.28 42 gal $424.86 43 gal $375.94 44 gal $527.54 46 gal $475.53 48.5 gal $508.07 50 gal $329.95 52 gal $678.55 54 gal $571.93 55 gal $439.95 57 gal $590.27
Dimensions
39 x 18 x 14 $216.40 42 x 23 1/2 x 10 $363.47 54 x 19.75 x 9 $345.09 59 x 24 x 9 1/4 $469.48 Selected 53 1/2 x 27 3/4 x 8 5/8 $416.28 48 x 24 x 12 $424.86 48 x 24 x 9 $397.73 35 1/2 x 22 3/4 x 13 $375.94 59 3/4 x 31 3/4 x 8 1/2 $539.53 63 x 24 x 9 1/4 $527.54 54 x 38 x 6 1/2 $475.53 53 x 24.75 x 11 $508.07 38 x 22 1/4 x 14 $400.01 57 x 31 x 9 $329.95 54 x 45 x 6 1/2 $678.55 63 x 27 1/2 x 8 3/4 $547.79 59 x 29 1/2 x 8 7/8 $571.93 59 x 31 x 8 7/8 $466.39 56 x 32 x 7 1/2 $439.95 67 x 38 1/2 x 6 3/4 $590.27
Part Number
388BLANK $216.40 VR234210WBLANK $363.47 VR20549WBLANK $345.09 VR24597WBLANK $469.48 Selected VB28547WBLANK $416.28 502BLANK $424.86 833BLANK $397.73 203BLANK $375.94 VR326055WBLANK $539.53 VR24637WBLANK $527.54 672BLANK $475.53 427BLANK $508.07 205BLANK $400.01 VR31577WBLANK $329.95 742BLANK $678.55 VR27638WBLANK $547.79 VR295975WBLANK $571.93 192BLANK $466.39 475BLANK $439.95 349BLANK $590.27

Frequently needed together

Alpha - 40 Gallons Fresh Water Tank - 59" x 24" x 9 1/4" * - VR24597WBLANK Elkhart RV Parts - Universal Fresh Water Tank Fittings Kit with Water Level Sensors for RV Tanks Adcoseal - B-100 Butyl Rubber Sealant - 10.3 oz Cartridge - Black - Exterior RV Tank Sealant

Total price $543.38

Stay Hydrated on Your Adventures with the Ultimate 40-Gallon Fresh Water Tank
Dimensioned print for Alpha - 40 Gallons Fresh Water Tank - 59" x 24" x 9 1/4" * - VR24597WBLANK
Enjoy safe, reliable water storage on the road with this Alpha 40-gallon fresh water tank. Made from FDA-approved polyethylene, its seamless, one-piece construction resists stains, corrosion, and leaks, making it perfect for RVs, horse trailers, and marine use. The slim design fits easily into tight spaces while providing OEM-quality performance you can trust.
---
  • 100% Authentic OEM-Quality Parts: These rotational molded fresh water tanks are crafted to meet or exceed factory standards, making them a perfect upgrade or replacement for your RV, horse trailer, or marine vessel.
  • Premium FDA-Approved Material: Made from high-quality, durable polyethylene that's fully approved for safe drinking water storage—better than many stock tanks installed in factory-built RVs.
  • Seamless One-Piece Construction: Engineered without seams or joints for superior strength and leak-proof reliability, outlasting and outperforming typical OEM tanks.
  • Stain, Corrosion, and Rust Resistant: Designed to stay clean and functional even after years of use, ensuring your water stays fresh and your tank stays dependable.
  • Versatile Compatibility: Ideal for RV enthusiasts, horse trailer owners, or marine adventurers looking for a long-lasting, hassle-free water storage solution.
  • Enhanced Durability: Built tougher than many standard factory-installed tanks, offering peace of mind whether you're replacing an old tank or upgrading your setup.

Original Blueprint and Gallery Views

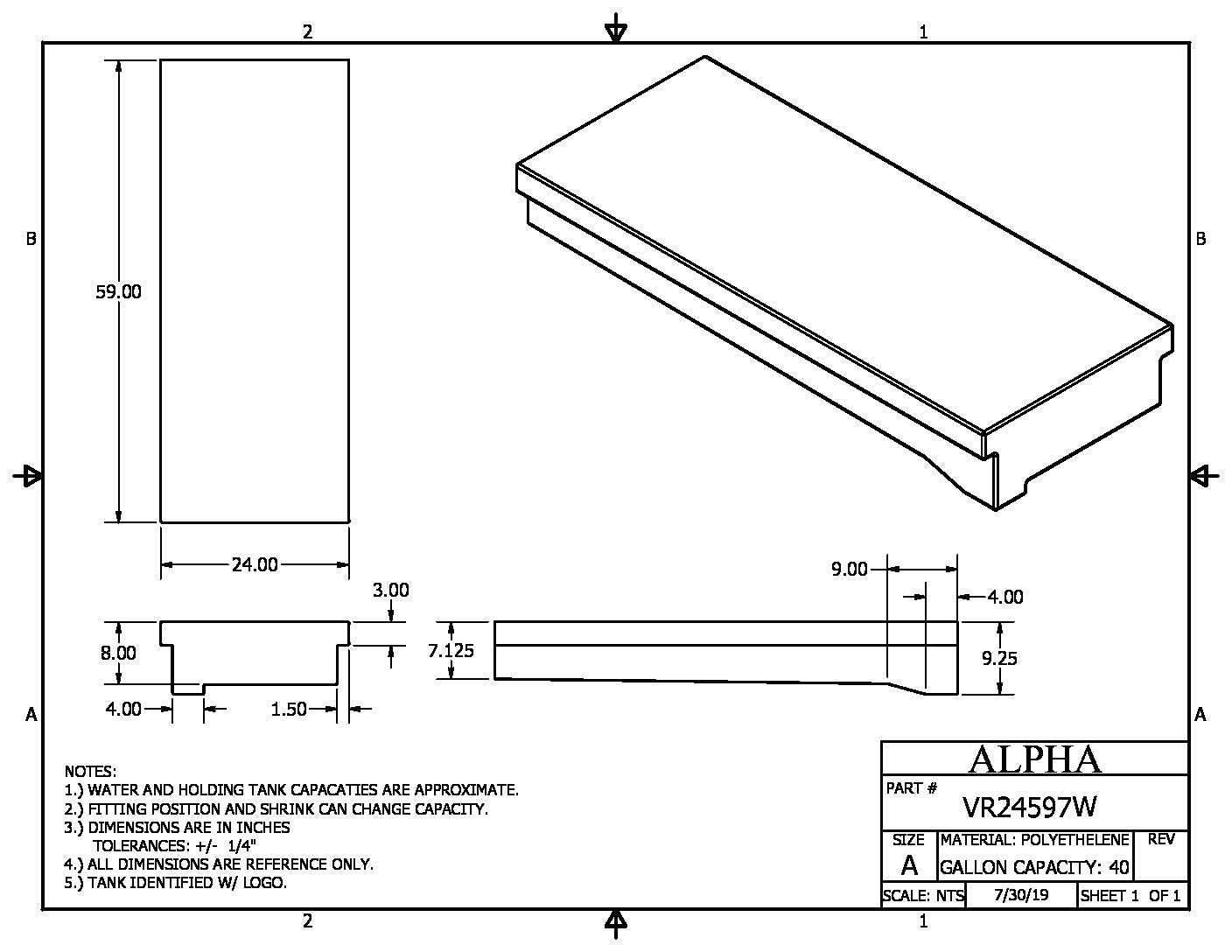

The retained Alpha VR24597W drawing dated July 30, 2019 specifies approximately 40 US gallons and a 59 x 24-inch plan. Overall depth reaches 9.25 inches at the drain section. The shallow end is 7.125 inches deep; the end view calls out an 8-inch main-body depth. The upper rim is 3 inches deep, with the lower body inset 1.5 inches from each long edge. The lower drain channel is 4 inches wide, with a 9-inch terminal transition including a 4-inch flat section. Check the full underside profile and rim clearance rather than assuming a uniform rectangular body.

The four shadowed views and native rotatable model reconstruct this individual print for the VR24597WBLANK listing. Lower surfaces reconcile the printed end and side profiles; small undimensioned radii are not specified. Natural polyethylene color and finish are illustrative. No ports or fittings are added. The underside view is flipped for display. Reference dimensions have ±1/4-inch tolerance and capacity is approximate. Use the retained original drawing and exact part identity to verify fitment; this is not measured manufacturing CAD.
