Alpha - 93 Gallons Fresh Water Tank - 59" x 58" x 8 1/2" * - 931BLANK
Pairs well with
Ready to order
Alpha - 93 Gallons Fresh Water Tank - 59" x 58" x 8 1/2" * - 931BLANK
Frequently needed together
- This item: Alpha - 93 Gallons Fresh Water Tank - 59" x 58" x 8 1/2" * - 931BLANK $1,041.26
- Elkhart RV Parts - Universal Fresh Water Tank Fittings Kit with Water Level Sensors for RV Tanks $44.95
- Adcoseal - B-100 Butyl Rubber Sealant - 10.3 oz Cartridge - Black - Exterior RV Tank Sealant $28.95
Total price $1,115.16
---
- 100% Authentic OEM-Quality Parts: These rotational molded fresh water tanks are crafted to meet or exceed factory standards, making them a perfect upgrade or replacement for your RV, horse trailer, or marine vessel.
- Premium FDA-Approved Material: Made from high-quality, durable polyethylene that's fully approved for safe drinking water storage—better than many stock tanks installed in factory-built RVs.
- Seamless One-Piece Construction: Engineered without seams or joints for superior strength and leak-proof reliability, outlasting and outperforming typical OEM tanks.
- Stain, Corrosion, and Rust Resistant: Designed to stay clean and functional even after years of use, ensuring your water stays fresh and your tank stays dependable.
- Versatile Compatibility: Ideal for RV enthusiasts, horse trailer owners, or marine adventurers looking for a long-lasting, hassle-free water storage solution.
- Enhanced Durability: Built tougher than many standard factory-installed tanks, offering peace of mind whether you're replacing an old tank or upgrading your setup.
Original Blueprint and Gallery Views

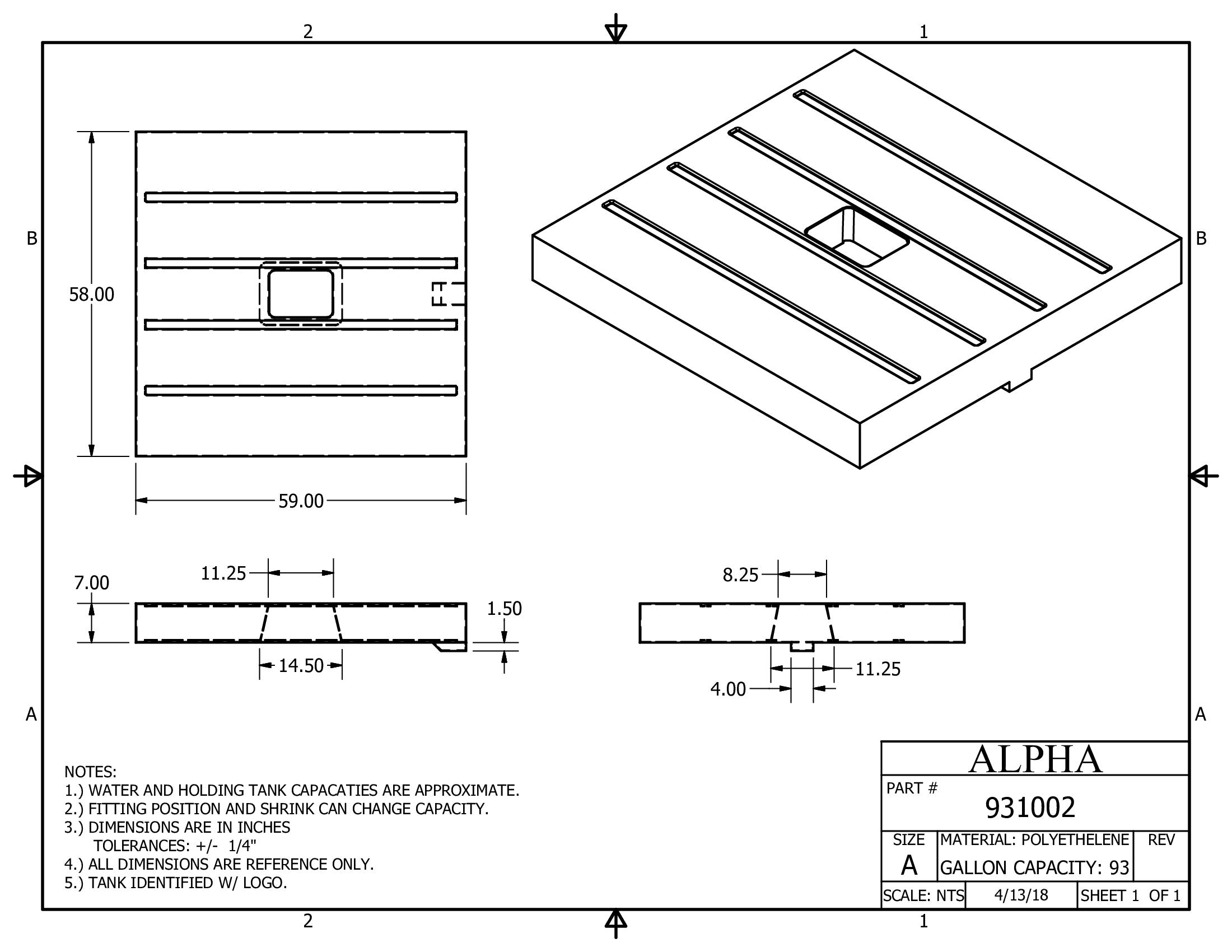

The retained original Alpha 931002 drawing dated April 13, 2018 specifies approximately 93 US gallons and a 59 x 58-inch plan for this 931 tank family. The body is 7 inches deep; the 1.5-inch lower projection gives an 8.5-inch maximum depth. A central tapered passage measures 11.25 x 8.25 inches at the upper face and 14.5 x 11.25 inches at the lower face. The drawing also shows four long grooves and a 4-inch-wide lower drain section. Allow clearance for these molded features and verify placement from the original part.

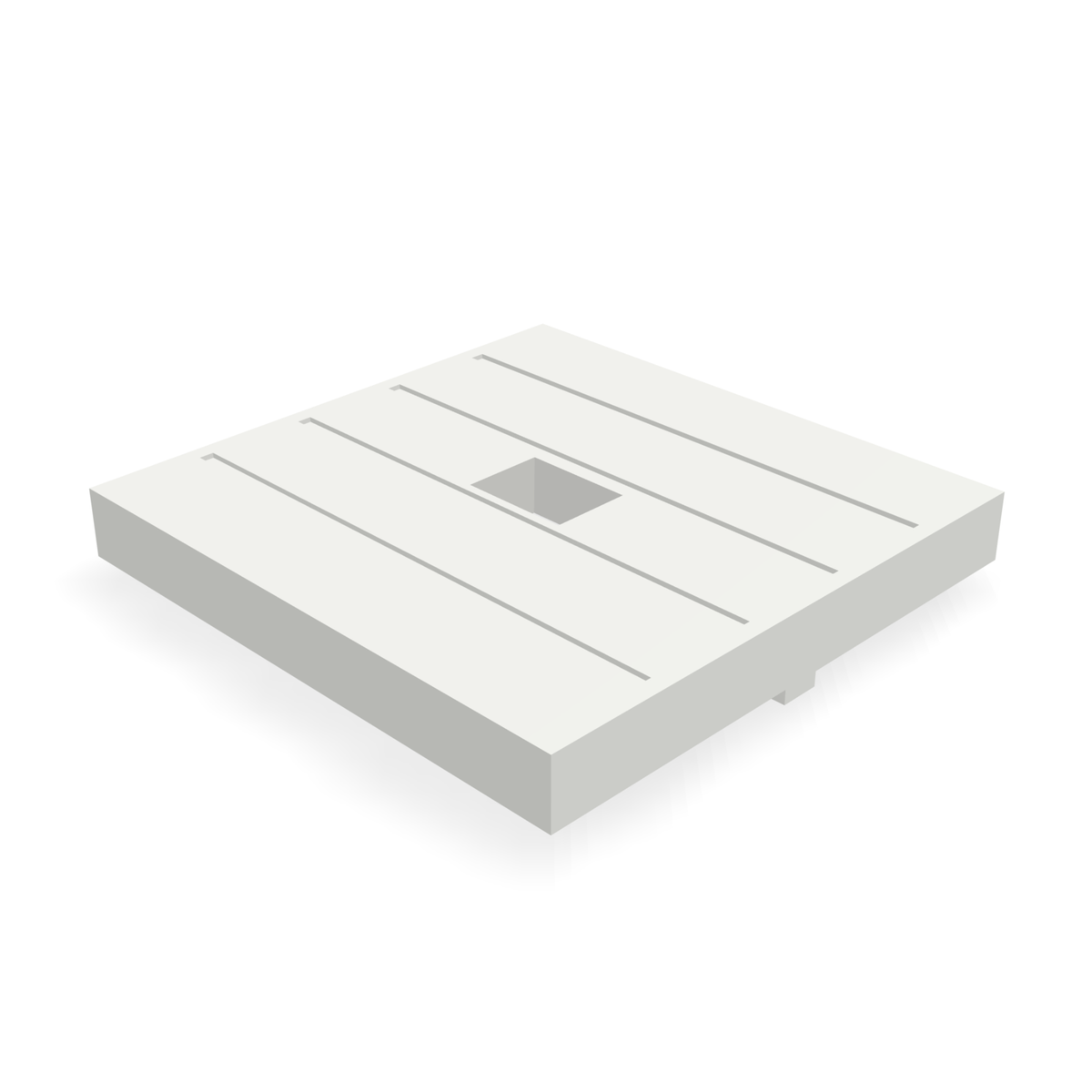

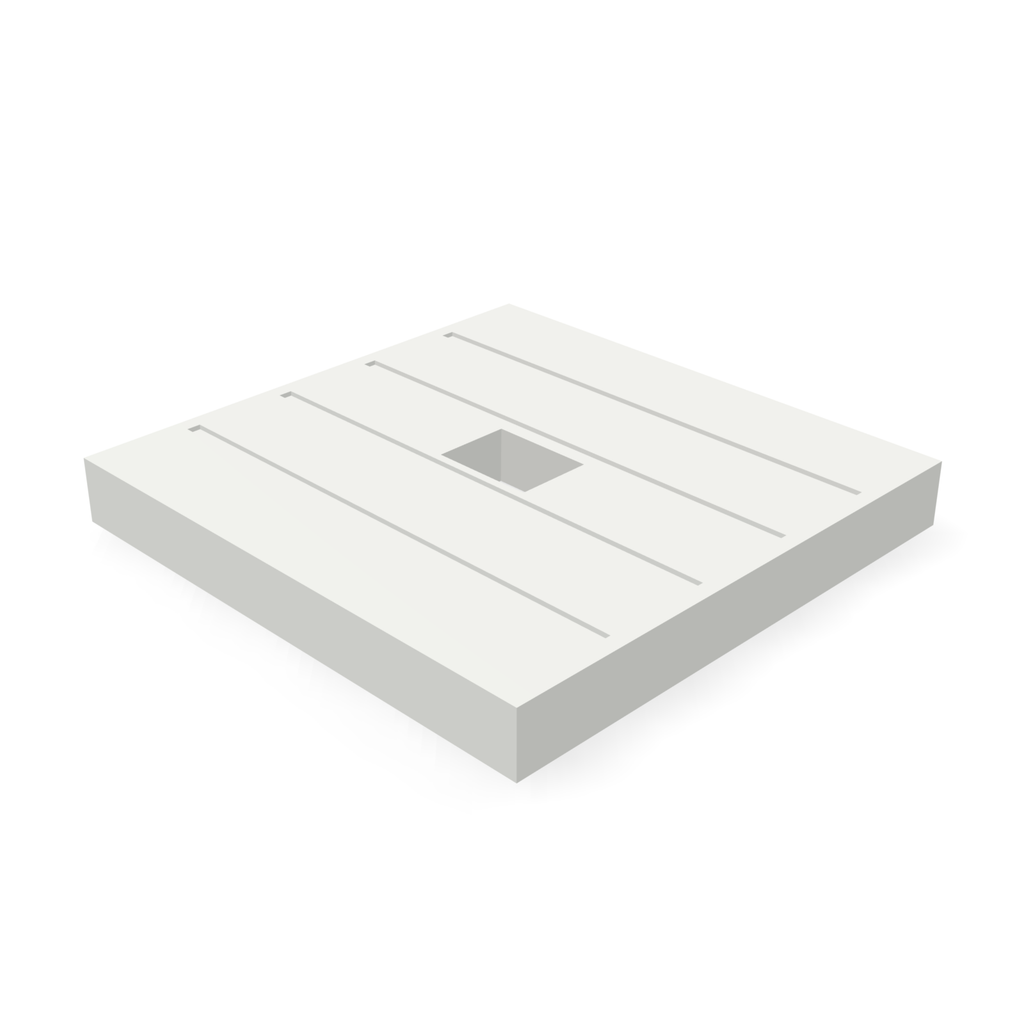

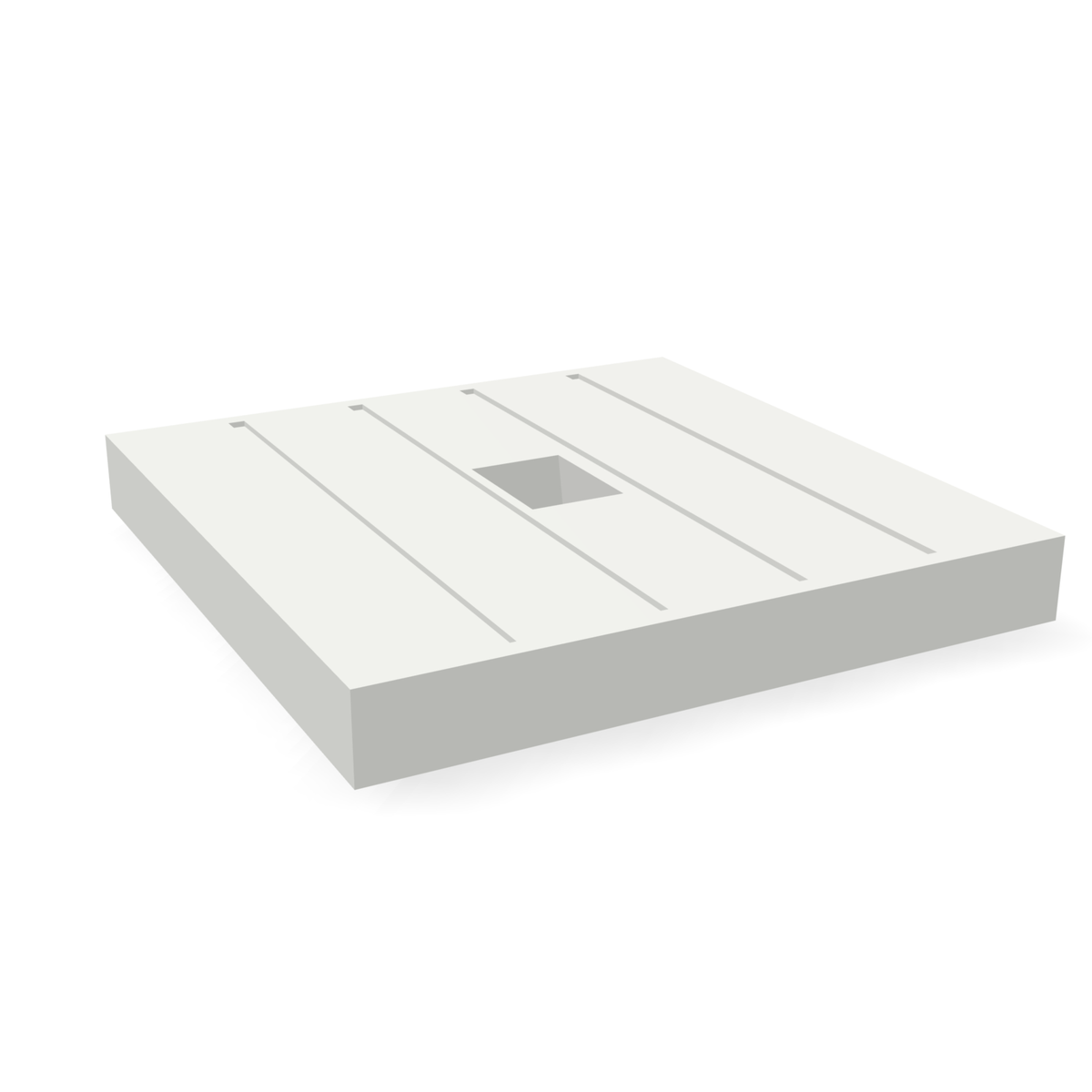

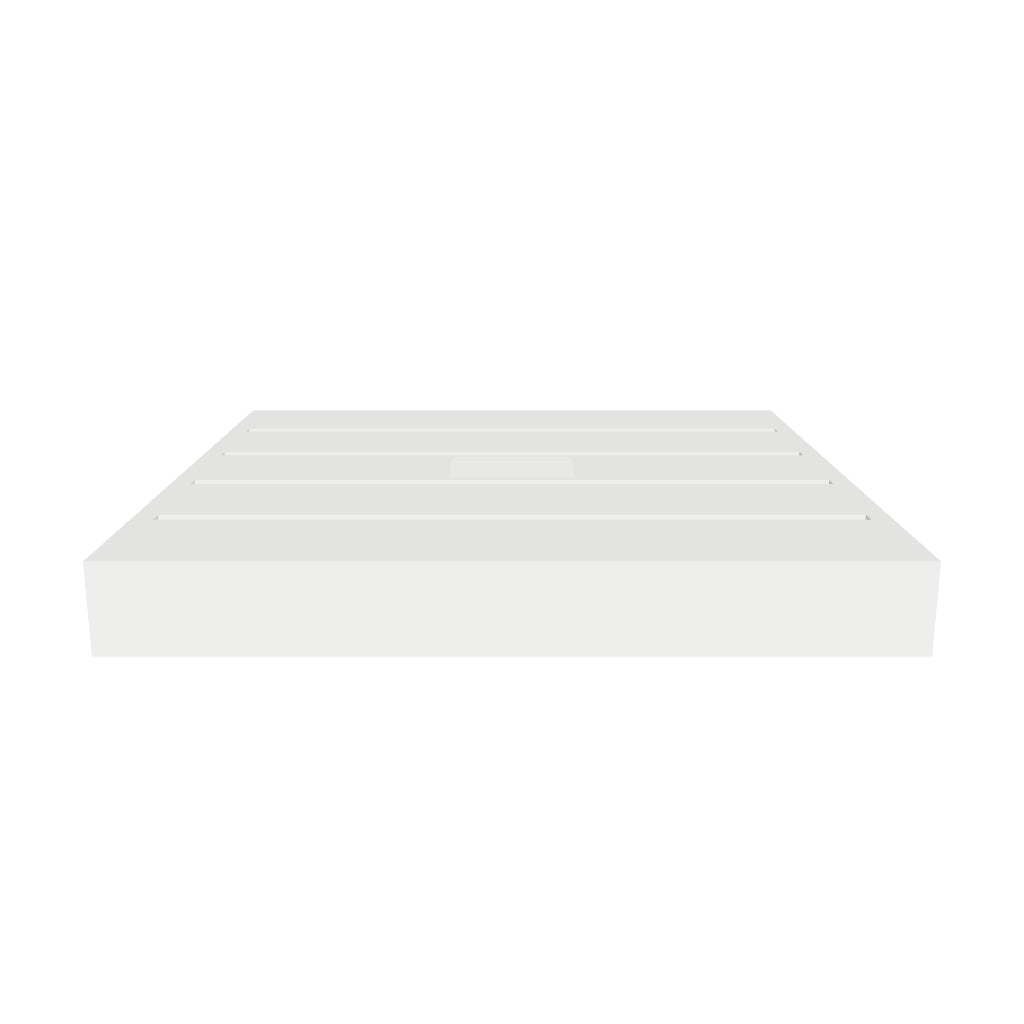

The four shadowed views and native rotatable model reconstruct the drawing retained on this 931BLANK listing. Groove profiles, spacing and end margins, central-feature placement and the closing drain ramp follow the drawn silhouettes; they are not separately dimensioned. Natural polyethylene color and finish are illustrative. No fittings are added. The underside view is flipped for display. Reference dimensions have ±1/4-inch tolerance and capacity is approximate. Use the original drawing and exact part identity to verify fitment; this is not measured manufacturing CAD.
| Product type | Fresh Water Tank |
|---|---|
| Capacity | 93 Gallons |
| Dimensions | 59" x 58" x 8 1/2" |
| Construction type | Rotational Molded |
| Material | Polyethylene |
| Fda approved | Yes |
| Seams | Seamless |
| Compatible applications | RV, Horse Trailer, Marine Vessel |
| Model number | 931BLANK |
- What material is the alpha 93 gallons fresh water tank made from? The tank is made from high-quality, durable polyethylene that is FDA-approved for safe drinking water storage.
- What are the dimensions of this fresh water tank? The dimensions of the tank are 59 inches in length, 58 inches in width, and 8 1/2 inches in height.
- Is this fresh water tank suitable for use in rvs and marine vessels? Yes, this tank is designed to be a perfect upgrade or replacement for RVs, horse trailers, and marine vessels.
- Does the alpha 93 gallons fresh water tank have any seams or joints? No, it features seamless one-piece construction for superior strength and leak-proof reliability.
- Is this tank resistant to stains, corrosion, and rust? Yes, the tank is designed to be stain, corrosion, and rust resistant, ensuring long-lasting durability and clean water storage.
