Alpha - 83 Gallons Fresh Water Tank - 58" x 44" x 9 1/2" * - 976BLANK
Pairs well with
Ready to order
Alpha - 83 Gallons Fresh Water Tank - 58" x 44" x 9 1/2" * - 976BLANK
Frequently needed together
- This item: Alpha - 83 Gallons Fresh Water Tank - 58" x 44" x 9 1/2" * - 976BLANK $730.23
- Elkhart RV Parts - Universal Fresh Water Tank Fittings Kit with Water Level Sensors for RV Tanks $44.95
- Adcoseal - B-100 Butyl Rubber Sealant - 10.3 oz Cartridge - Black - Exterior RV Tank Sealant $28.95
Total price $804.13
---
- 100% Authentic OEM-Quality Parts: These rotational molded fresh water tanks are crafted to meet or exceed factory standards, making them a perfect upgrade or replacement for your RV, horse trailer, or marine vessel.
- Premium FDA-Approved Material: Made from high-quality, durable polyethylene that's fully approved for safe drinking water storage—better than many stock tanks installed in factory-built RVs.
- Seamless One-Piece Construction: Engineered without seams or joints for superior strength and leak-proof reliability, outlasting and outperforming typical OEM tanks.
- Stain, Corrosion, and Rust Resistant: Designed to stay clean and functional even after years of use, ensuring your water stays fresh and your tank stays dependable.
- Versatile Compatibility: Ideal for RV enthusiasts, horse trailer owners, or marine adventurers looking for a long-lasting, hassle-free water storage solution.
- Enhanced Durability: Built tougher than many standard factory-installed tanks, offering peace of mind whether you're replacing an old tank or upgrading your setup.
Original Blueprint and Gallery Views

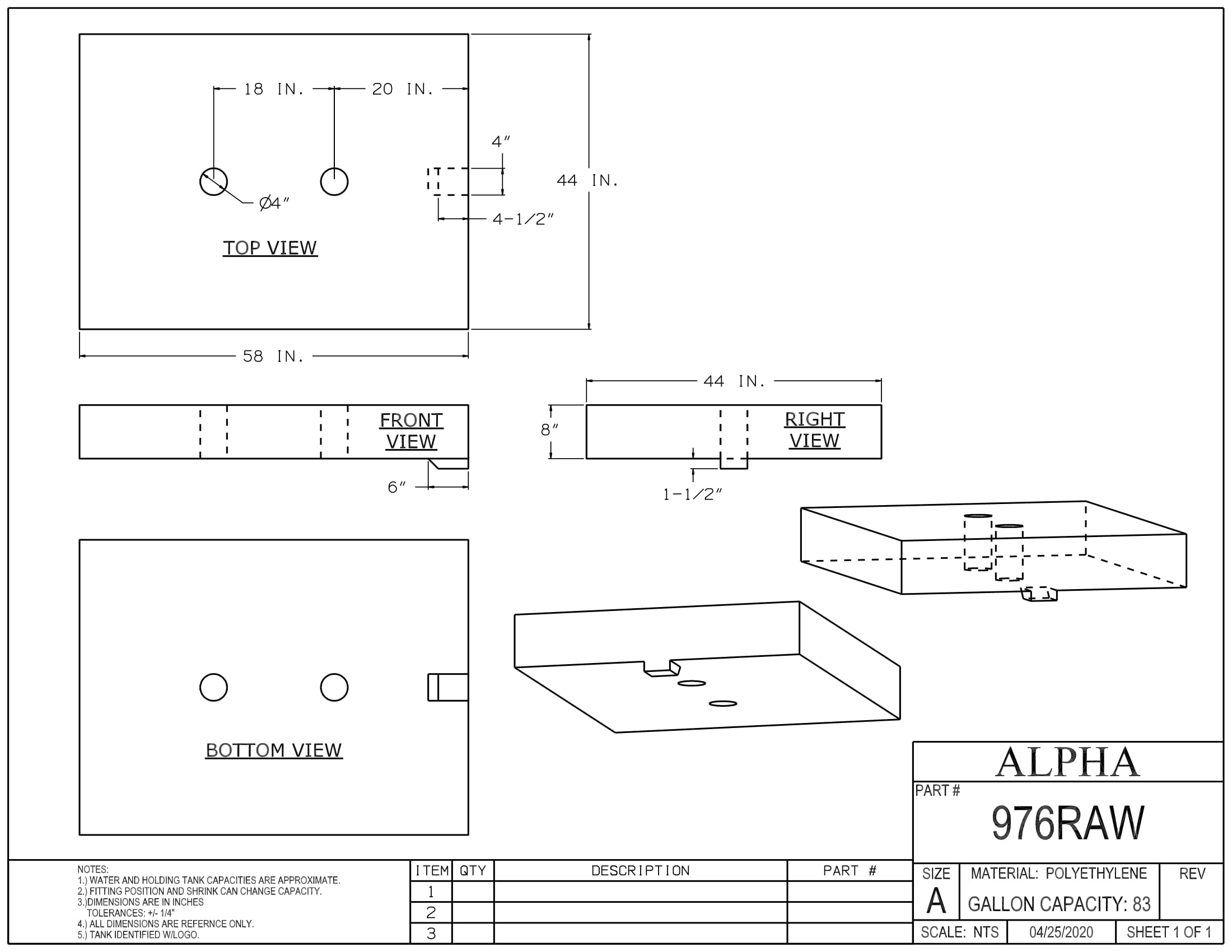

The retained original Alpha 976RAW drawing dated April 25, 2020 specifies approximately 83 US gallons and a 58 x 44-inch plan for this 976 tank family. The body is 8 inches deep and the lower projection gives a 9.5-inch maximum depth. The lower section is 4 inches wide, with a 4.5-inch flat and a 6-inch total terminal run. Two 4-inch molded passages continue through the body, spaced 18 inches apart; the passage nearest the drain end is 20 inches from that end. These printed molded features are represented in the model; no separate plumbing fittings are added. Allow clearance for the lower profile.

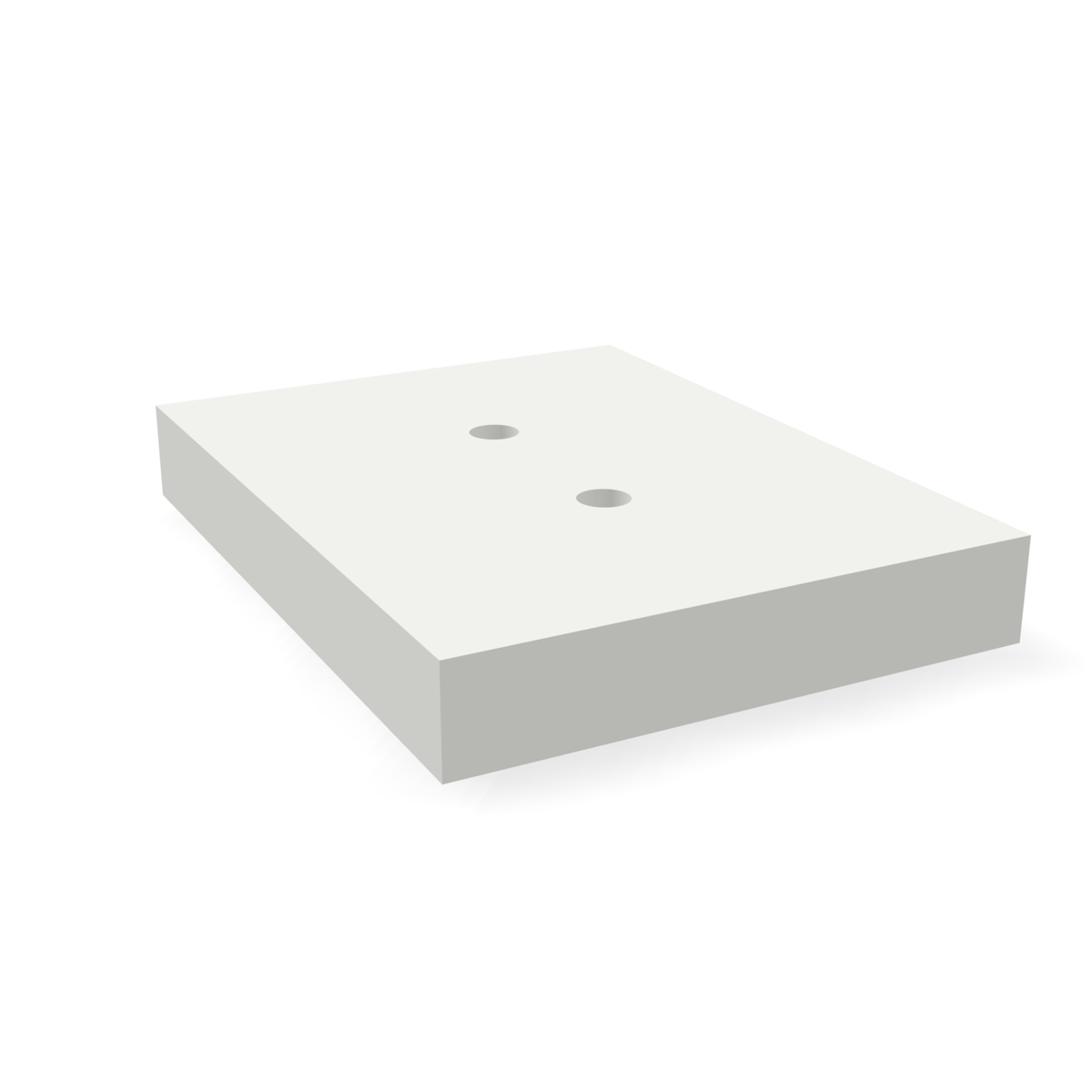

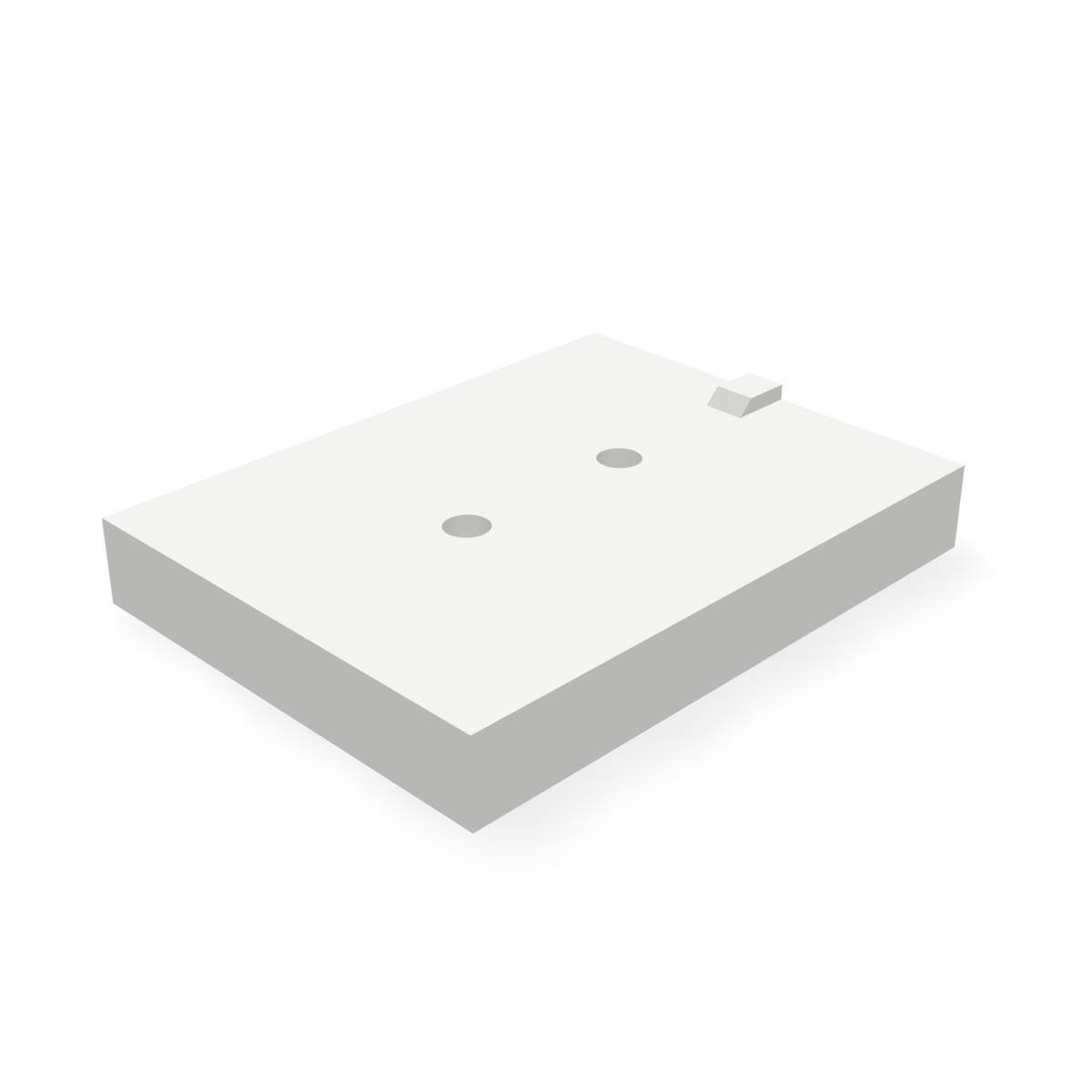

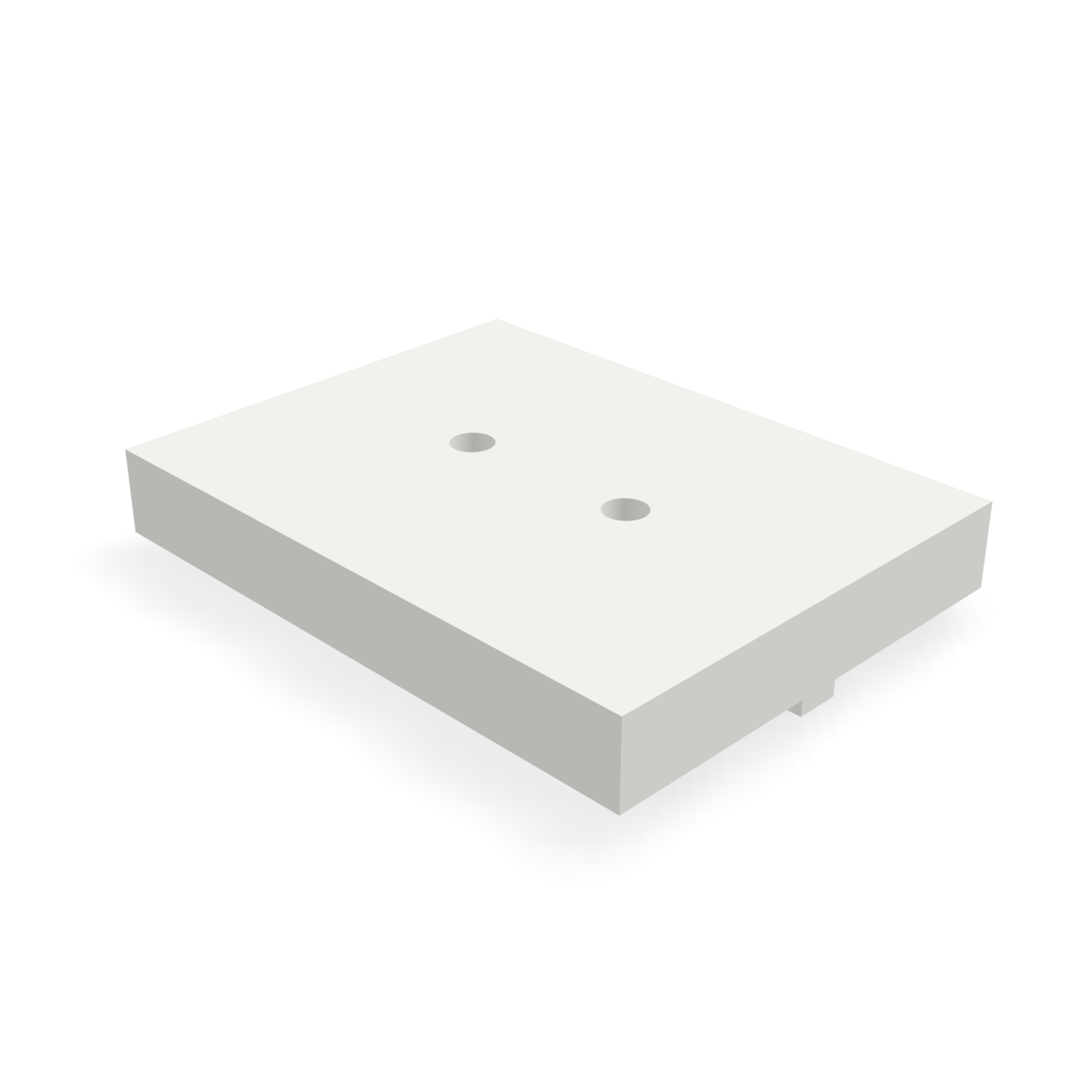

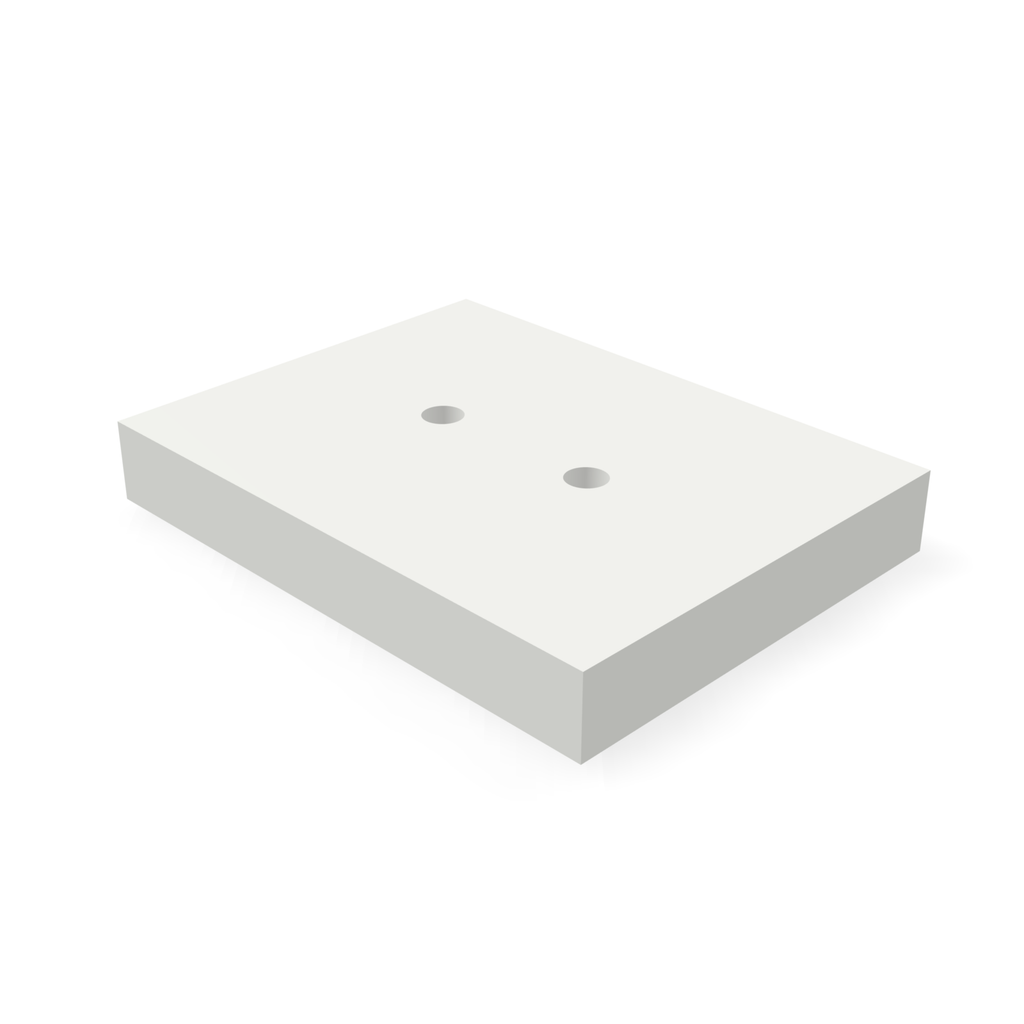

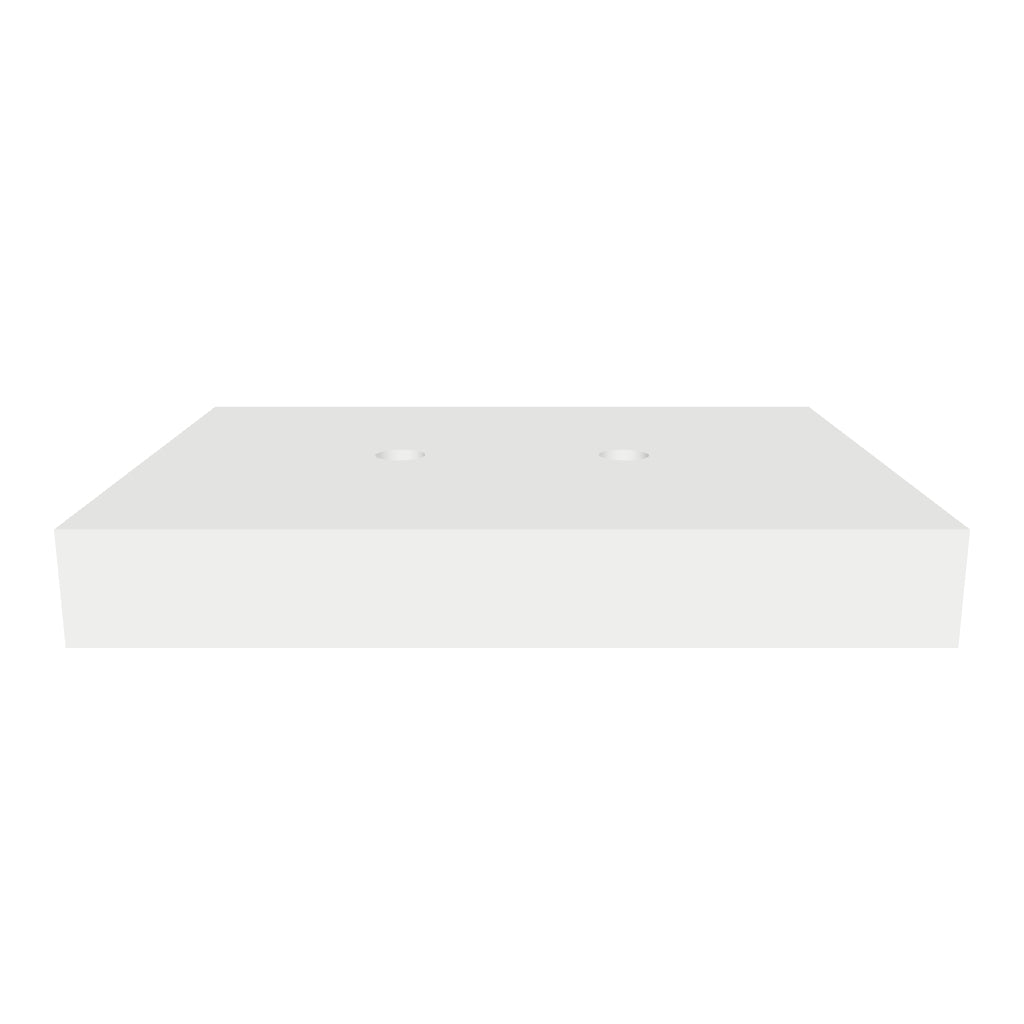

The four shadowed views and native rotatable model reconstruct the individual drawing retained on this 976BLANK listing. Passage lateral placement follows the centered plan view and is not separately dimensioned. Natural polyethylene color and finish are illustrative. The underside view is flipped for display. Reference dimensions have ±1/4-inch tolerance and capacity is approximate. Use the original drawing and exact part identity to verify fitment; this is not measured manufacturing CAD.
| Product type | Fresh Water Tank |
|---|---|
| Brand | Alpha |
| Capacity | 83 Gallons |
| Dimensions | 58" x 44" x 9 1/2" |
| Model number | 976BLANK |
| Material | Polyethylene |
| Construction type | Seamless One-Piece Rotational Molded |
| Fda approved | Yes |
| Suitable for | RVHorse TrailerMarine Vessel |
| Quality standard | OEM-Quality |
- What is the capacity of the alpha fresh water tank? The Alpha fresh water tank has a capacity of 83 gallons.
- What are the dimensions of this fresh water tank? The tank measures 58 inches in length, 44 inches in width, and 9.5 inches in height.
- Is this fresh water tank safe for storing drinking water? Yes, the tank is made from premium FDA-approved polyethylene material, making it safe for storing drinking water.
- Is the construction of the tank leak-proof? Yes, the tank features seamless one-piece construction which provides superior strength and leak-proof reliability.
- Can this tank be used in rvs, horse trailers, and marine vessels? Yes, this versatile fresh water tank is suitable for RVs, horse trailers, and marine vessels, offering a durable and hassle-free water storage solution.
Ready to order
Alpha - 83 Gallons Fresh Water Tank - 58" x 44" x 9 1/2" * - 976BLANK
Loading customer reviews…
Factory-Fresh OEM Parts — the same brands installed in new RVs straight from Elkhart. Genuine, name-brand components made to order — never generic, never outdated. Sourced directly from the original RV manufacturers for perfect fit and factory-level quality.
