Alpha - 61 Gallons Fresh Water Tank - 61" x 34" x 8 1/2"* - 196BLANK
Pairs well with
Ready to order
Alpha - 61 Gallons Fresh Water Tank - 61" x 34" x 8 1/2"* - 196BLANK
Frequently needed together
- This item: Alpha - 61 Gallons Fresh Water Tank - 61" x 34" x 8 1/2"* - 196BLANK $519.94
- Elkhart RV Parts - Universal Fresh Water Tank Fittings Kit with Water Level Sensors for RV Tanks $44.95
- Adcoseal - B-100 Butyl Rubber Sealant - 10.3 oz Cartridge - Black - Exterior RV Tank Sealant $28.95
Total price $593.84
---
- 100% Authentic OEM-Quality Parts: These rotational molded fresh water tanks are crafted to meet or exceed factory standards, making them a perfect upgrade or replacement for your RV, horse trailer, or marine vessel.
- Premium FDA-Approved Material: Made from high-quality, durable polyethylene that's fully approved for safe drinking water storage—better than many stock tanks installed in factory-built RVs.
- Seamless One-Piece Construction: Engineered without seams or joints for superior strength and leak-proof reliability, outlasting and outperforming typical OEM tanks.
- Stain, Corrosion, and Rust Resistant: Designed to stay clean and functional even after years of use, ensuring your water stays fresh and your tank stays dependable.
- Versatile Compatibility: Ideal for RV enthusiasts, horse trailer owners, or marine adventurers looking for a long-lasting, hassle-free water storage solution.
- Enhanced Durability: Built tougher than many standard factory-installed tanks, offering peace of mind whether you're replacing an old tank or upgrading your setup.
Original Blueprint and Gallery Views

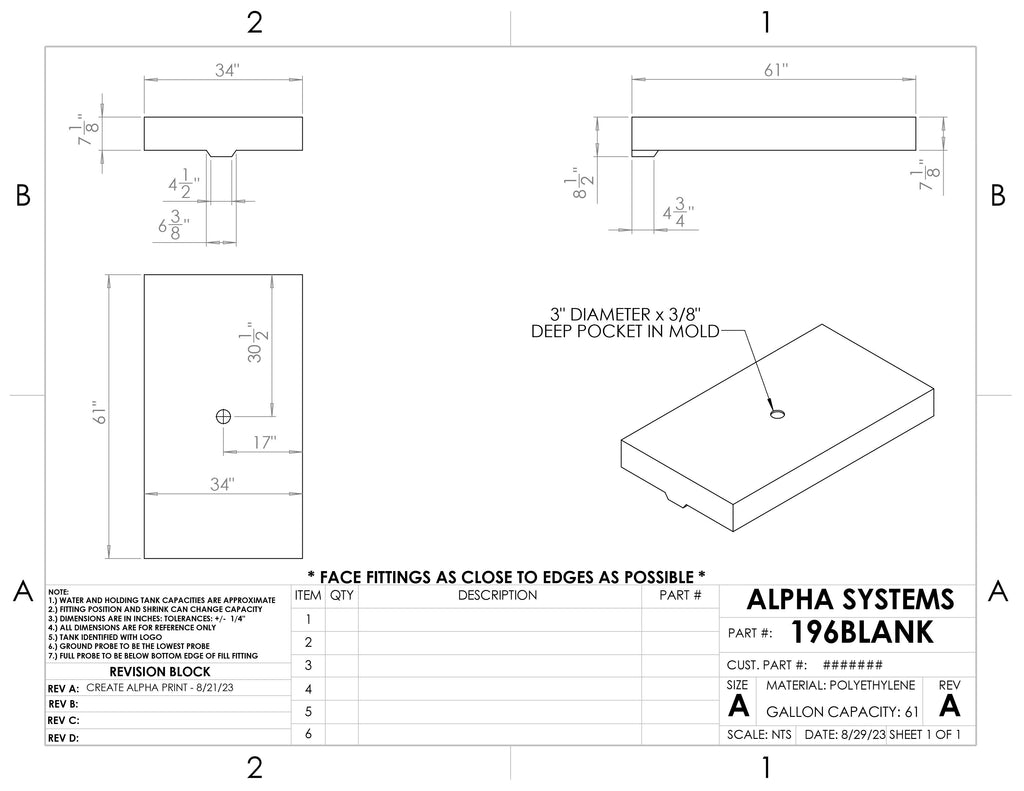

The retained Alpha 196BLANK drawing dated August 29, 2023 specifies approximately 61 US gallons and a 61 x 34-inch plan. The body is 7.125 inches deep and the lower projection gives an 8.5-inch maximum depth. The lower section measures 6.375 inches at the body and 4.5 inches at its narrower bottom, with a 4.75-inch flat run. A molded pocket on the upper face is 3 inches in diameter and 0.375 inches deep, positioned 30.5 inches from the end and 17 inches from the side. This is a pocket, not an added fitting or open plumbing port. Allow clearance for the lower profile.

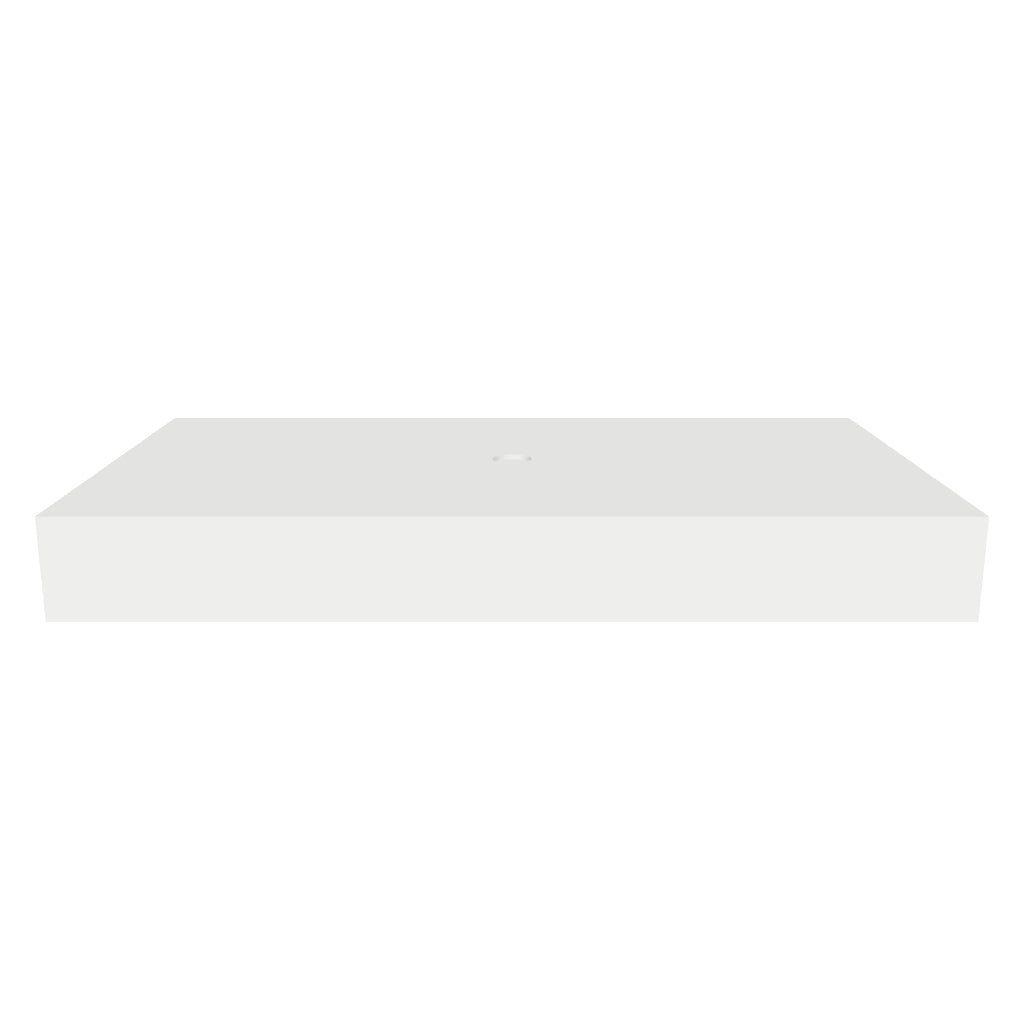

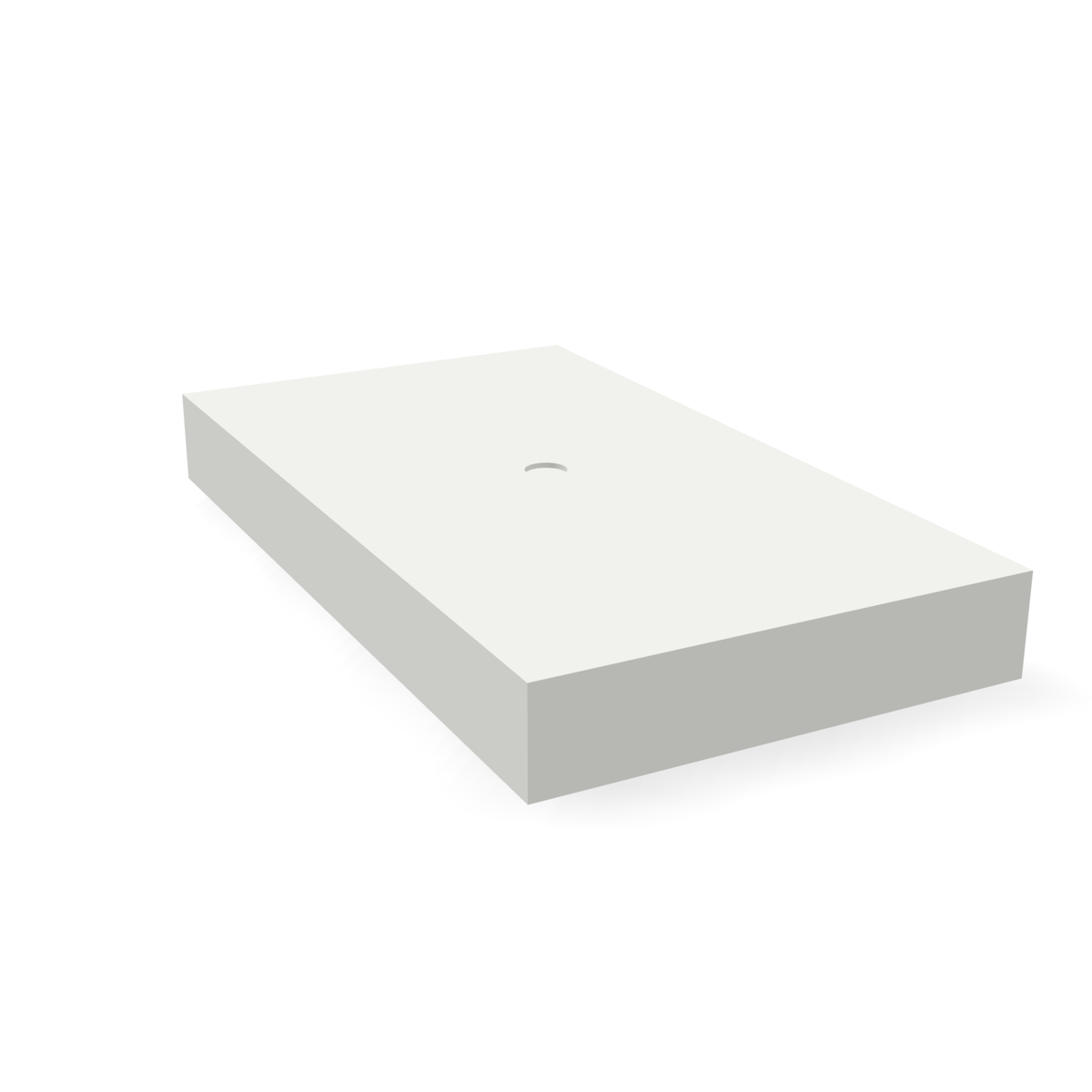

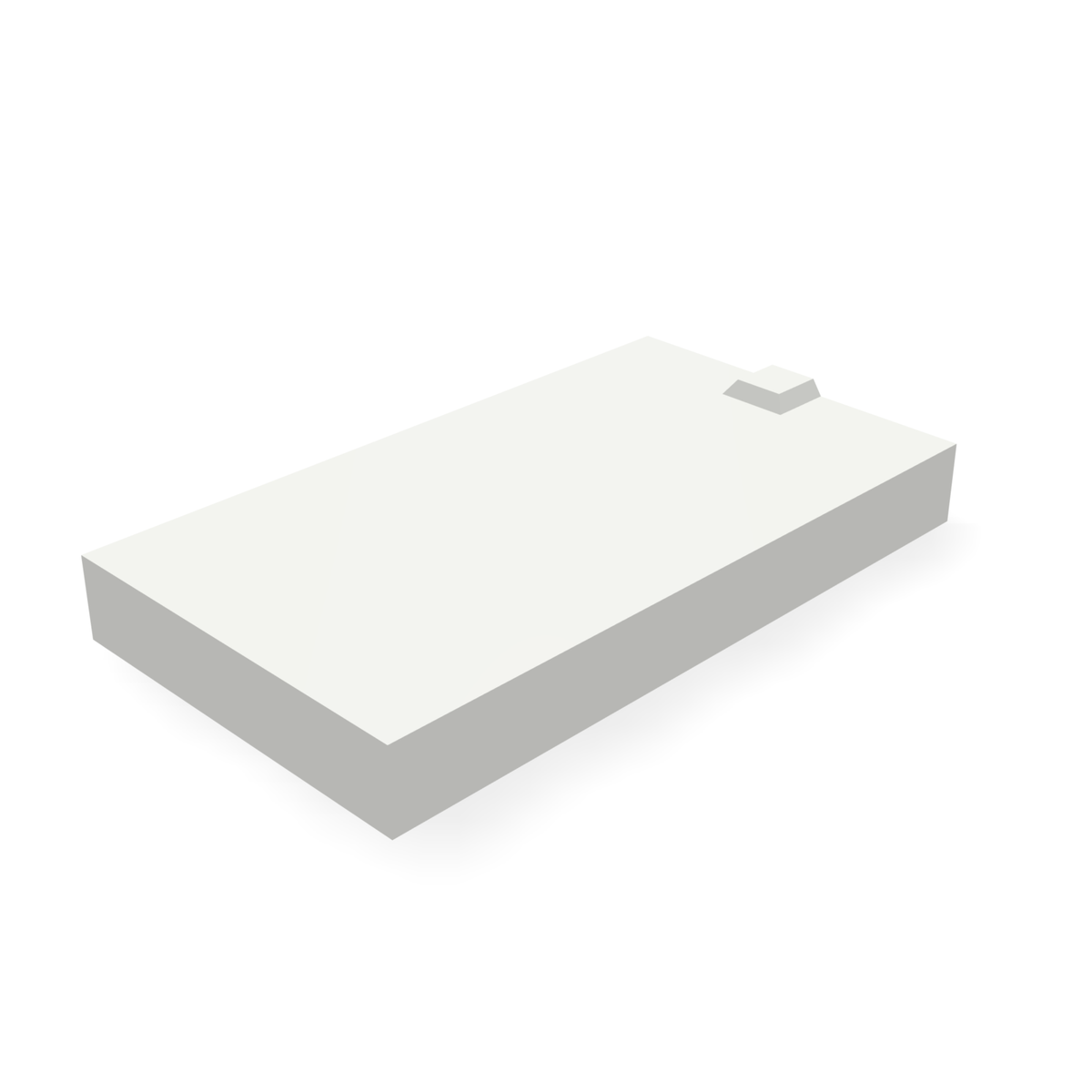

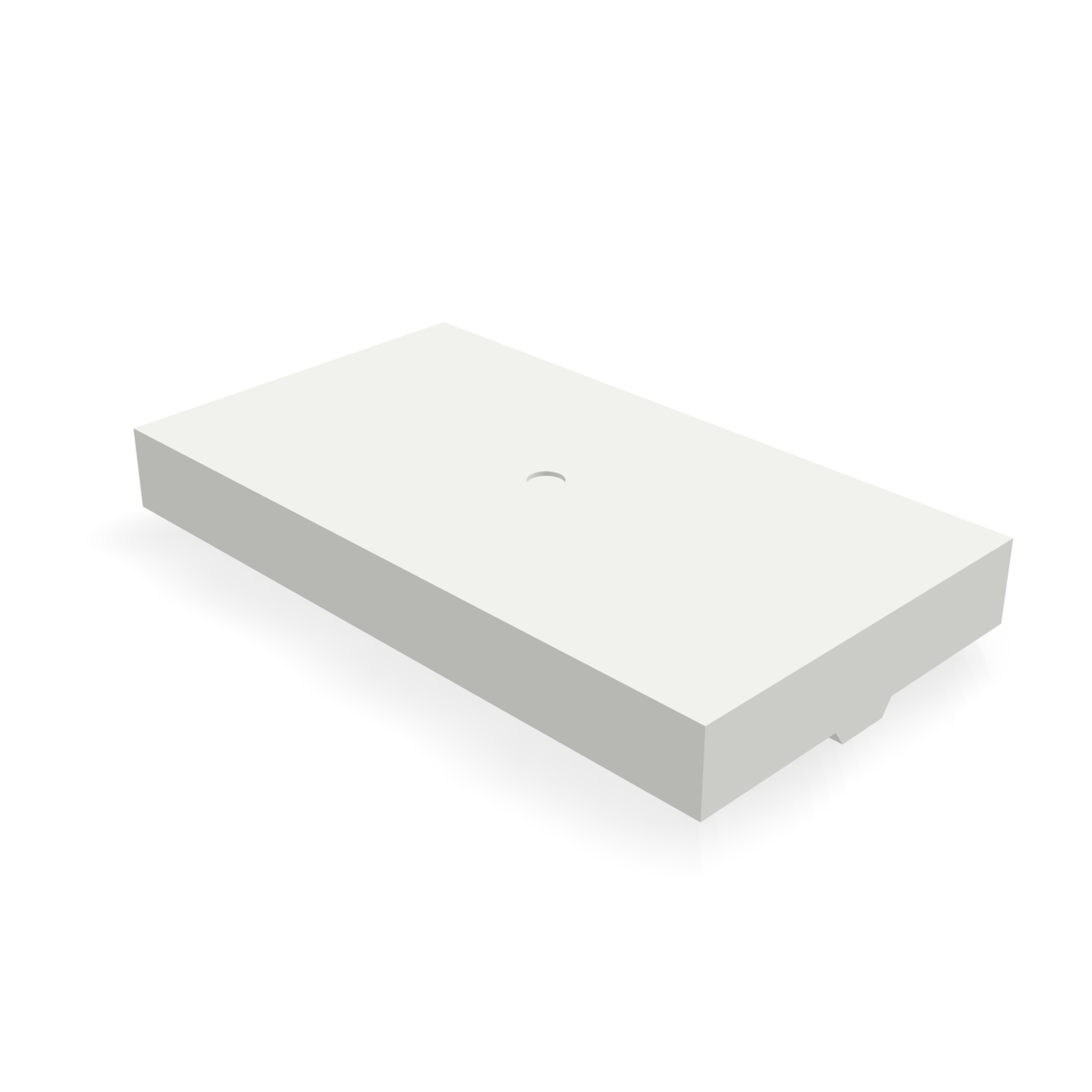

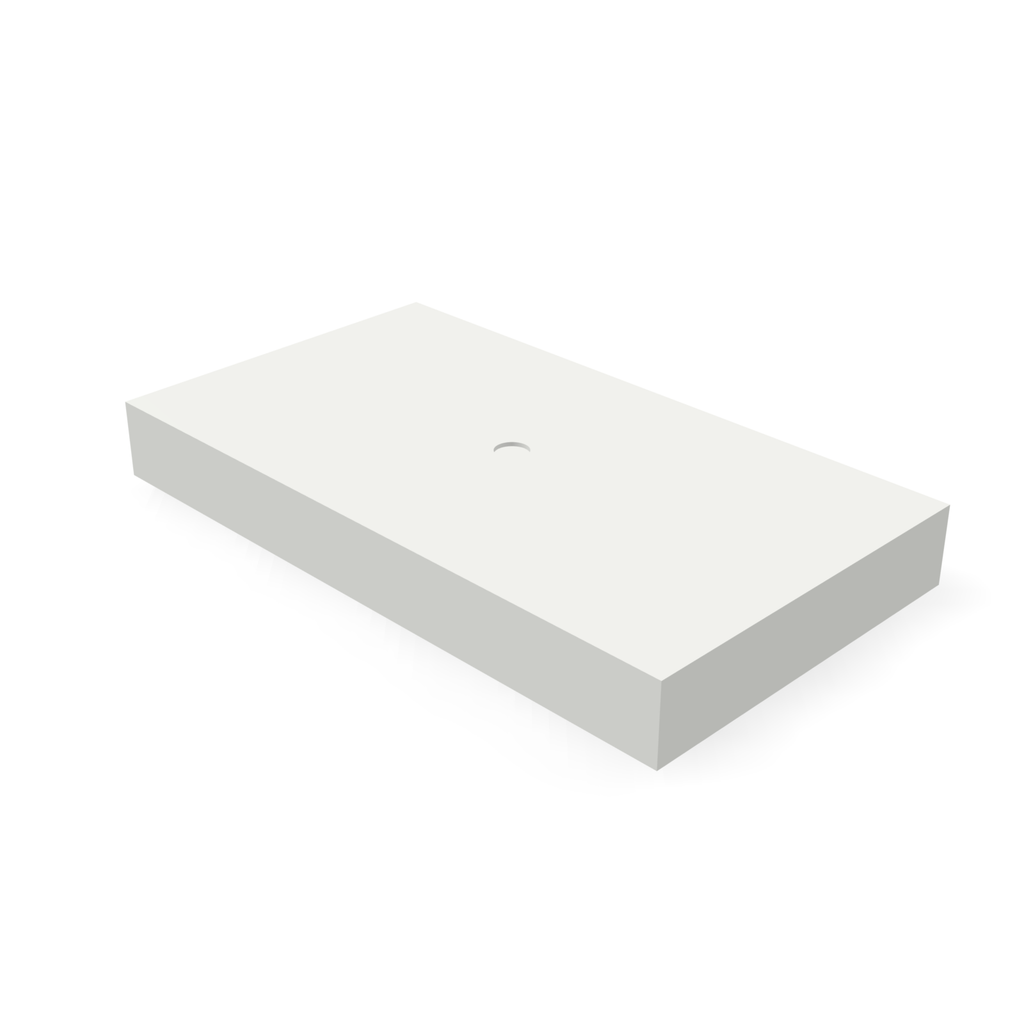

The four shadowed views and native rotatable model reconstruct this individual print. The short closing ramp follows the drawn side silhouette; its total run is not separately dimensioned. Natural polyethylene color and finish are illustrative. No fittings are added. The underside view is flipped for display. Reference dimensions have ±1/4-inch tolerance and capacity is approximate. Use the original drawing and exact part identity to verify fitment; this is not measured manufacturing CAD.
| Product type | Fresh Water Tank |
|---|---|
| Brand | Alpha |
| Capacity | 61 Gallons |
| Dimensions | 61" x 34" x 8 1/2" |
| Model number | 196BLANK |
| Material | Polyethylene |
| Construction type | Seamless One-Piece Rotational Molded |
| Fda approved | true |
| Suitable for | RVHorse TrailerMarine Vessel |
| Quality level | OEM-Quality |
- What material is the alpha 61 gallons fresh water tank made from? The tank is made from high-quality, durable polyethylene that is FDA-approved for safe drinking water storage.
- What are the dimensions of the alpha 61 gallons fresh water tank? The tank measures 61 inches in length, 34 inches in width, and 8 1/2 inches in height.
- Is this fresh water tank suitable for use in an rv? Yes, this tank is ideal for RV enthusiasts and can be used as an upgrade or replacement for your RV's fresh water tank.
- Does the tank have any seams or joints that could cause leaks? No, the tank is constructed as a seamless one-piece design, which provides superior strength and leak-proof reliability.
- Is the alpha fresh water tank resistant to stains and corrosion? Yes, it is designed to be stain, corrosion, and rust resistant, ensuring long-lasting cleanliness and functionality.
