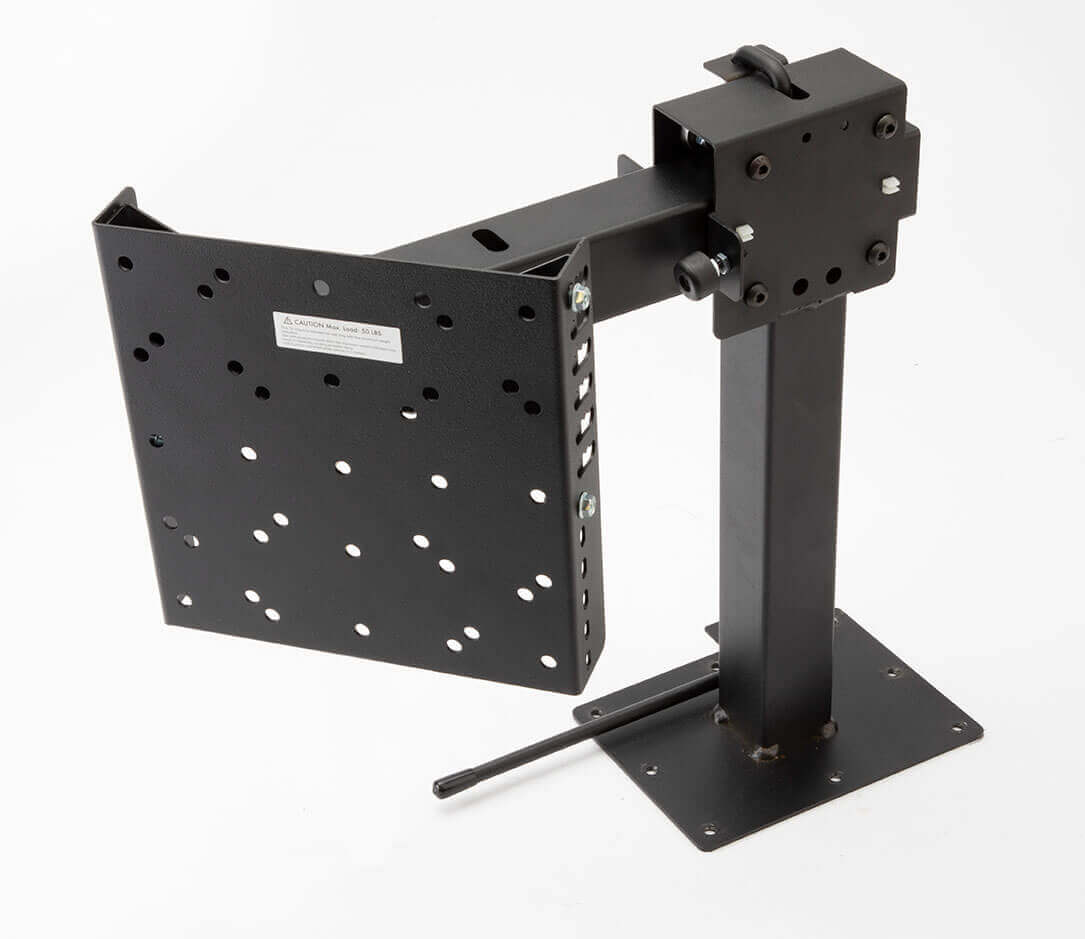

MORryde TV40-001H Tall Slide-Out TV Base Mount - 50 lb
Ready to order
MORryde TV40-001H Tall Slide-Out TV Base Mount - 50 lb
---
MORryde TV40-001H is the tall-profile slide-out TV base mount for a reinforced horizontal surface, with a 50 lb maximum TV weight. Choose the exact model for your available height, TV mounting holes and clearance; the other profile is a comparison choice, not a certified interchangeable replacement.
The current Version 2 manual specifies 7 inches of travel, up to 140 degrees of swivel and 0–15 degrees of tilt. The product page instead lists up to 30 degrees/±30 degrees swivel and 0–10.5 degrees tilt; the older manual also describes ±30 degrees swivel. These are conflicting revision/source claims, not interchangeable measurements. Confirm the actual supplied revision and clearance with MORryde before relying on either range. The product page and Version 2 manual list native 75×75, 100×100 and 200×200 mm VESA. The short-profile manual’s additional 100×200 mm pattern does not certify this tall mount.
Dimensions and screen size: MORryde’s current product page lists overall dimensions of 17 inches high × 9.25 inches wide × 14.5 inches deep, a 6 × 8 inch base plate and a 9.375 × 9.25 inch TV plate. The page advertises TVs up to 55 inches, but screen diagonal alone does not establish fit. Check TV weight, VESA holes, cable clearance and the screen’s sweep. Exact height-adjustment range is not established by the reviewed instructions.
Features & Specifications
- Brand: MORryde
- SKU: TV40-001H
- Part Number: TV40-001H
- Product Family: MORryde RV TV Mounts
- Capacity: 50 lbs
- Shipping Weight: 19.6988 lb
- Product Type: RV TV Mounts
- Application: reinforced horizontal support surface; match exact profile, VESA, TV weight, fasteners and clearance.
Why Choose TV40-001H?
Use this tall profile when the TV must slide outward from a cabinet or counter and adjust for viewing. The manual’s Option A places the bolt in the back hole and permits locking in both IN and OUT positions; Option B uses the front hole and locks only IN, allowing free movement OUT. Do not assume every installed configuration locks when extended. Retract and lock IN for travel, checking actual engagement.
Installation scope: Install on a reinforced horizontal support surface. The manuals require support for five times the combined TV-and-mount weight and exclude brick, concrete and concrete block. Have the installer check reinforcement, fastener engagement, TV thread size/insertion depth and the full screen/cable sweep. The product page also mentions under-cabinet or reinforced-ceiling installation, but the model-specific manuals show an upright base on a horizontal support surface. Those instructions do not establish an inverted ceiling installation; obtain exact manufacturer instructions before using that orientation.
Compare MORryde RV TV Mounts
The following existing links are other MORryde listings, not evidence of compatible service parts or interchangeable mounting interfaces. Use the profile selector for the short/tall base-mount choices and verify each model independently.
| Model / Part | Category | Best For | View Details |
|---|---|---|---|
|
TV40-001H Tall Slide Out Base TV Mount - 50 lb. capacity - TV40-001H |
RV TV Mounts | mounting or securing an RV TV after matching VESA pattern, weight rating, and mount style | Current Product |
| TV1-051H Snap-In TV Mount - 25 lb. capacity - TV1-051H |
RV TV Mounts | mounting or securing an RV TV after matching VESA pattern, weight rating, and mount style | View Details |
| TV1-048H Snap-In TV Mount - 35 lb. capacity - TV1-048H |
RV TV Mounts | mounting or securing an RV TV after matching VESA pattern, weight rating, and mount style | View Details |
| TV10-S-35H Snap-In TV Mount - 35 lb. capacity - TV10-S-35H |
RV TV Mounts | mounting or securing an RV TV after matching VESA pattern, weight rating, and mount style | View Details |
Fitment limit: shared brand, 50 lb rating, similar plate or a matching VESA spacing does not establish a compatible replacement component.
Technical Specifications
| Brand | MORryde |
| SKU | TV40-001H |
| Part Number | TV40-001H |
| Product Family | MORryde RV TV Mounts |
| Capacity | 50 lbs |
| Shipping Weight | 19.6988 lb |
| Product Type | RV TV Mounts |
Measurement note: existing package/catalog measurements and shipping weight are retained for operations, not certified installed dimensions, adjustment range or additional TV capacity. Use the source-labelled overall dimensions above.
What's Included
MORryde lists the base mount, TV mounting hardware, installation hardware and instructions. Version 2 illustrates M4/M5/M6 × 12 mm TV bolts, 1/4 × 1 inch lag bolts and washers. The older manual shows additional M4–M8 bolt lengths, optional spacers and other mounting fasteners. Match the actual supplied revision and TV instructions; inclusion of every pictured bolt or suitability for every TV is unconfirmed. Overlong hardware can puncture structures. The diagrams show the TV plate bolted to the bracket arm; adjust the plate height for the TV and tighten the attachment bolts. This is not evidence of a snap-in or tool-free removable plate. Lifting the TV onto the arm may require two people. No separate replacement plate, locking bar, arm or hardware-pack part number is established.
Compatible Models & Alternatives
The product page and Version 2 manual list native 75×75, 100×100 and 200×200 mm VESA. The short-profile manual’s additional 100×200 mm pattern does not certify this tall mount. The manufacturer mentions a 200×400 mm adapter option but does not give its exact part number in these instructions. No exact existing-catalog adapter interface, cross-profile plate interchangeability or individual TV-model match is confirmed. The existing profile selector compares complete mounts; it does not certify replacement parts.
Frequently Asked Questions
- How do I confirm this is the right MORryde part?
- Match exact model TV40-001H, the actual revision, 50 lb maximum TV weight, mounting holes and profile dimensions. The product page and Version 2 manual list native 75×75, 100×100 and 200×200 mm VESA. The short-profile manual’s additional 100×200 mm pattern does not certify this tall mount.
- What should I measure before ordering?
- Install on a reinforced horizontal support surface. The manuals require support for five times the combined TV-and-mount weight and exclude brick, concrete and concrete block. Have the installer check reinforcement, fastener engagement, TV thread size/insertion depth and the full screen/cable sweep. Overall manufacturer dimensions are 17 inches high × 9.25 inches wide × 14.5 inches deep; check all screen and cable positions.
- Can I substitute a similar MORryde product?
- No automatic substitution is established. TV40-001H and TV40-001H-S differ in profile and source specifications; compare each independently. The current Version 2 manual specifies 7 inches of travel, up to 140 degrees of swivel and 0–15 degrees of tilt. The product page instead lists up to 30 degrees/±30 degrees swivel and 0–10.5 degrees tilt; the older manual also describes ±30 degrees swivel. These are conflicting revision/source claims, not interchangeable measurements. Confirm the actual supplied revision and clearance with MORryde before relying on either range.
- What do buyers usually pair with this part?
- No specific companion purchase is established. Version 2 illustrates M4/M5/M6 × 12 mm TV bolts, 1/4 × 1 inch lag bolts and washers. The older manual shows additional M4–M8 bolt lengths, optional spacers and other mounting fasteners. Match the actual supplied revision and TV instructions; inclusion of every pictured bolt or suitability for every TV is unconfirmed. Overlong hardware can puncture structures.
- Does it always lock when the TV is extended?
- The manual’s Option A places the bolt in the back hole and permits locking in both IN and OUT positions; Option B uses the front hole and locks only IN, allowing free movement OUT. Do not assume every installed configuration locks when extended. Retract and lock IN for travel, checking actual engagement.
- How is the TV plate secured to the arm?
- The diagrams show the TV plate bolted to the bracket arm; adjust the plate height for the TV and tighten the attachment bolts. This is not evidence of a snap-in or tool-free removable plate. Lifting the TV onto the arm may require two people. No separate replacement plate, locking bar, arm or hardware-pack part number is established.
- Which manual and hardware revision should I use?
- Version 2 illustrates M4/M5/M6 × 12 mm TV bolts, 1/4 × 1 inch lag bolts and washers. The older manual shows additional M4–M8 bolt lengths, optional spacers and other mounting fasteners. Match the actual supplied revision and TV instructions; inclusion of every pictured bolt or suitability for every TV is unconfirmed. Overlong hardware can puncture structures.
Why Buy from Elkhart RV Parts?
Elkhart RV Parts focuses on hard-to-find RV service parts with clear part-number identification, practical fitment notes, and fast support from a team located in Elkhart, Indiana.
| Width (inches) | 14 |
|---|---|
| Height (inches) | 9 |
| Length (inches) | 22 |
| Tilt range (degrees) | Unresolved source/revision difference: Version2 manual0–15; product page0–10.5. |
| Overall depth (inches) | 14.5 |
| Overall width (inches) | 9.25 |
| Swivel range (degrees) | Unresolved source/revision difference: Version2 manual up to140; product page/older manual30 or±30. |
| Overall height (inches) | 17 |
| Product weight (pounds) | 9 |
| Maximum tv size (inches) | 55 |
| Weight capacity (pounds) | 50 |
| Dimensional weight (pounds) | 20 |
| Slide out distance (inches) | 7 |
| Vesa adapter plate width (inches) | 9.25 |
| Base mounting plate depth (inches) | 8 |
| Base mounting plate width (inches) | 6 |
| Vesa adapter plate height (inches) | 9.375 |
| Vesa mounting patterns (millimeters) | 75x75, 100x100, 200x200 |
| Motion and revision qualification | The current Version 2 manual specifies 7 inches of travel, up to 140 degrees of swivel and 0–15 degrees of tilt. The product page instead lists up to 30 degrees/±30 degrees swivel and 0–10.5 degrees tilt; the older manual also describes ±30 degrees swivel. These are conflicting revision/source claims, not interchangeable measurements. Confirm the actual supplied revision and clearance with MORryde before relying on either range. |
| Vesa and revision qualification | The product page and Version 2 manual list native 75×75, 100×100 and 200×200 mm VESA. The short-profile manual’s additional 100×200 mm pattern does not certify this tall mount. |
| Installation scope | Install on a reinforced horizontal support surface. The manuals require support for five times the combined TV-and-mount weight and exclude brick, concrete and concrete block. Have the installer check reinforcement, fastener engagement, TV thread size/insertion depth and the full screen/cable sweep. The product page also mentions under-cabinet or reinforced-ceiling installation, but the model-specific manuals show an upright base on a horizontal support surface. Those instructions do not establish an inverted ceiling installation; obtain exact manufacturer instructions before using that orientation. |
| Locking configuration | The manual’s Option A places the bolt in the back hole and permits locking in both IN and OUT positions; Option B uses the front hole and locks only IN, allowing free movement OUT. Do not assume every installed configuration locks when extended. Retract and lock IN for travel, checking actual engagement. |
| Hardware revision | Version 2 illustrates M4/M5/M6 × 12 mm TV bolts, 1/4 × 1 inch lag bolts and washers. The older manual shows additional M4–M8 bolt lengths, optional spacers and other mounting fasteners. Match the actual supplied revision and TV instructions; inclusion of every pictured bolt or suitability for every TV is unconfirmed. Overlong hardware can puncture structures. |
| Native catalog measurement note | Existing Product Width/Height/Length/Weight, Width/Height/Length and dimensional weight values are retained operational catalog data, not certified installed geometry. Manufacturer overall/base/TV-plate dimensions are separately identified. |
| Service parts and adapter interfaces | No replacement plate, arm, locking bar, hardware-pack or exact existing-catalog adapter fit established. |
- What is the maximum weight capacity of the morryde tv40-001h tv mount? Maximum TV weight is 50 lb. Also match the actual plate, revision, reinforced support and full-screen clearance.
- Can this tv mount fit tvs larger than 55 inches? MORryde’s page advertises TVs up to 55 inches, with a 50 lb maximum. Screen diagonal alone does not establish VESA, screw-depth, profile or clearance fit.
- Does the tv mount allow for tilting and swiveling? The current Version 2 manual specifies 7 inches of travel, up to 140 degrees of swivel and 0–15 degrees of tilt. The product page instead lists up to 30 degrees/±30 degrees swivel and 0–10.5 degrees tilt; the older manual also describes ±30 degrees swivel. These are conflicting revision/source claims, not interchangeable measurements. Confirm the actual supplied revision and clearance with MORryde before relying on either range.
- Is the tv secure when it is extended out from the base? The manual’s Option A places the bolt in the back hole and permits locking in both IN and OUT positions; Option B uses the front hole and locks only IN, allowing free movement OUT. Do not assume every installed configuration locks when extended. Retract and lock IN for travel, checking actual engagement.
- What vesa mounting patterns does this tv mount support? The product page and Version 2 manual list native 75×75, 100×100 and 200×200 mm VESA. The short-profile manual’s additional 100×200 mm pattern does not certify this tall mount.
- What support surface and hardware does this model require? Install on a reinforced horizontal support surface. The manuals require support for five times the combined TV-and-mount weight and exclude brick, concrete and concrete block. Have the installer check reinforcement, fastener engagement, TV thread size/insertion depth and the full screen/cable sweep. The product page also mentions under-cabinet or reinforced-ceiling installation, but the model-specific manuals show an upright base on a horizontal support surface. Those instructions do not establish an inverted ceiling installation; obtain exact manufacturer instructions before using that orientation. Version 2 illustrates M4/M5/M6 × 12 mm TV bolts, 1/4 × 1 inch lag bolts and washers. The older manual shows additional M4–M8 bolt lengths, optional spacers and other mounting fasteners. Match the actual supplied revision and TV instructions; inclusion of every pictured bolt or suitability for every TV is unconfirmed. Overlong hardware can puncture structures.
- Can i interchange the tv plate or add an adapter? The diagrams show the TV plate bolted to the bracket arm; adjust the plate height for the TV and tighten the attachment bolts. This is not evidence of a snap-in or tool-free removable plate. Lifting the TV onto the arm may require two people. No separate replacement plate, locking bar, arm or hardware-pack part number is established. The optional 200×400 mm adapter has no exact part number/interface established here; no interchangeable catalog component or TV-model fit is confirmed.
