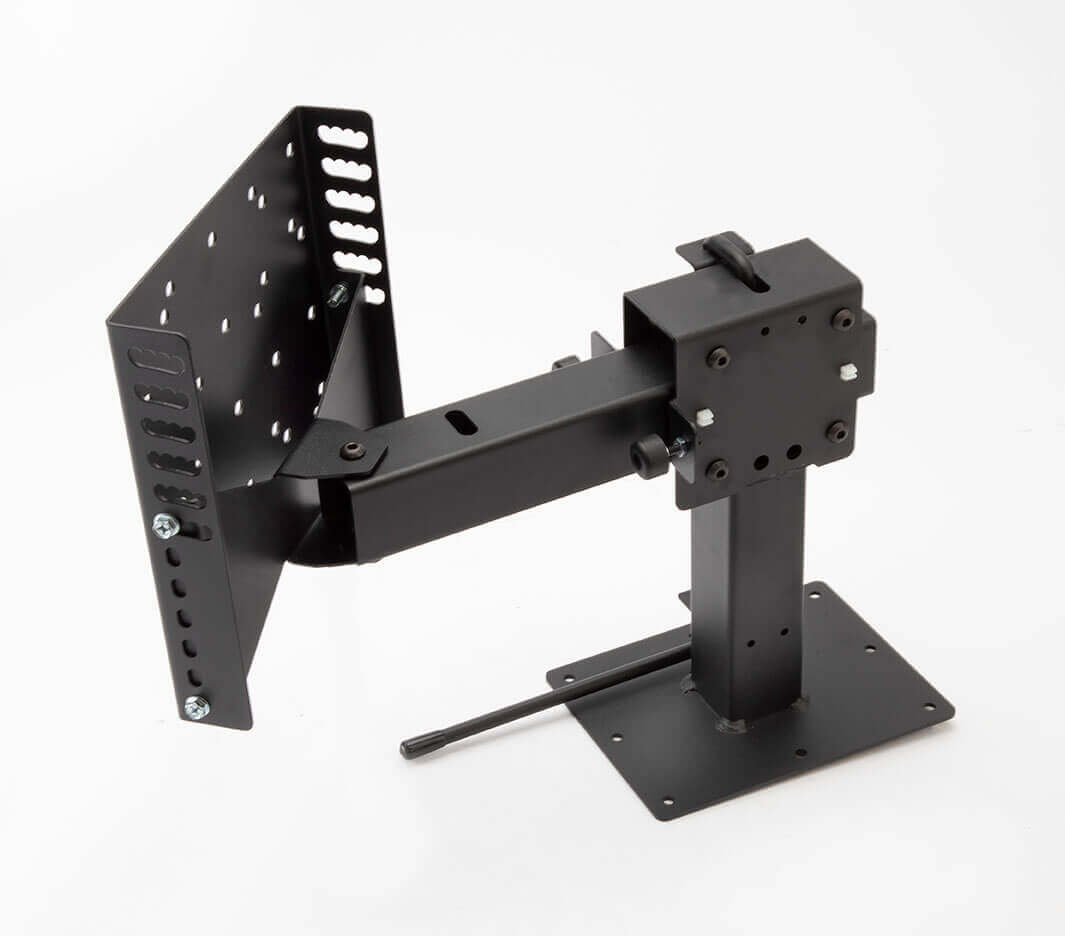

MORryde TV40-001H-S Short Slide-Out TV Base Mount - 50 lb
Ready to order
MORryde TV40-001H-S Short Slide-Out TV Base Mount - 50 lb
---
MORryde TV40-001H-S is the short-profile slide-out TV base mount for a reinforced horizontal surface, with a 50 lb maximum TV weight. Choose the exact model for your available height, TV mounting holes and clearance; the other profile is a comparison choice, not a certified interchangeable replacement.
The current manual specifies 7 inches of slide-out travel, up to 30 degrees of swivel and 0–10.5 degrees of tilt. The product page and older manual describe swivel as ±30 degrees. Check the actual TV and surrounding clearance rather than assuming a guaranteed total sweep. Version 2 lists 75×75, 100×100, 100×200 and 200×200 mm VESA. The product page lists only 75×75, 100×100 and 200×200 mm. Check the actual plate/revision for a 100×200 mm TV; do not infer that every smaller spacing fits.
Dimensions and screen size: MORryde’s current product page lists overall dimensions of 12.5 inches high × 6 inches wide × 15.8 inches deep, a 6 × 8 inch base plate and a 9.375 × 9.25 inch TV plate. The page advertises TVs up to 32 inches, but screen diagonal alone does not establish fit. Check TV weight, VESA holes, cable clearance and the screen’s sweep. Exact height-adjustment range is not established by the reviewed instructions.
Features & Specifications
- Brand: MORryde
- SKU: TV40-001H-S
- Part Number: TV40-001H-S
- Product Family: MORryde RV Parts
- Capacity: 50 lbs
- Shipping Weight: 19.6988 lb
- Product Type: TV & Monitor Mounts
- Application: reinforced horizontal support surface; match exact profile, VESA, TV weight, fasteners and clearance.
Why Choose TV40-001H-S?
Use this short profile when the TV must slide outward from a cabinet or counter and adjust for viewing. The manual’s Option A places the bolt in the back hole and permits locking in both IN and OUT positions; Option B uses the front hole and locks only IN, allowing free movement OUT. Do not assume every installed configuration locks when extended. Retract and lock IN for travel, checking actual engagement.
Installation scope: Install on a reinforced horizontal support surface. The manuals require support for five times the combined TV-and-mount weight and exclude brick, concrete and concrete block. Have the installer check reinforcement, fastener engagement, TV thread size/insertion depth and the full screen/cable sweep.
Compare MORryde RV Parts
The following existing links are other MORryde listings, not evidence of compatible service parts or interchangeable mounting interfaces. Use the profile selector for the short/tall base-mount choices and verify each model independently.
| Model / Part | Category | Best For | View Details |
|---|---|---|---|
|
TV40-001H-S Slide Out Base TV Short Profile Mount - 50 lb. capacity - TV40-001H-S |
TV & Monitor Mounts | matching a MORryde RV replacement or upgrade by part number | Current Product |
| SP54-180 5th Wheel X-Brace Stabilizer - Heavy-Duty RV Stabilization System for Fifth Wheel Trailers SP54-180 |
RV Accessories | matching a MORryde RV replacement or upgrade by part number | View Details |
| SP54-181 X-Brace Scissor Jack Stabilizer - Heavy-Duty RV Stabilization System SP54-181 |
RV Accessories | matching a MORryde RV replacement or upgrade by part number | View Details |
| SP54-182 X-Brace Hitch Mount Stabilizer - Heavy-Duty RV Stabilization System SP54-182 |
RV Accessories | matching a MORryde RV replacement or upgrade by part number | View Details |
Fitment limit: shared brand, 50 lb rating, similar plate or a matching VESA spacing does not establish a compatible replacement component.
Technical Specifications
| Brand | MORryde |
| SKU | TV40-001H-S |
| Part Number | TV40-001H-S |
| Product Family | MORryde RV Parts |
| Capacity | 50 lbs |
| Shipping Weight | 19.6988 lb |
| Product Type | TV & Monitor Mounts |
Measurement note: existing package/catalog measurements and shipping weight are retained for operations, not certified installed dimensions, adjustment range or additional TV capacity. Use the source-labelled overall dimensions above.
What's Included
MORryde lists the base mount, TV mounting hardware, installation hardware and instructions. Version 2 illustrates M4/M5/M6 × 12 mm TV bolts, 1/4 × 1 inch lag bolts and washers. The older manual shows additional M4–M8 bolt lengths, optional spacers and other mounting fasteners. Match the actual supplied revision and TV instructions; inclusion of every pictured bolt or suitability for every TV is unconfirmed. Overlong hardware can puncture structures. The diagrams show the TV plate bolted to the bracket arm; adjust the plate height for the TV and tighten the attachment bolts. This is not evidence of a snap-in or tool-free removable plate. Lifting the TV onto the arm may require two people. No separate replacement plate, locking bar, arm or hardware-pack part number is established.
Compatible Models & Alternatives
Version 2 lists 75×75, 100×100, 100×200 and 200×200 mm VESA. The product page lists only 75×75, 100×100 and 200×200 mm. Check the actual plate/revision for a 100×200 mm TV; do not infer that every smaller spacing fits. The manufacturer mentions a 200×400 mm adapter option but does not give its exact part number in these instructions. No exact existing-catalog adapter interface, cross-profile plate interchangeability or individual TV-model match is confirmed. The existing profile selector compares complete mounts; it does not certify replacement parts.
Frequently Asked Questions
- How do I confirm this is the right MORryde part?
- Match exact model TV40-001H-S, the actual revision, 50 lb maximum TV weight, mounting holes and profile dimensions. Version 2 lists 75×75, 100×100, 100×200 and 200×200 mm VESA. The product page lists only 75×75, 100×100 and 200×200 mm. Check the actual plate/revision for a 100×200 mm TV; do not infer that every smaller spacing fits.
- What should I measure before ordering?
- Install on a reinforced horizontal support surface. The manuals require support for five times the combined TV-and-mount weight and exclude brick, concrete and concrete block. Have the installer check reinforcement, fastener engagement, TV thread size/insertion depth and the full screen/cable sweep. Overall manufacturer dimensions are 12.5 inches high × 6 inches wide × 15.8 inches deep; check all screen and cable positions.
- Can I substitute a similar MORryde product?
- No automatic substitution is established. TV40-001H-S and TV40-001H differ in profile and source specifications; compare each independently. The current manual specifies 7 inches of slide-out travel, up to 30 degrees of swivel and 0–10.5 degrees of tilt. The product page and older manual describe swivel as ±30 degrees. Check the actual TV and surrounding clearance rather than assuming a guaranteed total sweep.
- What do buyers usually pair with this part?
- No specific companion purchase is established. Version 2 illustrates M4/M5/M6 × 12 mm TV bolts, 1/4 × 1 inch lag bolts and washers. The older manual shows additional M4–M8 bolt lengths, optional spacers and other mounting fasteners. Match the actual supplied revision and TV instructions; inclusion of every pictured bolt or suitability for every TV is unconfirmed. Overlong hardware can puncture structures.
- Does it always lock when the TV is extended?
- The manual’s Option A places the bolt in the back hole and permits locking in both IN and OUT positions; Option B uses the front hole and locks only IN, allowing free movement OUT. Do not assume every installed configuration locks when extended. Retract and lock IN for travel, checking actual engagement.
- How is the TV plate secured to the arm?
- The diagrams show the TV plate bolted to the bracket arm; adjust the plate height for the TV and tighten the attachment bolts. This is not evidence of a snap-in or tool-free removable plate. Lifting the TV onto the arm may require two people. No separate replacement plate, locking bar, arm or hardware-pack part number is established.
- Which manual and hardware revision should I use?
- Version 2 illustrates M4/M5/M6 × 12 mm TV bolts, 1/4 × 1 inch lag bolts and washers. The older manual shows additional M4–M8 bolt lengths, optional spacers and other mounting fasteners. Match the actual supplied revision and TV instructions; inclusion of every pictured bolt or suitability for every TV is unconfirmed. Overlong hardware can puncture structures.
Why Buy from Elkhart RV Parts?
Elkhart RV Parts focuses on hard-to-find RV service parts with clear part-number identification, practical fitment notes, and fast support from a team located in Elkhart, Indiana.
| Tilt range (degrees) | 0-10.5 |
|---|---|
| Overall depth (inches) | 15.8 |
| Overall width (inches) | 6 |
| Product width (inches) | 14 |
| Swivel range (degrees) | 30 |
| Overall height (inches) | 12.5 |
| Product height (inches) | 9 |
| Product length (inches) | 22 |
| Product weight (pounds) | 8 |
| Maximum tv size (inches) | 32 |
| Weight capacity (pounds) | 50 |
| Slide out distance (inches) | 7 |
| Vesa adapter plate width (inches) | 9.25 |
| Base mounting plate depth (inches) | 8 |
| Base mounting plate width (inches) | 6 |
| Vesa adapter plate height (inches) | 9.375 |
| Vesa mounting patterns (millimeters) | 75x75, 100x100, 100x200 (Version2; verify actual plate), 200x200 |
| Motion and revision qualification | The current manual specifies 7 inches of slide-out travel, up to 30 degrees of swivel and 0–10.5 degrees of tilt. The product page and older manual describe swivel as ±30 degrees. Check the actual TV and surrounding clearance rather than assuming a guaranteed total sweep. |
| Vesa and revision qualification | Version 2 lists 75×75, 100×100, 100×200 and 200×200 mm VESA. The product page lists only 75×75, 100×100 and 200×200 mm. Check the actual plate/revision for a 100×200 mm TV; do not infer that every smaller spacing fits. |
| Installation scope | Install on a reinforced horizontal support surface. The manuals require support for five times the combined TV-and-mount weight and exclude brick, concrete and concrete block. Have the installer check reinforcement, fastener engagement, TV thread size/insertion depth and the full screen/cable sweep. |
| Locking configuration | The manual’s Option A places the bolt in the back hole and permits locking in both IN and OUT positions; Option B uses the front hole and locks only IN, allowing free movement OUT. Do not assume every installed configuration locks when extended. Retract and lock IN for travel, checking actual engagement. |
| Hardware revision | Version 2 illustrates M4/M5/M6 × 12 mm TV bolts, 1/4 × 1 inch lag bolts and washers. The older manual shows additional M4–M8 bolt lengths, optional spacers and other mounting fasteners. Match the actual supplied revision and TV instructions; inclusion of every pictured bolt or suitability for every TV is unconfirmed. Overlong hardware can puncture structures. |
| Native catalog measurement note | Existing Product Width/Height/Length/Weight, Width/Height/Length and dimensional weight values are retained operational catalog data, not certified installed geometry. Manufacturer overall/base/TV-plate dimensions are separately identified. |
| Service parts and adapter interfaces | No replacement plate, arm, locking bar, hardware-pack or exact existing-catalog adapter fit established. |
- What is the maximum weight capacity of the morryde tv40-001h-s mount? Maximum TV weight is 50 lb. Also match the actual plate, revision, reinforced support and full-screen clearance.
- What tv sizes are compatible with this tv mount? MORryde’s page advertises TVs up to 32 inches, with a 50 lb maximum. Screen diagonal alone does not establish VESA, screw-depth, profile or clearance fit.
- Does this mount allow for swiveling and tilting the tv? The current manual specifies 7 inches of slide-out travel, up to 30 degrees of swivel and 0–10.5 degrees of tilt. The product page and older manual describe swivel as ±30 degrees. Check the actual TV and surrounding clearance rather than assuming a guaranteed total sweep.
- Is there a locking mechanism to keep the tv secure on this mount? The manual’s Option A places the bolt in the back hole and permits locking in both IN and OUT positions; Option B uses the front hole and locks only IN, allowing free movement OUT. Do not assume every installed configuration locks when extended. Retract and lock IN for travel, checking actual engagement.
- What vesa mounting patterns does this tv mount support? Version 2 lists 75×75, 100×100, 100×200 and 200×200 mm VESA. The product page lists only 75×75, 100×100 and 200×200 mm. Check the actual plate/revision for a 100×200 mm TV; do not infer that every smaller spacing fits.
- What support surface and hardware does this model require? Install on a reinforced horizontal support surface. The manuals require support for five times the combined TV-and-mount weight and exclude brick, concrete and concrete block. Have the installer check reinforcement, fastener engagement, TV thread size/insertion depth and the full screen/cable sweep. Version 2 illustrates M4/M5/M6 × 12 mm TV bolts, 1/4 × 1 inch lag bolts and washers. The older manual shows additional M4–M8 bolt lengths, optional spacers and other mounting fasteners. Match the actual supplied revision and TV instructions; inclusion of every pictured bolt or suitability for every TV is unconfirmed. Overlong hardware can puncture structures.
- Can i interchange the tv plate or add an adapter? The diagrams show the TV plate bolted to the bracket arm; adjust the plate height for the TV and tighten the attachment bolts. This is not evidence of a snap-in or tool-free removable plate. Lifting the TV onto the arm may require two people. No separate replacement plate, locking bar, arm or hardware-pack part number is established. The optional 200×400 mm adapter has no exact part number/interface established here; no interchangeable catalog component or TV-model fit is confirmed.
