Furrion Vision S RV Backup Camera System With 4.3" Monitor - Rear Sharkfin Camera #FOS43TASF
---
Display and camera
- 4.3-inch anti-glare monitor: one rear-camera view.

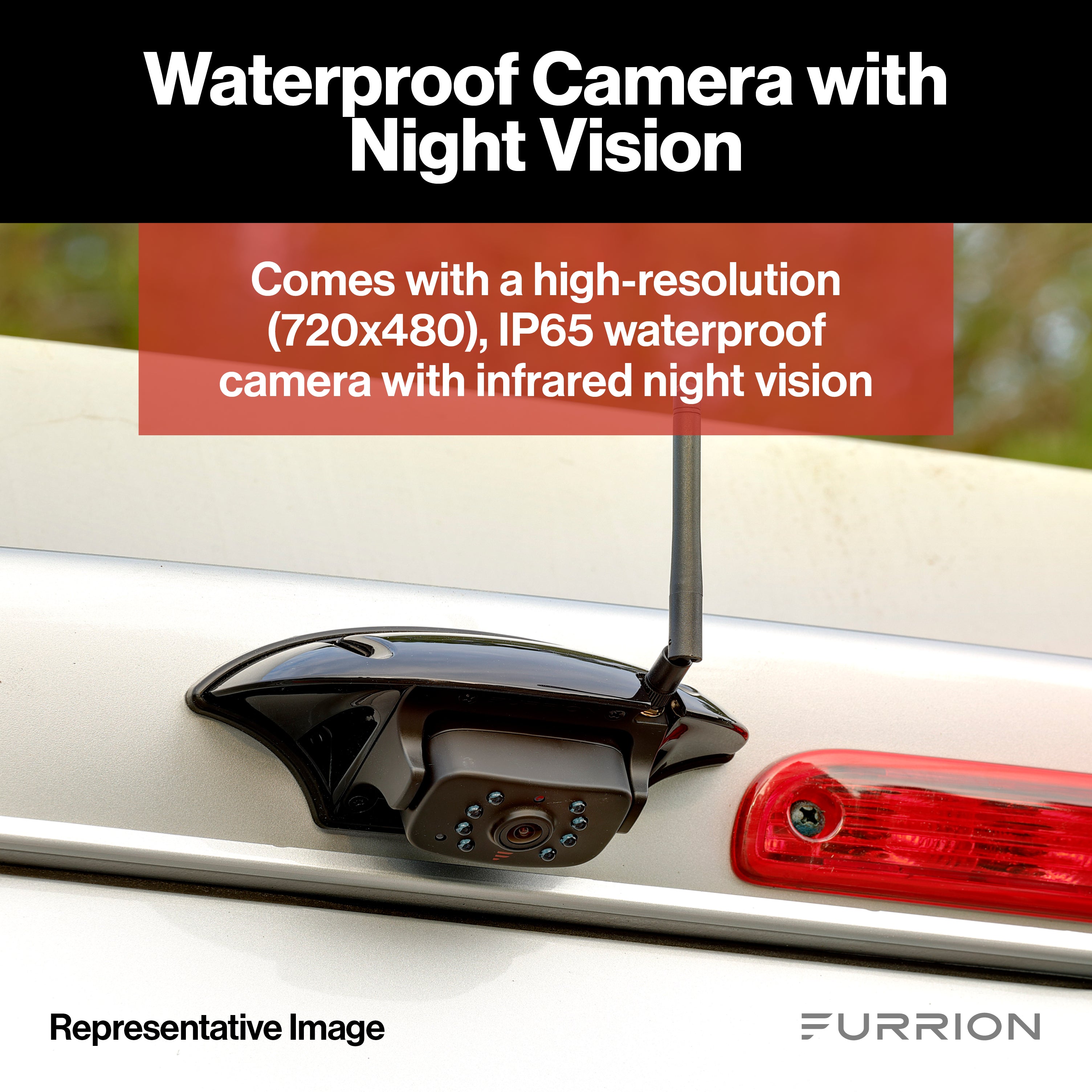

- Legacy FCN48TASF rear camera: 720 x 480 camera pixels, 120-degree view, IP65 camera rating, infrared night vision and built-in microphone.

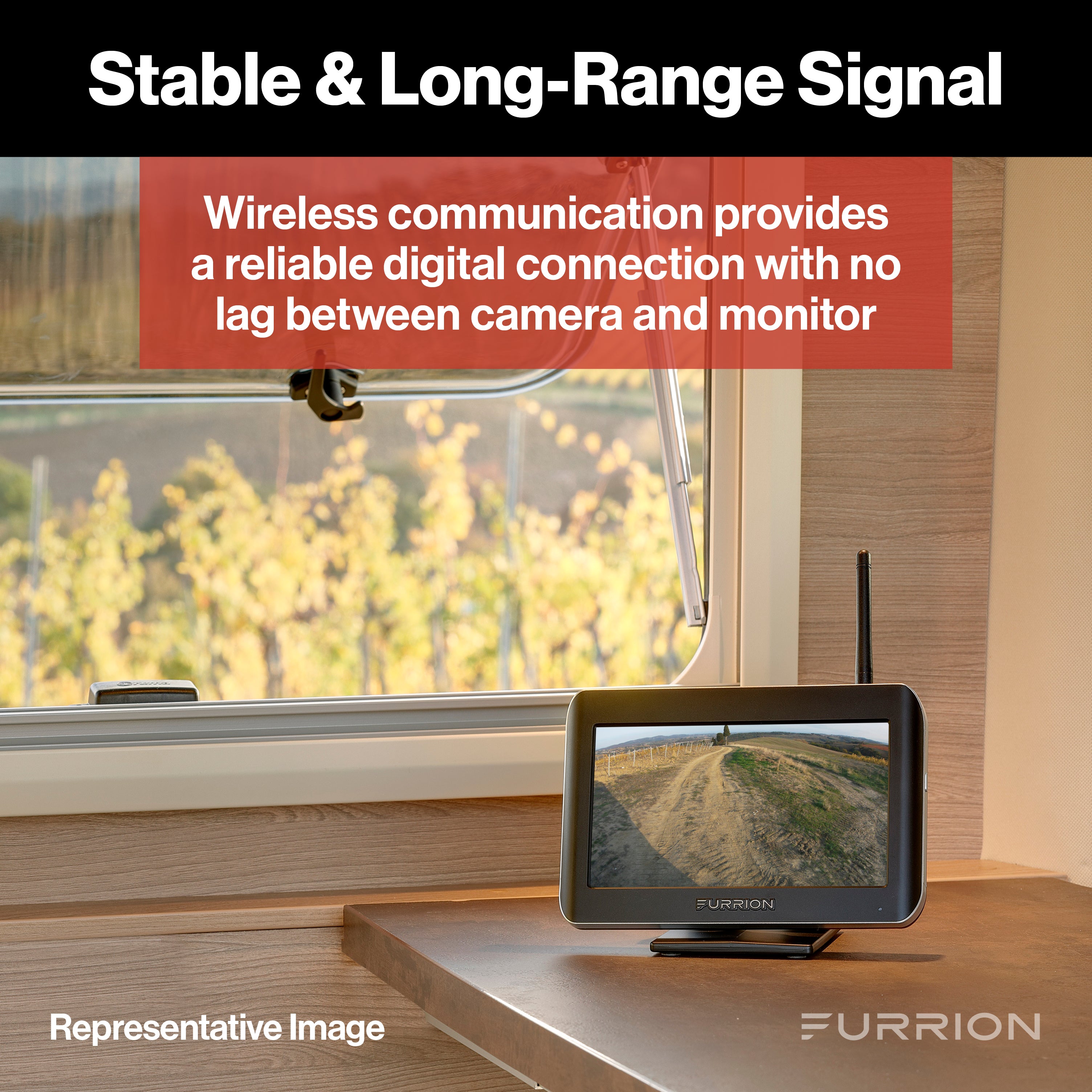

- 2.4 GHz wireless camera connection; the monitor and camera still require power. Follow the manufacturer installation and pairing instructions.
- Windshield mount for the 4.3-inch display; do not select 5/7-inch mounting parts by appearance.
Replacement identification
The linked FCN48TASF / 2021123624 is the source-verified legacy rear-camera component for this system. Compare its connector, bracket and original label before replacement. Vision S+ uses a different generation; complete-kit supersession does not establish component interchangeability.
Manufacturer Vision S manual CCD-0005559 · Exact FOS43TASF specification sheet
Other complete systems
These are separate system listings with different displays or camera arrangements. They are comparison references, not interchangeable replacement components.
- FOS05TASF - 5-inch monitor and rear sharkfin camera
- FOS07TASF - 7-inch monitor and rear sharkfin camera
- FOS05TASM - 5-inch monitor and rear marker-light camera
Before installation
Check the actual package against its inventory label and the exact system manual. Mount the monitor where it does not obstruct driving; confirm power, mounting and pairing before use. The camera view assists observation and does not replace checking the surroundings.
| Camera resolution (pixels) | 720 x 480 |
|---|---|
| Waterproof rating | IP65 |
| Monitor size (inches) | 4.3 |
| Signal frequency (ghz) | 2.4 |
| Maximum signal range open space (feet) | 492 |
| Maximum signal range high speed (feet) | 100 |
| Night vision | Infrared with intelligent IR cut filter |
| Camera features | Motion detection, built-in microphone |
| Installation type | Wireless |
| Rear assist marker lines | Included |
| Monitor display type | Anti-glare |
| Camera viewing angle | 120 degrees |
| Number of cameras supported | 1 |
| Included cameras | 1 |
| Mounting scope | 4.3-inch windshield mount |
- Is the furrion vision s camera system waterproof? Yes, the Furrion Vision S camera system features IP65 waterproof-rated camera technology, making it durable and suitable for outdoor use.
- How many cameras can be viewed on the furrion vision s monitor at once? One camera view on the 4.3-inch FOS43TASF monitor. Four-camera display claims belong to the 5/7-inch models.
- Does the furrion vision s support night vision? Yes, the system includes infrared night vision and intelligent infrared cut filters for clear viewing in low-light conditions.
- What kind of mounting options are available for the furrion vision s monitor? The FOS43TASF manufacturer sheet shows a windshield mount. Do not assume the 5/7-inch table stand or wall-mount accessories fit the 4.3-inch monitor.

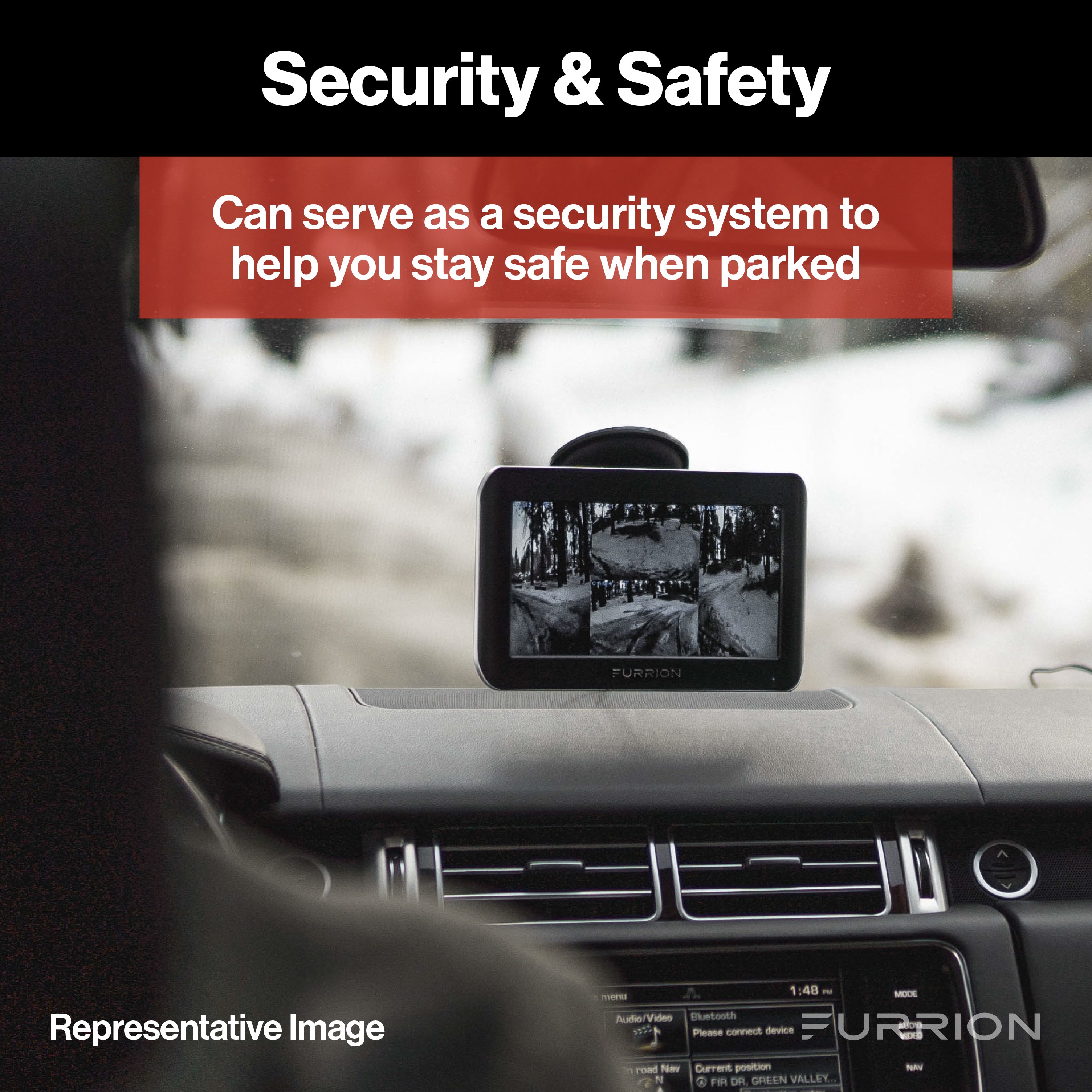

- Can the furrion vision s camera system serve as a security system when parked? Yes, the camera system features motion detection and auto-wake functionality, along with a built-in microphone, allowing it to act as a security and observation system when your RV is parked.
