- Cross-reference Part #: FOS05TASM

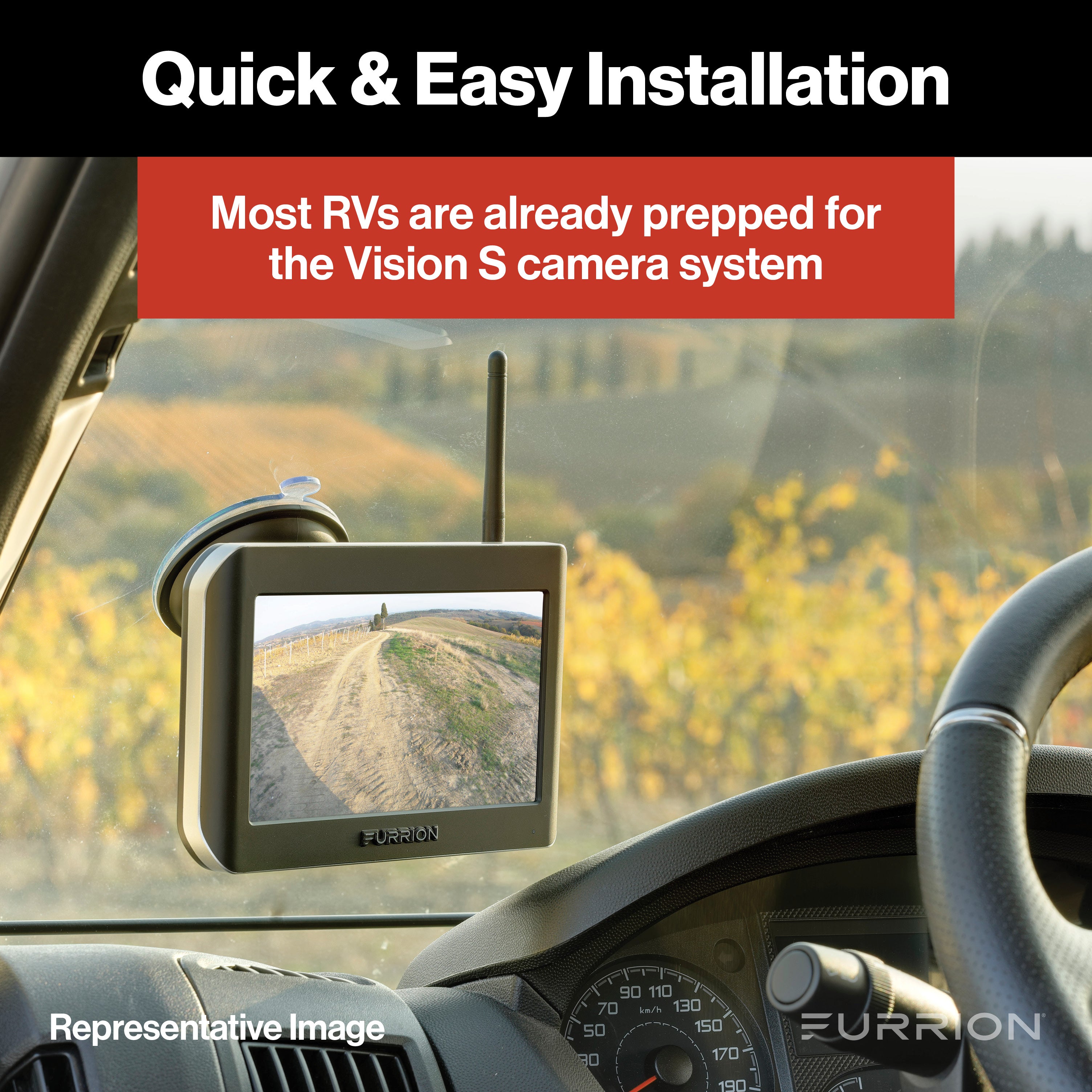

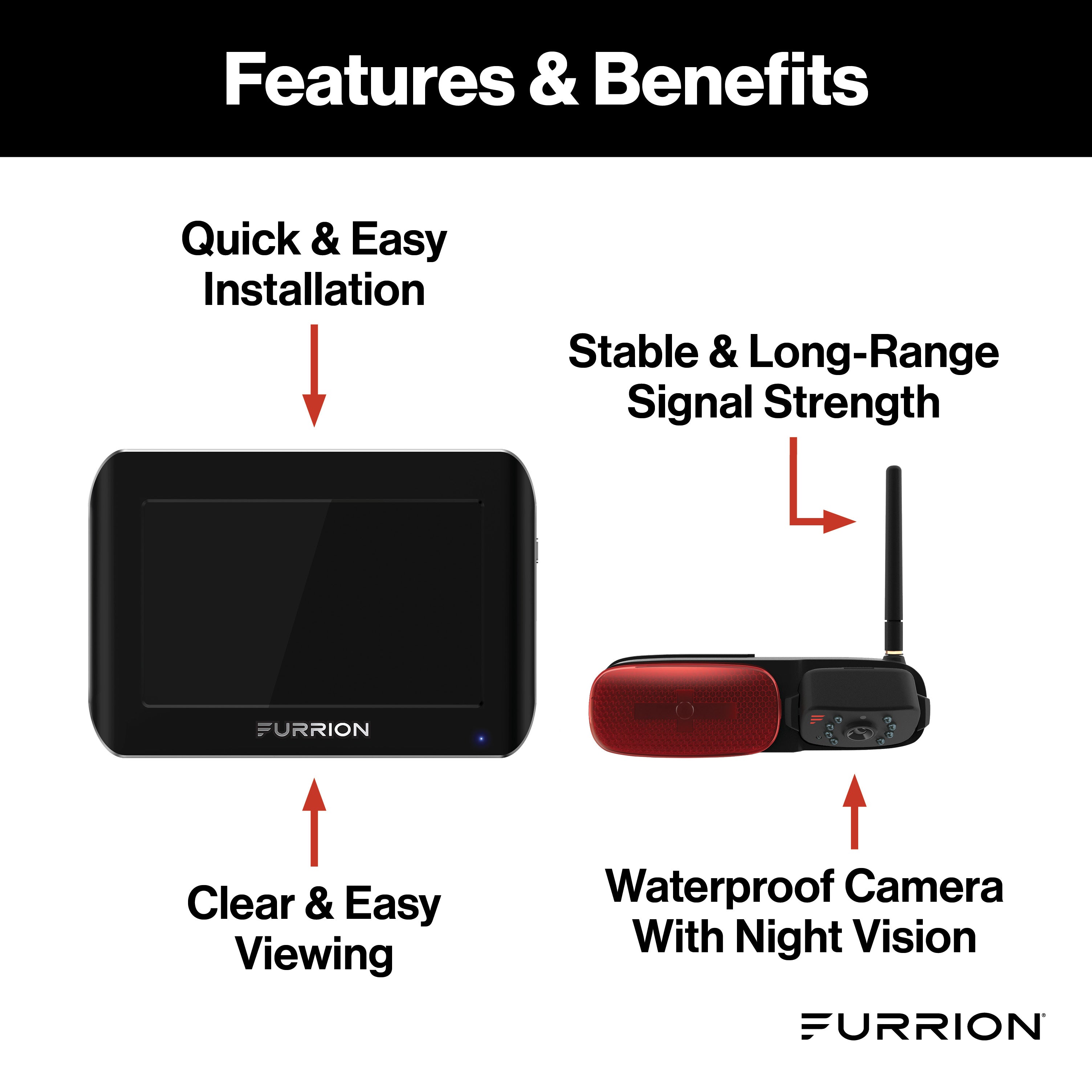

- QUICK & EASY INSTALLATION - Most RVs are already prepped for the Vision S camera system, eliminating extensive drilling requirements. Installation is also quick and straightforward for non-prepped units

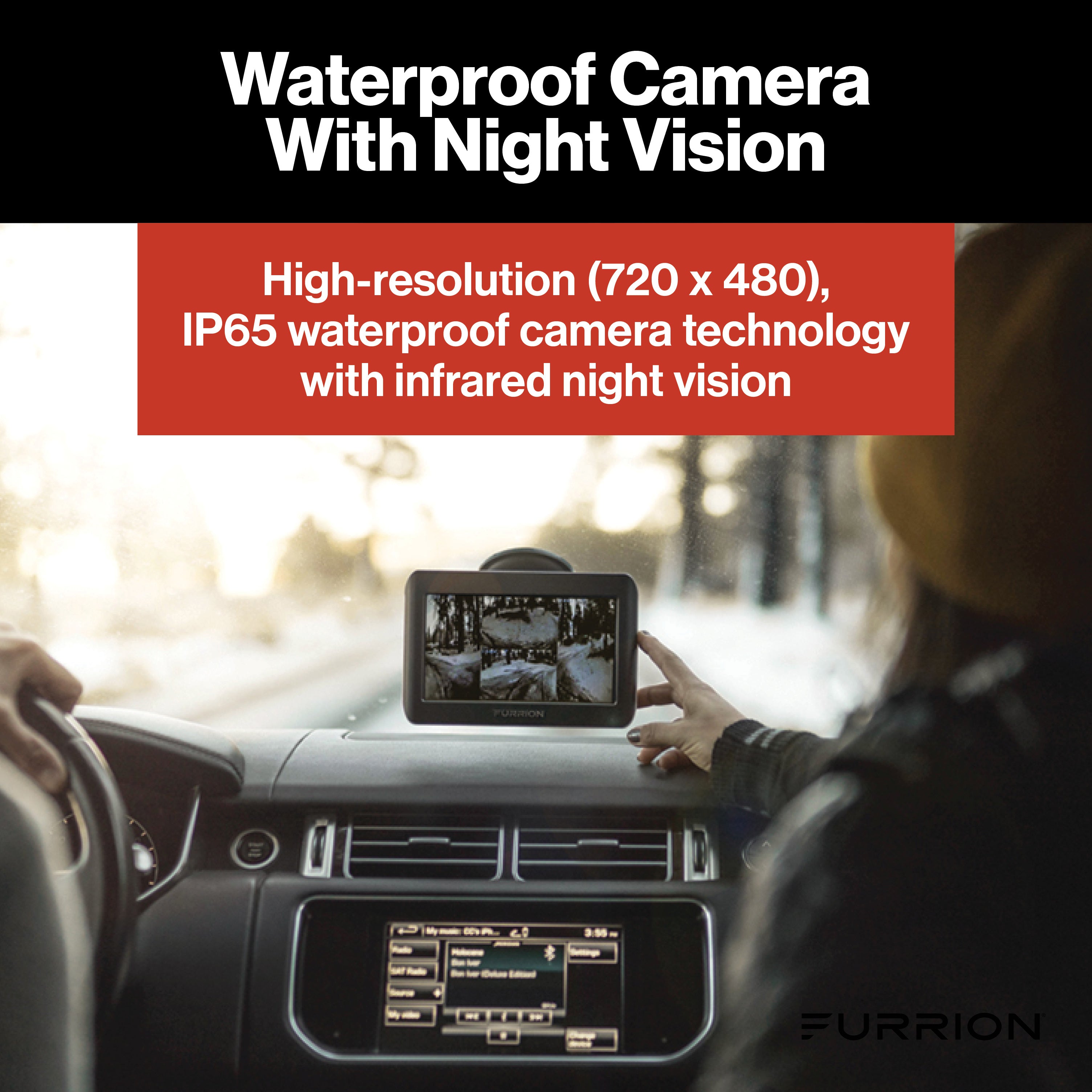

- WATERPROOF CAMERA WITH NIGHT VISION - This kit comes with high-resolution (720 x 480), IP65 waterproof camera technology with infrared night vision, live streaming, intelligent IR cut filters and a wide viewing angle

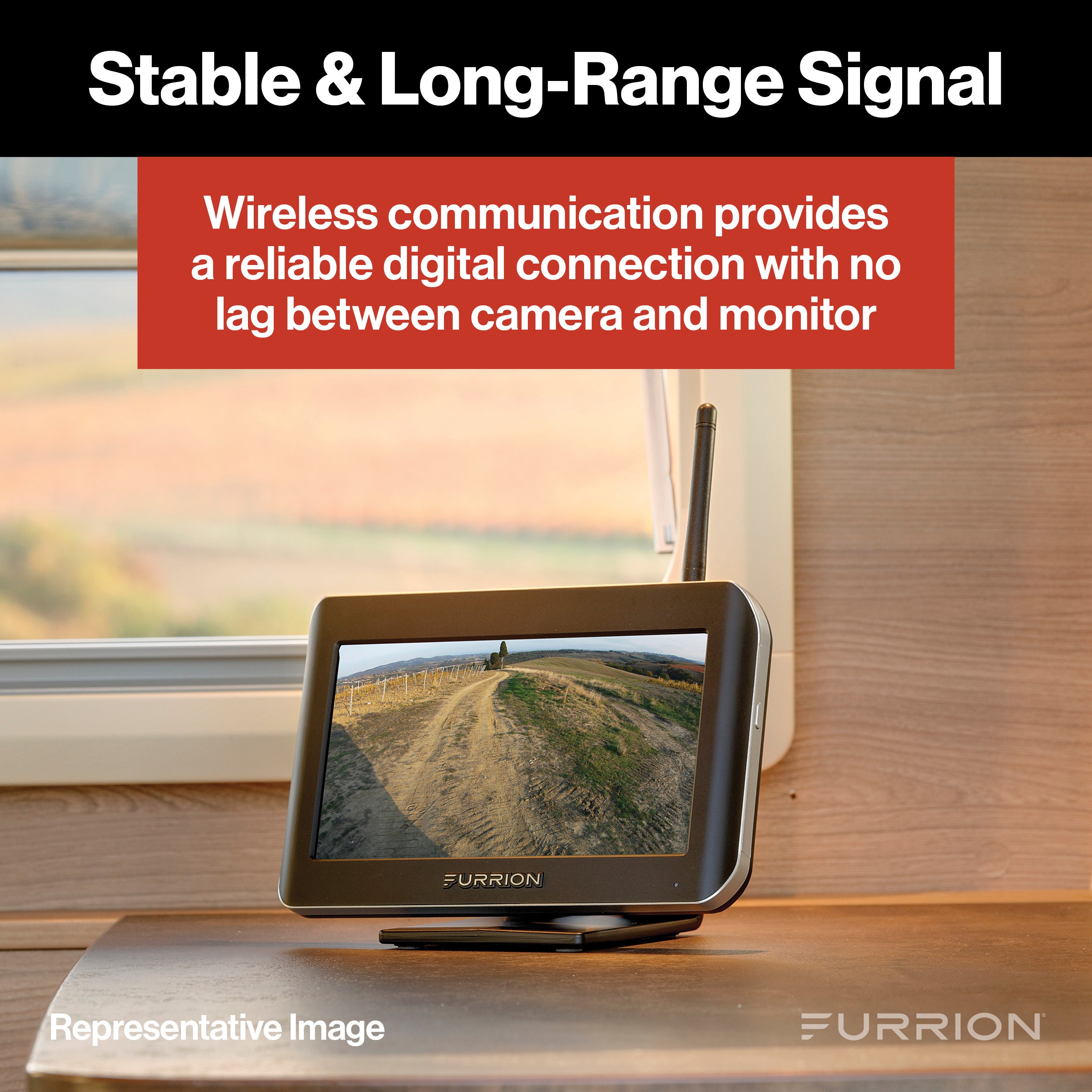

- STABLE & LONG-RANGE SIGNAL STRENGTH - Wireless communication provides a reliable digital connection with no lag between camera and monitor. This system is tested for up to 100 feet at high speeds and extended range of up to 492 feet in open spaces

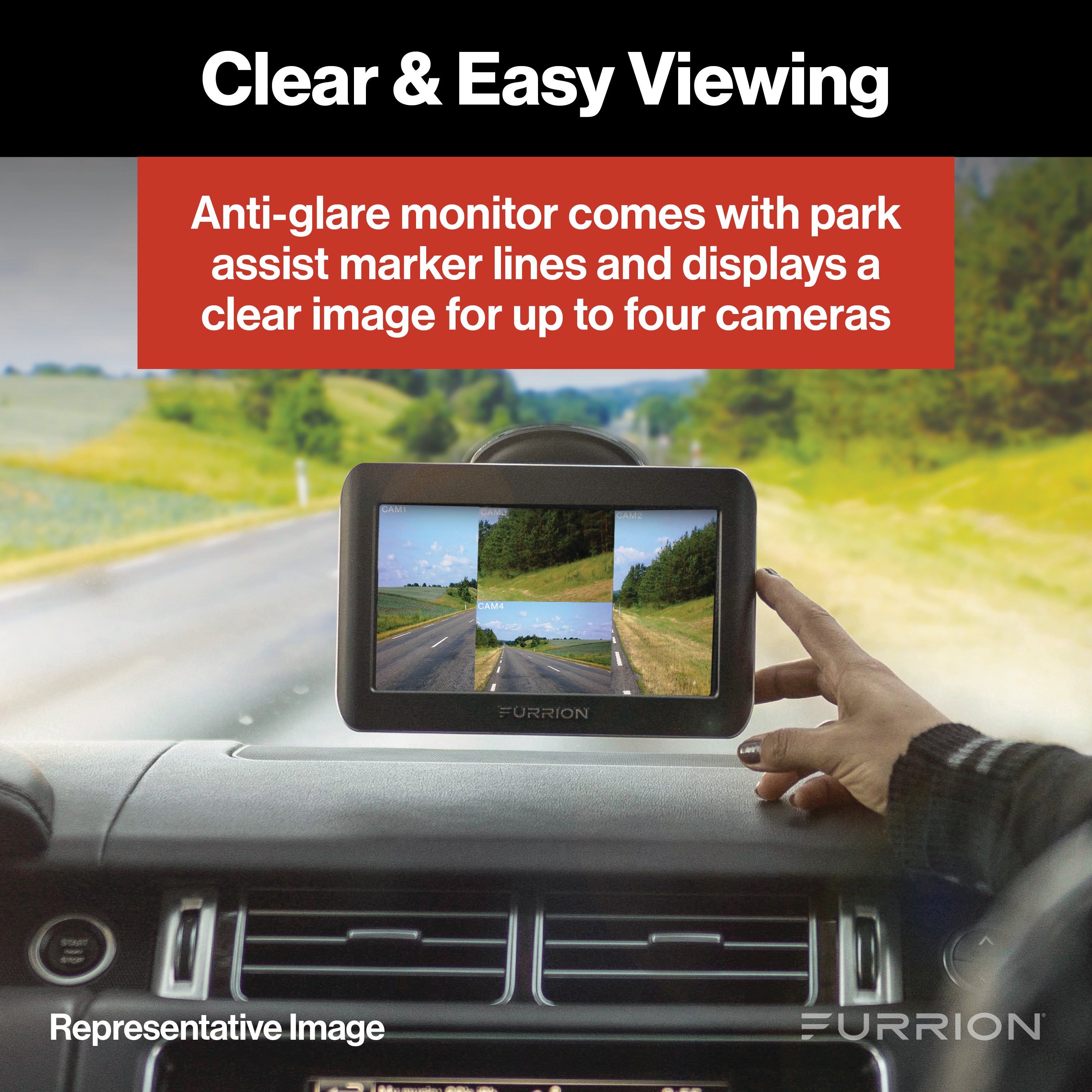

- CLEAR & EASY VIEWING - The anti-glare monitor comes with park assist marker lines and displays a clear image for up to four cameras for all-around coverage. The included windshield mount allows for customizable viewing angles to suit your needs
- SECURITY & SAFETY - The camera system can serve as a security system to help you stay safe when parked. Convenient motion sensors auto-wake the display, and the built-in microphone transmits audio for parking guidance or added security
Backing in and blind spots are some of the more intimidating aspects of driving an RV. That's why the Furrion Vision S vehicle observation system was designed to make your RVing experience safer and more enjoyable. The wide viewing angle offers more visibility for merging and parking, and the rear assist marker lines guide you during reversing, reducing the chance of hitting a hidden obstacle.
Infrared night vision technology offers you a crisp nighttime view since traveling doesn’t always stop at sunset. And when you are parked at your resting spot for the night, the motion-activated and auto-wake boasts mean your camera system acts as an observation and security system. The built-in mic and ability to record on an SD card allow you to capture what happens outside of your RV while sleeping.

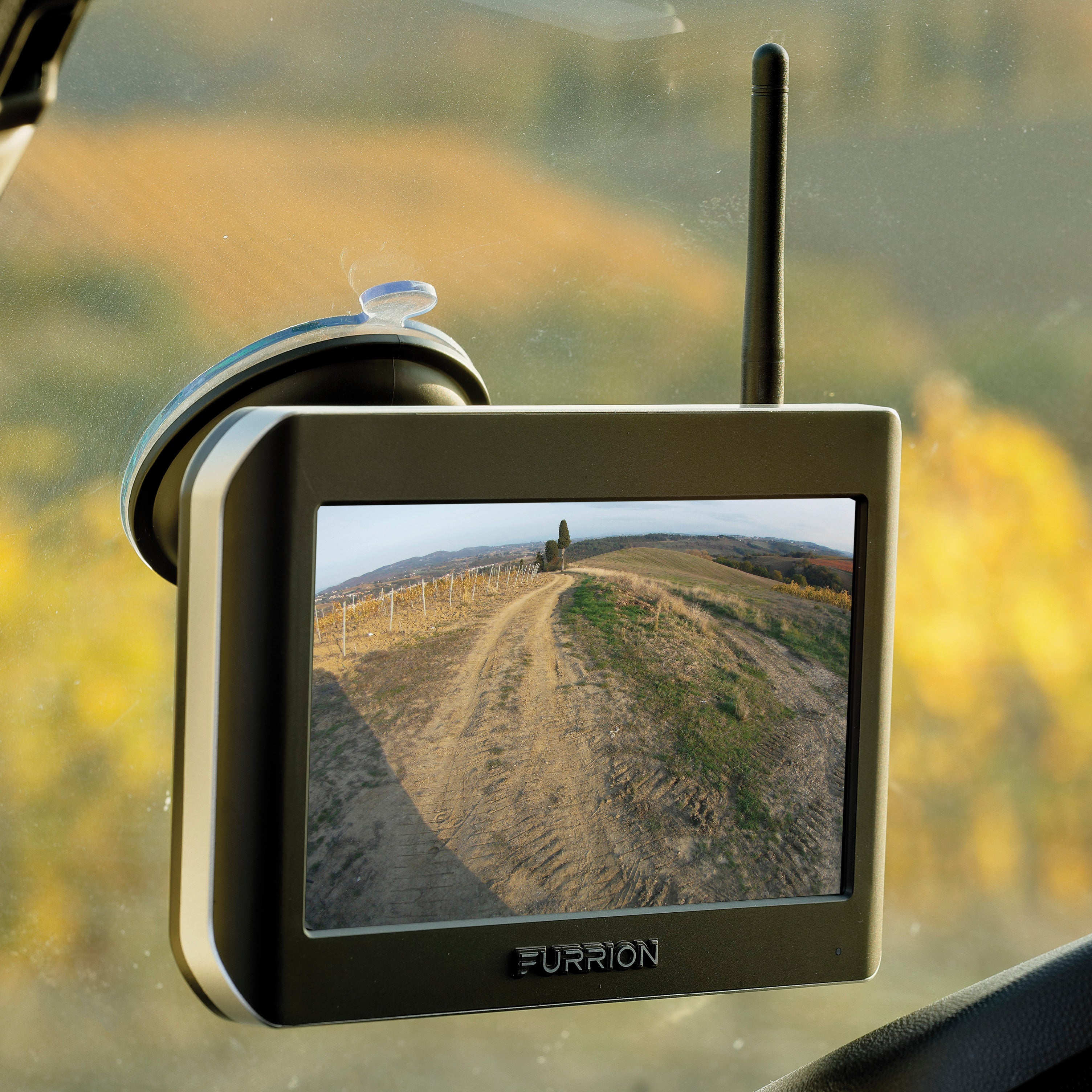

The Vision S boasts a multi-angled view when mounted on your windshield. Other mounting options include an interior table stand or wall mount (sold separately). Experience up to four camera views at once on the monitor (extra cameras sold separately). With more awareness of your fellow drivers, over-the-road traveling is a safer experience for everyone.
- Reliable digital connection (2.4GHz)
- 720 x 480 high-resolution camera system
- Wide viewing angle with up to four cameras displayed
- Night vision and intelligent infrared cut filter for clear viewing
- Motion detection and microphone for security area monitoring
- Security camera auto-wake with motion detection
- IP65 waterproof-rated camera technology for durability
- 5" HD monitor with anti-glare display
- Wireless camera system is easy to set up
- Rear assist marker lines to align your vehicle
- Marker light for added safety
- Furrion Reference Number: FOS05TASM
| Camera resolution | 720 x 480 |
|---|---|
| Camera waterproof rating | IP65 |
| Camera night vision | Infrared with intelligent IR cut filter |
| Camera viewing angle | Wide |
| Signal frequency | 2.4 GHz |
| Wireless range open space (feet) | 492 |
| Wireless range high speed (feet) | 100 |
| Monitor size (inches) | 5 |
| Monitor display | HD with anti-glare |
| Number of cameras supported | 4 |
| Security features | Motion detection with auto-wake, built-in microphone |
| Marker lines | Rear assist |
| Mounting options | Windshield mount included; table stand and wall mount sold separately |
- Is the furrion vision s rv backup camera system waterproof? Yes, the camera is IP65 waterproof rated, making it durable and suitable for outdoor use in various weather conditions.
- Can i see multiple camera views on the monitor at the same time? Yes, the 5-inch HD monitor can display up to four cameras at once for all-around coverage, although additional cameras are sold separately.
- Does this camera system work well at night? Yes, the system includes infrared night vision and intelligent IR cut filters, providing clear, high-resolution images even in low-light conditions.
- How easy is it to install the furrion vision s camera system on my rv? Installation is quick and straightforward, especially for RVs prepped for the Vision S system, which eliminates extensive drilling requirements.
- Does the system have any security features when the rv is parked? Yes, the system has motion sensors that auto-wake the display and a built-in microphone for audio monitoring, allowing it to act as a security camera when parked.
