- Cross-reference Part #: F50-ATS
- SAFE AND AUTOMATIC -- The transfer switch has a built-in safe switch interlock system to switch between two power sources
- SAFETY FEATURE -- The mechanical interlock between contractors cannot be used in parallel, preventing overvoltage
- TIME DELAY -- Once AC power from the generator is sensed by the transfer switch at input 2 terminals, it will start a timer and automatically switch over to generator power supply after a 20-30 second delay
- DURABLE AND RELIABLE -- Engineered with Furrion's proprietary Vibrationsmart™ and Climatesmart™ technologies, this ATS is built to withstand constant vibrations and extreme temperatures
- HIGHEST SAFETY STANDARDS -- The automatic transfer switch comes in a UL94 flame retarded enclosure and is certified to UL standards UL1008

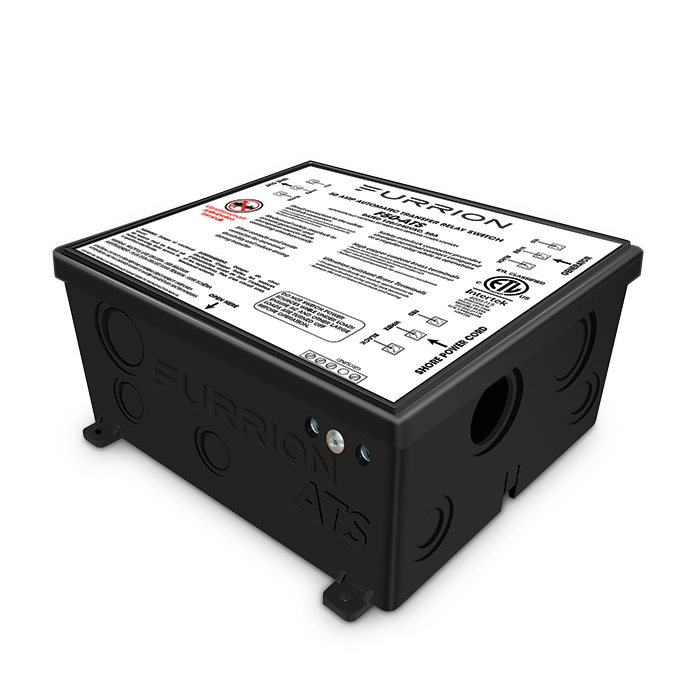

Safely transfer input from shore power to generators with the Furrion transfer switch. Operating temperature is reduced, conductions is increased and safety is improved due to high copper content brass terminals. The risk of a thermal event is reduced with a direct connection to the safety interlock. The mechanical safety interlock prevents generator and shore power sources from connecting simultaneously and provides a stronger terminal contact.
Furrion transfer switches have built-in safety boasts that prevent overheating and overvoltage. The safe switch interlock system automatically switches the unit from two power sources such as, generators, shore power or inverters. The mechanical interlock ensures two sources of power cannot be used in parallel.
Furrion Climatesmart™ and Vibrationsmart™ technologies mean your transfer switch will be capable of maintaining it's usage ability through rough road vibrations and extreme temperature fluctuations.

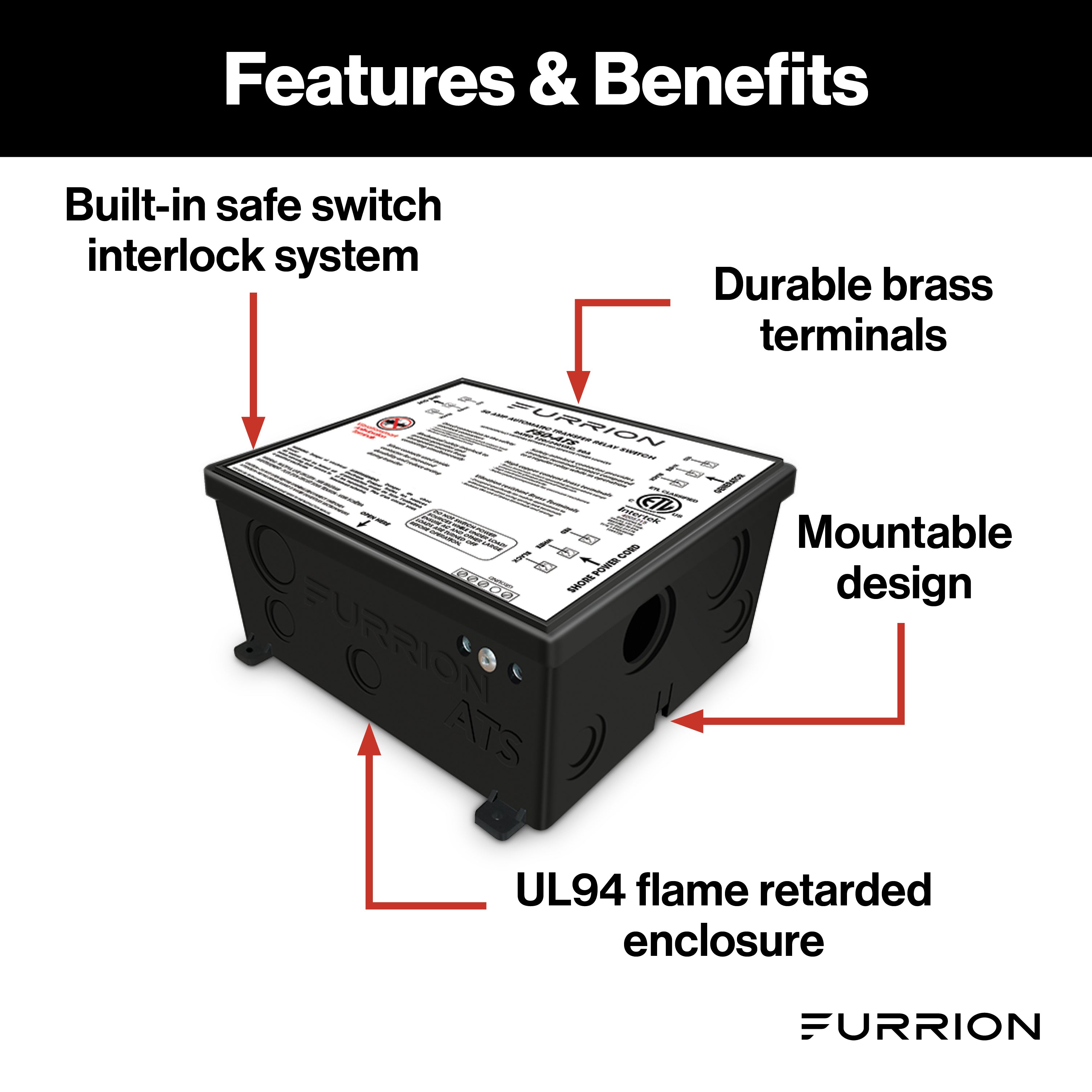

- Durable brass terminals
- Mountable design
- UL94 fire resistant
- Safety interlock
- Vibrationsmart™ to withstand rough road conditions
- Climatesmart™ to withstand temperature fluctuations
| Material | Brass terminals |
|---|---|
| Width (inches) | 12 |
| Height (inches) | 8 |
| Length (inches) | 11 |
| Voltage (volts) | 125/250 |
| Weight (pounds) | 5.7 |
| Ul certification | UL1008 |
| Delay time (seconds) | 20-30 |
| Current capacity (amperes) | 50 |
| Enclosure flame resistance | UL94 |
- What is the amperage and voltage rating of the furrion transfer switch f50-ats? The Furrion Transfer Switch F50-ATS is rated for 50A and 125/250V.
- How does the furrion transfer switch ensure safety during power source switching? It has a built-in safe switch interlock system and a mechanical interlock that prevents the shore power and generator from being connected in parallel, preventing overvoltage and enhancing safety.
- What is the delay time before the switch transfers power to the generator? The switch has a timer that delays the transfer for 20-30 seconds after it senses AC power from the generator.
- Is the furrion transfer switch suitable for use in extreme conditions? Yes, it is engineered with Vibrationsmart™ and Climatesmart™ technologies to withstand constant vibrations and extreme temperature fluctuations.
- What certifications does the furrion transfer switch have regarding safety standards? It comes in a UL94 flame retarded enclosure and is UL1008 certified, meeting high safety standards.
