- Cross-reference Part #: F30-ATS
- SAFE AND AUTOMATIC -- The transfer switch has a built-in safe switch interlock system to switch between two power sources
- SAFETY FEATURE -- The mechanical interlock between contractors cannot be used in parallel, preventing overvoltage
- TIME DELAY -- Once AC power from the generator is sensed by the transfer switch at input 2 terminals, it will start a timer and automatically switch over to generator power supply after a 20-30 second delay
- DURABLE AND RELIABLE -- Engineered with Furrion's proprietary Vibrationsmart™ and Climatesmart™ technologies, this ATS is built to withstand constant vibrations and extreme temperatures
- HIGHEST SAFETY STANDARDS -- The automatic transfer switch comes in a UL94 flame retarded enclosure and is certified to UL standards UL1008
Safely transfer input from shore power to generators with the Furrion transfer switch. Operating temperature is reduced, conductions is increased and safety is improved due to high copper content brass terminals. The risk of a thermal event is reduced with a direct connection to the safety interlock. The mechanical safety interlock prevents generator and shore power sources from connecting simultaneously and provides a stronger terminal contact.
Furrion transfer switches have built-in safety boasts that prevent overheating and overvoltage. The safe switch interlock system automatically switches the unit from two power sources such as, generators, shore power or inverters. The mechanical interlock ensures two sources of power cannot be used in parallel.
Furrion Climatesmart™ and Vibrationsmart™ technologies mean your transfer switch will be capable of maintaining it's usage ability through rough road vibrations and extreme temperature fluctuations.

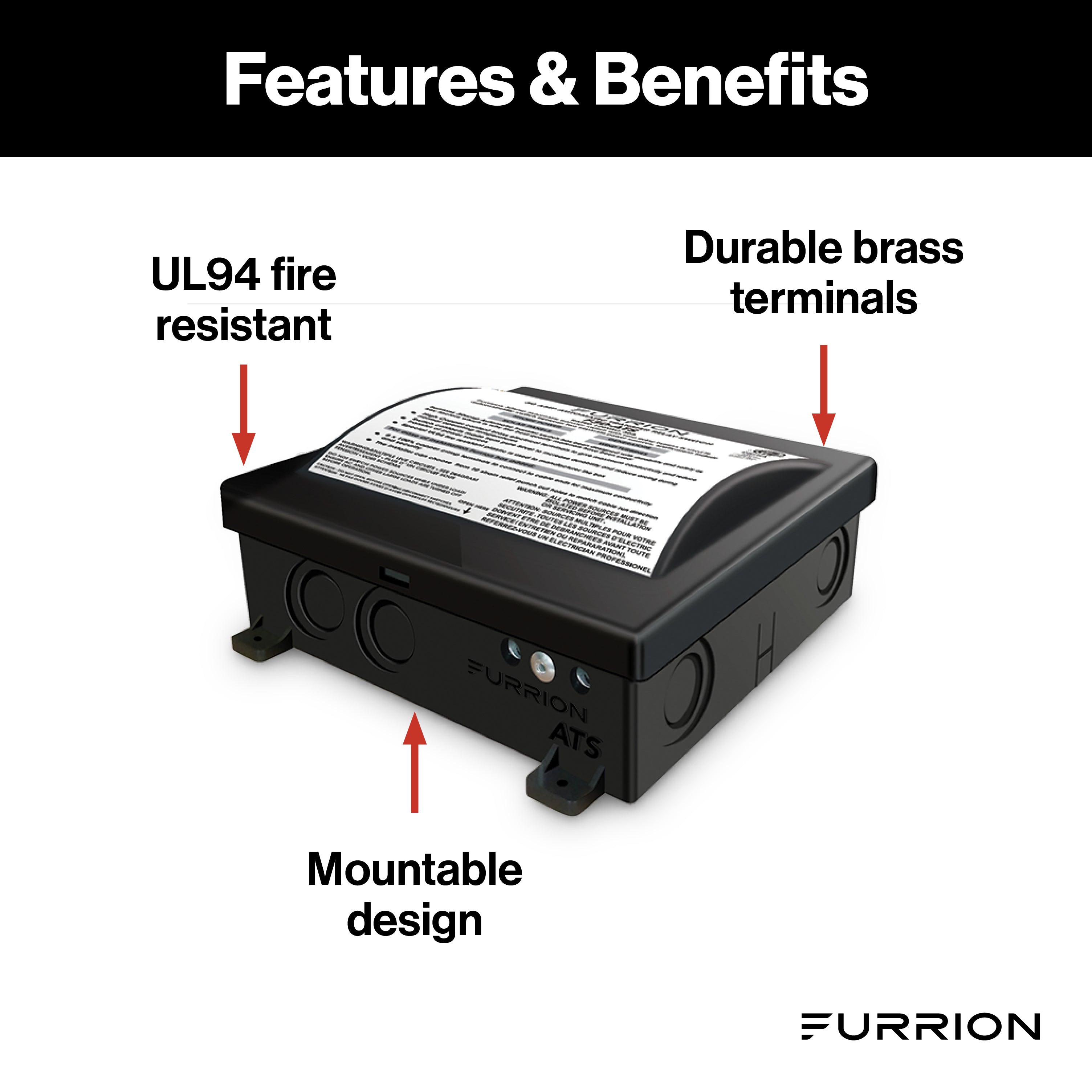

- Durable brass terminals
- Mountable design
- UL94 fire resistant
- Safety interlock
- Vibrationsmart™ to withstand rough road conditions
- Climatesmart™ to withstand temperature fluctuations
| Voltage | 125/250 |
|---|---|
| Amperage | 30 |
| Width (inches) | 11 |
| Height (inches) | 7 |
| Length (inches) | 11 |
| Weight (pounds) | 3 |
| Terminal material | Brass |
| Time delay (seconds) | 20-30 |
| Certification standard | UL1008 |
| Enclosure flame resistance | UL94 |
| Dimensional weight (pounds) | 5.1 |
- What voltage and amperage does the furrion transfer switch support? The Furrion Transfer Switch supports 30 Amps and 125/250 Volts.
- Does this transfer switch have any safety features to prevent overvoltage? Yes, it has a mechanical interlock between contractors that prevents the power sources from being used in parallel, which helps prevent overvoltage.
- How does the transfer switch handle switching between shore power and generator power? The transfer switch senses AC power from the generator and starts a timer, automatically switching over to generator power after a 20-30 second delay.
- Is the furrion transfer switch durable enough for rough conditions? Yes, it is engineered with Furrion's Vibrationsmart™ and Climatesmart™ technologies to withstand constant vibrations and extreme temperatures.
- What standards and certifications does this transfer switch meet? The transfer switch comes in a UL94 flame retarded enclosure and is certified to UL standards UL1008.
