Covenant 36" SLIM Electric RV Fireplace - Perfect for Tight Spaces
The Covenant LFP36-CS is the ideal solution when you need a full-featured electric fireplace in a compact profile. With a slim 9.625" height, this 36" wide unit delivers all the warmth and ambiance of larger models while fitting into spaces where standard fireplaces simply won't work.
Whether you're upgrading an older RV, replacing a failed unit, or installing a fireplace in a custom build with limited vertical clearance, the LFP36-CS provides authentic flame effects with crystal media, reliable 110V heating, and convenient remote control operation—all in a space-saving design.
Why Choose the Covenant LFP36-CS Slim Fireplace?
✓ Ultra-Slim Profile for Tight Installations
At just 9.625" in height, this fireplace fits where standard models can't, making it perfect for low-profile entertainment centers, under-cabinet installations, or RVs with limited wall space.
✓ Full-Width 36" Viewing Area
Despite its slim height, you still get a generous 36" wide flame display with beautiful crystal media that creates a realistic, dancing flame effect visible from across the room.
✓ Powerful 110V Heating Element
Don't let the compact size fool you—this fireplace delivers effective supplemental heat to keep your RV comfortable during cooler weather, all running on standard 110V power.
✓ Convenient Remote Control Operation
Adjust flame brightness, heat settings, and power without leaving your seat. The included remote makes it easy to create the perfect ambiance for any occasion.
✓ Authentic Covenant OEM Quality
Built to the same exacting standards as factory-installed units, with durable construction designed specifically for the vibration and temperature extremes of RV life.
✓ Flat Front Design for Clean Integration
The flush-mount flat front design creates a seamless, professional appearance that integrates beautifully with modern RV interiors.
Technical Specifications
- Model Number: LFP36-CS
- Width: 36 inches
- Height: 9.625 inches (SLIM profile)
- Voltage: 110V AC
- Front Style: Flat Front
- Media Type: Crystals (included)
- Control: Remote Control (included)
- Heating: Yes, electric heating element
- Weight: 34 lbs
- Country of Origin: USA
- SKU: LFP36-CS
- HS Code: 851610
What's Included
- Covenant LFP36-CS Electric Fireplace Unit
- Crystal Media Bed
- Remote Control
- Installation Hardware

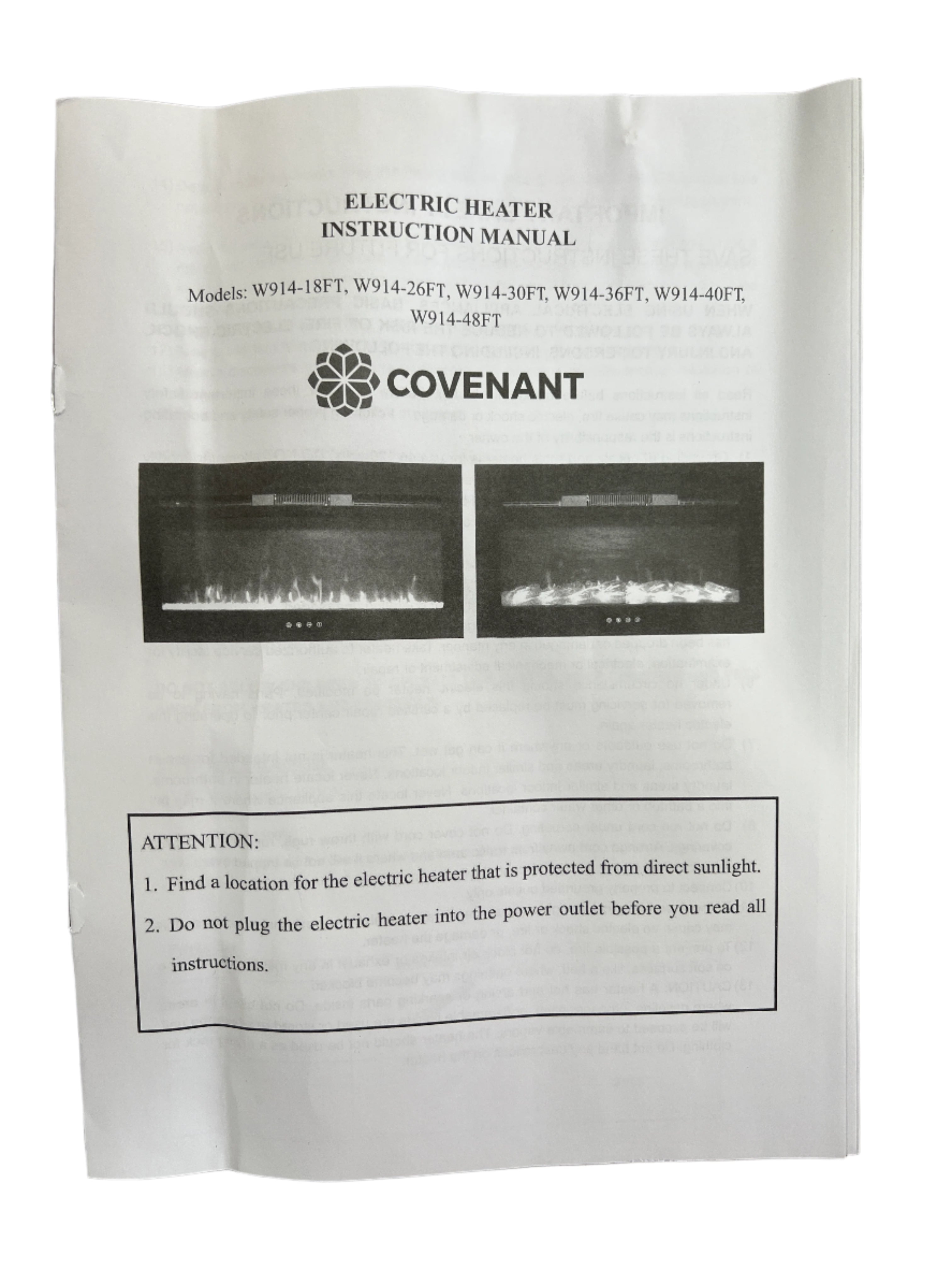

- Owner's Manual
Perfect Applications
Low-Profile Entertainment Centers: Install beneath wall-mounted TVs or in shallow wall cavities where standard fireplaces won't fit.
Under-Cabinet Installations: Add warmth and ambiance in galley areas or bedroom spaces with limited vertical clearance.
Replacement for Failed Units: Direct replacement for older Covenant slim-profile models or competitive units with similar dimensions.
Custom RV Builds: Ideal for custom conversions, toy haulers, or fifth wheels where space optimization is critical.
Retrofit Projects: Upgrade older RVs with modern fireplace technology without major structural modifications.
Compatible Replacement Parts & Accessories
Keep your Covenant fireplace running perfectly with genuine replacement parts and accessories:
- Universal Power Cord for All Covenant Models - Replacement power cord compatible with all Covenant fireplace models
- Universal Remote Control for Touchscreen Models - Upgrade or replace your remote control
- Replacement Electronic Control Board - For touchscreen fireplace models
- Universal Blower Motor with Heating Element - Complete heating assembly for all Covenant fireplaces
Compare Covenant Electric Fireplace Models
| Model | Width | Height Profile | Best For | Part Number | View Details |
|---|---|---|---|---|---|
| 36" SLIM (Current) | 36" | 9.625" (Ultra-Slim) | Tight spaces, low-profile installs | LFP36-CS | Current Product |
| 30" Standard | 30" | Standard Height | Smaller RVs, compact spaces | LFP30-CT | View Details |
| 40" Standard | 40" | Standard Height | Most popular size, versatile | LFP40-CT | View Details |
| 48" Large | 48" | Standard Height | Large RVs, maximum impact | LFP48-CT | View Details |
💡 Sizing Tip: The 36" SLIM model is specifically designed for installations with height restrictions. If you have standard vertical clearance, consider the 30", 40", or 48" models for a larger flame viewing area.
Installation Considerations
Measure Your Space: Verify you have adequate clearance for the 36" width and 9.625" height, plus required ventilation space per the installation manual.
Electrical Requirements: Ensure you have a dedicated 110V circuit with appropriate amperage for the heating element. Consult a licensed electrician if needed.
Mounting Surface: The fireplace requires a stable, level mounting surface capable of supporting 34 lbs.
Ventilation: Follow all clearance requirements in the installation manual to ensure proper ventilation and safe operation.
Professional Installation Recommended: While experienced DIYers can install this unit, professional installation ensures proper electrical connections and compliance with RV safety standards.
Frequently Asked Questions
Q: What makes this "slim" compared to standard fireplaces?
A: The LFP36-CS has a height of only 9.625", significantly shorter than standard fireplace models, making it ideal for installations with limited vertical space.
Q: Can I use this fireplace without the heat function?
A: Yes! The flame effect operates independently of the heating element, so you can enjoy the ambiance year-round without adding heat.
Q: Is this a direct replacement for my existing Covenant fireplace?
A: If your current unit is also a 36" slim-profile model, this should be a direct replacement. Verify your existing unit's dimensions before ordering.
Q: Does this come with everything I need for installation?
A: Yes, the unit includes the fireplace, crystal media, remote control, installation hardware, and manual. You'll need to provide the electrical connection.
Q: What's the difference between crystal and log media?
A: This model features crystal media (included) which creates a modern, contemporary flame effect. Log media creates a more traditional wood-burning appearance.
Q: How much heat does this fireplace produce?
A: The heating element provides supplemental heat suitable for small to medium RV spaces. It's designed to add warmth and comfort, not serve as a primary heating source.
Q: Is the remote control included?
A: Yes, a remote control is included with the fireplace for convenient operation of all functions.
Why Buy from Elkhart RV Parts?
✓ Authorized Covenant Dealer: We're an authorized source for genuine Covenant products, ensuring you receive authentic OEM-quality parts.
✓ Expert RV Parts Knowledge: Our team understands RV systems and can help you select the right fireplace for your specific application.
✓ Fast, Reliable Shipping: We ship quickly and package carefully to ensure your fireplace arrives in perfect condition.
✓ Real Product Support: Questions about installation, compatibility, or operation? Our AI Live Chat provides deep product knowledge and assistance.
✓ Competitive Pricing: Get authentic Covenant quality at fair, competitive prices with no hidden fees.
🔥 Ready to Add Warmth and Ambiance to Your RV?
The Covenant LFP36-CS slim electric fireplace delivers full-featured performance in a space-saving design. Order today and enjoy fast shipping on this authentic OEM-quality unit. Need help with product selection or have installation questions? Use our AI Live Chat for expert assistance!
| Material | Crystals on flat front design |
|---|---|
| Depth (inches) | 7 |
| Frequency (hz) | 60 |
| Width (inches) | 36 |
| Height (inches) | 9.625 |
| Voltage (volts) | 120 |
| Weight (pounds) | 22 |
| Heating power (watts) | 1500 |
| Wall cutout depth (inches) | 9.625 |
| Wall cutout width (inches) | 32.375 |
| Wall cutout height (inches) | 6.625 |
| Minimum rear clearance (inches) | 0.5 |
- What are the dimensions of the covenant 36" slim electric rv fireplace? The fireplace measures 36 inches wide, 7 inches deep, and 9.625 inches high.
- Does the fireplace come with a remote control? Yes, the Covenant 36" SLIM Electric RV Fireplace includes a remote control for convenient operation.
- How many flame variations does this electric fireplace offer? It offers six unique flame variations with adjustable color and intensity to customize the ambiance.
- What safety features does this electric fireplace have? It features an intelligent auto-shutoff function that turns off the heater when the desired temperature is reached, ensuring safety and energy efficiency.
- Is this fireplace suitable for an rv or small space? Yes, it is specifically designed for RVs, cabins, small apartments, or any compact living area, providing stylish and efficient heating.
