Covenant 40" Electric RV Fireplace Insert – OEM Replacement with Flush Mount, Flat Front, and Crystals
Upgrade your recreational vehicle's interior with the Covenant 40" Electric RV Fireplace Insert. This OEM replacement unit is designed for seamless flush-mount installation, featuring a sleek flat front adorned with elegant crystals that enhance your RV's ambiance.
Key Features:
- Customizable Flame Settings: Choose from six distinct flame variations to personalize the look and color, creating the perfect atmosphere for any occasion.
- Efficient Heating: With a powerful 1500W output, this electric fireplace effectively warms your RV. The heater automatically pauses once the desired temperature is reached, ensuring consistent comfort without overheating.
- User-Friendly Controls: Operate the fireplace effortlessly using the integrated control panel or the included remote control, offering convenience from anywhere within your RV.
- Sleek and Modern Design: The flat front panel, complemented by shimmering crystals, not only provides warmth but also serves as a stylish focal point in your RV's interior.
Specifications:
- Power Supply: 120V AC
- Frequency: 60Hz
- Power Consumption: 1500W

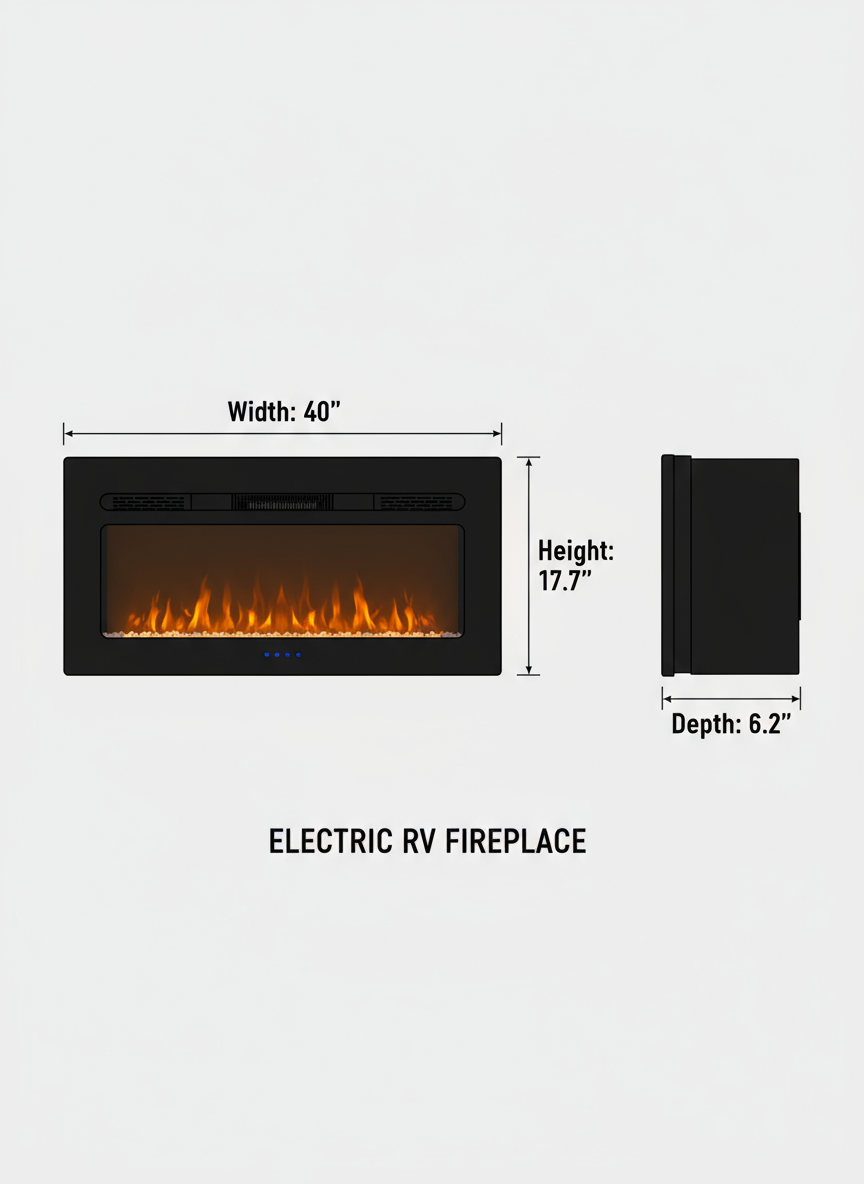

- Overall Dimensions: 40" (Width) x 6.2" (Depth) x 17.7" (Height)
Enhance your RV experience with the Covenant 40" Electric RV Fireplace Insert, blending functionality with modern aesthetics for a cozy and inviting environment on the road.
Need Visual Help?
Watch these quick repair guides to help you troubleshoot and fix common fireplace issues:
Will Not Turn On Or Off
Q: won't shut off when reaching temp
Reason: PC board faulty
Solution 1: Replace the PC board (Touchscreen / Physical Button)
Suggestions: 1) To disconnect the main power supply for about 15 minutes, and restart it after Overheat protection cools off. 2) The ambient temperature is too low, preheat first, the PC board is set to start at low temperatures: 23°F to 32°F turn on and wait 30 seconds before turning on the heat -5°F to 5°F turn on and waith 2 mins before turning on the heat.
Q: won't stay on. Clicks on and off very fast and remains off.
Reason: Overheat protection automatically disconnects
Solution 1: Replace the fan heating component
Q: will not turn on
Reason: PC board faulty
Solution 1: Replace the PC board (Touchscreen / Physical Button)
Q: will turn on and then shuts off after a few seconds
Reason: Overheat protection automatically disconnects
Solution 1: Replace the fan heating component
Q: was working and then shut off and wouldn't turn back on.
Reason: Overheat protection automatically disconnects
Solution 1: Replace the fan heating component
Q: will not stay on
Reason: Overheat protection automatically disconnects
Solution 1: Replace the fan heating component
Q: works intermittently
Reason: The set temperature was too low, or reached at critical point.
Solution 1: Adjust high temperature
Q: will turn on but none of the functions will work.
Reason: PC board faulty
Solution 1: Replace the PC board (Touchscreen / Physical Button)
Q: will not shut off with button or remote. Have to turn off breaker
Reason: PC board faulty
Solution 1: Replace the PC board (Touchscreen / Physical Button)
Q: smells hot
Reason: The residual oil on the heating element wire will have a smell on the first operation.
Solution 1: It will clear off after the first few minutes
Fan And Heat Element
Q: Heating element turning red and shutting off
Reason: The Fan is not turning
Solution 1:: Replace the fan heating component
Q: Noisy fan
Reason: A tie cable or wire possibly touching the fan wheel
Solution 1:: Open the top panel and check if the wire is touching the fan wheel , move the wire that is touching the fan wheel.
Q: Heating element and fan will not turn off
Reason: PC board failure
Solution 1:: Replace the PC board (Touchscreen / Physical Button)
Q: No heat or fan
Reason: PC board failure
Solution 1:: Replace the PC board (Touchscreen / Physical Button)
Flames
Q: Clicking noise when flame is turning.
Solution 1:: Remove the back panel and check the flame film to see if it's hitting the side brackets
Solution 2:: Replace the Synchronous motor
Q: Flames not rotating
Solution 1:: Replace the fan motor
Solution 2:: Replace the control board
Q: noisy flame motor
Solution 1:: Check the flicker and remove other objects
Solution 2:: Replace the Synchronous motor
Led Lights
Q: LED out on half
Solution 1:: Check for loose connectors on the PC board and connection on LED bar
Solution 2:: Replace LED bar
Solution 3:: Replace PC Board
Q: LED light not working
Solution 1:: Check for loose connectors on the PC board and connection on LED bar
Solution 2:: Replace LED bar
Solution 3:: Replace PC Board
Q: LEDs are intermittent
Solution 1:: Check for loose connectors on the PC board and connection on LED bar
Solution 2:: Replace LED bar
Solution 3:: Replace PC Board
Q: Left side or right side of LED under logs not lighting up
Solution 1:: Check for loose connectors on the PC board and connection on LED bar
Solution 2:: Replace LED bar
Solution 3:: Replace PC Board
Lcd Display
Q: LCD display not working
Solution 1: Check for loose connector on the PC board and display
Solution 2: Replace the display
Solution 2:: Replace PC Board
Q: LCD display hanging
Solution 1: Replace springs that came off of the bracket. Should be laying the bottom of unit
| Power supply | 120V AC |
|---|---|
| Depth (inches) | 6.2 |
| Frequency (hz) | 60 |
| Width (inches) | 40 |
| Height (inches) | 17.7 |
| Length (inches) | 8 |
| Weight (pounds) | 32 |
| Dimensional weight | 34 |
| Width (inches) metafield | 20 |
| Height (inches) metafield | 29 |
| Power consumption (watts) | 1500 |
- What are the dimensions of the covenant 40" electric rv fireplace? The overall dimensions of the fireplace are 40 inches in width, 6.2 inches in depth, and 17.7 inches in height.
- What type of power supply does the fireplace require? The fireplace requires a 120V AC power supply and operates at a frequency of 60Hz.
- How many flame settings are available on this fireplace? There are six distinct customizable flame settings available to choose from.
- Does the fireplace come with a remote control? Yes, the fireplace includes a remote control for convenient operation from anywhere within your RV.
- What should i do if the fireplace won't turn on or off properly? If the fireplace won't turn on or off, it may be due to a faulty PC board. The recommended solution is to replace the PC board. Additionally, disconnecting the main power supply for about 15 minutes and restarting after overheat protection cools off may help.
