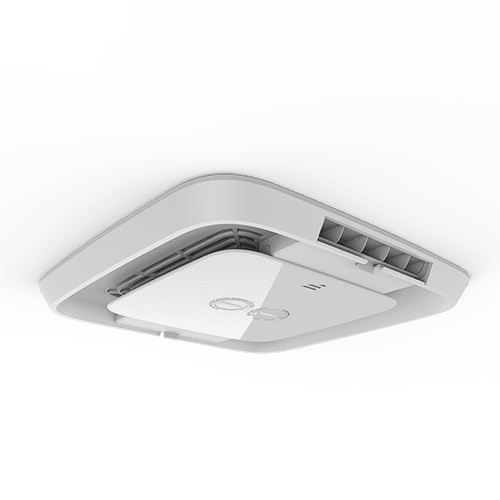

Cool Comfort on the Go with the Furrion Chill RV Air Distribution Box
Upgrade your RV comfort with the Furrion Chill Air Distribution Box featuring easy manual single-zone control. Designed to fit 14-inch roof openings and campers with 3 to 6-inch roof thickness, this unit offers three fan speeds, two-way airflow, and a slim, stylish profile. Compatible with both ducted and non-ducted systems, it includes detachable filters for easy cleaning and supports simple installation with Furrion Chill AC systems.---
This will fit RV campers & travel trailers with a roof thickness of 3-6” and roof opening of 14”. The Furrion air distribution box (ADB) with manual control is compatible with the Furrion Chill air conditioning system.
Quick Facts:
- Single-zone controller is compatible with Furrion single-zone basic / premium wall thermostat
- Dimensions: 2.75" side x 12" length x 3.13" height
- Weight: 30.2 lbs.
- Made in China
- Input power: AC 115V and DC 12V
- Compresser & Condenser fan: AC 115V/20A
- 3 Evaporator Fan Motor Relay: AC 115V/5A
- Multi-zone controller is compatible with Furrion multi-zone wall thermostat
- Detachable filters for easy cleaning
- Compatible with both ducted and non-ducted systems
- Stylish and slim design
- Air distribution box made for 3" to 6" roof thickness and 14" roof opening
- Auto-fan operation to maintain temperature
- Two-way airflow allows air to flow from front or back
- Three fan speeds for desired airflow
- Furrion Reference Number: FACT11MA-PS
- Warranty: 2 year warranty from date of purchase of the RV to the original owner
| Weight (lbs) | 30.2 |
|---|---|
| Height (inches) | 3.13 |
| Length (inches) | 12 |
| Width (inches) | 2.75 |
| Voltage | AC 115V and DC 12V |
| Amperage | 20A |
| Color | White |
| Thermostat type | Manual Single-Zone Control |
| Ducted | true |
| Weight (pounds) | 30.2 |
| Airflow direction | Two-way |
| Input power ac volts | 115 |
| Input power dc volts | 12 |
| Number of fan speeds | 3 |
| Roof opening diameter (inches) | 14 |
| Roof thickness compatibility (inches) | 3 to 6 |
| Evaporator fan motor relay current amps | 5 |
| Compressor and condenser fan current amps | 20 |
- What roof thickness and opening size is the furrion chill rv ac air distribution box compatible with? It fits RV campers and travel trailers with a roof thickness of 3-6 inches and a roof opening of 14 inches.
- Is the air distribution box compatible with multi-zone control systems? Yes, the multi-zone controller is compatible with the Furrion multi-zone wall thermostat.
- What power inputs does this air distribution box support? The unit supports AC 115V and DC 12V input power.
- Does the furrion chill air distribution box have any features for air flow control? Yes, it has three fan speeds for desired airflow and two-way airflow allowing air to flow from either the front or back.
- What is the warranty period for this air distribution box? It comes with a 2-year warranty from the date of purchase of the RV to the original owner.
