Furrion 2-Plug Rooftop Solar Panel Connection Box #FSEB30JWO-BL
---

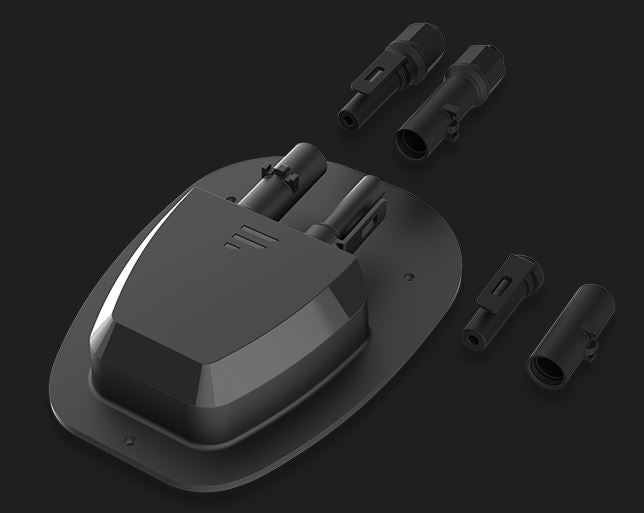

FSEB30JWO-BL Rooftop Solar Connection Box — Furrion Connectors
Furrion 2021123870 / FSEB30JWO-BL is a rooftop solar wire connection box with Furrion connectors. Match the actual connector system, polarity, wire size and installed charge-controller limits before ordering.
Identify the connector generation
This older model uses Furrion connectors. Lippert lists FSEB30JWO2-BL / 2022009018 as its successor with MC4 connectors. Confirm any required wiring and connector changes before replacement; the two connector systems are not automatically interchangeable.
This connection box does not replace a charge controller, provide a parallel combining harness or establish panel-to-controller electrical compatibility. The separate C-FSFP50MAT-002 50W maintainer box is a wire-entry housing, not this plug-connector model.
Roof installation and array limits
The exact instructions show a roof cable passage, screw attachment and sealing around screw holes and the box perimeter. Follow those instructions and the roof manufacturer requirements. The box is IP65 rated when properly mounted with sealant; protection depends on installation.

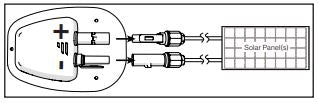

The manual depicts multiple panels in series and explicitly says not to connect them in parallel. This is not permission to add arbitrary panels in series: verify cold-weather array voltage, current, polarity, connector matching and charge-controller limits with a qualified installer.
Check the actual box before layout

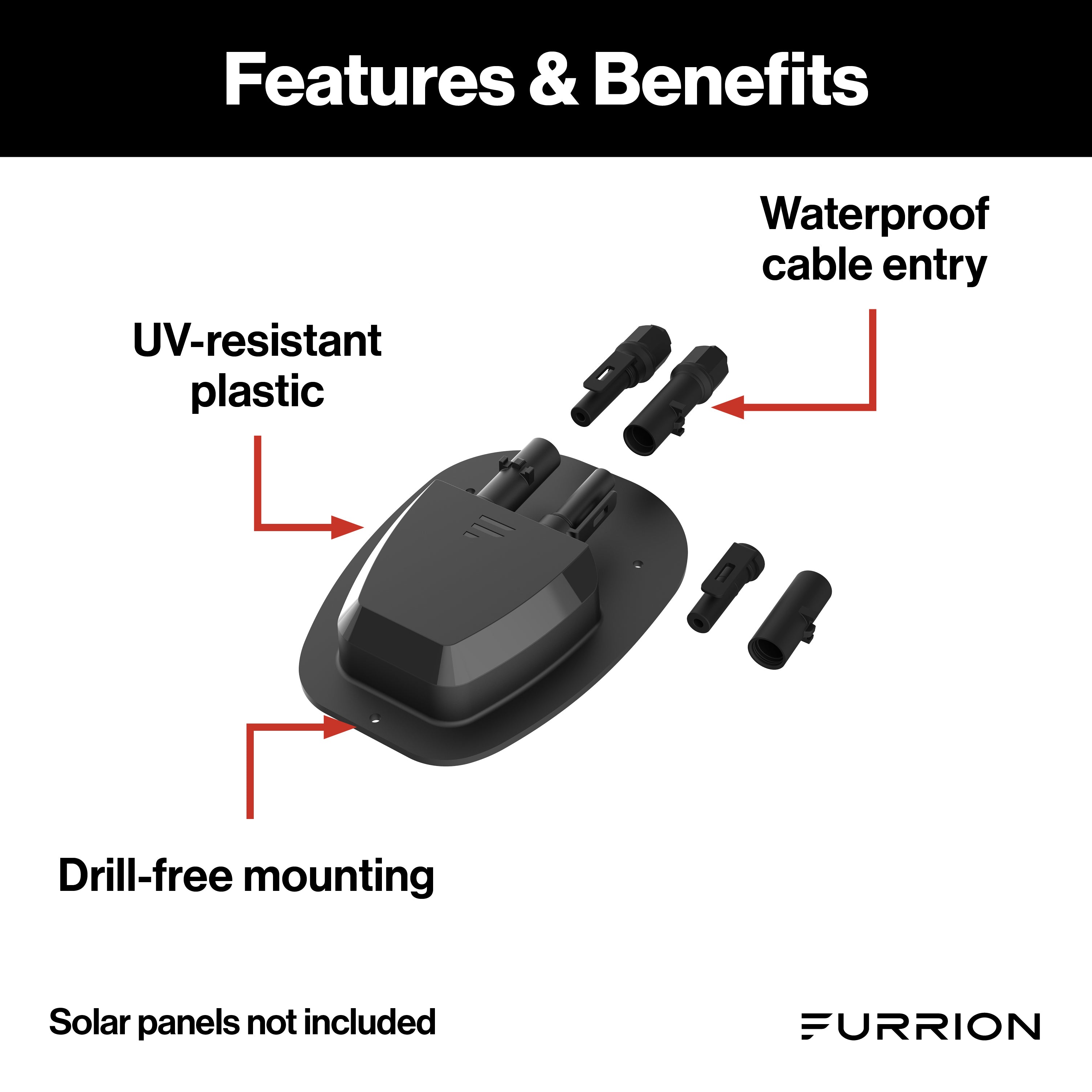

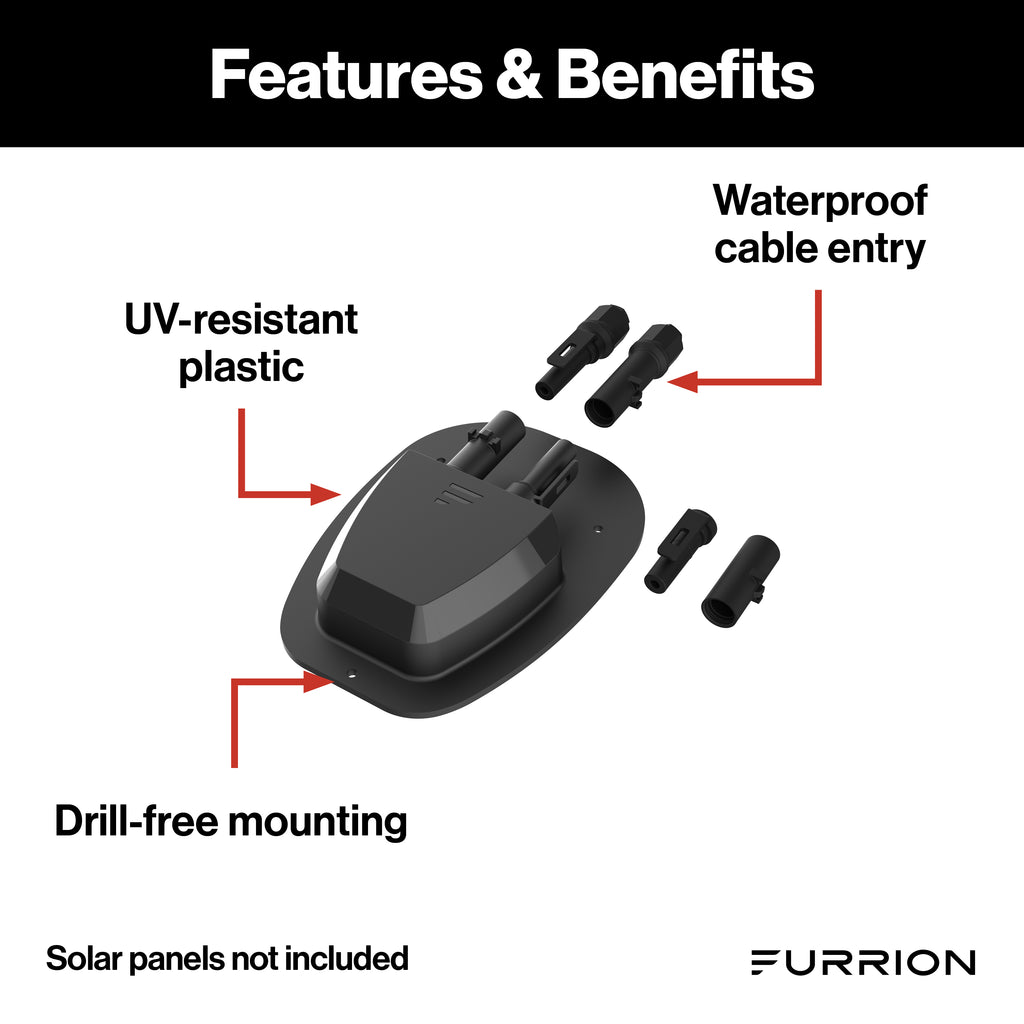

Legacy gallery and sales captions say “drill-free” and “all Furrion panels.” The exact installation instructions show a roof cable hole, three mounting screws and sealant. Connector and system checks still apply; those captions are not universal-fit or no-roof-hole approval.
Solar panels, controller and a complete roof-wiring system are not included.
FSEB30JWO-BL installation instructions identify the connector type and roof installation steps.
| Manufacturer | Furrion |
|---|---|
| Part number | 2021123870 |
| Model | FSEB30JWO-BL |
| Connector system | Furrion |
| Function | Rooftop solar cable connection and routing box |
| Generation distinction | Older Furrion connector design; successor FSEB30JWO2-BL uses MC4 |
| Protection rating | IP65 when properly mounted with sealant |
| Installation | Roof cable passage, screws and perimeter sealing per exact manual |
| Array limitation | Manual shows series only, not parallel; controller and electrical design must permit the array |
| Package | Connection box; no solar panel or charge controller |
| Dimension verification | Exact housing dimensions and mounting-hole spacing are not confirmed by the reviewed installation instructions. Measure the original box and use the actual mounting template; shipping dimensions are not installation dimensions. |
| Dimension reference | IM-FEN00031 V1.0 and exact manufacturer listing |
- Which connectors does this model use? Furrion connectors. Confirm the installed connectors, polarity and ratings; shared brand does not prove a direct fit.
- Is installation drill-free? The exact instructions require a roof cable passage and show screw attachment with sealing. Do not rely on a blanket drill-free claim.
- Can i connect multiple panels in parallel? The box instructions explicitly say not to connect panels in parallel. Any series array also needs an approved controller and electrical design.
- Does the successor use the same plugs? The older FSEB30JWO-BL uses Furrion connectors; the FSEB30JWO2-BL successor uses MC4. Check wiring and connector changes before replacement.
