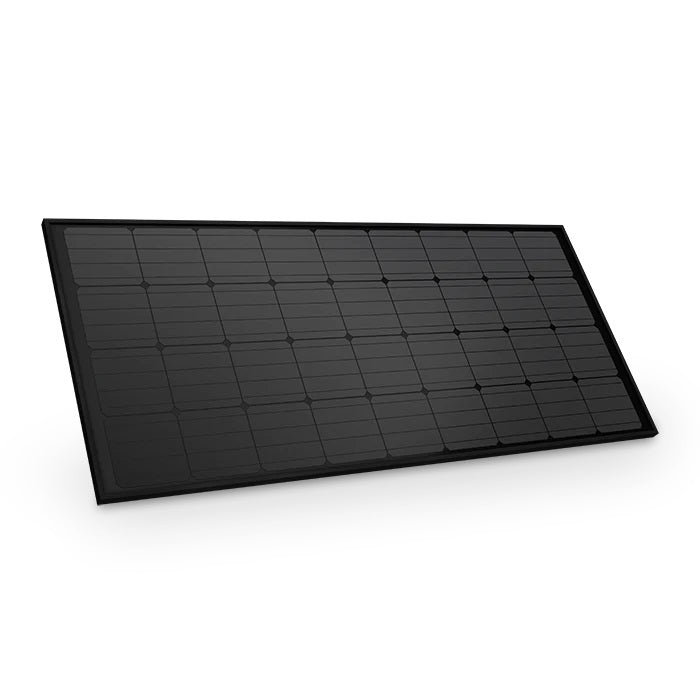

Furrion 165W Rigid Monocrystalline RV Rooftop Solar Panel #FSFP16MW-BL
Pairs well with
---
FSFP16MW-BL 165W Rigid Rooftop Solar Panel
Furrion 2021123842 / FSFP16MW-BL is a 165W rigid monocrystalline rooftop solar panel. Match the exact panel model, connector and system design before adding it to an RV solar array.
Documented mounting kit
C-FSFP16MW-A02 / 2021123578 Z-mount bracket kit is recommended in this panel manual, printed page 6. Brackets are separate from the panel. Roof attachment and sealing depend on the roof structure and installation design.
Check the electrical system first
Follow this panel’s exact manual together with the installed charge-controller instructions. The manual describes series expansion for its original Furrion controller system; no parallel harness is established by this listing. Check cold-weather open-circuit voltage, current, polarity, conductor and connector ratings, controller limits and battery requirements.
Do not combine unlike panel ratings or treat FSFP16MW-BL as interchangeable with a later-generation model merely because the wattage or frame looks similar. A connection box or adapter must be matched to the actual connectors and electrical design.
Panel and kit scope
This is the named panel, not a complete solar charging system. Do not assume a controller, battery, mounting kit, rooftop box, adapter or extension cable is supplied. Current price and order availability are shown by the live product interface.
FSFP16MW-BL manufacturer manual documents the mount and installation limits. Compare the separate 180W rooftop panel listing for identification; this is not approval to mix panels.
| Manufacturer | Furrion |
|---|---|
| Part number | 2021123842 |
| Model | FSFP16MW-BL |
| Rated power | 165W |
| Panel type | Rigid monocrystalline rooftop panel |
| Documented mounting kit | C-FSFP16MW-A02 / 2021123578, separately purchased |
| Installation | Exact panel/controller instructions and electrical/roof design required; no parallel harness established |
| Dimension verification | The exact-model manual lists a 1330 mm long side; the later FSFP16MW-BL sheet draws 1500 mm. Both use 675 mm short side and 35 mm thickness. Confirm actual panel label and mounting geometry; a single unqualified length is not established. |
| Dimension reference | CCD0005566 manual / CCD0005669 V2.2 drawing |
- Which panel is this? FSFP16MW-BL / 2021123842, 165W.
- Which mount is documented? C-FSFP16MW-A02 / 2021123578, as recommended by this exact panel manual printed page6.
- Is this a complete system? No. Do not assume controller, battery, mount, box or wiring is included.
- Can i mix panel ratings or use any parallel adapter? No such approval is established. Follow the exact panel and controller manuals and a qualified system design.
