Furrion 10A RV Solar Port Inlet - Black #FSPINS-BS-OEM
---
FSPINS-BS-OEM Black 10A Solar Charging Inlet

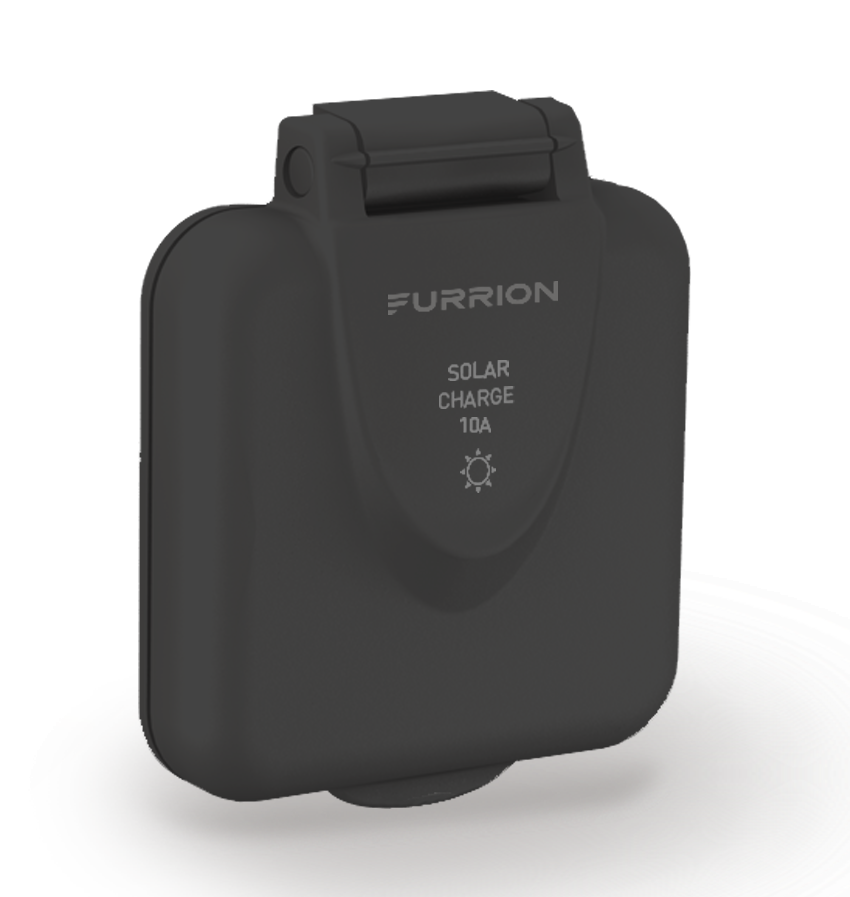

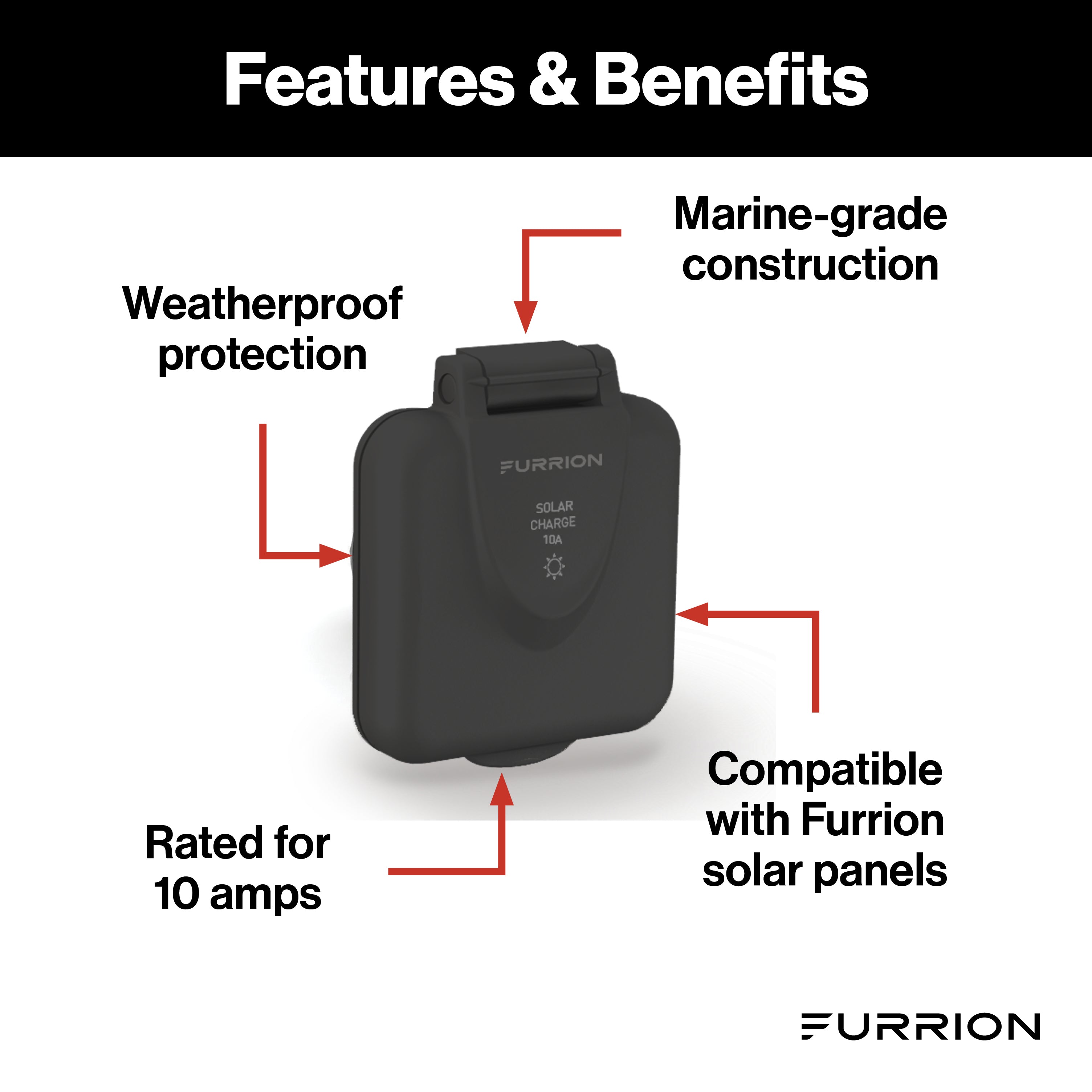

Furrion FSPINS-BS-OEM is the black 10A RV solar charging inlet, ERVP SKU 2021123609. It provides an exterior connection for a matching Furrion solar charging system; the inlet itself does not regulate battery charging.
Match the black inlet and connector
Lippert identifies 2021123609 as FSPINS-BS-OEM in black. FSPINS-PS-OEM / 2021123846 is the separate white listing. The older FSPINS-BS-AM catalog entry is not an established OEM replacement cross-reference.
The manufacturer specifies a 10A rating and 12–14V DC working voltage for use with the Furrion 10A PWM solar charger and Furrion portable solar panels. Match the actual quick-connect plug, polarity, controller and battery requirements. A Furrion brand name or matching current rating alone does not establish compatibility with every panel, MC4 lead, SAE plug or other solar system.
Installation and battery wiring
Furrion’s linked Quick Connect Solar Charging Inlet instructions, IM-FET00008 V2.0, show a 2-inch central mounting cutout and a gasket used as the hole-position template. Check the supplied inlet and gasket against the existing opening before cutting; outer package dimensions are not a mounting template.
The instructions require disconnected power during installation, 10 or 12 AWG internal wiring, correct red-positive/black-negative polarity and a 10A inline fuse in the positive battery wire within 5 feet of the battery terminal. Follow the complete instructions and your battery/controller requirements. This is a wired installation, not simply an inlet that can be connected to any unregulated solar panel.
What is included and what to check
The manufacturer lists one solar port inlet. Its installation instructions refer to a sealing gasket and pre-installed inlet wires; confirm actual package contents before installation. A solar panel, charge controller, battery, complete battery cable run, fuse and all installation consumables are not established as supplied by this listing.

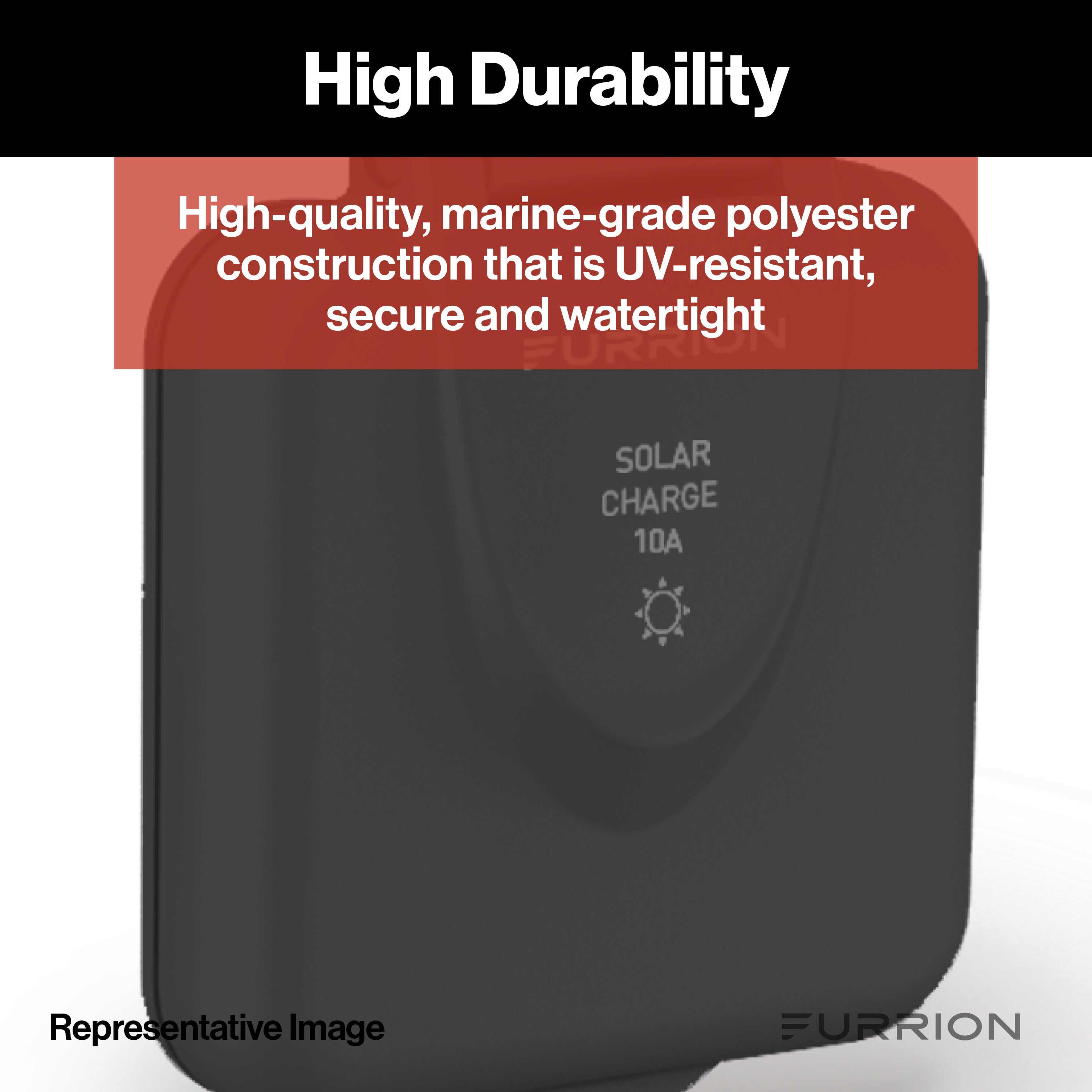

The black inlet has a protective cover and manufacturer-described UV-resistant, marine-grade construction. Some retained gallery scenes show other equipment or shore-power connectors as representative images; those scenes do not identify this solar connector or establish included components.
Dimensions and manufacturer references
Lippert lists 4 × 4 × 1.5 inches and 1 pound as shipping dimensions and weight for this exact SKU. These are not confirmed housing, hole-spacing or cutout measurements.
Exact black OEM inlet specifications · Furrion Quick Connect Solar Charging Inlet instructions, linked from Furrion’s FSPINS-BS product page.
| Manufacturer | Furrion |
|---|---|
| Ervp sku | 2021123609 |
| Manufacturer reference | FSPINS-BS-OEM |
| Color | Black; PS-OEM is a separate white model |
| Current rating | 10A |
| Working voltage | 12–14V DC, per manufacturer |
| Application | Exterior inlet for matching Furrion solar charging system |
| Connector | Furrion quick-connect; verify actual plug and polarity |
| Documented system class | Furrion 10A PWM solar charger and portable solar panels; exact model/connector checks required |
| Mounting cutout in linked instructions | 2-inch central hole; confirm actual inlet and gasket before cutting |
| Shipping size only | 4 × 4 × 1.5 inches; not housing or mounting dimensions |
| Shipping weight only | 1 pound; not confirmed product net weight |
| Package | One inlet; confirm gasket, pre-installed wires and remaining installation items |
| Am/oem interchange | Not established by the archived AM catalog entry |
- Is this the black or white inlet? This is black FSPINS-BS-OEM / 2021123609. White FSPINS-PS-OEM / 2021123846 is a separate model.
- Will any solar panel plug straight into it? No universal connector interchange is established. Match the Furrion quick-connect plug, polarity, 10A limit, controller and battery requirements. Do not assume MC4 or SAE plugs connect directly.
- Does the inlet charge or regulate the battery by itself? The inlet provides a connection. A suitable charge controller and correctly protected battery wiring are required by the complete system.
- Does it replace fspins-bs-am? The archived catalog lists a separate AM entry. Exact AM/OEM replacement interchange has not been established here.
- Are 4 × 4 × 1.5 inches the mounting dimensions? No. Lippert labels those values as shipping dimensions. The linked Furrion instructions show a 2-inch central cutout; verify the actual inlet and gasket before cutting.
- What else is needed for installation? Check actual package contents and the full instructions. They describe a gasket, pre-installed inlet wires, 10 or 12 AWG internal wiring, mounting hardware and a 10A positive-wire fuse within 5 feet of the battery terminal. Do not assume the complete wiring run, fuse, panel or controller is supplied.
