Elkhart Plastics - RV Holding Tank - 57.5" x 29" x 8" Nominal (8 1/2" Overall Callout) - Right End Recessed Drain - H1024

Finding the right RV holding tank with a right end recessed drain configuration can be challenging when you need a reliable replacement that fits your specific RV layout. The Elkhart Plastics RV Holding Tank (H1024004) delivers professional-grade performance with its 57.5" x 29" x 8" profile and right end recessed drain design, engineered specifically for waste management systems requiring this exact footprint and drain positioning.

Features & Specifications

• Precise Dimensions: 57.5" length x 29" width x 8" height nominal title-block dimensions; the side view calls out8 1/2-inch overall depth. Match the complete recessed-drain profile for fitment
• Premium Roto-Molded Construction: Black LLDPE; the drawing specifies a 0.150-inch wall thickness
• Large Capacity: Capacity is not specified on the retained drawing
• Right End Recessed Drain: Strategically positioned right end recessed drain for compatibility with specific RV plumbing configurations
• Drawing Assembly: The drawing lists a female 3-inch ABS adapter (380),gear clamp (O56) and two OS-12 spin-patch vent tubes; OS-12 is explicitly not shown in the views
• Health & Safety Certified: Manufactured to meet quality and health safety standards with fewer impurities for secure waste storage
• Impact Resistant: Roto-molded process creates durable construction that withstands road vibration, temperature extremes, and physical impacts
• OEM Grade Quality: Elkhart Plastics reputation for manufacturing tanks trusted by RV manufacturers and professional technicians nationwide

Why Choose the Elkhart Plastics RV Holding Tank H1024004?

The retained manufacturer drawing identifies H1024004 with a right-end recessed drain and a sloped lower profile. It specifies black LLDPE and 0.150-inch wall thickness. Match your existing part number, supports, connection locations and clearances; outer dimensions alone do not establish interchangeability.

Compare Similar Capacity RV Holding Tanks

Not sure which holding tank is right for your RV? Compare the specifications of similar capacity tanks to find the perfect fit for your space and drain configuration:

Pro Tip: Always measure your existing tank compartment carefully before ordering, paying special attention to drain positioning. Right end vs. left end drain placement is critical for proper installation and plumbing compatibility. If you're unsure about fitment, our AI Live Chat can help verify compatibility.

Technical Specifications

• Part Number: H1024004
• Dimensions: 57.5" L x 29" W x 8" H
• Estimated Capacity: Not specified on retained print
• Material: Black LLDPE;0.150-inch wall per drawing
• Construction: Seamless roto-molded
• Drain Position: Right end recessed drain
• Fittings: Drawing lists adapter 380,clamp O56 and two OS-12 tubes
• Weight: 22.5 lb assembled weight stated on print;21.5 lb shot weight is listed separately
• Color: Black polyethylene
• Application: Black water, gray water, or holding tank replacement
• Manufacturer: Elkhart Plastics/Ameri-Kart

What's Included

• One (1) Elkhart Plastics RV Holding Tank - H1024004
• Assembly drawing lists a female 3-inch ABS adapter,gear clamp and two OS-12 tubes
• Elkhart Plastics quality certification and manufacturing standards compliance
• Note: Fittings, drain valves, vent caps, and mounting hardware sold separately - browse our fittings kits to complete your installation
• Warranty: Backed by Elkhart Plastics manufacturing quality standards

Compatible Models & Alternatives

Compare exact part identity and the complete drawing to your installation. Related configurations are linked below for comparison, not as verified interchangeable substitutes.

• Similar Capacity Alternative: Alpha VR29578REHCD - 58" x 29.5" x 8.5" Right End Recessed
• Fittings & Hardware: Browse our complete selection of RV tank fittings, drain valves, vent caps, and installation accessories
• Different Dimensions: Explore our full collection of Elkhart Plastics holding tanks in various sizes and configurations
• Installation Supplies: Tank mounting straps, sealants, and plumbing connectors available

Frequently Asked Questions

How do I install this RV holding tank?

Compare the complete original print to your existing tank and plumbing before installation. The assembly drawing lists adapter 380,clamp O56 and two OS-12 spin-patch vent tubes. OS-12 locations are not shown, so do not assume arbitrary drilling or connection locations from the rendered views. Use qualified RV plumbing installation procedures.

Is this compatible with my RV model?

A matching tank-compartment size does not establish fitment. Verify H1024004 part identity, the recessed outlet, support arrangement and all plumbing clearances against the original print.

What does "right end recessed drain" mean?

The "right end recessed drain" refers to a drain outlet positioned at the right end of the tank (when viewing from a specific orientation) that is recessed into the tank body rather than protruding. This design provides a lower profile and specific plumbing compatibility.

What fittings do I need for installation?

You'll need drain fittings, vent fittings, inlet fittings, and potentially a tank monitor sensor depending on your RV's configuration. Browse our fittings kits or contact us via AI Live Chat with your specific requirements for personalized recommendations.

Can this be used for both black water and gray water?

Yes, this tank is suitable for black water (toilet waste), gray water (sink/shower drainage), or holding tank applications. The drawing specifies black LLDPE; suitability for your installation depends on the complete plumbing configuration.

What's the difference between this and similar sized tanks?

The key differences are in the exact dimensions and drain positioning. This H1024004 has a right end recessed drain at 57.5" x 29" x 8", while similar tanks may have slightly different dimensions or drain positions. Always verify your exact compartment size and drain configuration before ordering.

Why Buy from Elkhart RV Parts?

As the only authorized online retailer for Elkhart Plastics RV tanks, we guarantee 100% authentic OEM grade parts - never aftermarket imitations. Every tank ships with verified quality certifications and meets the same exacting standards used by RV manufacturers. Our expert team understands RV plumbing systems and can help you select the right tank, fittings, and accessories for your specific installation. We offer fast shipping, secure packaging for large items, and comprehensive support from selection through installation.

Dimensioned Print and Gallery Views

The original H1024004 drawing, revision A dated August 15, 2023, gives a 57 1/2 x29-inch plan footprint. Its title block lists 8-inch nominal depth while the side-view overall callout is 8 1/2 inches. Allow for the complete illustrated assembly and compare both references; this difference is retained explicitly rather than presenting 8 inches as guaranteed overall clearance.

The print specifies black LLDPE, 0.150-inch wall thickness,21.5 lb shot weight and22.5 lb assembled weight. Shot weight is not finished or packed shipping weight. The parts list includes female 3-inch ABS adapter 380,gear clamp O56 and two OS-12 spin-patch vent tubes. A note says OS-12 is not shown in the drawing; their positions were not invented in the model. No capacity is stated on this print.

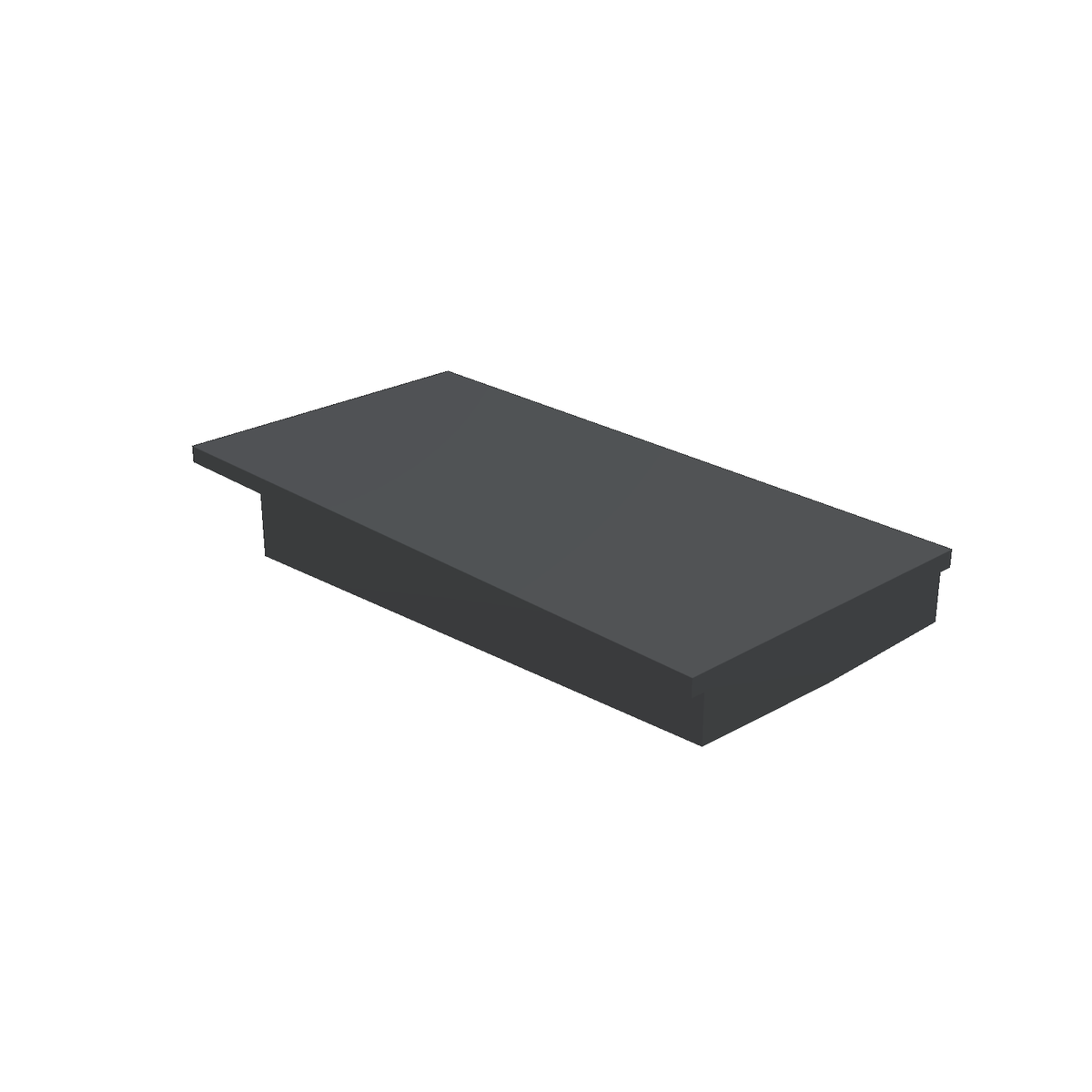

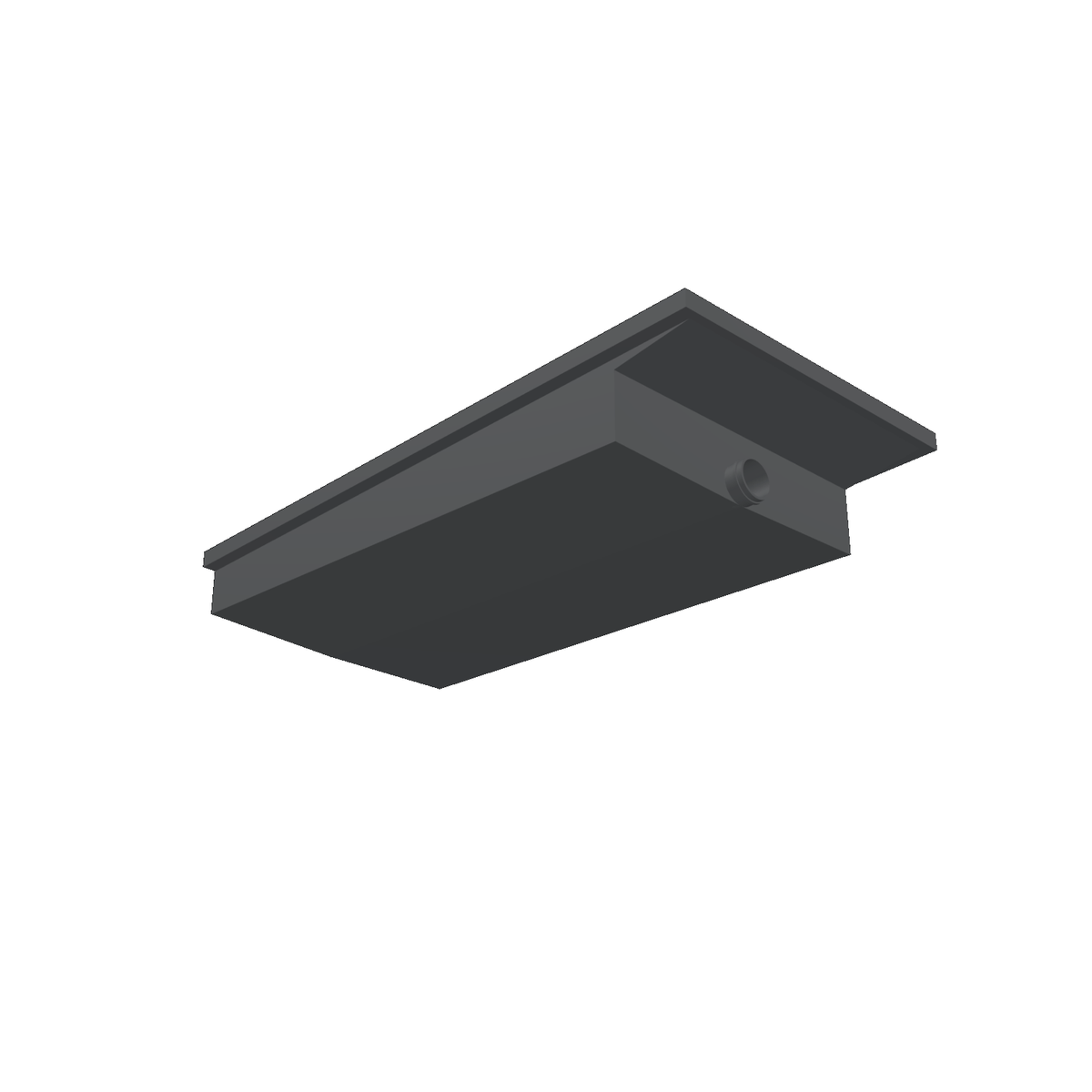

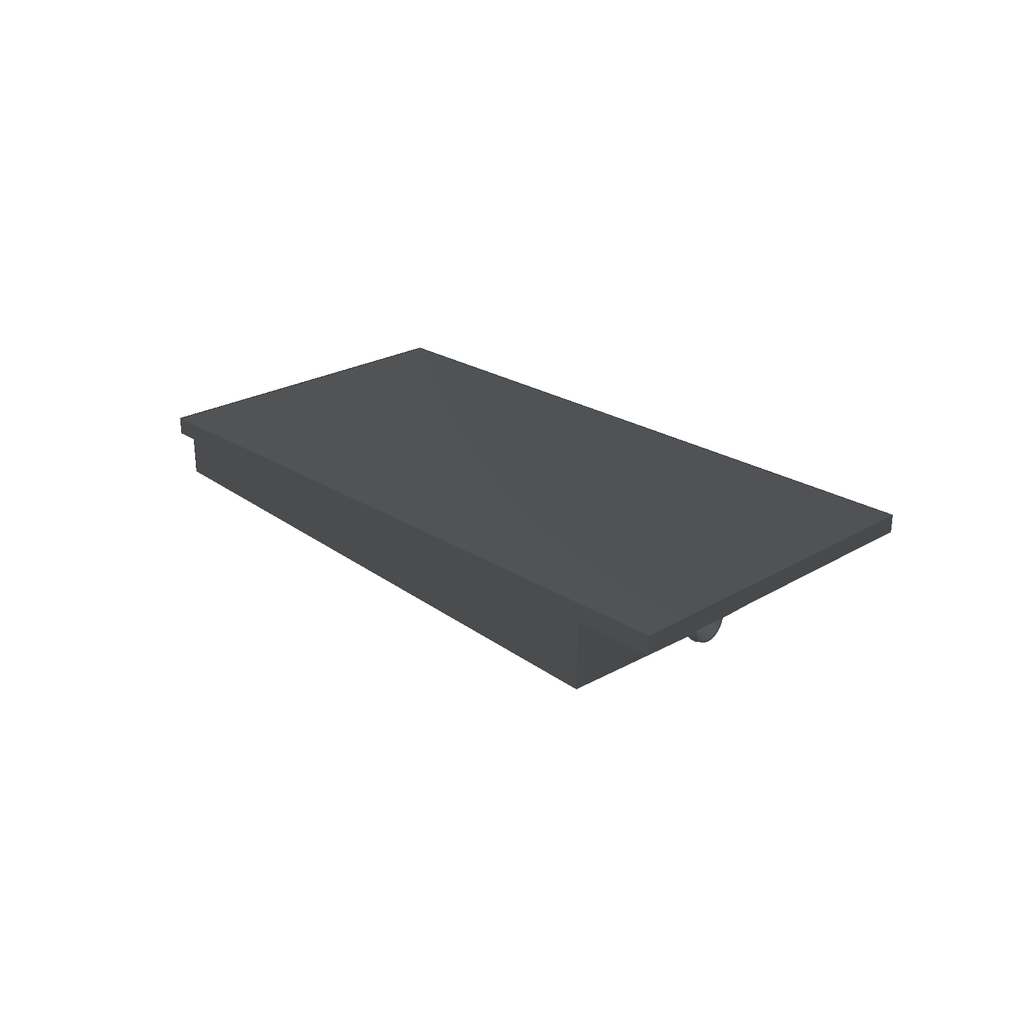

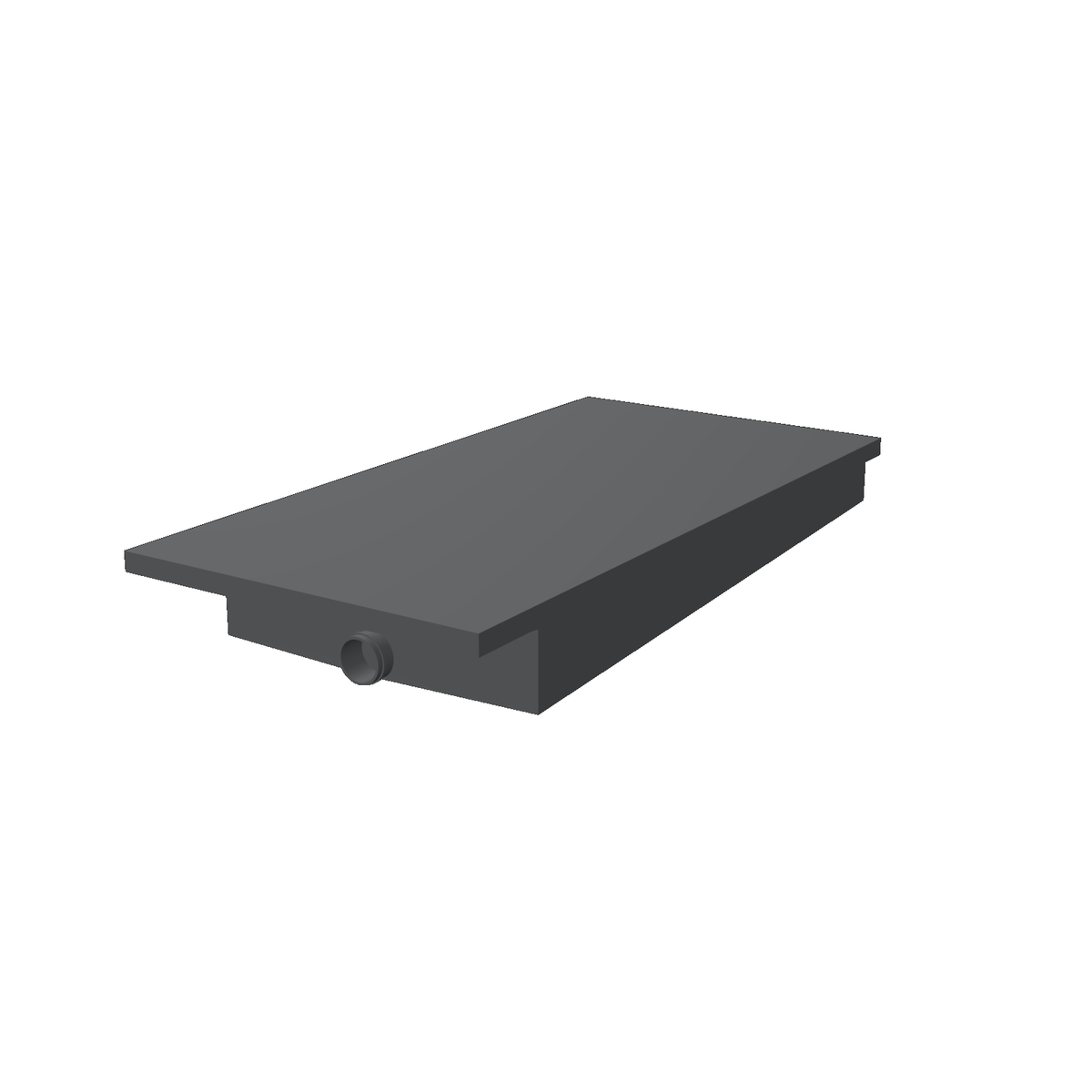

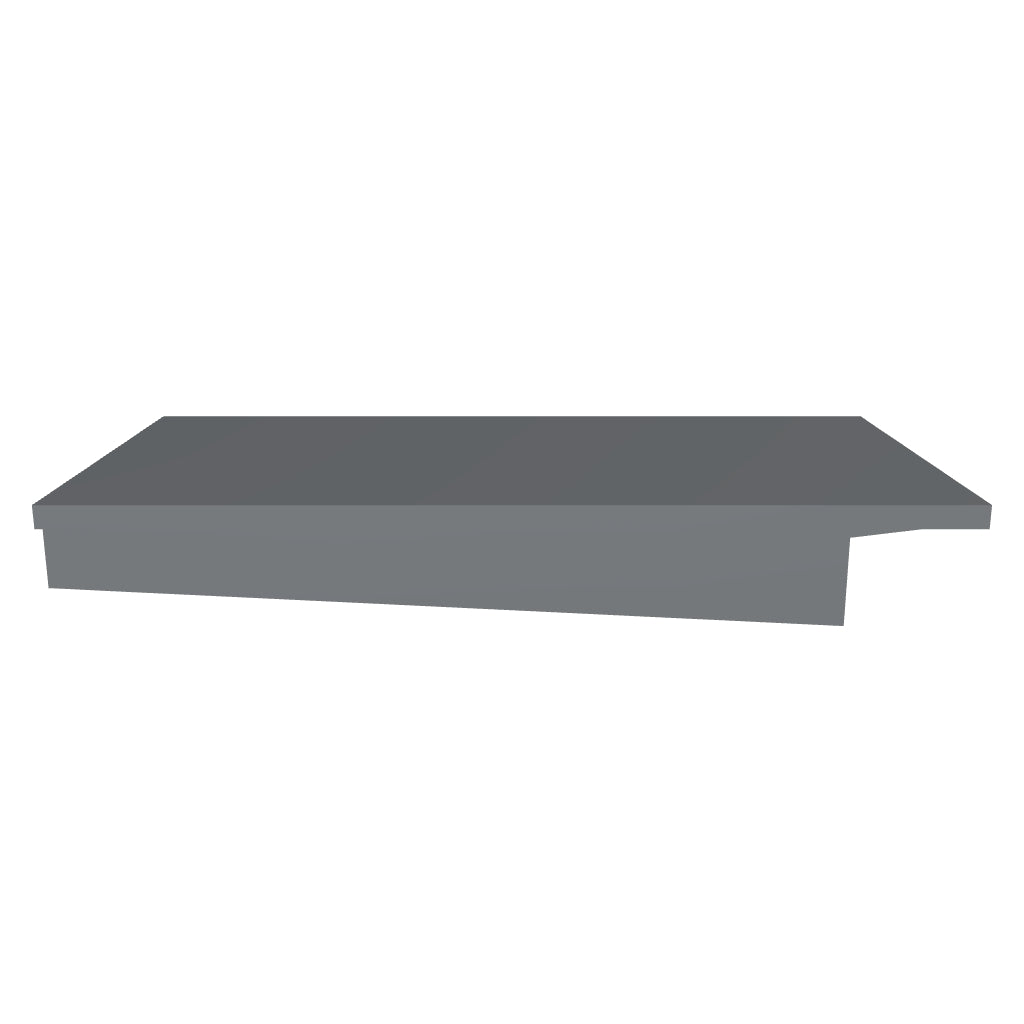

The four views and rotatable model are print-based reconstructions, not measured manufacturing CAD. Undimensioned inset width, neck setback, sloped-floor transitions, corner rounding and adapter/clamp exterior details are illustrative. The original blueprint remains the fitment reference.
