Need a cap or a plug? This tapered cap/plug will keep your tank clean from dirt and debris. It is easy to install and remove. May be used for MIL Spec, SAE-type fittings, hydraulic and threaded or non-threaded fittings.
Material: Low-density polyethylene or Flex Temp (thermoplastic rubber)
Service Temperature: LDPE: -94 - 175° F (-70 - 79° C) | Flex Temp: 0 - 300° F (-18 - 148° C)
Standard Color: Red
Applicable Specs: NAS 834
Sold in Each

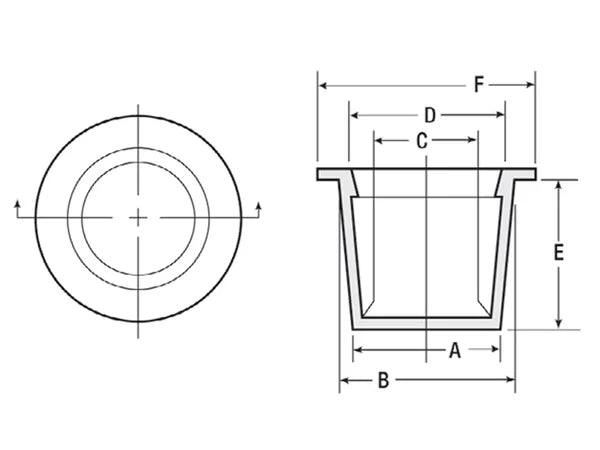

Dimensions (see drawing)
Dim A (in): 1.175
Dim B (in): 1.284
Dim C (in): 1.113
Dim D (in): 1.222
Dim E (in): 0.630
Dim F (in): 1.440
| Material | Low-density polyethylene or Flex Temp (thermoplastic rubber) |
|---|---|
| Dim a (inches) | 1.175 |
| Dim b (inches) | 1.284 |
| Dim c (inches) | 1.113 |
| Dim d (inches) | 1.222 |
| Dim e (inches) | 0.63 |
| Dim f (inches) | 1.44 |
| Standard color | Red |
| Applicable specs | NAS 834 |
| Service temperature ldpe (celsius) | -70 to 79 |
| Service temperature ldpe (fahrenheit) | -94 to 175 |
| Service temperature flex temp (celsius) | -18 to 148 |
| Service temperature flex temp (fahrenheit) | 0 to 300 |
- What material is the 1-1/4" 1.284" round red polypropylene plug made of? The plug is made of low-density polyethylene (LDPE) or Flex Temp, which is a thermoplastic rubber.
- What are the temperature ranges this plug can withstand? The LDPE material can withstand temperatures from -94 to 175° F (-70 to 79° C), while the Flex Temp material can handle 0 to 300° F (-18 to 148° C).
- Is this plug compatible with sae-type and hydraulic fittings? Yes, this tapered plug is suitable for MIL Spec, SAE-type fittings, hydraulic fittings, as well as threaded or non-threaded fittings.
- What color is the 1-1/4" round plug? The standard color of this plug is red.
- What are the dimensions of this round plug? The plug dimensions include Dim A: 1.175 inches, Dim B: 1.284 inches, Dim C: 1.113 inches, Dim D: 1.222 inches, Dim E: 0.630 inches, and Dim F: 1.440 inches.
