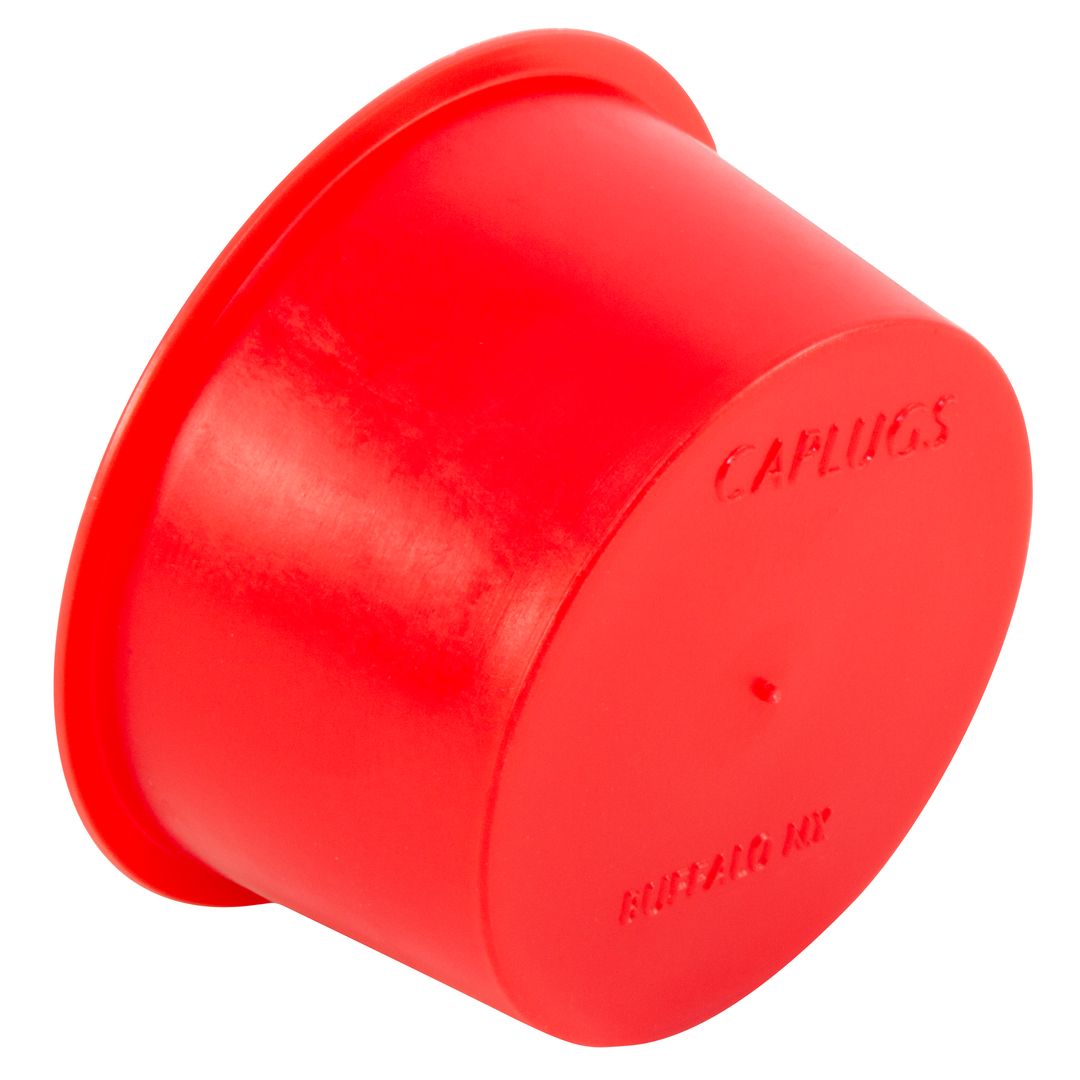

Need a cap or a plug? This tapered cap/plug will keep your tank clean from dirt and debris. It is easy to install and remove. May be used for MIL Spec, SAE-type fittings, hydraulic and threaded or non-threaded fittings.
Material: Low-density polyethylene or Flex Temp (thermoplastic rubber)
Service Temperature: LDPE: -94 - 175° F (-70 - 79° C) | Flex Temp: 0 - 300° F (-18 - 148° C)
Standard Color: Red
Applicable Specs: NAS 834
Sold in Each

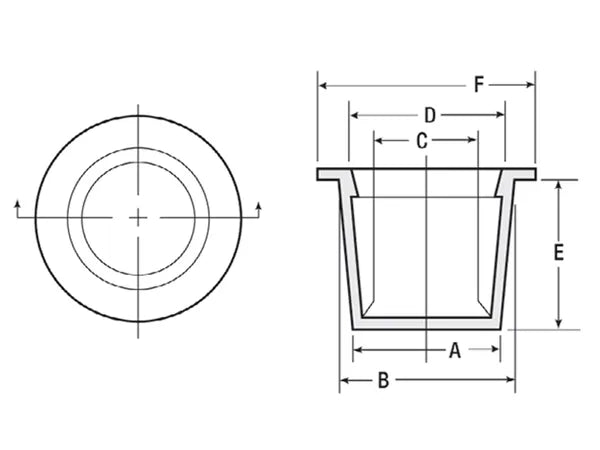

Dimensions (see drawing)
Dim A (in): 0.915
Dim B (in): 1.040
Dim C (in): 0.855
Dim D (in): 0.980
Dim E (in): 0.690
Dim F (in): 1.160
| Material | Low-density polyethylene or Flex Temp (thermoplastic rubber) |
|---|---|
| Standard color | Red |
| Applicable specs | NAS 834 |
| Dimension a (inches) | 0.915 |
| Dimension b (inches) | 1.04 |
| Dimension c (inches) | 0.855 |
| Dimension d (inches) | 0.98 |
| Dimension e (inches) | 0.69 |
| Dimension f (inches) | 1.16 |
| Service temperature ldpe (fahrenheit) | -94 to 175 |
| Service temperature flex temp (fahrenheit) | 0 to 300 |
- What material is the 1" 1.04" round red polypropylene plug made of? The plug is made of low-density polyethylene (LDPE) or Flex Temp, which is a thermoplastic rubber.
- What is the temperature range this plug can withstand? The LDPE material can withstand temperatures from -94 to 175° F (-70 to 79° C), while the Flex Temp material can handle 0 to 300° F (-18 to 148° C).
- Is this plug suitable for hydraulic fittings? Yes, this tapered cap/plug may be used for hydraulic fittings as well as MIL Spec, SAE-type fittings, and both threaded and non-threaded fittings.
- What are the dimensions of this round plug? The dimensions are as follows: Dim A: 0.915 in, Dim B: 1.040 in, Dim C: 0.855 in, Dim D: 0.980 in, Dim E: 0.690 in, and Dim F: 1.160 in.
- What color is this plug and does it meet any specifications? The plug is red in color and meets the NAS 834 specification.
