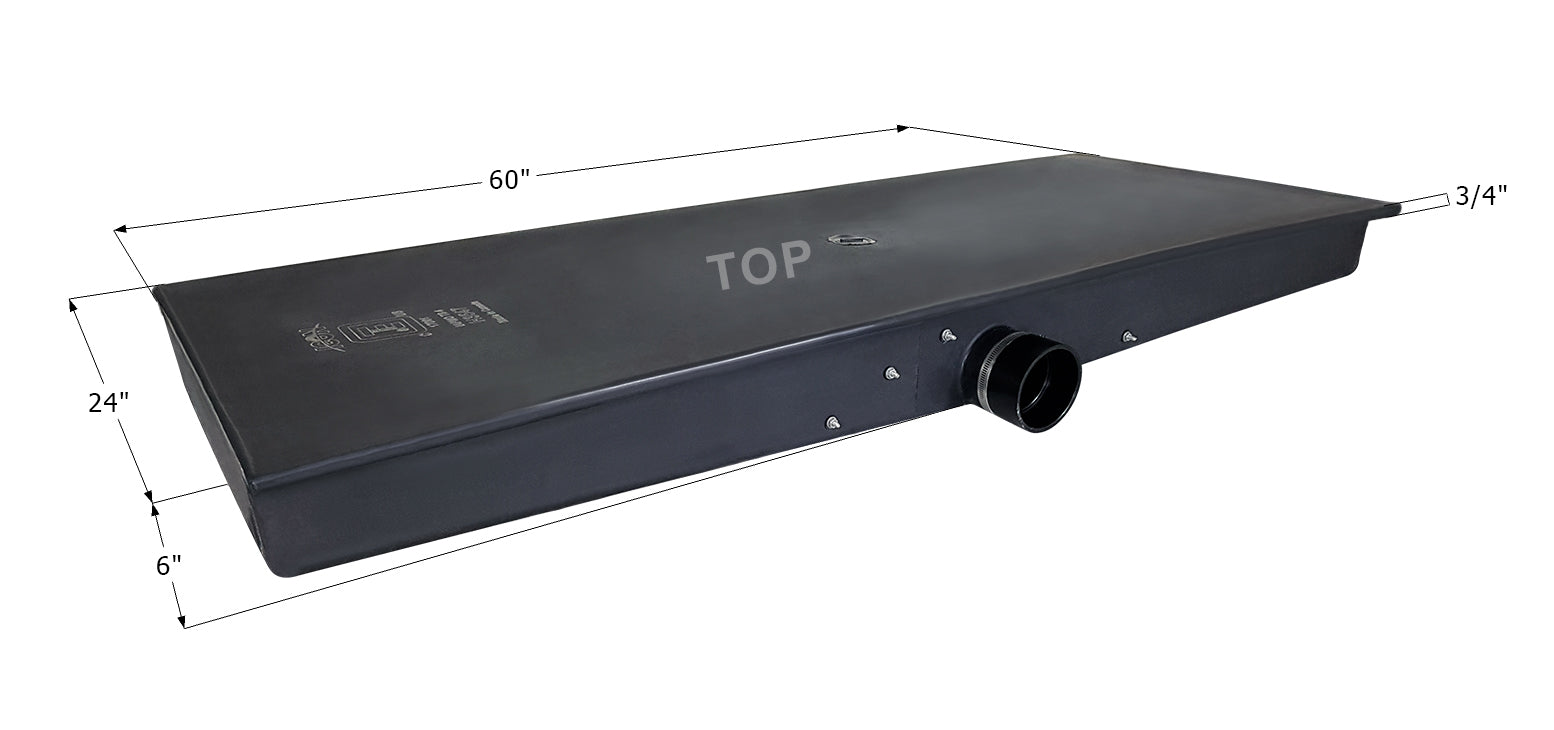

The ICON H3547 22 Gallon RV Holding Tank delivers reliable waste management in a low-profile 60" x 24" x 6" design perfect for RVs with limited vertical clearance. Engineered with extra-thick polyethylene construction and preinstalled drain and level sensors, this IAPMO-certified tank provides durable black water or gray water storage for travel trailers, fifth wheels, and motorhomes. Whether you're replacing a damaged Jayco 0160538 tank or upgrading your RV's waste capacity, the H3547 offers professional-grade quality with a compact footprint.
Features & Specifications
- 22 Gallon Capacity: Mid-size waste storage ideal for weekend trips and extended camping
- Low-Profile Design: Ultra-slim 6" height fits shallow underbelly compartments with 60" x 24" footprint
- Extra-Thick Material: Heavy-duty polyethylene construction resists cracking, warping, and chemical damage
- Preinstalled Sensors: Factory-installed drain and level sensors eliminate custom drilling and installation time
- Dual-Purpose Application: Suitable for black water or gray water storage depending on your RV configuration
- IAPMO & CSA Certified: Meets rigorous North American safety and quality standards for RV holding tanks
- Direct Replacement: Replaces Jayco part number 0160538 for exact-fit installation
Why Choose the ICON H3547 Holding Tank?
When you need a reliable 22-gallon holding tank with a low-profile design, the ICON H3547 delivers professional-grade quality at an affordable price. The extra-thick polyethylene construction provides superior durability compared to standard tanks, while the preinstalled sensors save you hours of installation time and eliminate the risk of improper drilling. The ultra-slim 6" height makes this tank perfect for RVs with shallow underbelly spaces where taller tanks won't fit.
ICON Technologies has built a reputation for engineering holding tanks that outlast OEM replacements. The H3547's IAPMO and CSA certifications ensure you're getting a tank that meets strict safety standards for waste containment. Whether you're a DIY RV owner tackling a tank replacement or a mobile technician servicing customer rigs, the H3547 offers the perfect balance of capacity, quality, and compact dimensions.
Compare ICON Holding Tanks
Not sure if the 22-gallon H3547 is the right size for your RV? Compare it against other ICON holding tanks with similar low-profile designs to find the perfect fit for your underbelly space and waste capacity needs.
| Model | Capacity | Dimensions | Best For | View Details |
|---|---|---|---|---|
| H3547 | 22 Gallons | 60" x 24" x 6" | Low-profile, long chassis, Jayco replacement | Current Product |
| HT600A-SD | 18 Gallons | 48.5" x 25.5" x 6.5" | Smaller capacity, similar low profile | View HT600A-SD → |
| HT473-ED | 21 Gallons | 70" x 17.75" x 7" | Similar capacity, longer/narrower, sensors included | View HT473-ED → |
| H3826 | 25 Gallons | 54.25" x 25" x 6" | Slightly larger capacity, similar low profile | View H3826 → |
| HT500-SD | 26 Gallons | 37.5" x 26" x 9.5" | Compact length, taller profile, more capacity | View HT500-SD → |
💡 Pro Tip: Measure your RV's underbelly compartment carefully before ordering. The H3547's 60" length and ultra-low 6" height make it ideal for shallow spaces with generous length clearance. If you need a shorter tank, consider the HT500-SD (37.5" long).
Technical Specifications
- Part Number: H3547
- Manufacturer: ICON Technologies (Icon Direct)
- Capacity: 22 Gallons (83.3 Liters)
- Length: 60 inches
- Width: 24 inches
- Height: 6 inches (low-profile design)
- Material: Extra-thick polyethylene (UV and chemical resistant)
- Construction: Seamless one-piece rotational molding
- Sensors: Preinstalled drain and level sensors
- Application: Black water or gray water holding tank
- Certifications: IAPMO and CSA certified
- Replaces: Jayco part number 0160538
- Weight: Approximately 25-30 lbs (empty)
- Ideal For: Travel trailers, fifth wheels, motorhomes with shallow underbelly spaces
What's Included
- ICON H3547 22-gallon holding tank with preinstalled sensors
- Factory-installed drain fitting
- Factory-installed level sensor probes
- IAPMO/CSA certification documentation
- Installation requires separate mounting hardware and plumbing connections (not included)
Note: This is a blank tank with preinstalled sensors. Additional fittings, valves, and mounting straps are sold separately. Browse our tank fittings collection for compatible accessories.
Compatible Models & Alternatives
The ICON H3547 is a direct replacement for Jayco 0160538 and fits many RV models with similar underbelly dimensions. If you're looking for related products or alternative tank sizes, explore these options:
- Browse all RV holding tanks - Complete selection of black water and gray water tanks
- Tank fittings and accessories - Valves, sensors, drain fittings, and mounting hardware
- All ICON Technologies products - Complete ICON catalog including fresh water tanks
Frequently Asked Questions
How do I know if the H3547 will fit my RV?
Measure your existing tank or underbelly compartment carefully. The H3547 requires a minimum space of 60" length x 24" width x 6" height. Check clearances around plumbing connections and mounting points. If you're replacing a Jayco 0160538 tank, the H3547 is a direct fit replacement.
Can I use this tank for both black water and gray water?
Yes, ICON holding tanks are designed for dual-purpose use. You can use the H3547 for black water (toilet waste), gray water (sink/shower drainage), or a combination system depending on your RV's plumbing configuration. The extra-thick polyethylene construction handles both applications.
Does this tank come with fittings and valves installed?
The H3547 comes with preinstalled drain and level sensors, but it does not include gate valves, vent fittings, or inlet connections. This allows you to customize the tank with fittings that match your specific RV plumbing setup. Shop our tank fittings collection for compatible accessories.
What makes ICON tanks better than standard replacement tanks?
ICON tanks are engineered with extra-thick polyethylene material (thicker than many OEM tanks), providing superior resistance to cracking, warping, and chemical damage. The seamless rotational molding process eliminates weak joints, and IAPMO/CSA certifications ensure the tank meets rigorous safety standards. Many RV owners report ICON tanks outlasting their original equipment tanks.
How do I install the H3547 holding tank?
Installation requires removing your old tank, positioning the H3547 in the underbelly compartment, securing it with mounting straps or brackets, and connecting the drain valve, vent line, and inlet plumbing. If you're replacing a Jayco 0160538, the sensor connections should match your existing wiring. Professional installation is recommended if you're not experienced with RV plumbing systems.
What is the warranty on ICON holding tanks?
ICON Technologies stands behind their products with manufacturer warranties. Contact us for specific warranty details and coverage information. As an authorized ICON dealer, Elkhart RV Parts ensures you receive genuine products backed by full manufacturer support.
Why Buy from Elkhart RV Parts?
As an authorized ICON Technologies dealer, Elkhart RV Parts guarantees 100% authentic OEM-grade holding tanks backed by manufacturer warranties. Our team specializes in RV plumbing components and can help you select the right tank size and configuration for your specific RV model. Every ICON tank we sell is built to rigorous IAPMO and CSA standards, ensuring safe and reliable waste management for years of RV adventures.
Need Help Selecting the Right Holding Tank?
Our AI Live Chat can help you find the perfect ICON holding tank based on your RV's underbelly dimensions and waste capacity requirements. Get instant answers about compatibility, installation, and tank sizing.
| Width (inches) | 24 |
|---|---|
| Height (inches) | 6 |
| Length (inches) | 60 |
| Weight (pounds) | 23 |
| Capacity (gallons) | 22 |
| Material thickness | Thicker amount of material for stronger build |
- What are the dimensions of the icon holding tank h3547? The dimensions of the ICON Holding Tank H3547 are 60 inches by 24 inches by 6 inches.
- What is the capacity of this icon holding tank? This ICON holding tank has a capacity of 22 gallons.
- Can this tank be used for both black and gray water? Yes, the ICON holding tank can be used for black or gray water, or a combination of both.
- Is the icon holding tank h3547 certified to any standards? Yes, ICON tanks are certified to IAPMO and CSA standards.
- Does this holding tank come with preinstalled fittings or sensors? Most ICON holding tanks come with a preinstalled drain and level sensors, but please check the product image carefully to confirm.
