MORryde CTG60-5290W RV Cargo Slide Tray

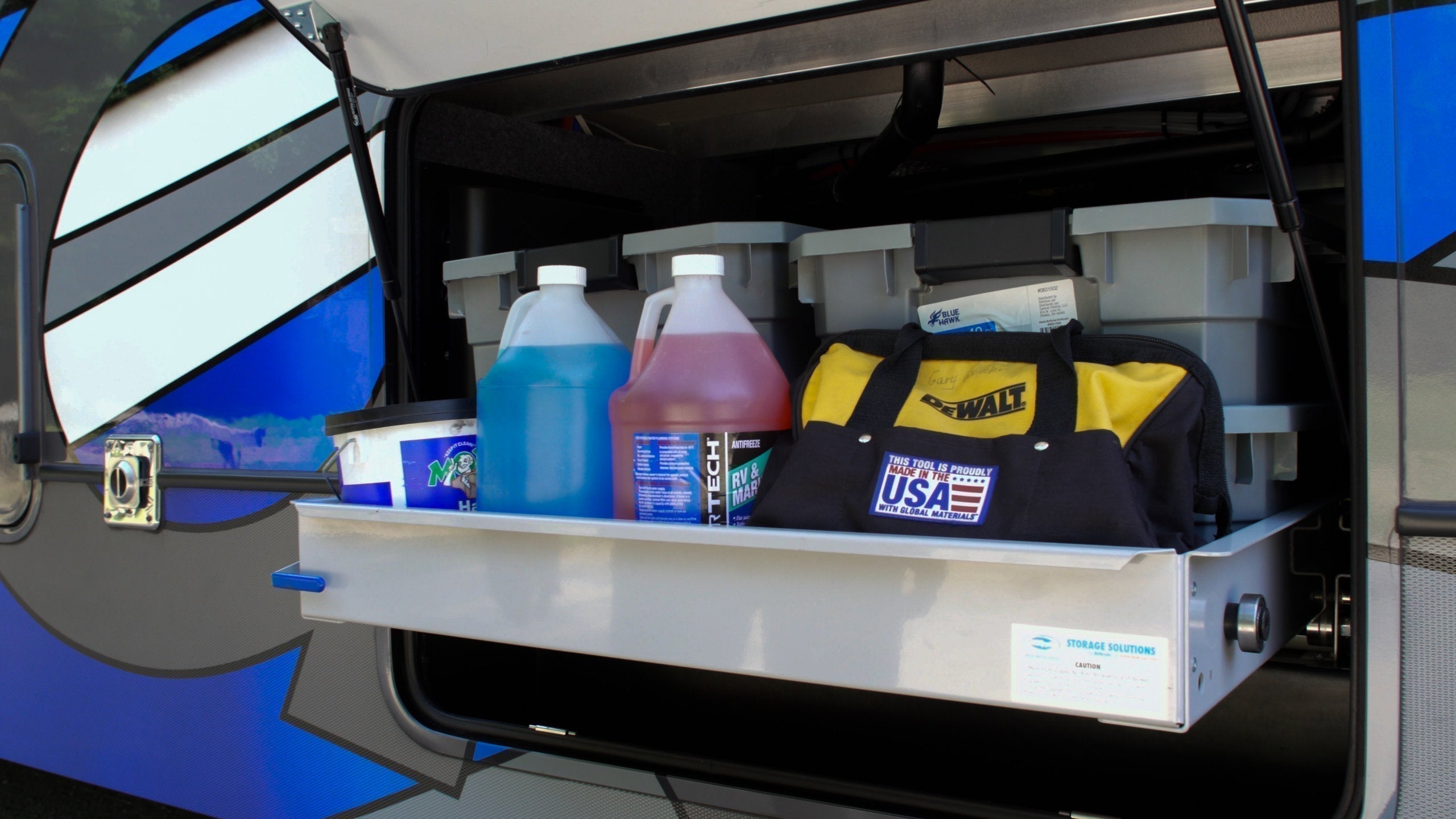

The MORryde CTG60-5290W is a fully assembled cargo slide tray built to make deep RV storage bays far easier to use. Instead of crawling into the compartment to reach gear in the back, this tray brings your cargo out toward you on MORryde’s smooth-gliding ball-bearing slide system. It features a durable powder-coated steel frame, a carpeted tray floor to help protect stored items, and a proven 800 lb capacity for heavier RV gear and camping essentials.
This tray measures 52" wide x 90" long and uses MORryde’s 60% extension design. The 90-inch version is built as a 2-way slide, so you can pull the tray out from either side of the coach for easier loading and unloading.
Why RV Owners Like These MORryde Cargo Trays
- Fully assembled design helps simplify installation
- Carpeted tray floor gives cargo a more finished, gear-friendly surface
- Heavy-duty steel construction with powder-coated finish for long-term durability
- 800 lb rating for coolers, tools, grills, generators, and other compartment cargo
- 60% extension gives much better access to the rear of the storage bay
Specs
- Part Number: CTG60-5290W
- Tray Size: 52" x 90"
- Capacity: 800 lbs
- Extension: 60%
- Slide Direction: 2-way slide
- Finish: Durable powder-coated steel
- Tray Surface: Carpeted floor
- Assembly: Fully assembled
- Door Lip Clearance: Standard trays clear compartment lips up to 1.6" high
Fitment & Installation Notes
- No tray-floor measuring or cutting required.
- Standard trays are designed for cargo door lips up to 1.6" tall.
- If your compartment lip is taller, MORryde notes you may need the CTG54-001 riser kit.
- Always confirm your clear opening and compartment depth before ordering.
If you want a cleaner, more usable pass-through or basement storage setup, the MORryde CTG60-5290W is a strong upgrade over a fixed cargo compartment floor.
| Slide type | Ball-bearing |
|---|---|
| Width (inches) | 52 |
| Height (inches) | 10.75 |
| Length (inches) | 90 |
| Slide direction | Two-way |
| Carpeted flooring | Yes |
| Dimensional weight | 344 |
| Extension percentage | 60 |
| Physical weight (pounds) | 187 |
| Weight capacity (pounds) | 800 |
- What is the weight capacity of the morryde rv cargo slide tray ctg60-5290w? The MORryde RV Cargo Slide Tray CTG60-5290W has a weight capacity of 800 lbs.
- Does the cargo tray come fully assembled or do i need to assemble it myself? The cargo tray comes fully assembled with carpeting already installed, so no assembly is needed.
- Can i access the cargo tray from both sides of my rv? Yes, the 90-inch model features a two-way travel system that allows you to slide out the cargo tray from either side.
- Is the cargo tray easy to install in my rv? Yes, the cargo tray is designed for easy installation and comes with a generic hardware kit included.
- Does the tray lock in the extended position to keep the cargo secure? The tray only locks in the stored position, but the carpeted flooring helps keep cargo from moving during transit.
