32 Gallon RV Holding Tank 55" x 27" x 7 1/2" EPI 4676
Pairs well with
---
- 32 Gallon RV Holding Tank 55" x 27" x 7 1/2" w/3" outlet.
- Print shows molded outlet and vent; separate plumbing fittings not included
- Compare the original print before selecting separate plumbing fittings.
- Wall thickness is 0.180" in black polyethylene
Elkhart Plastic tanks are manufactured to meet quality and health safety standards. With fewer impurities, these tanks are strong enough to take the bumps and bangs without compromising the security of your fresh water storage. Elkhart Plastics uses a process called roto-molding in which high-density plastic is rotated and molded into shape. This process creates a seamless tank in which the walls are of equal thickness, with no weak spots to cause trouble later. It is this process that has earned Elkhart Plastics the reputation for quality tanks.
Dimensioned Print and Gallery Views

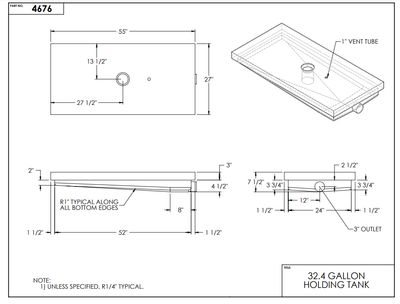

The original 4676 drawing is titled 32.4 GALLON HOLDING TANK and specifies an overall footprint of 55 x 27 inches and a maximum depth of 7 1/2 inches. The body beneath the flange is 52 x 24 inches, with 1 1/2-inch setbacks. The end view identifies a centered 3-inch outlet; the isometric view labels a 1-inch vent tube. Bottom edges are called out with a 1-inch radius.
The central top opening is positioned 27 1/2 inches from the end and 13 1/2 inches from the side; its diameter is not dimensioned. Match the sloped bottom, flange and connection layout to your installation. Separate valves and adapters are not included.

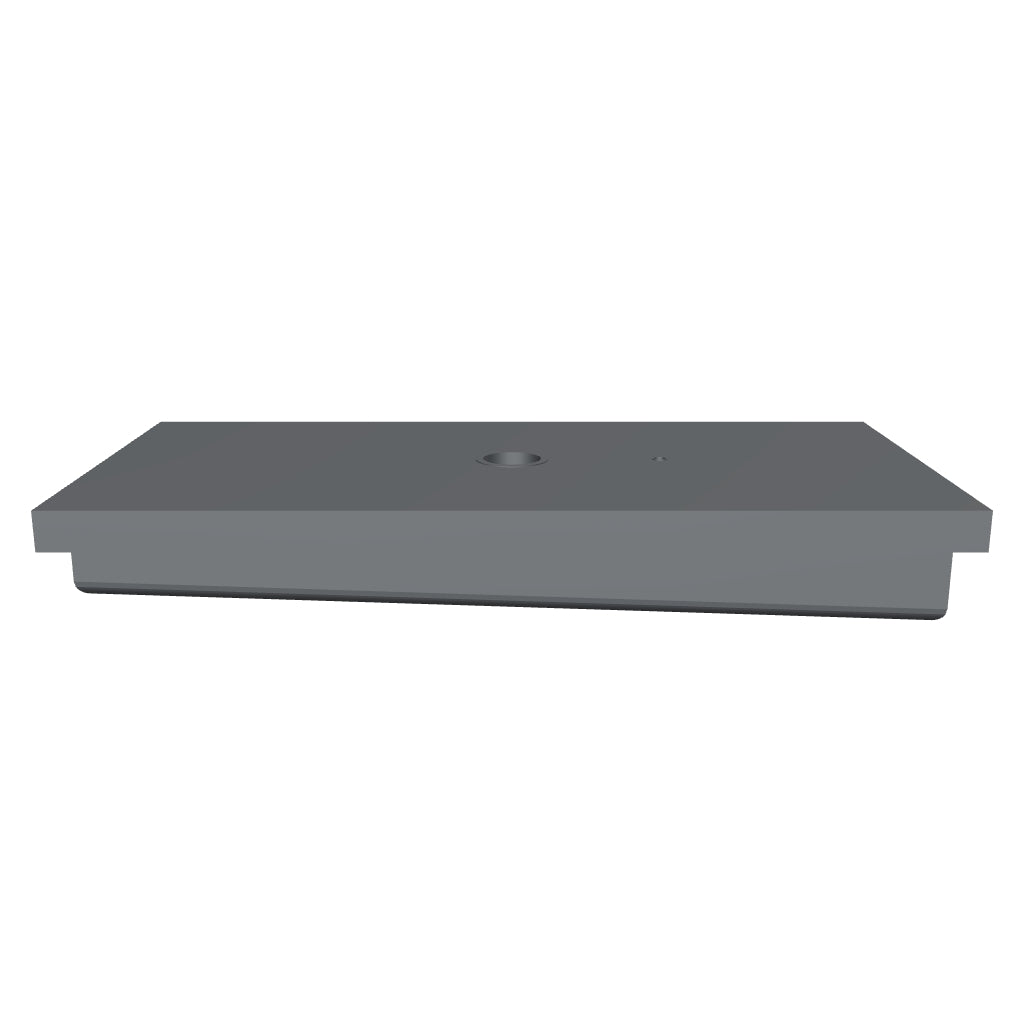

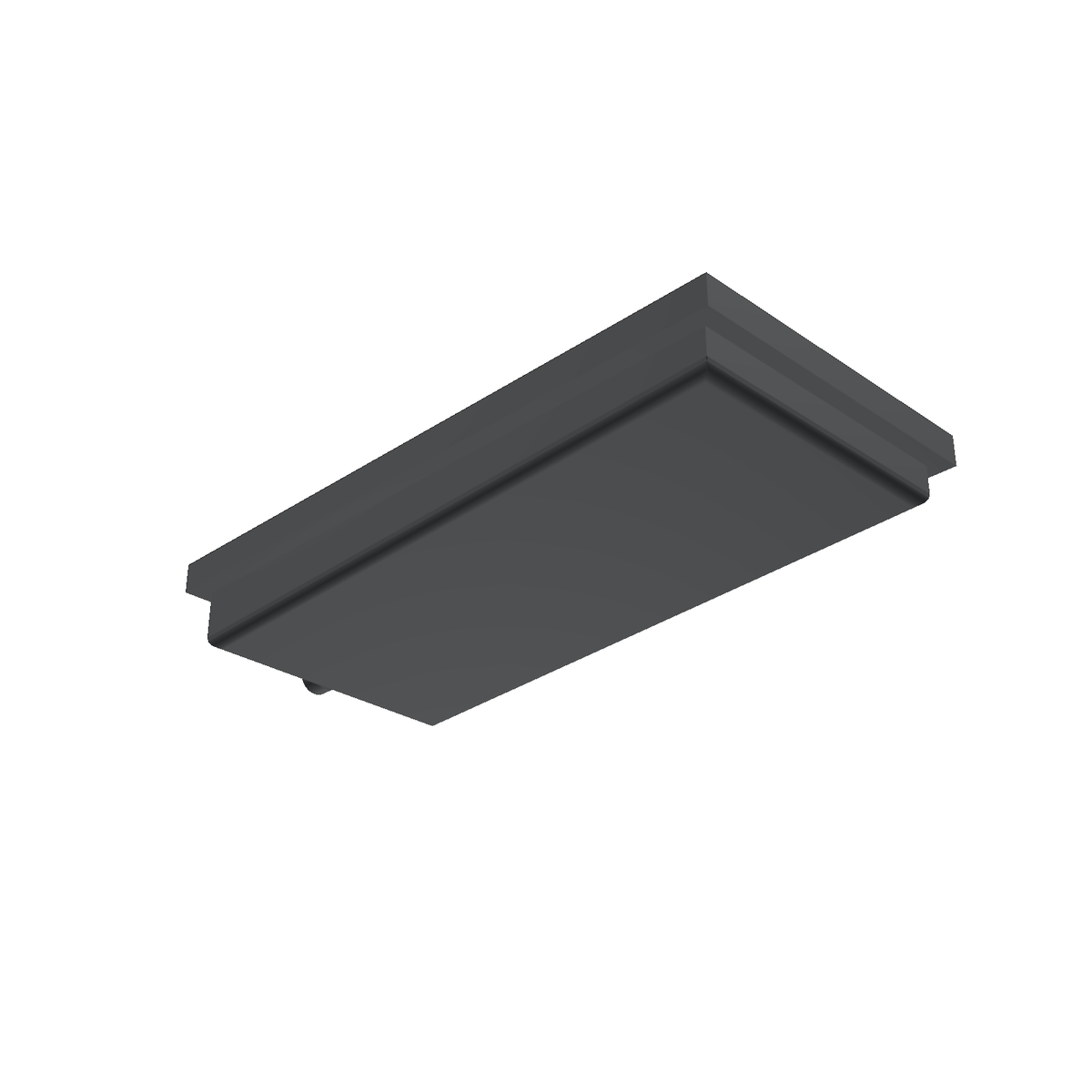

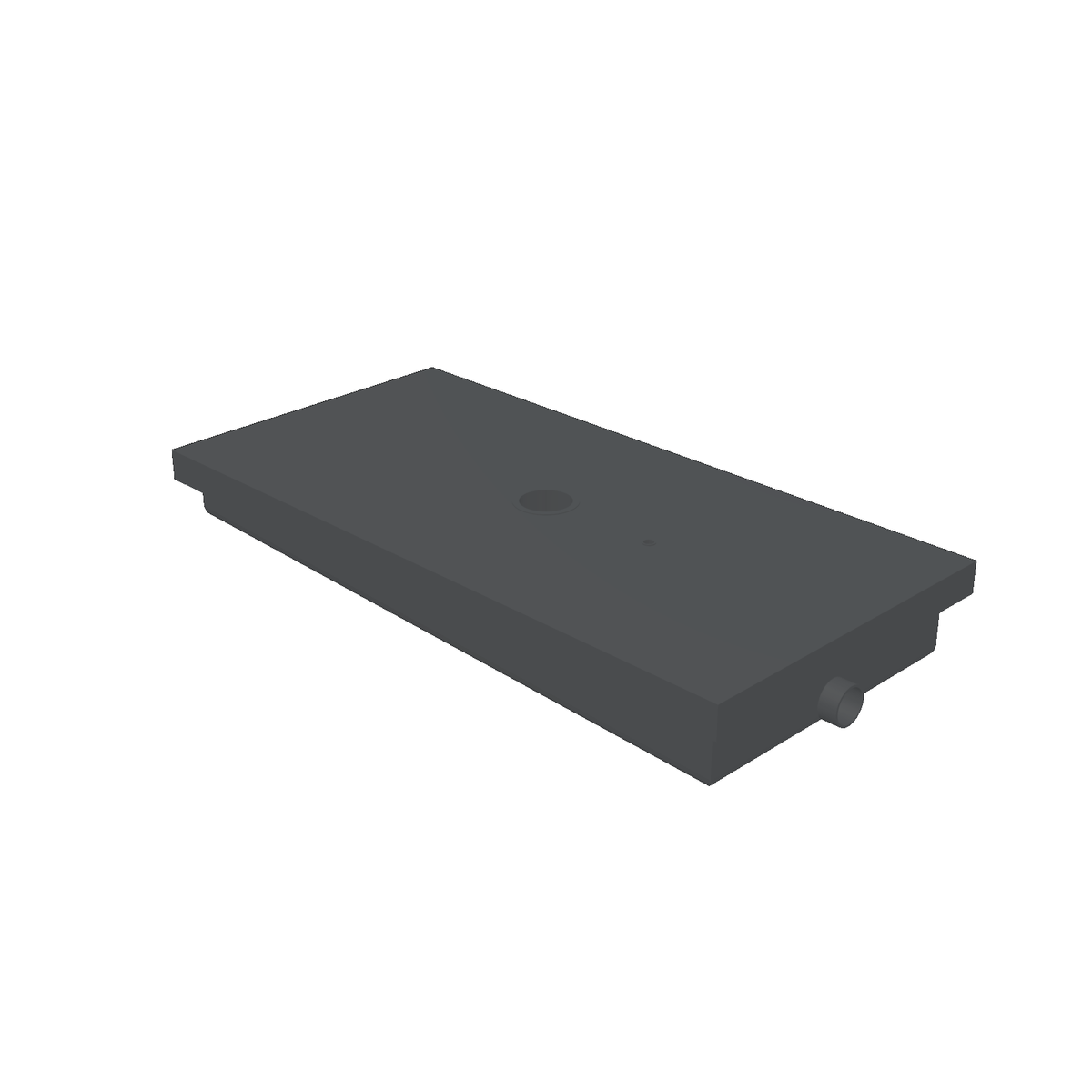

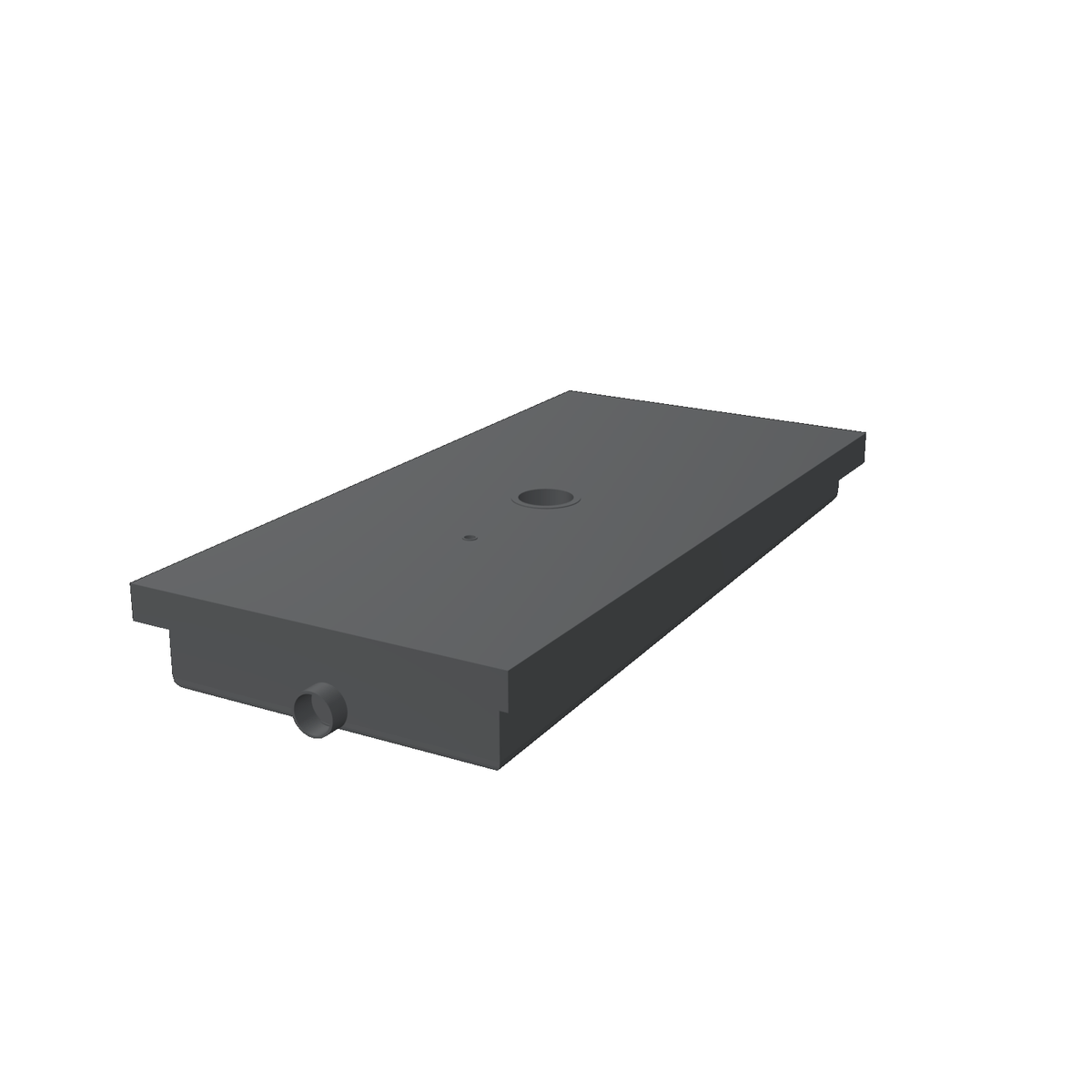

The rendered views and rotatable model are reconstructions from the print, not measured manufacturing CAD. Undimensioned opening diameters, connection projections, wall thickness and profile transitions follow drawing proportions. Use the retained original blueprint for fitment.
| QAI Certification | REC 559-1 |
|---|---|
| Part number | 4676 |
| Capacity (gallons) | 32 |
| Dimensions (inches) | 55 x 27 x 7.5 |
| Lead time | |
| Best for | RV owners needing durable holding tank |
- What is the capacity of the 32 gallon rv holding tank? The holding tank has a capacity of 32 gallons.
- What are the dimensions of this rv holding tank? The original 4676 print specifies 55 x 27 x 7 1/2 inches overall.
- Does the 32 gallon rv holding tank come with fittings installed? The print shows a 3-inch outlet, a 1-inch vent tube and a central top opening. Separate valves, adapters and mounting hardware are not included; use the print to compare the connection layout.
- What material is the rv holding tank made of? The tank is made from black polyethylene with a wall thickness of 0.180 inches.
- What does the print show on top of the tank? A central opening is located 27 1/2 inches from the end and 13 1/2 inches from the side. Its diameter is not dimensioned. A separate 1-inch vent tube is labeled on the print.
