Elkhart Plastics 29 Gallon RV Holding Tank - Premium Offset Outlet Design
Upgrade your RV's waste management system with this premium 29-gallon holding tank from Elkhart Plastics, the industry leader in RV tank manufacturing. Engineered with a offset molded outlet configuration for optimal waste flow and drain layout shown in the print, this tank delivers reliable performance for years of RV adventures.
Why Choose This Elkhart Plastics Holding Tank?
Elkhart Plastics has been the trusted name in RV holding tanks for decades, supplying OEM manufacturers and aftermarket professionals with tanks that exceed industry standards. This 29-gallon tank features robust polyethylene construction that resists cracking, warping, and chemical degradation. The offset molded outlet design ensures complete waste evacuation and easier maintenance compared to side-drain alternatives. Whether you're replacing a damaged tank or upgrading your RV's capacity, this tank delivers the durability and performance you need.
Technical Specifications
- Capacity: 29 Gallons
- Dimensions: 60" Length x 28" Width x 7" Height
- Drain Orientation: Offset Outlet (optimal for complete waste evacuation)
- Part Numbers: H1129000, EPI 2872 (Replaces EPI 4339)
- Material: High-density polyethylene (HDPE)
- Weight: 72 lbs (shipping weight)
- Manufacturer: Elkhart Plastics / Ameri-Kart
- Country of Origin: USA
- HS Code: 392510
Key Features & Benefits
- Offset Outlet Design: Ensures complete waste evacuation and easier tank maintenance
- OEM Quality Construction: Same tanks used by major RV manufacturers
- Chemical Resistant: Withstands harsh waste treatment chemicals and temperature extremes
- Leak-Proof Design: Precision-molded seams prevent leaks and odor escape
- Direct Replacement: Replaces EPI 4339 and fits standard RV installations
- Low-Profile Design: 7" height fits tight underbelly spaces
- Made in USA: American manufacturing quality you can trust
Compatible RV Models & Applications
This 29-gallon holding tank is designed as a direct replacement for RVs originally equipped with EPI 2872 or EPI 4339 tanks. The offset molded outlet configuration and compact 60"x28"x7" dimensions make it ideal for:
- Travel trailers with limited underbelly clearance
- Fifth wheels requiring low-profile waste tanks
- RV renovations and custom builds
- Black water or gray water applications
- Replacement for cracked or damaged holding tanks
Installation & Compatibility Notes
Before ordering, verify your existing tank dimensions and drain location. This tank features a offset molded outlet configuration - ensure your RV's plumbing is compatible with offset molded outlet placement. Measure your available installation space carefully, as this tank requires 60" length x 28" width x 7" height clearance. Professional installation is recommended for proper sealing and venting.
Compare Similar Holding Tanks
| Model | Capacity | Dimensions (L x W x H) | Drain Side | Part Numbers | Best For | View Details |
|---|---|---|---|---|---|---|
| H1129000 (Current) | 29 Gallons | 60" x 28" x 7" | Offset molded outlet | H1129000, EPI 2872 | Low-profile installations, printed outlet layout | Current Product |
| H3547 | 22 Gallons | 60" x 24" x 6" | Center Drain | H3547 | Smaller capacity, similar footprint | View Details |
| H3882 | 44 Gallons | 59" x 28" x 8.25" | Center Drain | H3882 | Higher capacity, similar width | View Details |
| 602006000 | 37.5 Gallons | Custom Jayco Spec | Varies | 602006000 | Jayco OEM replacement | View Details |
Pro Tip: Drain orientation is critical for proper installation. Center drain tanks like the H1129000 provide optimal waste flow and complete evacuation. Always verify your RV's drain location before ordering.
What's Included
- 1x Elkhart Plastics 29 Gallon Holding Tank (H1129000)
- Molded 3-inch outlet and 1-inch vent tube identified in the print; separate valves/adapters not shown as included
- Manufacturer documentation
Note: Tank sensors, mounting hardware, and plumbing connections sold separately. Professional installation recommended.
Why Buy From Elkhart RV Parts?
- Authorized Dealer: We source directly from Elkhart Plastics - guaranteed authentic OEM parts
- Expert Support: Our AI Live Chat provides instant product guidance and compatibility assistance
- Fast Shipping: Most orders ship within 24 hours from our Indiana warehouse
- Quality Guarantee: Every tank is inspected before shipping to ensure leak-free performance
- RV Specialist: We understand RV systems and can help you find the right replacement parts
Frequently Asked Questions
Q: Where is this tank’s outlet?
The print places the 3-inch outlet in the recessed drain region near one end, offset from the center of the full footprint. Match that geometry to your plumbing; use the original print for fitment.
Q: Will this tank fit my RV if I currently have an EPI 4339?
A: Compare the retained H1129000 print against your existing tank. The corrected maximum envelope is 60 x 28 x 7 inches; check mounting and outlet geometry as well as the model number before substituting it.
Q: Can I use this tank for both black water and gray water?
A: Yes, this tank is suitable for both black water (toilet waste) and gray water (sink/shower drainage) applications. Ensure proper venting for black water use.
Q: Do I need special tools to install this holding tank?
A: Installation requires basic hand tools, RV-grade sealant, and proper venting components. Professional installation is recommended to ensure leak-free operation and compliance with RV plumbing standards.
Q: How do I know if this tank will fit my RV's underbelly space?
A: Measure your available space carefully. This tank requires 60" length x 28" width x 7" height clearance. If you need help with fitment, use our AI Live Chat for personalized assistance.
Q: Where are Elkhart Plastics tanks manufactured?
A: Elkhart Plastics manufactures their RV holding tanks in the USA, ensuring consistent quality and compliance with North American RV standards.
Need Help Choosing the Right Tank?
Our AI Live Chat can help you verify compatibility, compare tank options, and answer technical questions about your RV's holding tank system. Get instant expert guidance without waiting for email responses.
Click the chat icon to connect with our AI product specialist now.
Order your Elkhart Plastics 29 Gallon RV Holding Tank today and restore your RV's waste management system with OEM-quality reliability.
Dimensioned Print and Gallery Views
The original print shows a 60-inch length, 28-inch upper width and 7-inch maximum envelope. The sloped tank has multiple depths, including a 6 1/8-inch section; that section is not the full envelope. The print identifies a 3-inch offset outlet, 1-inch vent tube, a 9-inch drain region and a 40-degree relief at the opposite end. Check connection and mounting geometry in the original drawing, and allow installation and plumbing clearance.

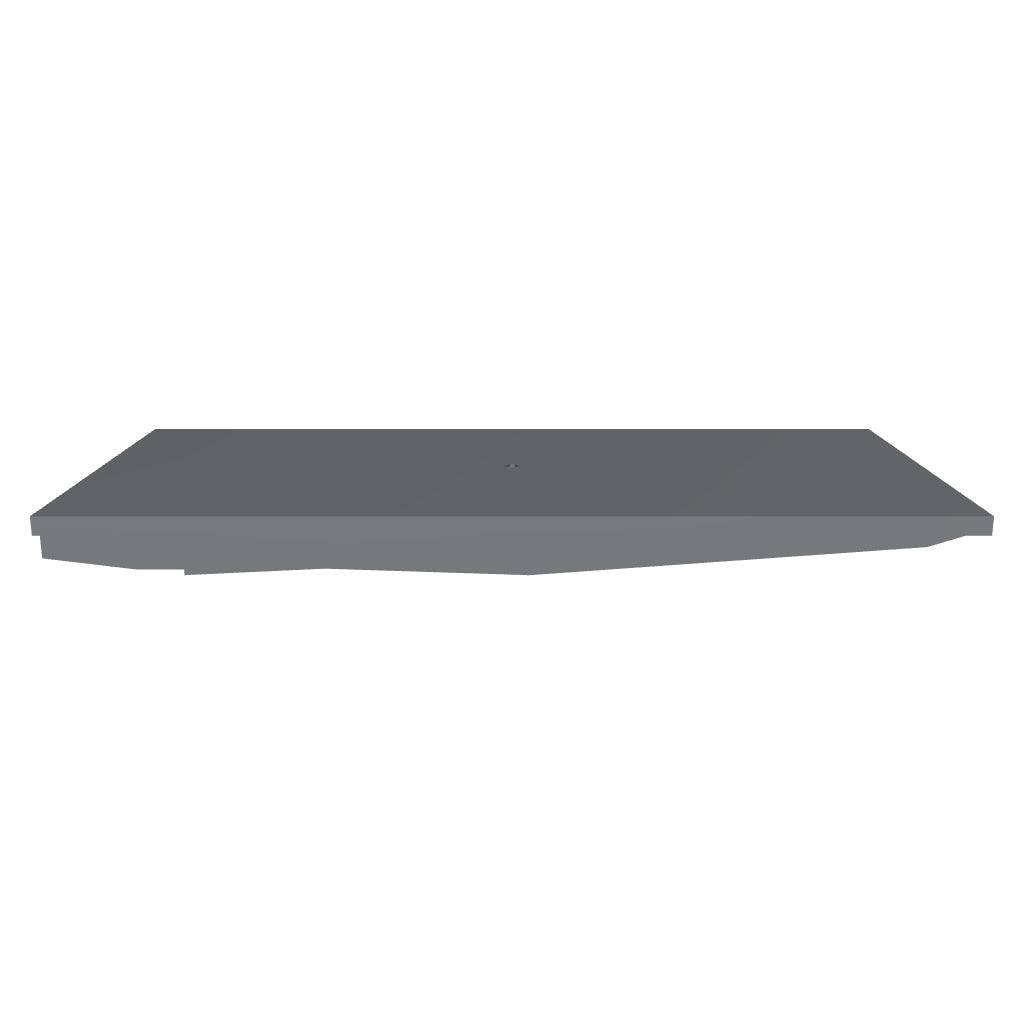

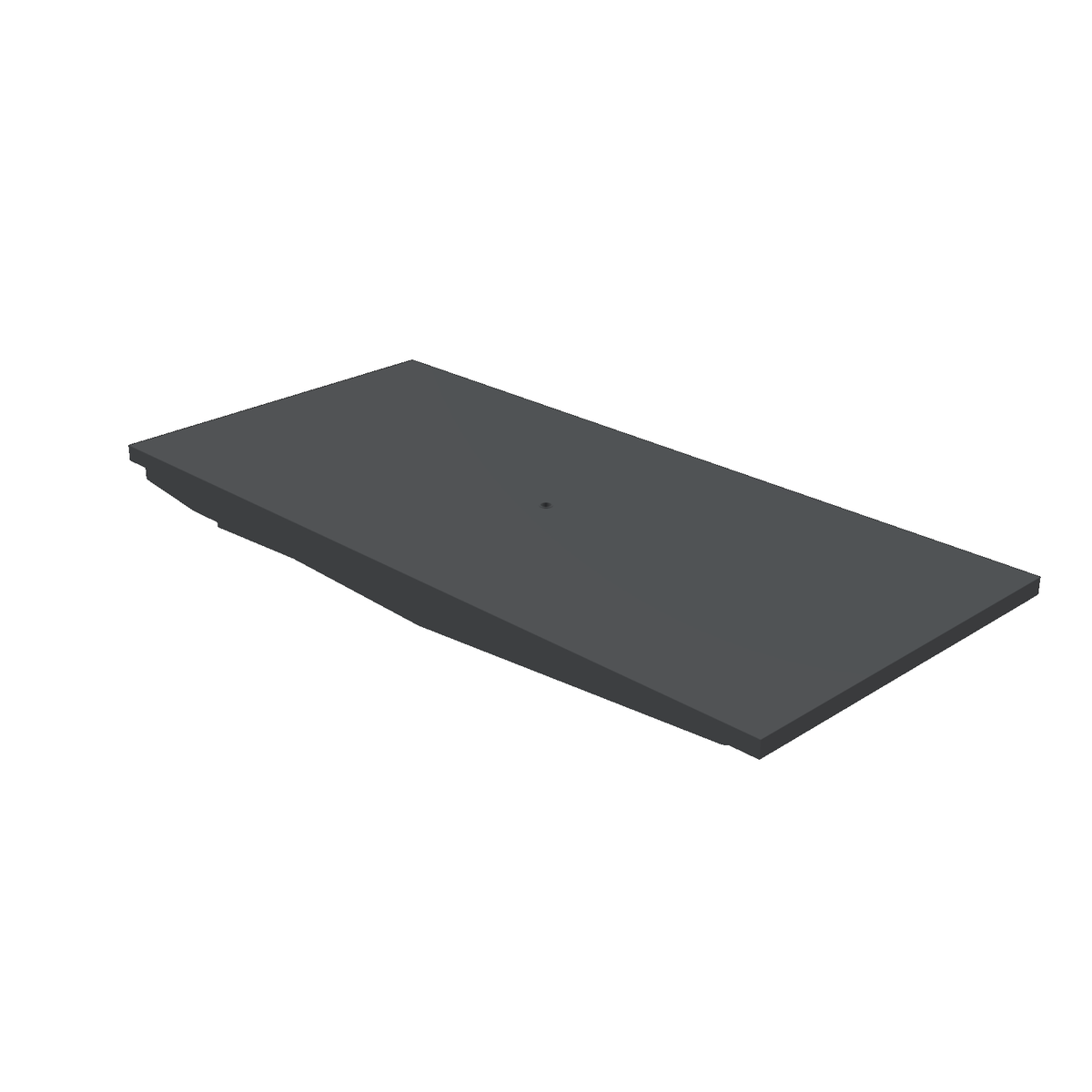

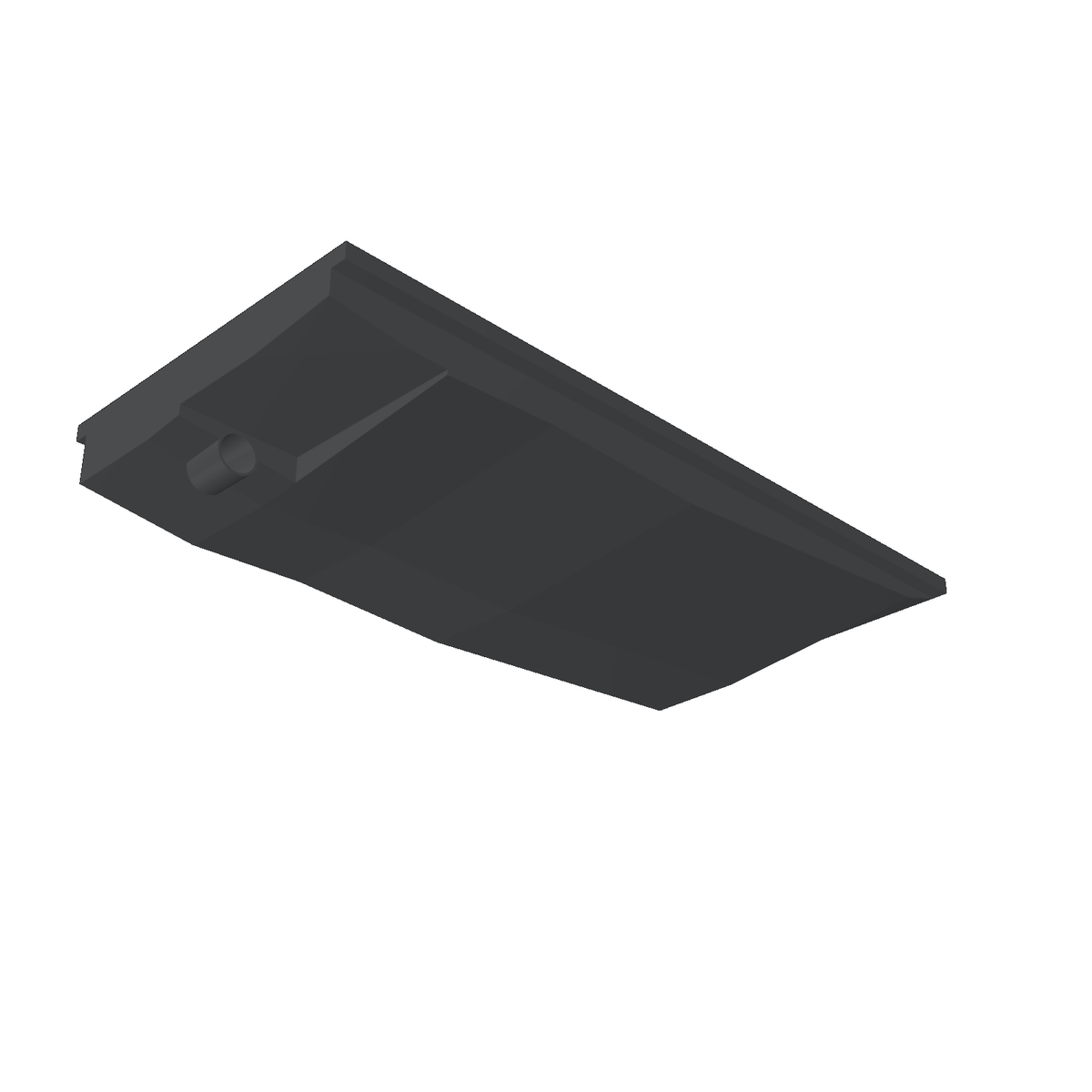

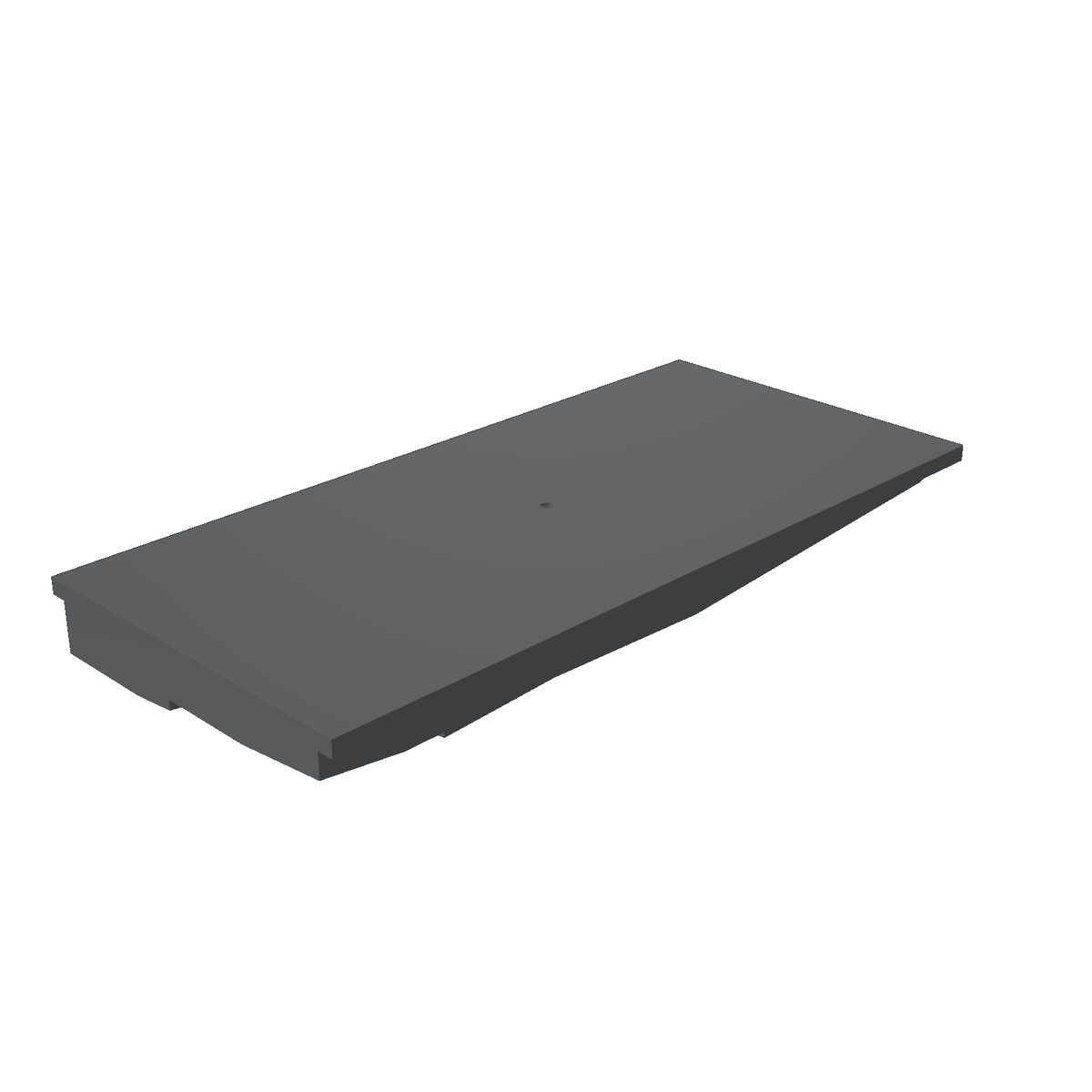

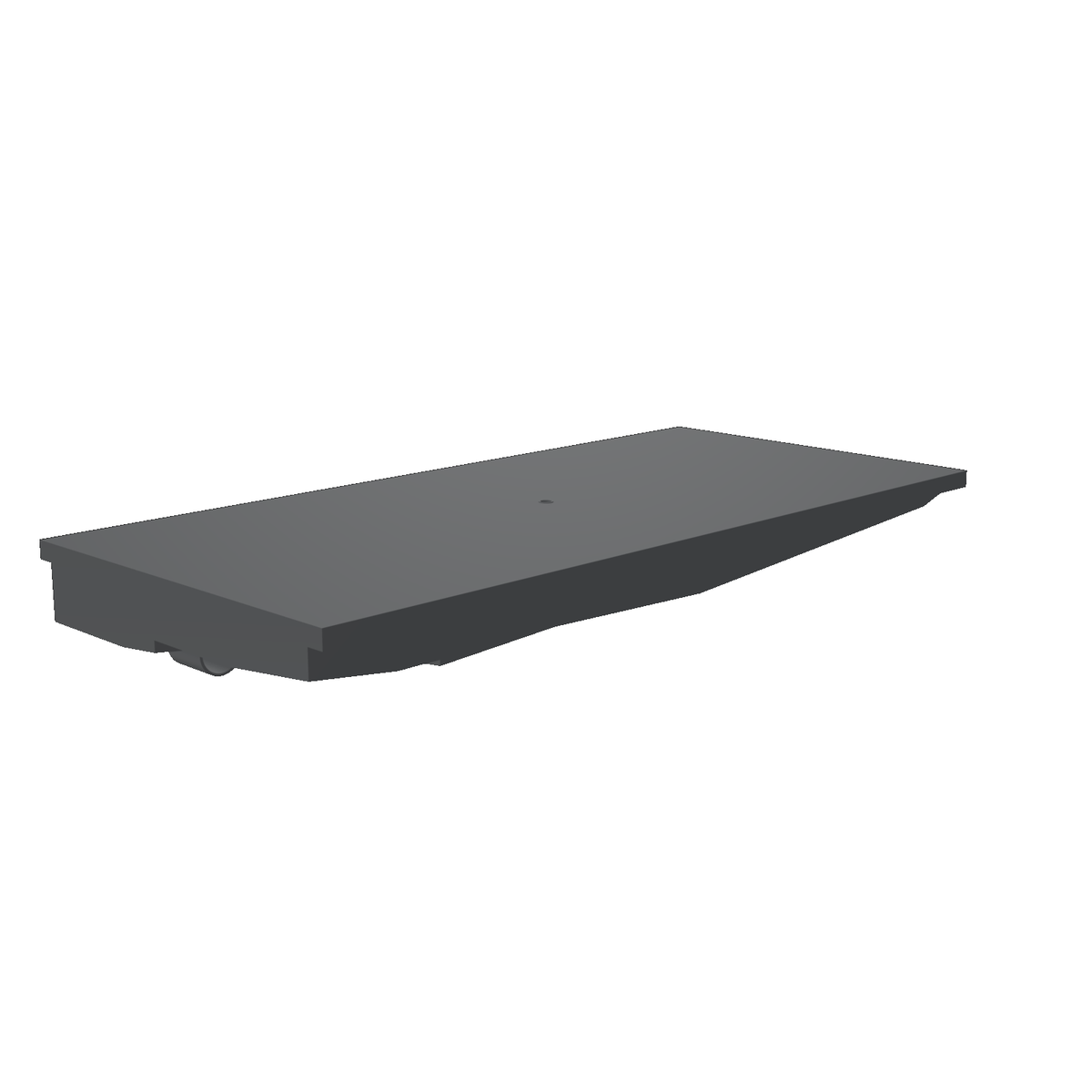

The rendered gallery and rotatable model are print-based reconstructions, not measured manufacturing CAD. Compound floor interpolation, molded relief details, wall profiles, seam blends and undimensioned vent position/projection follow drawing proportions. Use the retained blueprint for fitment.
| QAI Certification | REC 559-1 |
|---|---|
| Part number | H1129000 |
| Capacity (gallons) | 29 |
| Dimensions (inches) | 60 x 28 x 7 maximum envelope per print |
| Lead time | |
| Best for | RV waste management system upgrade |
- What are the dimensions of the 29 gallon rv holding tank? The original print shows 60 inches long, 28 inches wide and a 7-inch maximum envelope. Its sloped body includes shallower sections, so 6 1/8 inches is not the full installation height. Check the original drawing and allow plumbing and mounting clearance.
- Is the 29 gallon rv holding tank compatible with fittings? The print shows a 3-inch molded outlet and a 1-inch vent tube. Separate valves and adapters are not shown as included. Check their positions in the drawing against your installation.
- What material is the 29 gallon rv holding tank made from? The tank is made from black polyethylene with a wall thickness of 0.180 inches.
- Can this 29 gallon rv holding tank replace tank model number 4339? Compare your existing tank with the retained H1129000 print: 60 x 28 inches with a 7-inch maximum envelope and the illustrated offset outlet. A model-number association alone does not verify identical mounting, clearance or connection layout.
- What is the top connection shown in the print? The print identifies a 1-inch vent tube; it is not described as a sealed, nonfunctional manufacturing hole.
