40 Gallon RV Holding Tank 40" x 36" x 8 1/2" EPI 2419 MOLD SOLD
Pairs well with
---
40 Gallon RV Holding Tank 40" x 36" x 8 1/2" Myers discontinued.
Dimensioned Print and Gallery Views

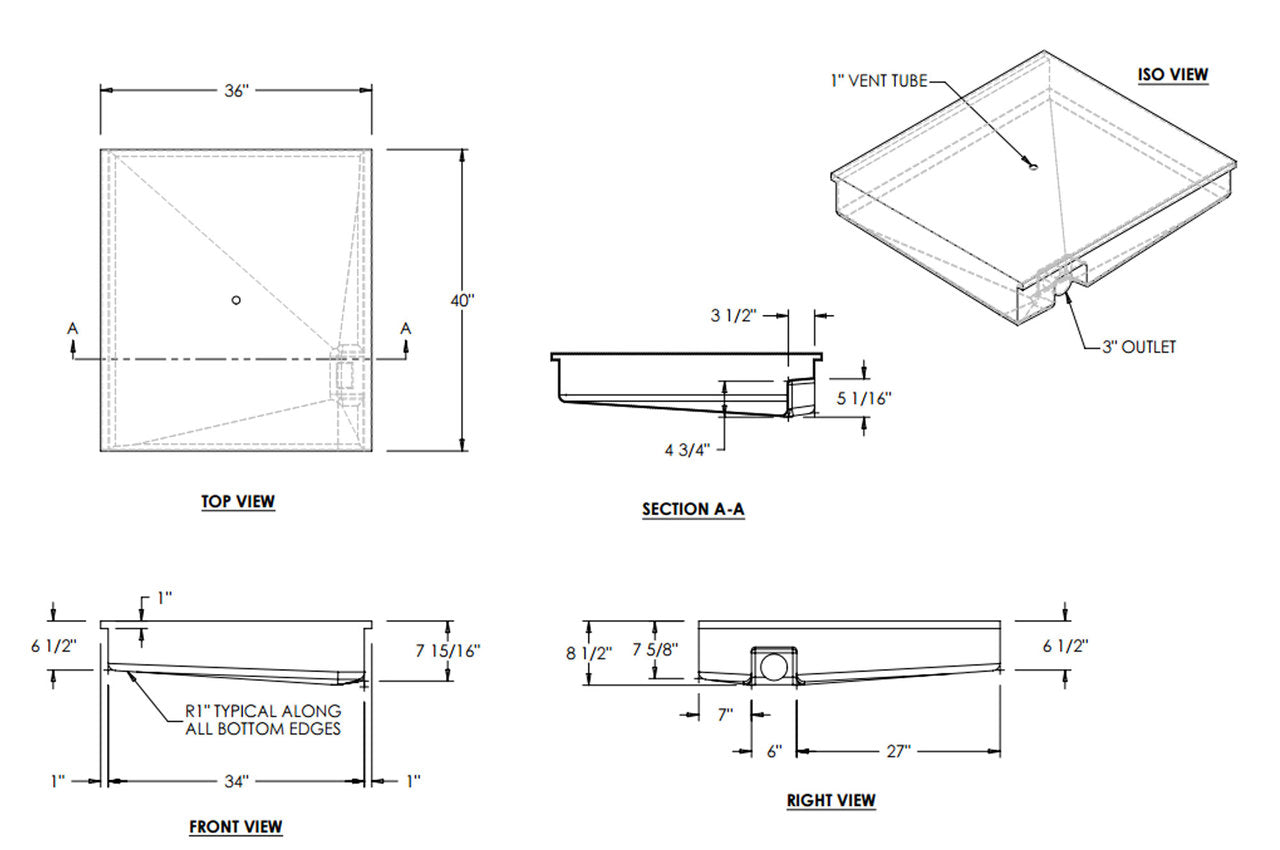

The retained original print shows a 36-inch width, 40-inch length and 8 1/2-inch maximum envelope. The front view marks a 34-inch body width below the flange, with 1-inch setbacks at either edge; its shallow depth is 6 1/2 inches and its deeper section is 7 15/16 inches. The right view locates a 6-inch outlet region 7 inches from the end, followed by 27 inches to the opposite end. Section A-A shows a 3 1/2-inch inward outlet region. The print identifies a 3-inch outlet, 1-inch vent tube and 1-inch radius along all bottom edges.
Match the recessed outlet, sloped-bottom profile and mounting layout to your installation before ordering. Separate plumbing adapters and mounting hardware are not shown as included.

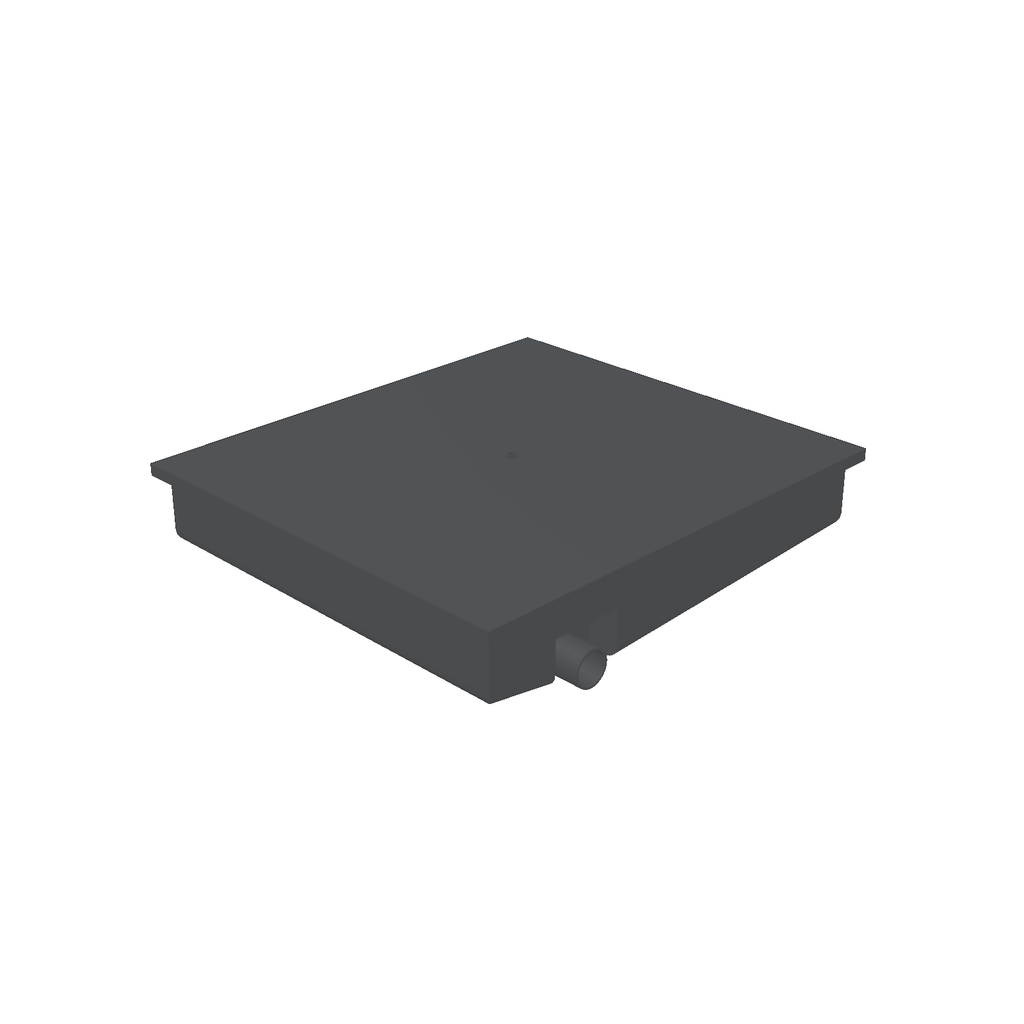

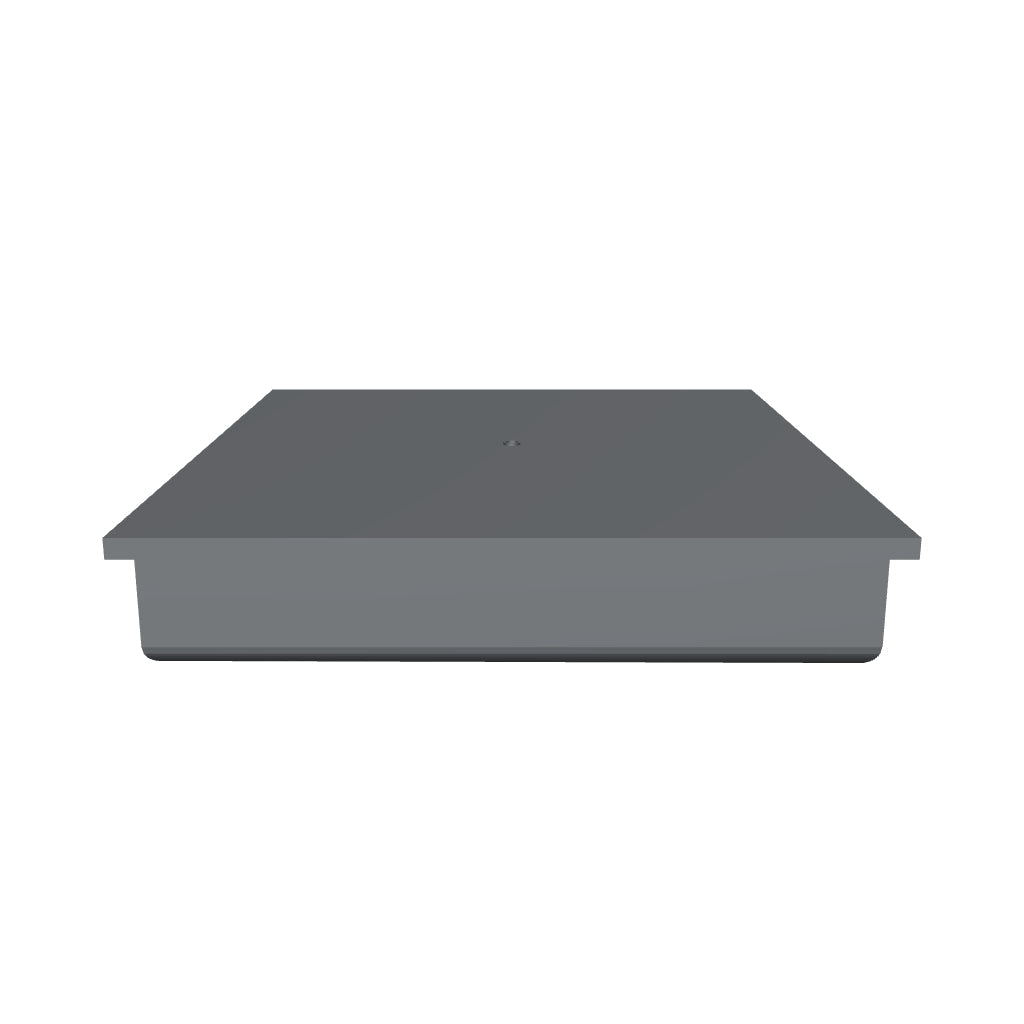

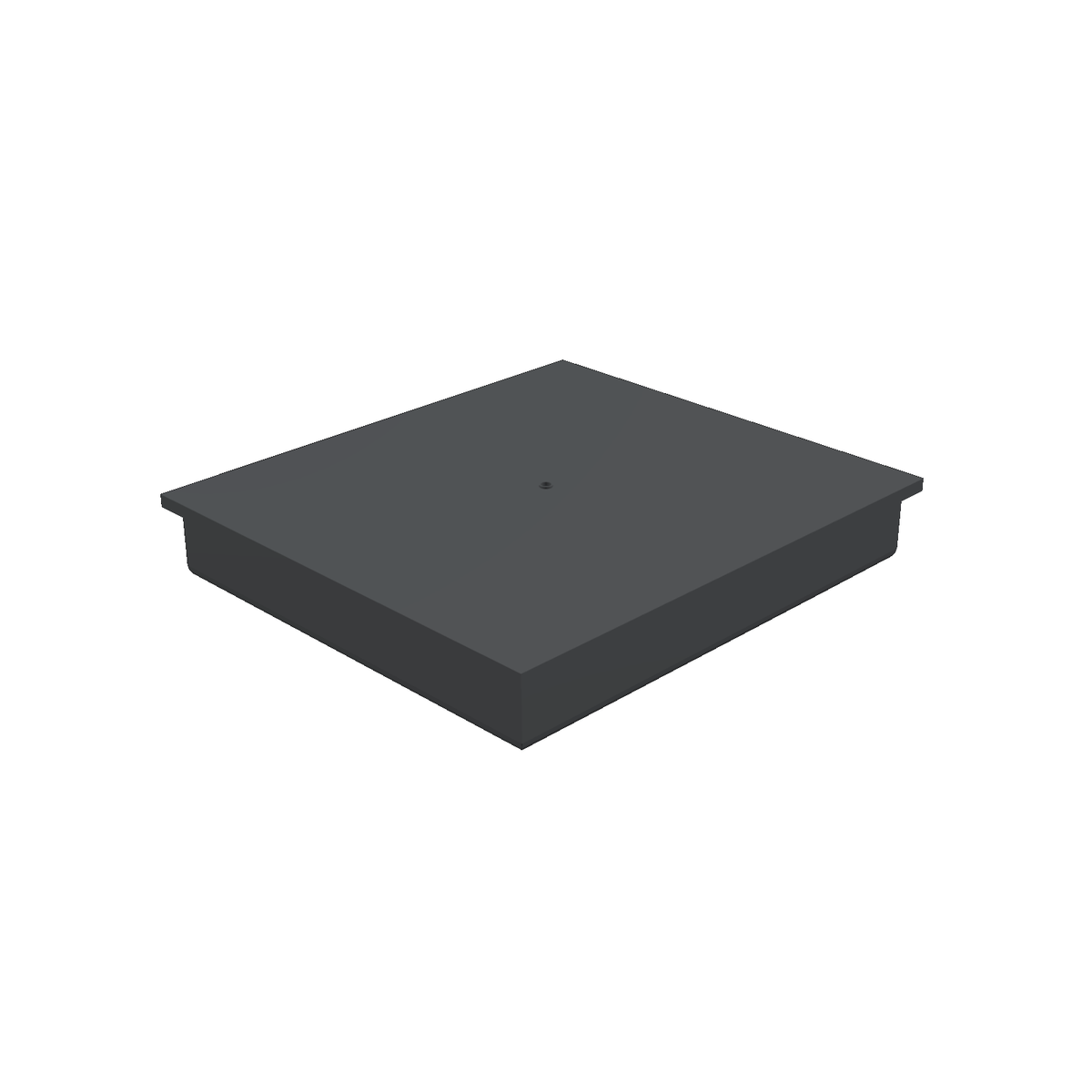

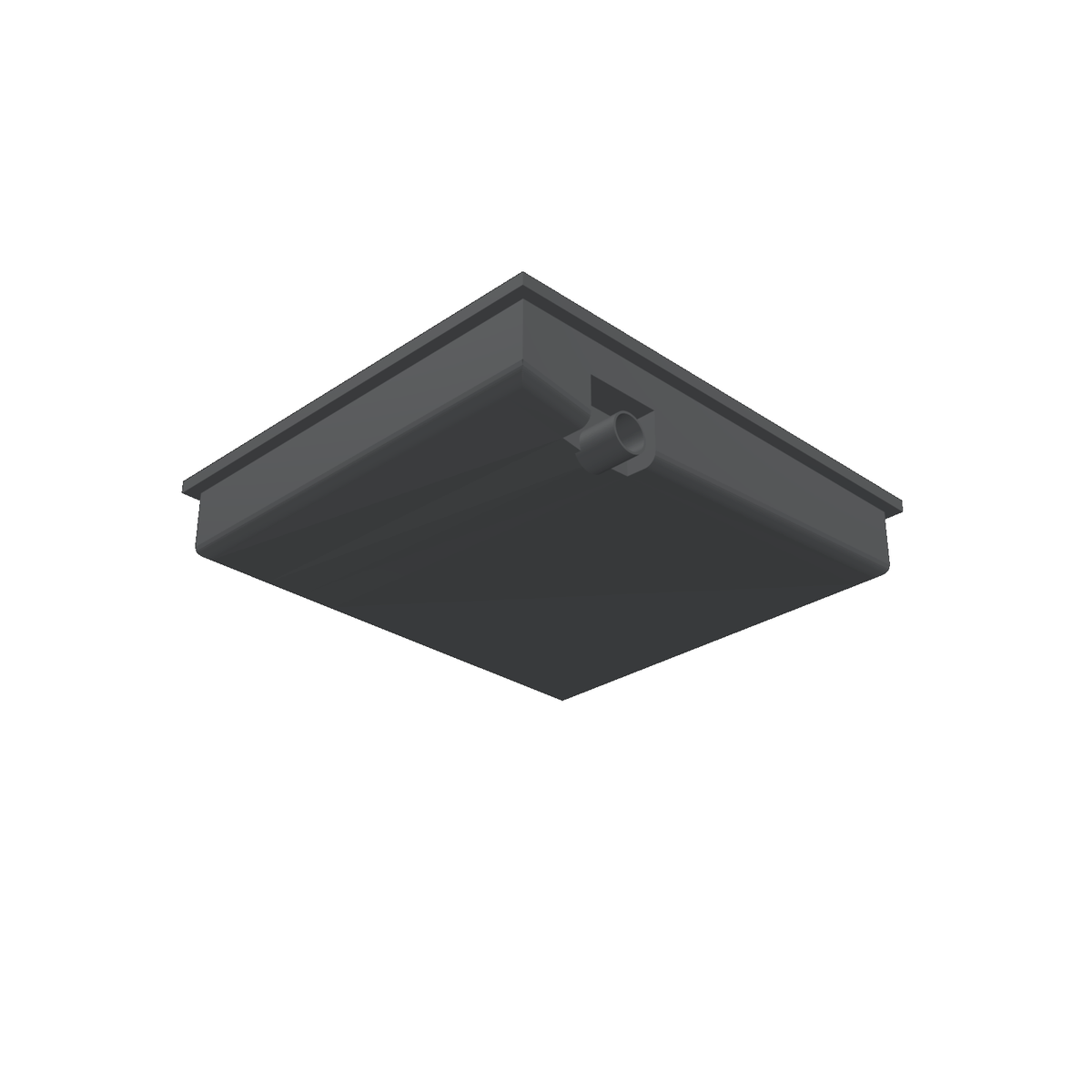

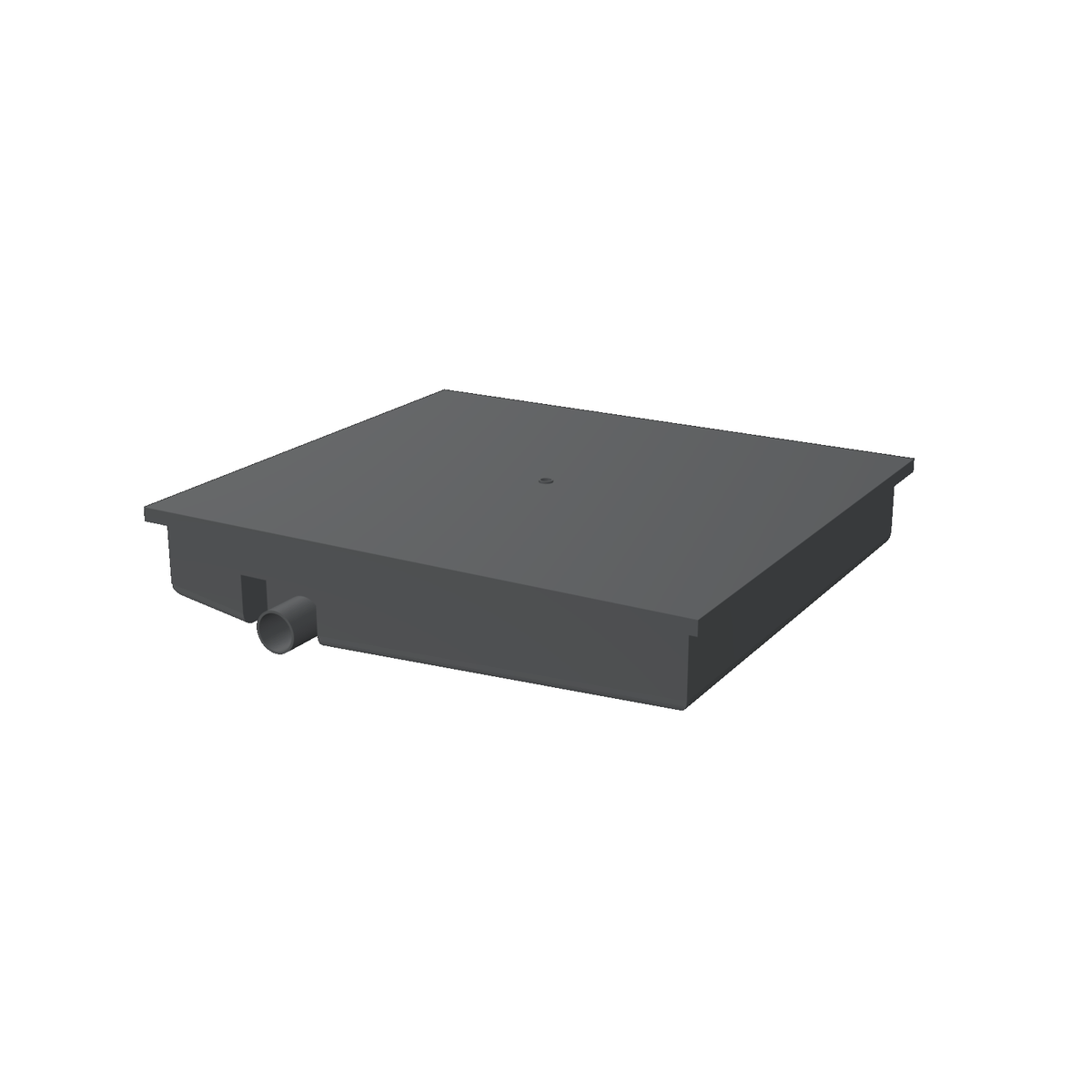

The gallery views and rotatable model are reconstructions from the dimensioned print, not measured manufacturing CAD. Undimensioned roof/recess transitions, connection wall thickness and vent projection follow drawing proportions. Use the original blueprint as the fitment reference.
| QAI Certification | REC 559-1 |
|---|---|
| Part number | 2419 |
| Capacity (gallons) | 40 |
| Dimensions (inches) | 40 x 36 x 8.5 |
| Lead time | |
| Best for | Replacement for RV waste tank |
- What are the dimensions of the 40 gallon rv holding tank? The dimensions of the 40 Gallon RV Holding Tank are 40 inches by 36 inches by 8 1/2 inches.
- What is the capacity of this rv holding tank? This RV holding tank has a capacity of 40 gallons.
- Is this 40 gallon rv holding tank compatible with myers systems? This tank was originally a Myers model but has been discontinued; it is designed to fit similar systems.
- Who is the manufacturer or vendor of this holding tank? The holding tank is supplied by Elkhart Plastics/Ameri-Kart.
- What type of product is the 40 gallon rv holding tank? It is a holding tank specifically designed for RV use.
- What connections and shape does the original print show? The print shows a 3-inch outlet in a recessed region near one end of the right side, a 1-inch vent tube and a compound sloped bottom. Compare the full drawing to your tank, plumbing and mounts; nominal dimensions alone do not prove compatibility.
