MORryde TV1-001H Swivel Snap-In TV Wall Mount - 50 lb
Ready to order
MORryde TV1-001H Swivel Snap-In TV Wall Mount - 50 lb
---

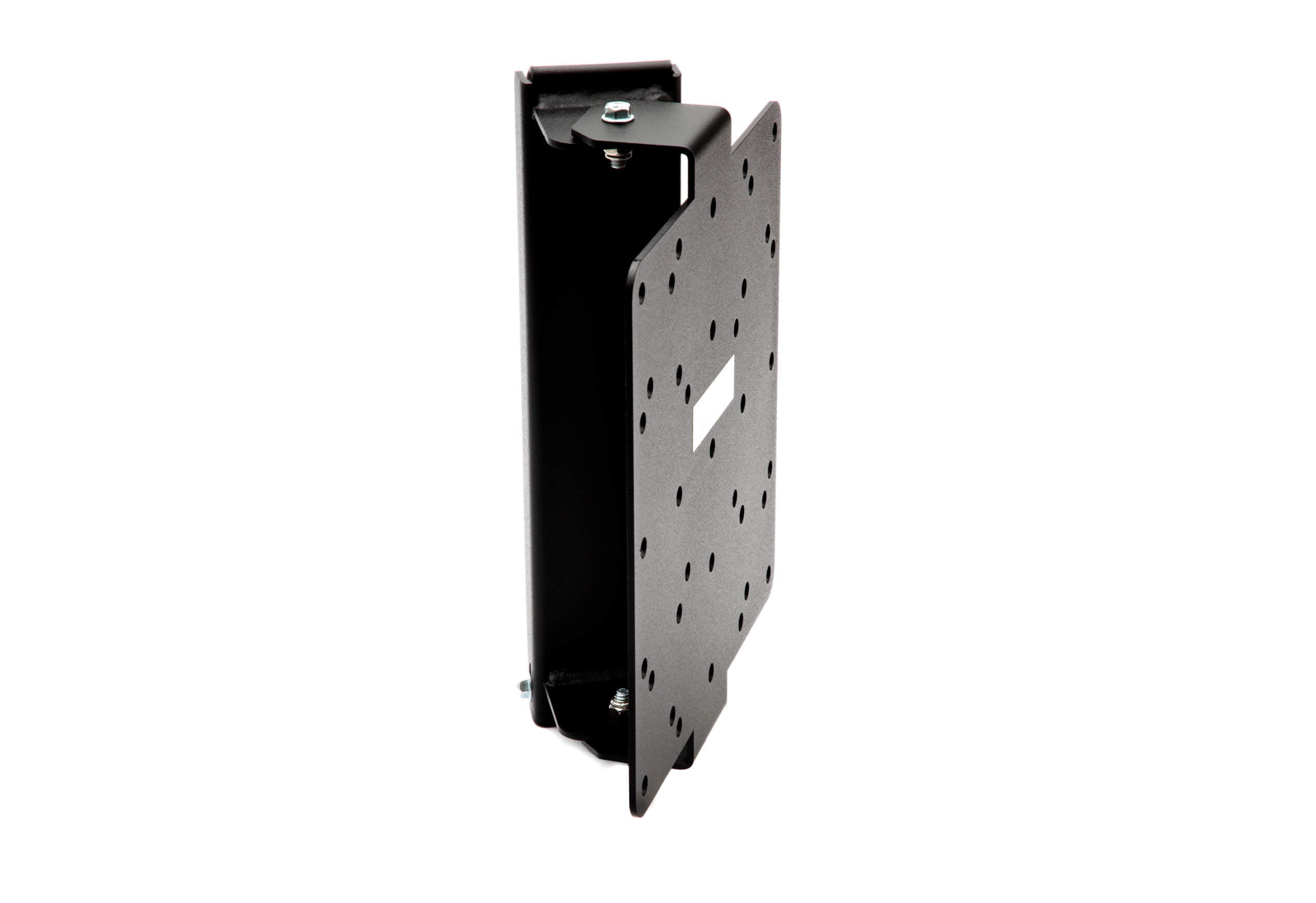

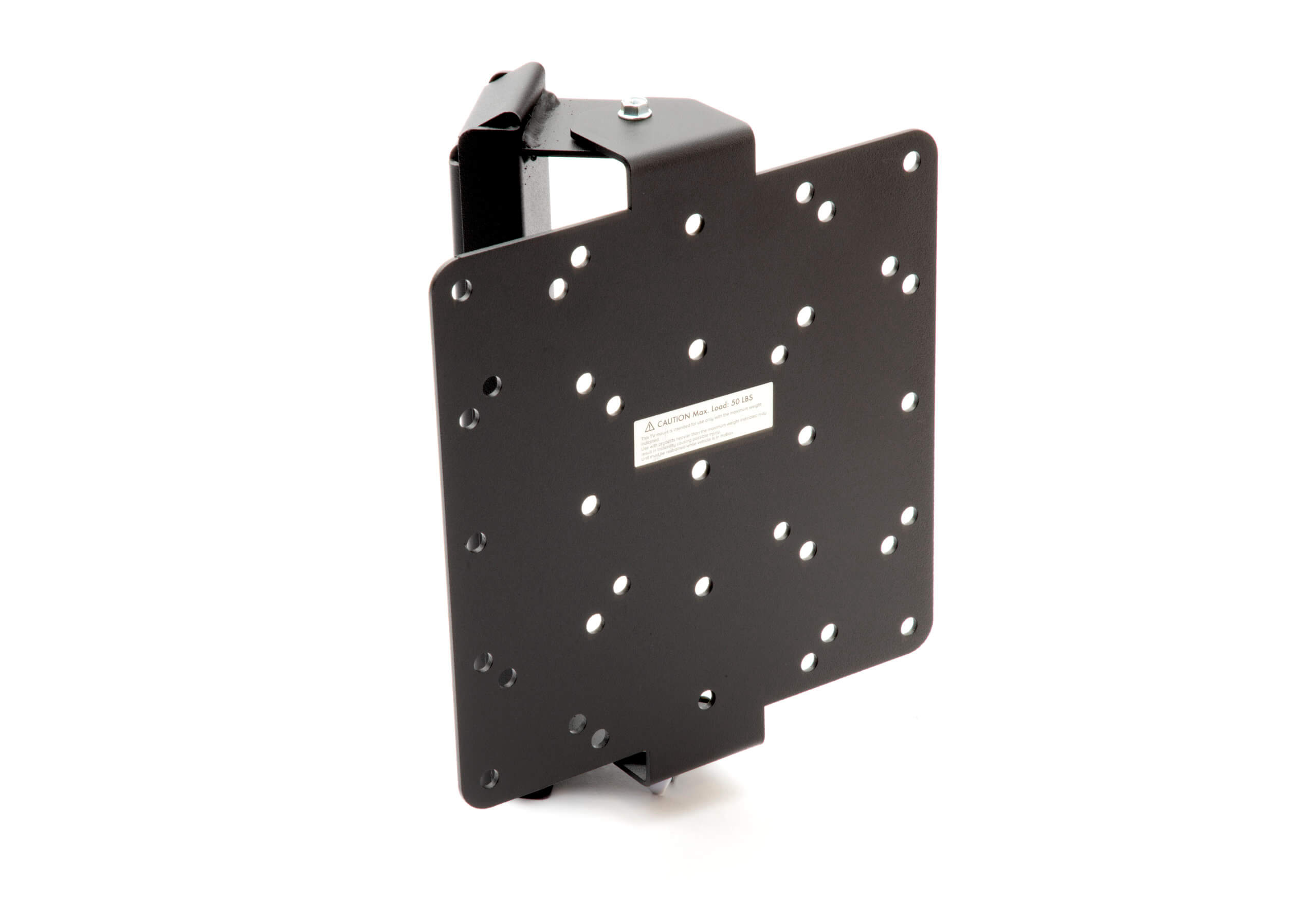

MORryde TV1-001H is a swivel TV wall mount with a 50 lb maximum TV weight and a plate secured to a separate wall bracket. Maximum TV weight is 50 lb. A matching weight alone does not certify fit: verify the exact mount revision, TV mounting-hole pattern, screw requirements, wall structure, screen dimensions and cable clearance. No universal TV-size limit or specific TV model compatibility was established.
Both exact TV1-001H manuals specify mounting to a reinforced vertical surface or wall. The current product page also advertises under-cabinet, ceiling and counter/desk use, but those orientations are not established by the reviewed model-specific instructions. Confirm the actual revision and a manufacturer-approved installation before relying on that broader wording. The wall structure must support five times the combined TV-and-mount weight; brick, concrete and concrete block are excluded.
Motion and TV interface: The current Version 2 manual specifies swivel up to 15° in both directions for most applications. The product page advertises swivel and tilt, but the reviewed manuals do not establish an adjustable tilt range or tilt procedure. Verify the actual revision and full screen/cable clearance; do not assume tilt, extension, unrestricted rotation or a folding travel position. Version 2 lists 75×75, 100×100, 100×200 and 200×200 mm VESA. The product page lists 75×75, 100×100 and 200×200 mm; verify the actual plate and revision, particularly for 100×200 mm. The older manual mentions an optional 200×400 mm adapter available through MORryde, but no exact part number, interface or inclusion was established. No catalog adapter, particular TV model or cross-model plate interchangeability is confirmed.
Features & Specifications
- Brand: MORryde
- SKU: TV1-001H
- Part Number: TV1-001H
- Product Family: MORryde RV TV Mounts
- Capacity: 50 lbs
- Shipping Weight: 9 lb
- Product Type: RV TV Mounts
- Application: reinforced vertical wall installation per the exact TV1-001H manuals; broader ceiling/desktop product-page claims require manufacturer confirmation for the actual revision.
Why Choose TV1-001H?
Bolt the TV to its mounting plate, mount the wall bracket to the reinforced structure, then assemble the TV/plate onto the wall bracket and use securing hardware to lock it in place, as shown in both manuals. The diagrams show the hooked plate engaging the bracket and bottom securing hardware. The Snap-In name does not establish a tool-free release, automatic travel latch or safe travel setup without that securing hardware. Verify the actual revision and fully secured attachment before use or travel; lifting the TV into position may require two people.
Clearance and support: The current manufacturer page gives overall dimensions of 11 inches high × 8.85 inches wide × 4 inches deep and plate dimensions of 8.85 × 8.85 inches. These are source-labelled mount measurements, not proof of full screen/cable clearance. Native operational dimensions and the retained 9 lb shipping-weight value are not independently certified installed geometry or actual delivered/package weight.
Compare MORryde RV TV Mounts
These existing links compare MORryde mount styles; they do not establish interchangeable mounting plates, brackets, adapters or hardware.
| Model / Part | Category | Best For | View Details |
|---|---|---|---|
|
TV1-001H Swivel Snap-In TV Mount - 50 lb. capacity - TV1-001H |
RV TV Mounts | mounting or securing an RV TV after matching VESA pattern, weight rating, and mount style | Current Product |
| TV1-051H Snap-In TV Mount - 25 lb. capacity - TV1-051H |
RV TV Mounts | mounting or securing an RV TV after matching VESA pattern, weight rating, and mount style | View Details |
| TV1-048H Snap-In TV Mount - 35 lb. capacity - TV1-048H |
RV TV Mounts | mounting or securing an RV TV after matching VESA pattern, weight rating, and mount style | View Details |
| TV10-S-35H Snap-In TV Mount - 35 lb. capacity - TV10-S-35H |
RV TV Mounts | mounting or securing an RV TV after matching VESA pattern, weight rating, and mount style | View Details |
Fitment limit: shared brand, appearance, Snap-In wording or nominal capacity is not evidence of compatible components.
Technical Specifications
| Brand | MORryde |
| SKU | TV1-001H |
| Part Number | TV1-001H |
| Product Family | MORryde RV TV Mounts |
| Capacity | 50 lbs |
| Shipping Weight | 9 lb |
| Product Type | RV TV Mounts |
Source qualifications: The current manufacturer page gives overall dimensions of 11 inches high × 8.85 inches wide × 4 inches deep and plate dimensions of 8.85 × 8.85 inches. These are source-labelled mount measurements, not proof of full screen/cable clearance. Native operational dimensions and the retained 9 lb shipping-weight value are not independently certified installed geometry or actual delivered/package weight. The current Version 2 manual specifies swivel up to 15° in both directions for most applications. The product page advertises swivel and tilt, but the reviewed manuals do not establish an adjustable tilt range or tilt procedure. Verify the actual revision and full screen/cable clearance; do not assume tilt, extension, unrestricted rotation or a folding travel position.
What's Included
Both manuals identify a mounting plate, wall bracket and hardware. Version 2 illustrates M4/M5/M6 × 12 mm TV bolts, 1/4 × 1 inch lag bolts and washers. The older retained manual also illustrates M8 bolts, longer bolts, spacers and self-drilling screws. These hardware packs differ; confirm the supplied revision and pack. Select the TV thread and insertion depth from the TV instructions and fasteners for the reinforced mounting structure. Overlong fasteners can puncture structures. The no-assembly-required description does not eliminate wall installation, TV bolting or securing the plate to the bracket.
Compatible Models & Alternatives
Version 2 lists 75×75, 100×100, 100×200 and 200×200 mm VESA. The product page lists 75×75, 100×100 and 200×200 mm; verify the actual plate and revision, particularly for 100×200 mm. The older manual mentions an optional 200×400 mm adapter available through MORryde, but no exact part number, interface or inclusion was established. No catalog adapter, particular TV model or cross-model plate interchangeability is confirmed. No exact separate plate, wall bracket, swivel/pivot component, securing bolt or hardware-pack service part number was established. A diagram label alone is not an orderable replacement part.
Frequently Asked Questions
- How do I confirm this is the right MORryde part?
- Maximum TV weight is 50 lb. A matching weight alone does not certify fit: verify the exact mount revision, TV mounting-hole pattern, screw requirements, wall structure, screen dimensions and cable clearance. No universal TV-size limit or specific TV model compatibility was established. Both exact TV1-001H manuals specify mounting to a reinforced vertical surface or wall. The current product page also advertises under-cabinet, ceiling and counter/desk use, but those orientations are not established by the reviewed model-specific instructions. Confirm the actual revision and a manufacturer-approved installation before relying on that broader wording. The wall structure must support five times the combined TV-and-mount weight; brick, concrete and concrete block are excluded.
- What should I measure before ordering?
- Check exact TV1-001H revision, TV weight/VESA, bolt thread and insertion depth, wall support and full screen/cable clearance. The current manufacturer page gives overall dimensions of 11 inches high × 8.85 inches wide × 4 inches deep and plate dimensions of 8.85 × 8.85 inches. These are source-labelled mount measurements, not proof of full screen/cable clearance. Native operational dimensions and the retained 9 lb shipping-weight value are not independently certified installed geometry or actual delivered/package weight.
- Can I substitute a similar MORryde product?
- No automatic substitution is established. Version 2 lists 75×75, 100×100, 100×200 and 200×200 mm VESA. The product page lists 75×75, 100×100 and 200×200 mm; verify the actual plate and revision, particularly for 100×200 mm. The older manual mentions an optional 200×400 mm adapter available through MORryde, but no exact part number, interface or inclusion was established. No catalog adapter, particular TV model or cross-model plate interchangeability is confirmed.
- What do buyers usually pair with this part?
- No particular companion purchase is established. Both manuals identify a mounting plate, wall bracket and hardware. Version 2 illustrates M4/M5/M6 × 12 mm TV bolts, 1/4 × 1 inch lag bolts and washers. The older retained manual also illustrates M8 bolts, longer bolts, spacers and self-drilling screws. These hardware packs differ; confirm the supplied revision and pack. Select the TV thread and insertion depth from the TV instructions and fasteners for the reinforced mounting structure. Overlong fasteners can puncture structures. The no-assembly-required description does not eliminate wall installation, TV bolting or securing the plate to the bracket.
- Can this mount attach to a ceiling or a desk?
- Both exact TV1-001H manuals specify mounting to a reinforced vertical surface or wall. The current product page also advertises under-cabinet, ceiling and counter/desk use, but those orientations are not established by the reviewed model-specific instructions. Confirm the actual revision and a manufacturer-approved installation before relying on that broader wording. The wall structure must support five times the combined TV-and-mount weight; brick, concrete and concrete block are excluded.
- Does Snap-In mean it locks automatically for travel?
- Bolt the TV to its mounting plate, mount the wall bracket to the reinforced structure, then assemble the TV/plate onto the wall bracket and use securing hardware to lock it in place, as shown in both manuals. The diagrams show the hooked plate engaging the bracket and bottom securing hardware. The Snap-In name does not establish a tool-free release, automatic travel latch or safe travel setup without that securing hardware. Verify the actual revision and fully secured attachment before use or travel; lifting the TV into position may require two people.
- Does this mount tilt as well as swivel?
- The current Version 2 manual specifies swivel up to 15° in both directions for most applications. The product page advertises swivel and tilt, but the reviewed manuals do not establish an adjustable tilt range or tilt procedure. Verify the actual revision and full screen/cable clearance; do not assume tilt, extension, unrestricted rotation or a folding travel position.
Why Buy from Elkhart RV Parts?
Elkhart RV Parts focuses on hard-to-find RV service parts with clear part-number identification, practical fitment notes, and fast support from a team located in Elkhart, Indiana.
| Overall depth (inches) | 4 |
|---|---|
| Overall width (inches) | 8.85 |
| Swivel angle (degrees) | 15 |
| Overall height (inches) | 11 |
| Shipping weight (pounds) | 9 |
| Weight capacity (pounds) | 50 |
| Vesa adapter plate width (inches) | 8.85 |
| Vesa adapter plate height (inches) | 8.85 |
| Orientation and structure | Both exact TV1-001H manuals specify mounting to a reinforced vertical surface or wall. The current product page also advertises under-cabinet, ceiling and counter/desk use, but those orientations are not established by the reviewed model-specific instructions. Confirm the actual revision and a manufacturer-approved installation before relying on that broader wording. The wall structure must support five times the combined TV-and-mount weight; brick, concrete and concrete block are excluded. |
| Swivel and tilt qualification | The current Version 2 manual specifies swivel up to 15° in both directions for most applications. The product page advertises swivel and tilt, but the reviewed manuals do not establish an adjustable tilt range or tilt procedure. Verify the actual revision and full screen/cable clearance; do not assume tilt, extension, unrestricted rotation or a folding travel position. |
| Vesa patterns by source | Version 2 lists 75×75, 100×100, 100×200 and 200×200 mm VESA. The product page lists 75×75, 100×100 and 200×200 mm; verify the actual plate and revision, particularly for 100×200 mm. The older manual mentions an optional 200×400 mm adapter available through MORryde, but no exact part number, interface or inclusion was established. No catalog adapter, particular TV model or cross-model plate interchangeability is confirmed. |
| Attachment and travel | Bolt the TV to its mounting plate, mount the wall bracket to the reinforced structure, then assemble the TV/plate onto the wall bracket and use securing hardware to lock it in place, as shown in both manuals. The diagrams show the hooked plate engaging the bracket and bottom securing hardware. The Snap-In name does not establish a tool-free release, automatic travel latch or safe travel setup without that securing hardware. Verify the actual revision and fully secured attachment before use or travel; lifting the TV into position may require two people. |
| Hardware revisions | Both manuals identify a mounting plate, wall bracket and hardware. Version 2 illustrates M4/M5/M6 × 12 mm TV bolts, 1/4 × 1 inch lag bolts and washers. The older retained manual also illustrates M8 bolts, longer bolts, spacers and self-drilling screws. These hardware packs differ; confirm the supplied revision and pack. Select the TV thread and insertion depth from the TV instructions and fasteners for the reinforced mounting structure. Overlong fasteners can puncture structures. The no-assembly-required description does not eliminate wall installation, TV bolting or securing the plate to the bracket. |
| Weight and installed dimension qualification | The current manufacturer page gives overall dimensions of 11 inches high × 8.85 inches wide × 4 inches deep and plate dimensions of 8.85 × 8.85 inches. These are source-labelled mount measurements, not proof of full screen/cable clearance. Native operational dimensions and the retained 9 lb shipping-weight value are not independently certified installed geometry or actual delivered/package weight. |
| Capacity and tv model qualification | Maximum TV weight is 50 lb. A matching weight alone does not certify fit: verify the exact mount revision, TV mounting-hole pattern, screw requirements, wall structure, screen dimensions and cable clearance. No universal TV-size limit or specific TV model compatibility was established. |
| Service components and adapters | No exact adapter interface, cross-model plate or component service number confirmed. |
- What is the maximum weight capacity of the morryde tv1-001h swivel tv mount? Maximum TV weight is 50 lb. A matching weight alone does not certify fit: verify the exact mount revision, TV mounting-hole pattern, screw requirements, wall structure, screen dimensions and cable clearance. No universal TV-size limit or specific TV model compatibility was established.
- Does the morryde tv1-001h tv mount support vesa mounting patterns? Version 2 lists 75×75, 100×100, 100×200 and 200×200 mm VESA. The product page lists 75×75, 100×100 and 200×200 mm; verify the actual plate and revision, particularly for 100×200 mm. The older manual mentions an optional 200×400 mm adapter available through MORryde, but no exact part number, interface or inclusion was established. No catalog adapter, particular TV model or cross-model plate interchangeability is confirmed.
- Can this tv mount swivel to adjust the viewing angle? The current Version 2 manual specifies swivel up to 15° in both directions for most applications. The product page advertises swivel and tilt, but the reviewed manuals do not establish an adjustable tilt range or tilt procedure. Verify the actual revision and full screen/cable clearance; do not assume tilt, extension, unrestricted rotation or a folding travel position.
- What comes included in the box with the morryde tv1-001h tv mount? Both manuals identify a mounting plate, wall bracket and hardware. Version 2 illustrates M4/M5/M6 × 12 mm TV bolts, 1/4 × 1 inch lag bolts and washers. The older retained manual also illustrates M8 bolts, longer bolts, spacers and self-drilling screws. These hardware packs differ; confirm the supplied revision and pack. Select the TV thread and insertion depth from the TV instructions and fasteners for the reinforced mounting structure. Overlong fasteners can puncture structures. The no-assembly-required description does not eliminate wall installation, TV bolting or securing the plate to the bracket.
- Is the morryde tv1-001h suitable for mounting a tv in an rv? Both exact TV1-001H manuals specify mounting to a reinforced vertical surface or wall. The current product page also advertises under-cabinet, ceiling and counter/desk use, but those orientations are not established by the reviewed model-specific instructions. Confirm the actual revision and a manufacturer-approved installation before relying on that broader wording. The wall structure must support five times the combined TV-and-mount weight; brick, concrete and concrete block are excluded.
- How does the mounting plate attach and secure for travel? Bolt the TV to its mounting plate, mount the wall bracket to the reinforced structure, then assemble the TV/plate onto the wall bracket and use securing hardware to lock it in place, as shown in both manuals. The diagrams show the hooked plate engaging the bracket and bottom securing hardware. The Snap-In name does not establish a tool-free release, automatic travel latch or safe travel setup without that securing hardware. Verify the actual revision and fully secured attachment before use or travel; lifting the TV into position may require two people.
- What dimensions and clearance should i check? The current manufacturer page gives overall dimensions of 11 inches high × 8.85 inches wide × 4 inches deep and plate dimensions of 8.85 × 8.85 inches. These are source-labelled mount measurements, not proof of full screen/cable clearance. Native operational dimensions and the retained 9 lb shipping-weight value are not independently certified installed geometry or actual delivered/package weight.
