- SPECIFIC DESIGN – The M19 retracted pin box is specifically configured to replace 1116 pin boxes, and its king pin connects to any 5th wheel trailer hitch
- REPLACE TO RESTORE – This pin box is designed to replace old, worn out or damaged pin 1116 pin boxes. Swap out the old one, replace it, and get right back to enjoying the road
- BOLT-ON INSTALLATION – This Lippert extended pin box easily bolts onto a trailer using existing hardware, and bolts into place along two rows of bolt holes
- BUILT TO LAST – Constructed with steel and a black powder coat finish that protects against rust, this pin box is extremely long-lasting to ensure peaceful towing day after day
- POWERFUL STRENGTH – With a 19,000 lb. weight capacity, the M19 retracted pin box has the strength needed to get through every journey, every time

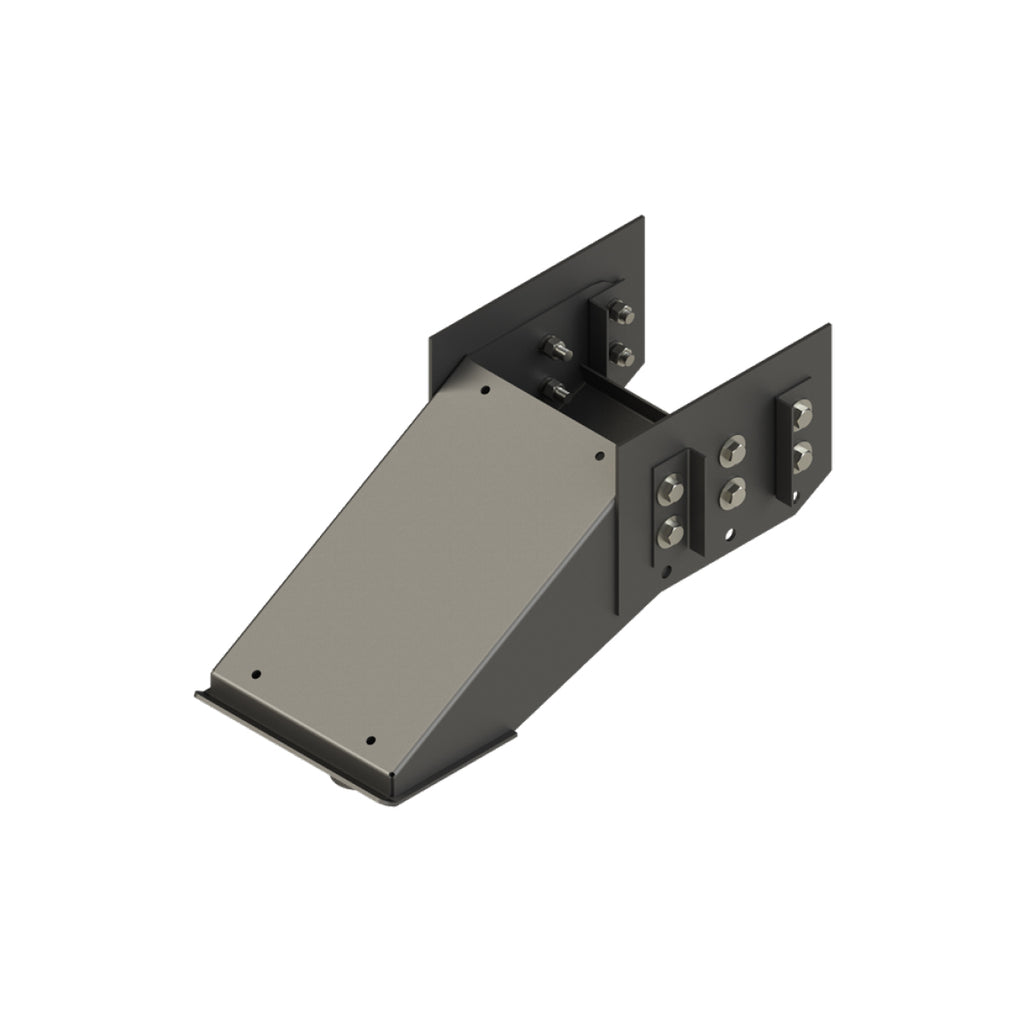

Never miss a beat, even if your pin box becomes worn out, damaged, or simply old and ready to be replaced. The Lippert M19 retracted pin box is a direct replacement for your Lippert 1116 pin box on your 5th wheel trailer. It has a gross vehicle weight (GVW) rating of 19,000 lbs. with a king pin that connects to any 5th wheel trailer hitch, so it is ready to help you tackle the adventures that lie ahead. Never worry, Lippert always has you covered.
Sit back, relax, and enjoy the ride knowing that this pin box will get the job done! It easily bolts onto your trailer using existing hardware, and bolts into place along three rows of bolt holes. Constructed with high-strength steel and finished with a black powder coating, the M19 retracted pin box is the quick, easy solution for your 1116 pin box replacement.
- Direct replacement for Lippert 1116 5th wheel pin boxes
- King pin connects to any 5th wheel trailer hitch
- Steel construction and black powder coat finish that protects against rust
- 19,000-lb. weight capacity
- Bolt-on installation using existing hardware
- Assembly hardware included
- Made in the USA
- Note: Please consult your original equipment label before purchasing a new Lippert® pin box
| Finish | Black powder coat |
|---|---|
| Material | Steel |
| Width (inches) | 16 |
| Height (inches) | 13.5 |
| Length (inches) | 33.5 |
| Physical weight (pounds) | 80 |
| Weight capacity (pounds) | 19000 |
- What type of pin box does the lippert m19 replace? The Lippert M19 retracted pin box is specifically designed to replace the Lippert 1116 pin box.
- What is the weight capacity of the lippert m19 retracted pin box? The Lippert M19 Retracted Pin Box has a weight capacity of 19,000 lbs.
- Is the lippert m19 compatible with all 5th wheel trailer hitches? Yes, the king pin of the Lippert M19 connects to any 5th wheel trailer hitch.
- What materials and finish are used for the lippert m19 pin box? The Lippert M19 Pin Box is constructed with high-strength steel and has a black powder coat finish to protect against rust.
- Does the lippert m19 pin box come with installation hardware? Yes, the assembly hardware is included for bolt-on installation using existing hardware.
