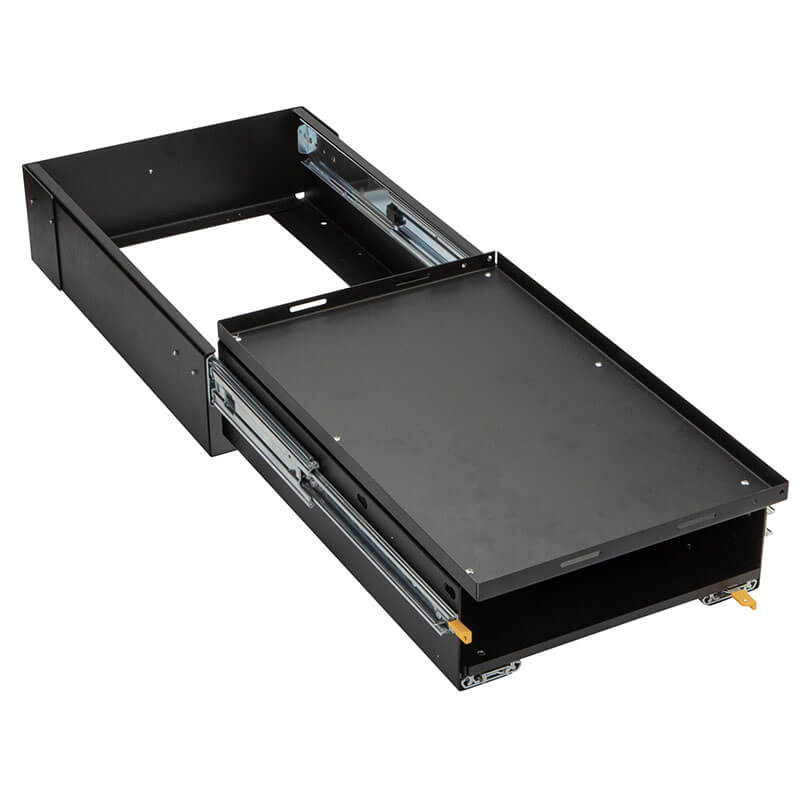

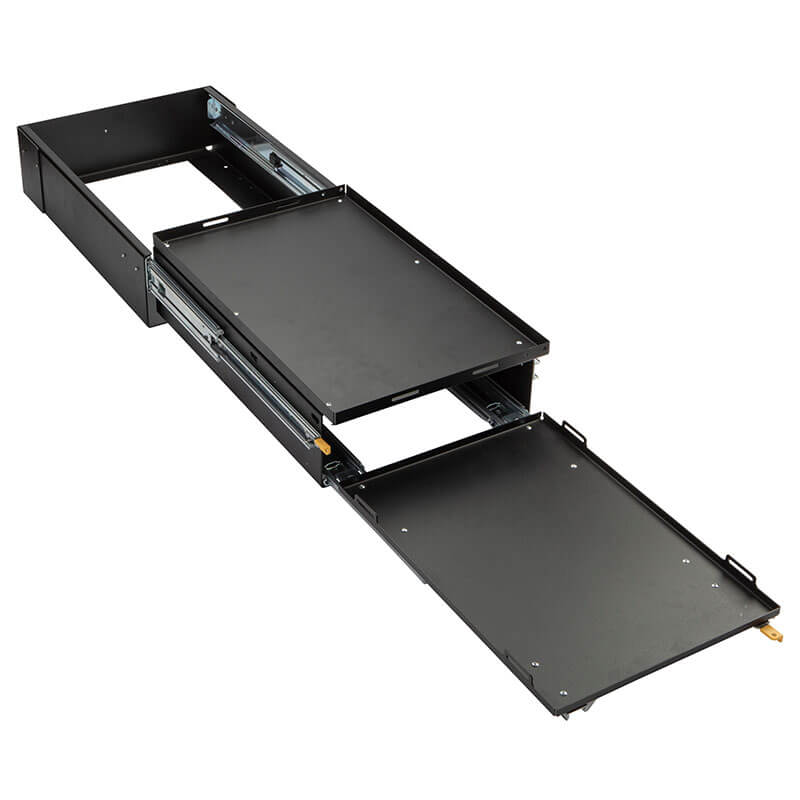

MORryde JP54-060 Trail Kitchen with Two-Burner Stove Tray
Ready to order
MORryde JP54-060 Trail Kitchen with Two-Burner Stove Tray
---
MORryde JP54-060 Trail Kitchen with Two-Burner Stove Tray
Organize camp food preparation with a compact kitchen whose stove tray sits below the top fridge/freezer tray. MORryde describes a sliding work surface, collapsible table and storage drawer, with more than 5-1/2 square feet of counter space and 300 cubic inches of drawer storage. The stove and fridge/freezer are separate purchases.
The stove tray measures 14 inches wide × 22 inches deep. The primary and shop pages give top tray inside dimensions of 25.5 inches long × 15.75 inches wide × 0.75 inch deep. Measure your actual appliances, handles, controls and vehicle clearance rather than choosing from capacity alone. MORryde says narrower-base refrigerators/freezers of 50 L and smaller should generally fit, but some may require removal of a back handle with the rear seats up. An older linked flyer mentions 50-quart appliances; neither statement verifies an exact model.
Why Choose This Kitchen?
- Stove tray under the fridge tray: Manufacturer gives a 14 × 22-inch stove platform.
- Separate appliance fit checks: Compare the top tray interior, appliance base and handle clearance.
- Documented mounting choices: Distinguish the linked drilled-floor reference from separate JKU/JLU kits.
- Conditional expansion: Counter fit is disputed for JP54-060; larger tray needs rear seats down and excludes the MOLLE panel.
Choose the Correct Installation Route
MORryde describes broad Wrangler base fit, while separately specifying JP54-041 for JK Unlimited (JKU) and JP54-055 for JL Unlimited (JLU). Their manuals use the factory D-ring locations/rivnuts, supplied brackets and spacers. Choose the exact vehicle-specific kit; a shared Wrangler name or category does not confirm every year, door count, trim, hybrid, JT, Bronco or aftermarket cargo setup.
The base installation link on the JP54-060 manufacturer page opens a manual labeled JP54-038. That document describes drilling 1/2-inch floor holes, installing 5/16-inch rivnuts and using spacers and 5/16-18 hardware. It warns the installer to check underneath for tanks, lines, electrical equipment and other obstructions. It is not evidence that every JP54-060 installation is a no-drill D-ring installation, nor an exact JP54-060-specific hole pattern. Confirm the correct installation route for the actual kitchen and vehicle before drilling.
The JKU bracket manual distinguishes leveling-foot position according to the floor-mounted subwoofer and mounting holes according to StoreGate use. The JLU manual uses its own brackets, spacers and fasteners. These details are not interchangeable mounting instructions. The closed-kit photo shows hardware, but does not establish that a separately listed vehicle-specific kit is included.
Counter fit: manufacturer sources conflict
MORryde’s JP54-060 product page lists JP54-040, but page 25 of its currently linked Jeep catalog (printed 12/23) says the fold-out counter is not compatible with the JP54-060 two-burner kitchen. The reviewed manuals do not resolve a production revision or date range. JP54-060 counter fit remains unconfirmed; do not select JP54-040 or its dependent JP56-024 for that kitchen on an all-models claim.
Page 25 of MORryde’s currently linked Jeep catalog explicitly excludes the JP54-039 MOLLE panel from the JP54-066 larger tray. Do not combine them on the strength of the generic Trail Kitchen or all-models wording.
The same catalog’s page 26 excludes JP54-073 basic and JP54-069 deluxe sinks from JP54-060. No compatible sink link is claimed.
Documented Options and Dependencies
- JP54-039 MOLLE grid attaches to the fridge tray using its supplied 1/4-20 button-head bolts and nuts.
- JP54-040 fold-out counter adds a hinged support assembly, but its fit to JP54-060 is disputed by the catalog restriction above.
- JP56-024 clip-on counter requires JP54-040. Its manual starts with the fold-out counter stored, lowers its legs, engages pegs in keyhole slots and uses the fold-out counter to hold it in place; leveling screws adjust the surfaces. It is not a standalone counter that clips directly onto every bare kitchen.
- JP54-066 replaces the stock fridge tray after drilling out its rivets with a 13/64-inch bit, then installing the new tray with supplied rivets. Rear seats must be down to use it. Its installation sheet does not give dimensions or payload. The currently linked catalog publishes 18-1/4-inch width × 28-3/4-inch depth inside, while the gallery drawing has different unidentified callouts; exact current size remains unresolved. Do not transfer the standard top-tray dimensions. The catalog excludes JP54-039 with this larger tray.
- JP54-041 JKU and JP54-055 JLU mounting kits are separate, vehicle-specific options.
Compare Mounting and Counter Options
- JP54-041 JKU bolt-in kit — check the JKU bracket and leveling-foot procedure
- JP54-055 JLU bolt-in kit — check the JLU bracket and factory-rivnut procedure
- JP56-024 Clip-on counter — requires JP54-040; fit on JP54-060 is disputed
Load, Travel and Service Limits
The reviewed sources do not establish a numeric per-tray or total payload, combined accessory-load limit, specific travel-lock/strap procedure, reversible mounting approval, exact installed envelope or net weight. Yellow slide controls visible in photos do not establish their operation or travel-load rating. Verify mounting, appliance retention and travel requirements before use. Exact replacement slide, latch, drawer, tray and hardware service part numbers remain unresolved; no generic substitute is linked as approved.
What’s Included?
JP54-060 is the kitchen with its stove tray below the fridge tray, sliding work surface, collapsible table and storage drawer. Appliances, MOLLE grid, optional counters, larger tray and vehicle-specific bolt-in kits are separate. The photographed refrigerator, vehicle and other installation props are not kit contents. The exact hardware inventory is not fully enumerated in the reviewed JP54-060 source.
Technical Specifications
- Brand: MORryde
- Part number: JP54-060
- Product: Trail Kitchen with stove tray beneath fridge/freezer tray
- Stove tray: 14 inches wide × 22 inches deep
- Top tray inside dimensions: 25.5 inches long × 15.75 inches wide × 0.75 inch deep
- Counter space: More than 5-1/2 square feet (manufacturer claim)
- Drawer storage: 300 cubic inches
- Fridge guidance: Most 50 L-and-smaller narrow-base appliances; actual fit and handle clearance required
- Appliances: Stove and fridge/freezer sold separately
- Vehicle-specific mounting options: JP54-041 for JKU; JP54-055 for JLU; separate kits
- Base manual limitation: Manufacturer links JP54-038 instructions showing drilled floor holes and rivnuts
- Clip-on counter dependency: JP56-024 requires JP54-040; the catalog excludes that fold-out counter on JP54-060 despite current option copy
- Larger tray condition: JP54-066 requires rear seats down; catalog inside size and gallery drawing differ; JP54-039 excluded
- MOLLE option: JP54-039 attaches to fridge tray with supplied 1/4-20 hardware
- Unconfirmed data: Payload, travel retention, exact year/trim/door/hybrid fit, reversibility, net weight, installed envelope and service part numbers
Frequently Asked Questions
- Is the MORryde JP54-060 Trail Kitchen System compatible with all Jeep Wrangler models?
- MORryde describes the base kitchen as fitting Jeep Wrangler models, but this is not proof of one universal mounting kit or a no-drill installation. The page separately names JP54-041 for JK Unlimited and JP54-055 for JL Unlimited. Its linked base manual is labeled JP54-038 and shows a drilled floor/rivnut installation. Exact year, door, trim, hybrid and other-vehicle configurations need confirmation.
- What size stove can the stove tray hold?
- The manufacturer gives the stove tray as 14 inches wide by 22 inches deep for most compact two-burner trail stoves. Confirm the actual stove body, controls, fuel connection and clearance; no exact stove model, height clearance, ventilation approval or tray payload is established.
- Does the trail kitchen system include a fridge or stove?
- The fridge/freezer and stove are separate. JP54-060 is the kitchen system with stove tray, top fridge tray, sliding work surface, collapsible table and storage drawer. Optional counters, MOLLE grid, larger tray and vehicle-specific bolt-in kits are separate accessories.
- Are there any additional accessories available for the trail kitchen system?
- The current product page lists accessories, but MORryde’s JP54-060 product page lists JP54-040, but page 25 of its currently linked Jeep catalog (printed 12/23) says the fold-out counter is not compatible with the JP54-060 two-burner kitchen. The reviewed manuals do not resolve a production revision or date range. JP54-060 counter fit remains unconfirmed; do not select JP54-040 or its dependent JP56-024 for that kitchen on an all-models claim. Page 25 of MORryde’s currently linked Jeep catalog explicitly excludes the JP54-039 MOLLE panel from the JP54-066 larger tray. Do not combine them on the strength of the generic Trail Kitchen or all-models wording. The catalog also excludes JP54-069/073 sinks from JP54-060. Existing JP54-039 with the standard tray, JP54-066 replacement tray and vehicle-specific JP54-041/055 kit links remain separately scoped options.
- How much counter space does the MORryde Trail Kitchen System provide?
- MORryde advertises more than 5-1/2 square feet of counter space and a drawer with 300 cubic inches of storage. Neither figure is a load rating. The supplied images show the kitchen and optional setups; optional counters and appliances remain separate.
- What are the top tray dimensions and refrigerator limits?
- The exact JP54-060 primary and shop pages give top tray inside dimensions of 25.5 inches long by 15.75 inches wide by 0.75 inch deep. MORryde says the narrower bases of most 50 L-and-smaller refrigerators/freezers should fit; measure the actual appliance, handles and vehicle clearance. Some appliances may require back-handle removal with the rear seats up. The older flyer mentions 50-quart appliances, so it is not an exact appliance-model fit list.
- What load and travel-retention requirements are established?
- The reviewed page and linked documents do not establish per-tray or total payload, a travel lock/strap procedure, reversible mounting approval or a combined accessory-load rating. Verify those requirements before travel. Yellow slide controls visible in photos are not proof of a specific travel-lock rating or operation.
| Brand | MORryde |
|---|---|
| Part number | JP54-060 |
| Product | Trail Kitchen with stove tray beneath fridge/freezer tray |
| Stove tray | 14 inches wide × 22 inches deep |
| Top tray inside dimensions | 25.5 inches long × 15.75 inches wide × 0.75 inch deep |
| Counter space | More than 5-1/2 square feet (manufacturer claim) |
| Drawer storage | 300 cubic inches |
| Fridge guidance | Most 50 L-and-smaller narrow-base appliances; actual fit and handle clearance required |
| Appliances | Stove and fridge/freezer sold separately |
| Vehicle-specific mounting options | JP54-041 for JKU; JP54-055 for JLU; separate kits |
| Base manual limitation | Manufacturer links JP54-038 instructions showing drilled floor holes and rivnuts |
| Clip-on counter dependency | JP56-024 requires JP54-040; JP54-060 fit is disputed by catalog exclusion |
| Larger tray condition | JP54-066 needs rear seats down; catalog size/drawing differ; JP54-039 excluded |
| Molle option | JP54-039 listed for standard fridge tray; not with JP54-066 larger tray |
| Unconfirmed data | Payload, travel retention, exact year/trim/door/hybrid fit, reversibility, net weight, installed envelope and service part numbers |
- Is the morryde jp54-060 trail kitchen system compatible with all jeep wrangler models? MORryde describes the base kitchen as fitting Jeep Wrangler models, but this is not proof of one universal mounting kit or a no-drill installation. The page separately names JP54-041 for JK Unlimited and JP54-055 for JL Unlimited. Its linked base manual is labeled JP54-038 and shows a drilled floor/rivnut installation. Exact year, door, trim, hybrid and other-vehicle configurations need confirmation.
- What size stove can the stove tray hold? The manufacturer gives the stove tray as 14 inches wide by 22 inches deep for most compact two-burner trail stoves. Confirm the actual stove body, controls, fuel connection and clearance; no exact stove model, height clearance, ventilation approval or tray payload is established.
- Does the trail kitchen system include a fridge or stove? The fridge/freezer and stove are separate. JP54-060 is the kitchen system with stove tray, top fridge tray, sliding work surface, collapsible table and storage drawer. Optional counters, MOLLE grid, larger tray and vehicle-specific bolt-in kits are separate accessories.
- Are there any additional accessories available for the trail kitchen system? The current product page lists accessories, but MORryde’s JP54-060 product page lists JP54-040, but page 25 of its currently linked Jeep catalog (printed 12/23) says the fold-out counter is not compatible with the JP54-060 two-burner kitchen. The reviewed manuals do not resolve a production revision or date range. JP54-060 counter fit remains unconfirmed; do not select JP54-040 or its dependent JP56-024 for that kitchen on an all-models claim. Page 25 of MORryde’s currently linked Jeep catalog explicitly excludes the JP54-039 MOLLE panel from the JP54-066 larger tray. Do not combine them on the strength of the generic Trail Kitchen or all-models wording. The catalog also excludes JP54-069/073 sinks from JP54-060. Existing JP54-039 with the standard tray, JP54-066 replacement tray and vehicle-specific JP54-041/055 kit links remain separately scoped options.
- How much counter space does the morryde trail kitchen system provide? MORryde advertises more than 5-1/2 square feet of counter space and a drawer with 300 cubic inches of storage. Neither figure is a load rating. The supplied images show the kitchen and optional setups; optional counters and appliances remain separate.
- What are the top tray dimensions and refrigerator limits? The exact JP54-060 primary and shop pages give top tray inside dimensions of 25.5 inches long by 15.75 inches wide by 0.75 inch deep. MORryde says the narrower bases of most 50 L-and-smaller refrigerators/freezers should fit; measure the actual appliance, handles and vehicle clearance. Some appliances may require back-handle removal with the rear seats up. The older flyer mentions 50-quart appliances, so it is not an exact appliance-model fit list.
- What load and travel-retention requirements are established? The reviewed page and linked documents do not establish per-tray or total payload, a travel lock/strap procedure, reversible mounting approval or a combined accessory-load rating. Verify those requirements before travel. Yellow slide controls visible in photos are not proof of a specific travel-lock rating or operation.
