Alpha VR246085HLBLANK RV Holding Tank
A low-profile polyethylene holding tank with a recessed side outlet. The retained Alpha VR246085HL drawing dated June 14, 2018 lists approximately 36 US gallons capacity and a 60 x 24-inch top plan with 8.5-inch maximum depth.
Dimensions and Drain Profile
- Top plan: 60 x 24 inches
- Maximum depth: 8.5 inches; shallow-end depth: 6.37 inches
- Bottom width: 21 inches; lip: 1 inch
- Outlet for 3-inch pipe, centered 9 inches from the deep end
- Outlet recess boundary: 13 inches from the deep end
- Material on print: polyethylene
Check Fitment Against the Original Print
Match the exact part number, complete profile, outlet side, support arrangement and plumbing clearances to your existing tank. Outer dimensions alone do not establish interchangeability. Direction labels depend on viewing orientation; compare the actual outlet position shown in the retained blueprint. This BLANK listing is visualized without installed plumbing fittings or invented top openings.

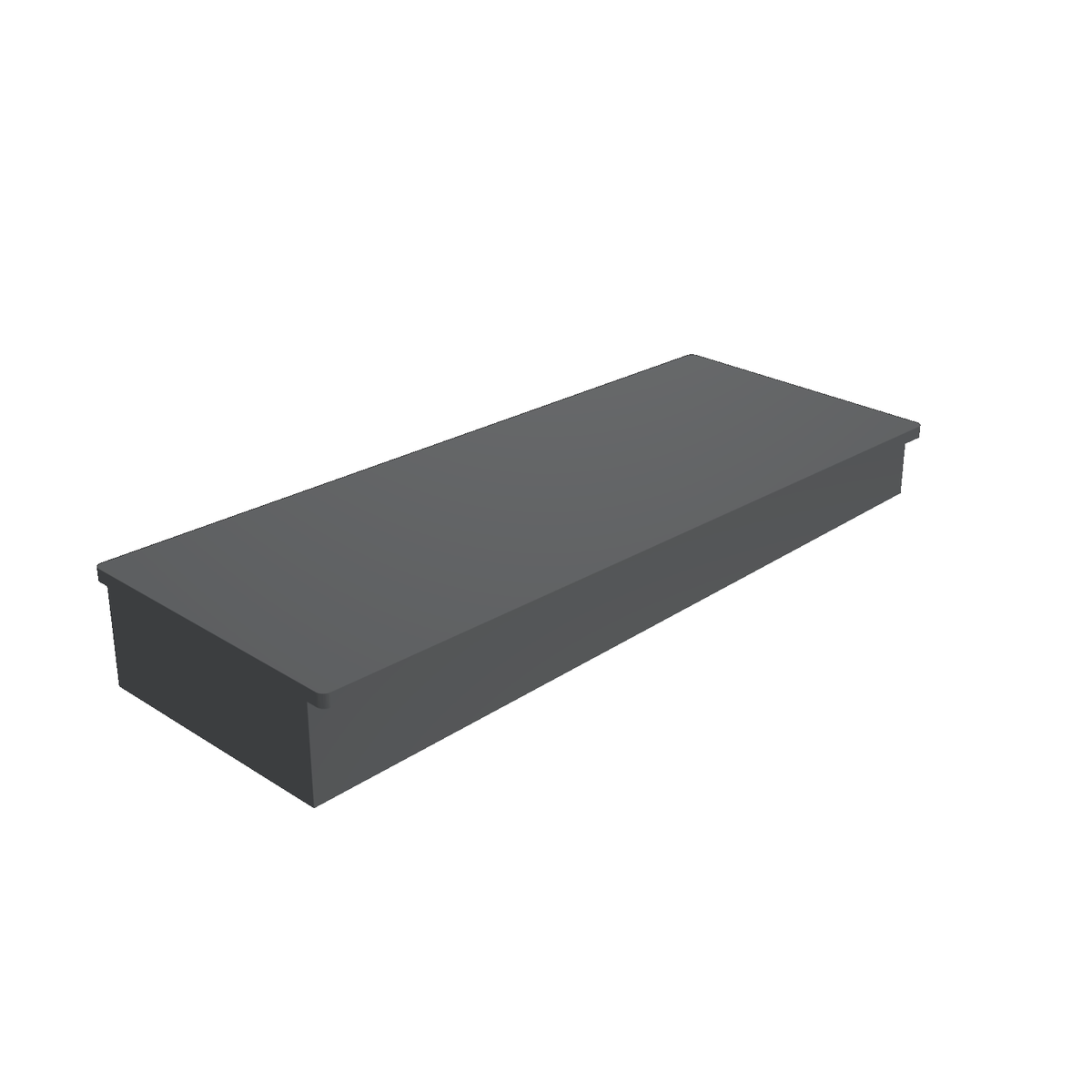

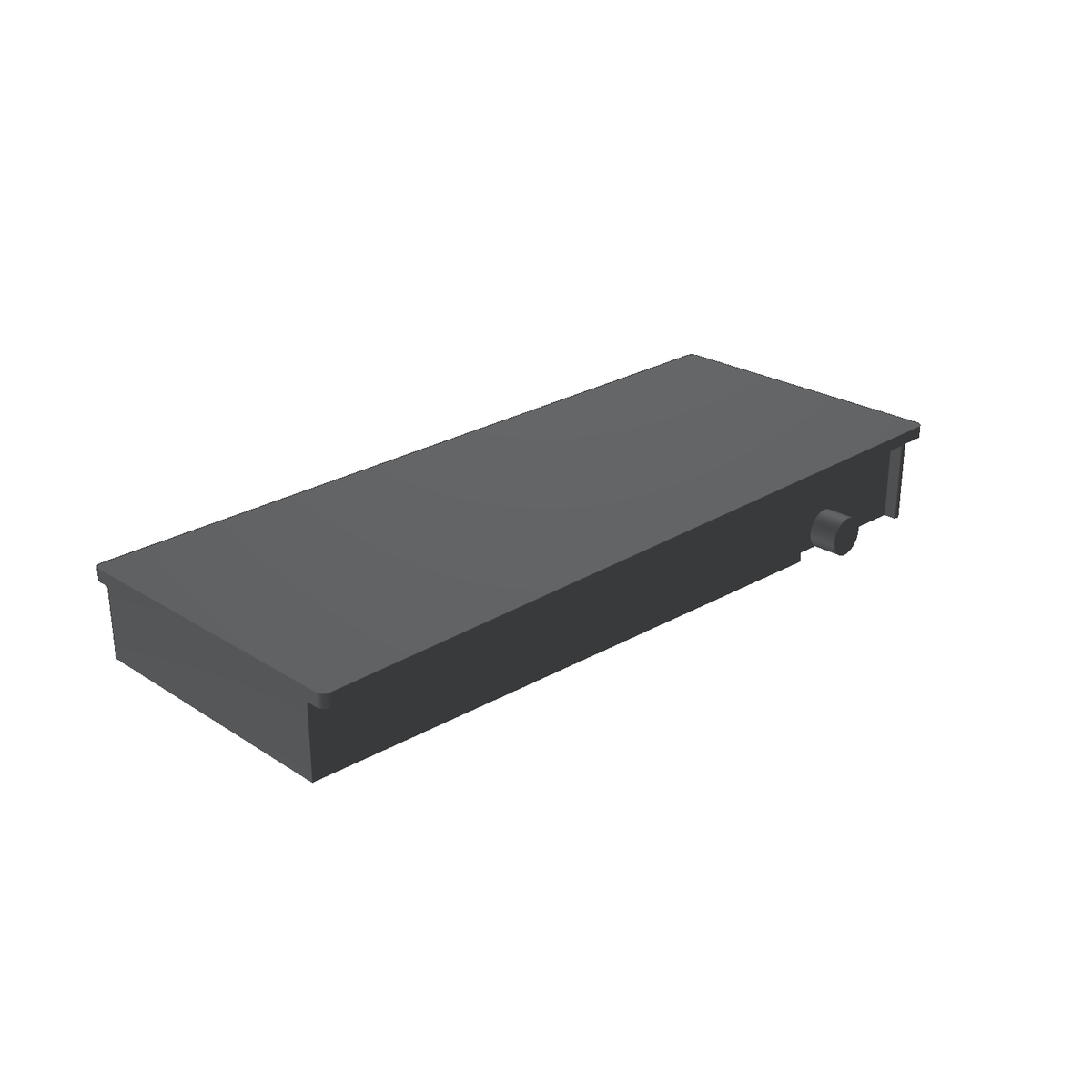

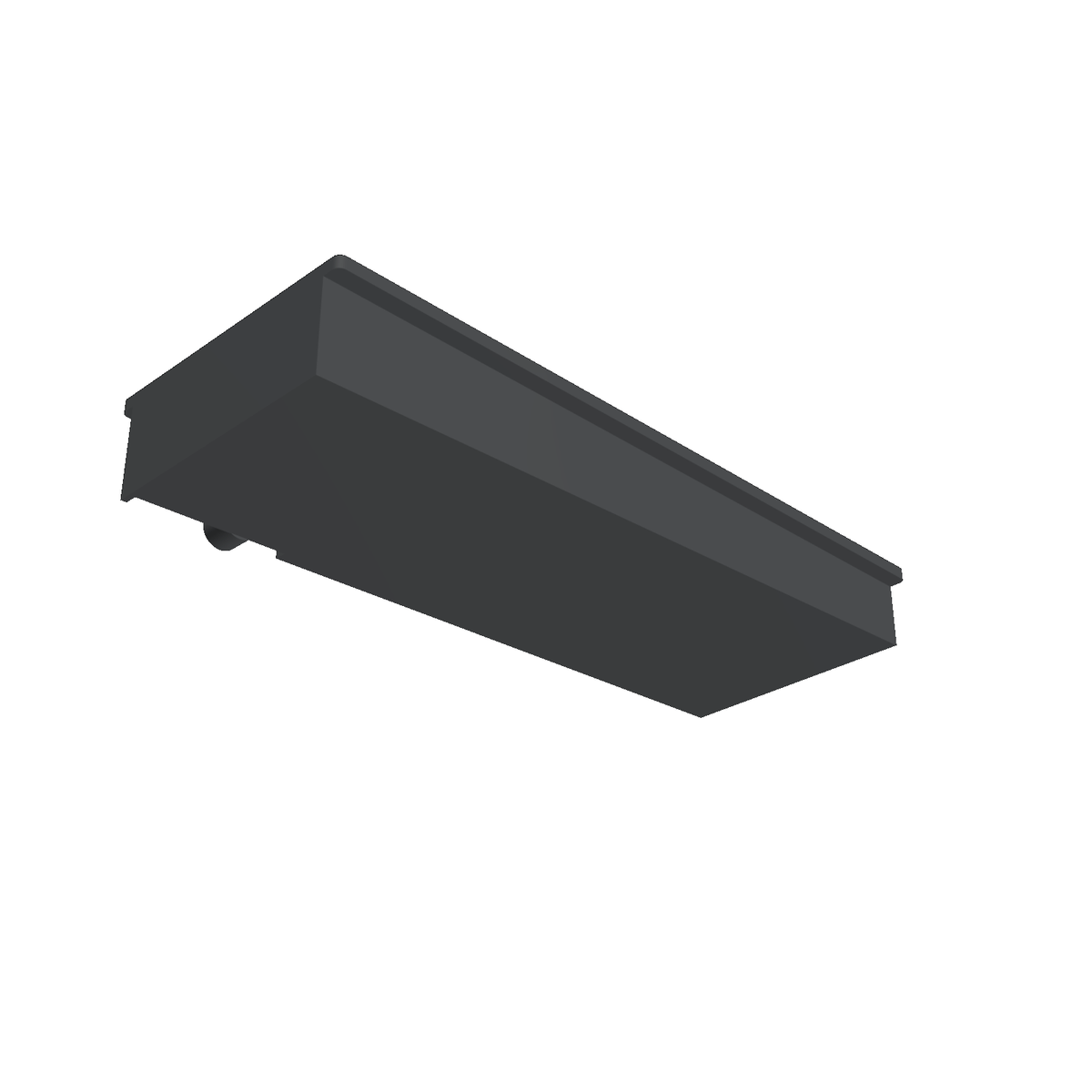

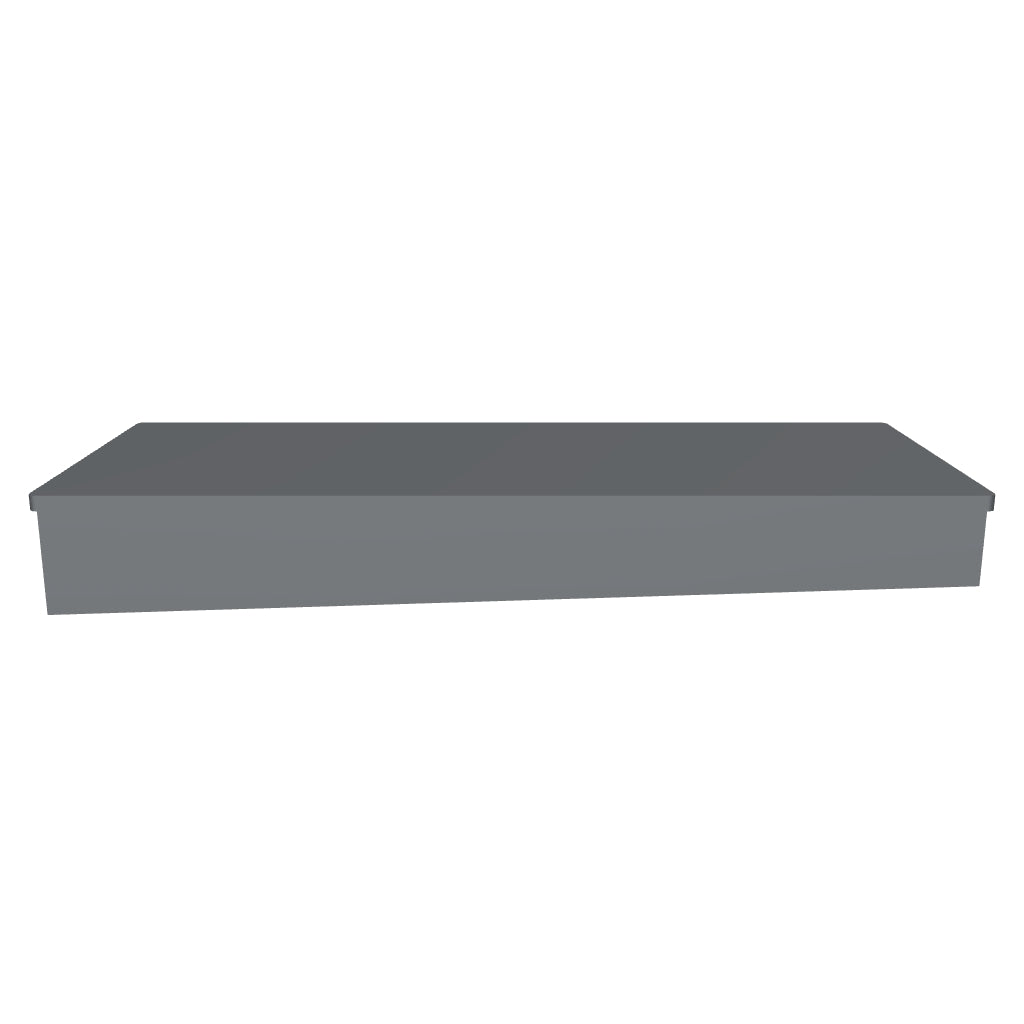

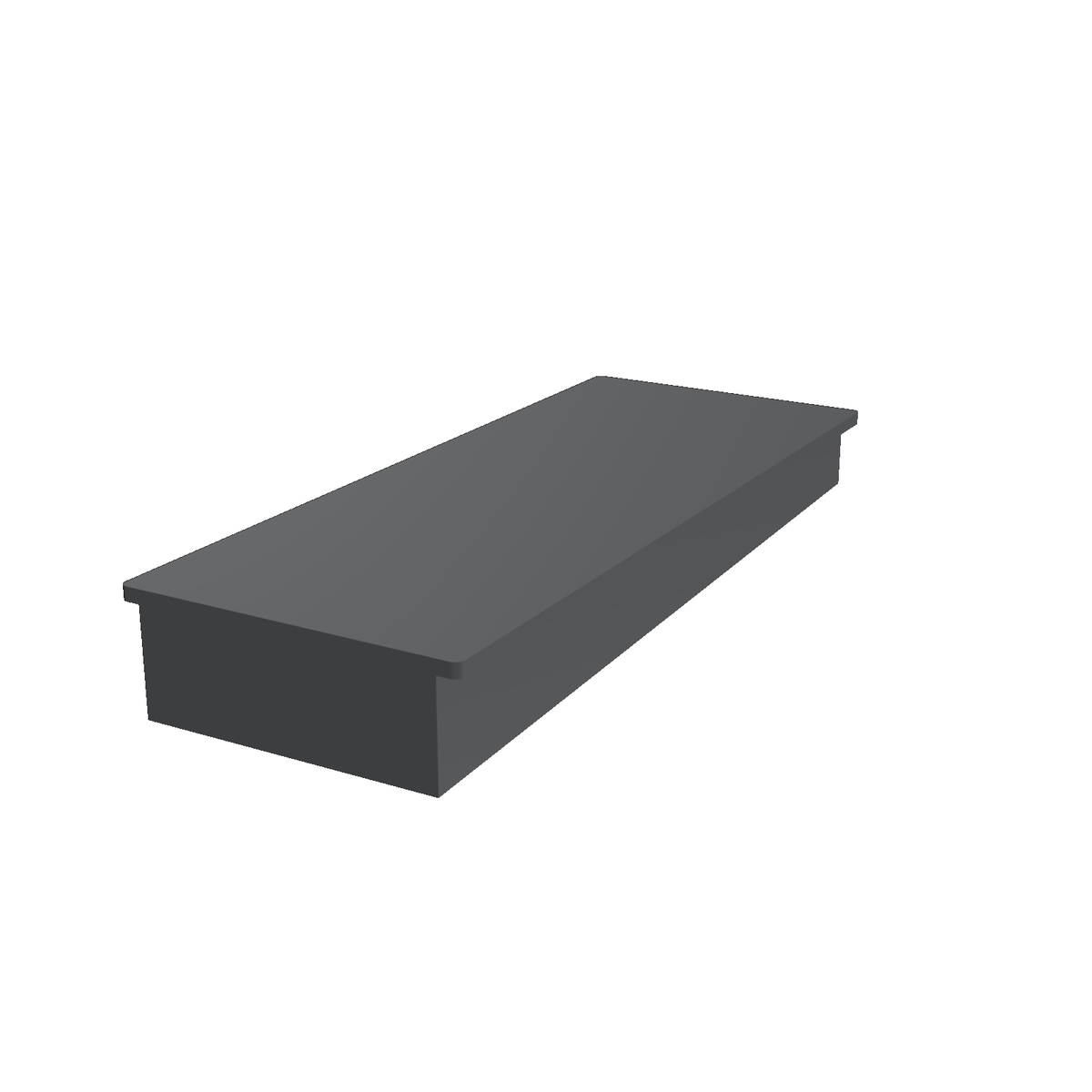

Original Blueprint and Gallery Views
Four rendered views and a native rotatable 3D model reconstruct this individual print. Undimensioned corner radii, recess depth, outlet exterior and cross slope are interpreted from the printed views. The closed outlet face follows the original isometric. Dimensions are reference, tolerance is ±1/4 inch and capacity is approximate. Use the original drawing as the fitment reference; the model is not measured manufacturing CAD.
| QAI Certification | REC 559-1 |
|---|---|
| Part number | VR246085HLBLANK |
| Capacity (gallons) | 36 |
| Dimensions (inches) | 60 x 24 x 8.5 |
| Lead time | |
| Best for | Match the complete VR246085HL outlet-side print |
- What is the capacity of the alpha holding tank? The Alpha holding tank has a capacity of 36.5 gallons.
- What are the dimensions of this holding tank? The dimensions of the holding tank are 60 inches in length, 24 inches in width, and 8.5 inches in height.
- Is this holding tank durable and suitable for rv use? Yes, the tank is made with extra durable rotational molded construction designed to withstand the constant movement, vibration, and temperature changes experienced during RV travel.
- Does this tank meet health and safety standards for rv waste management? Yes, the holding tank is manufactured to strict specifications to meet all necessary health and safety requirements for RV waste management.
- Are these holding tanks oem quality and compatible with new rv builds? Yes, these tanks are authentic OEM parts used in new RV builds by major manufacturers, ensuring perfect compatibility and performance.
