Cool Comfort on the Go: Meet Your RV's New Best Friend
The Furrion Chill® RV AC Standard Air Distribution Box offers easy manual control, multiple fan speeds, and two-way airflow for superior comfort in your camper or travel trailer. Designed for quick installation and effortless filter cleaning, it fits standard 14-inch roof openings and works with both ducted and non-ducted systems. Compatible with all Furrion rooftop AC units and ready for an optional heat strip, it’s a versatile upgrade for your RV climate control.---
This A/C is designed for RV campers & travel trailers.
You need a roof thickness of 3-6" with a roof opening of 14".
The Furrion air distribution box, (ADB) with manual control is compatible with the Furrion Chill air conditioning system.
Quick Facts:

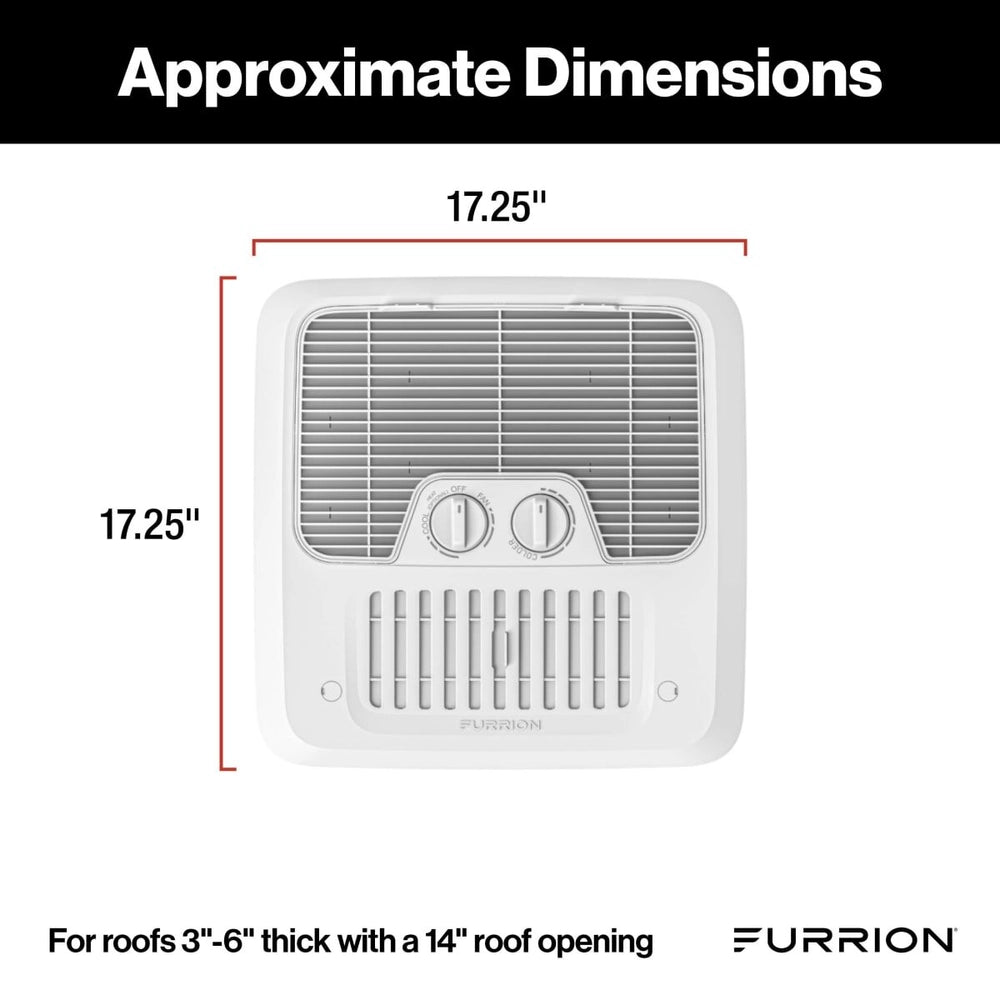

- For roofs 3"-6" thick with a 14" roof opening
- Dimensions: 17.25" wide x 17.25" long x 4.37" high
- Weight: 5.3 lbs.
- Made in China
- Multiple fan speeds for ultimate comfort
- Two-way airflow for circulation
- Detachable filter is easy to clean
- Easy installation for replacements
- Temperature control is easy to use
- Compatible with ducted and non-ducted systems
- Use with any Furrion RV rooftop AC system
- Can be used with optional heat strip
- Furrion Reference Number: FACT11CA-PS
- Warranty: 2 year warranty from date of purchase of the RV to the original owner
| Weight (lbs) | 5.3 |
|---|---|
| Height (inches) | 4.37 |
| Width (inches) | 17.25 |
| Length (inches) | 17.25 |
| Ducted | true |
| Thermostat type | Manual Control |
| Weight (pounds) | 5.3 |
| Roof thickness (inches) | 3-6 |
| Roof opening diameter (inches) | 14 |
- What roof thickness is required for installing the furrion chill rv ac standard air distribution box? The air distribution box is designed for roofs that are 3 to 6 inches thick.
- Is the furrion chill air distribution box compatible with all furrion rv rooftop ac systems? Yes, it is compatible with any Furrion RV rooftop air conditioning system.
- Does this air distribution box support manual temperature control? Yes, it features manual control for easy temperature adjustment.
- Can the furrion chill air distribution box be used with an optional heat strip? Yes, it can be used with an optional heat strip for additional heating.
- What are the dimensions and weight of the furrion chill rv ac standard air distribution box? The box measures 17.25 inches wide by 17.25 inches long by 4.37 inches high and weighs 5.3 pounds.
