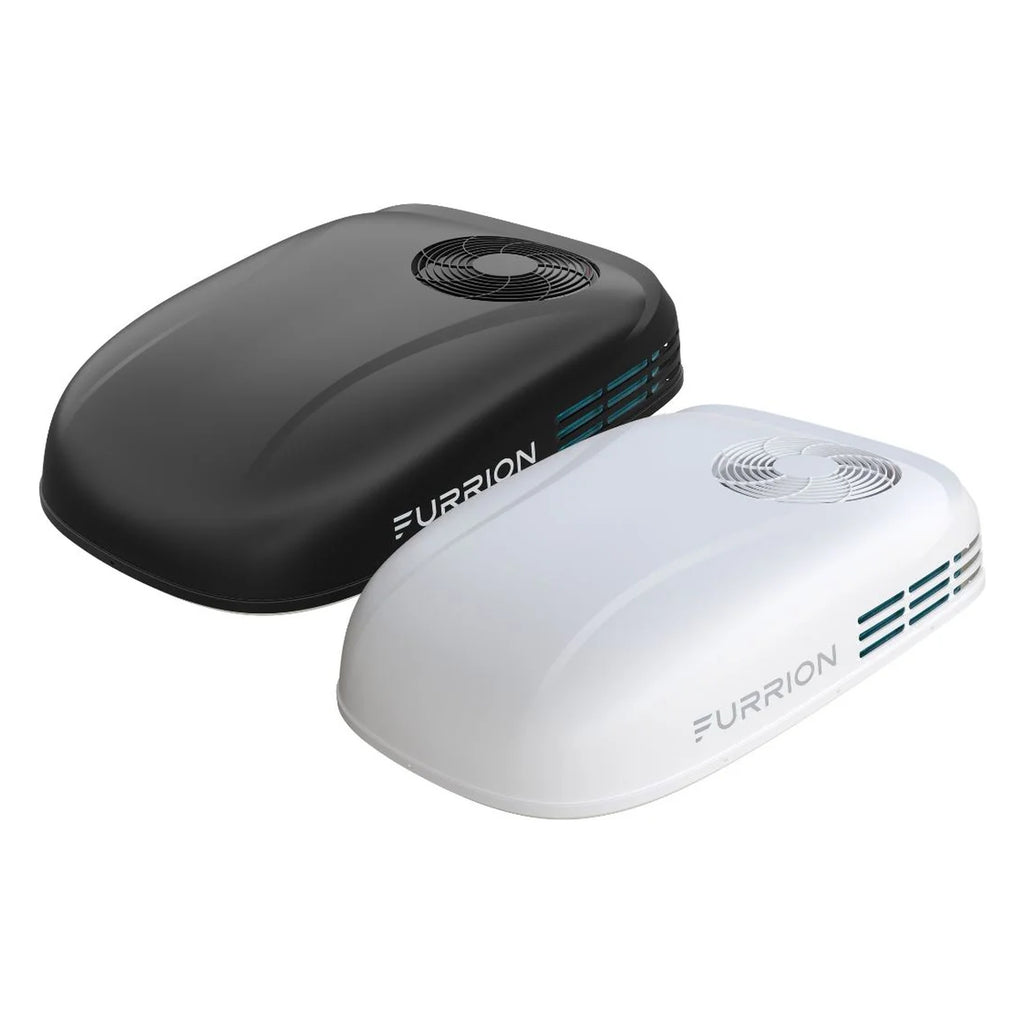

The Furrion Chill Cube 15K Low-Profile Variable Speed RV Air Conditioner with Heat Pump is built for RV owners who want a lower rooftop profile, efficient inverter-style cooling, and electric heat support from the same rooftop unit. This white R32 Chill Cube unit is the current Lippert/Furrion MAP-listed model for SKU 2025059445 / model FACR15LPVS-PS-AM.
Use this when you need a 15,000 BTU low-profile Furrion rooftop AC with heat pump capability, variable-speed compressor operation, and reduced rooftop height compared with taller RV air conditioners. The heat pump can help take the edge off cool nights and reduce furnace use when conditions are appropriate, while the variable-speed design helps lower startup draw and avoids the need for a separate soft-start device in many installs.
Key details
- Cooling capacity: 15,000 BTU nominal cooling
- Heating capacity: 15,000 BTU nominal heating via heat pump
- Color: White
- Refrigerant: R32
- Electrical: 115V / 60Hz, 1342W cooling power consumption, 11.7A cooling, 11.8A heating
- Dimensions: 29 1/16" W x 10 15/16" H x 41 9/16" D
- Weight: 88 lb net; 100 lb packaged shipping weight
- Roof opening: designed for a 14 1/4" x 14 1/4" RV roof opening per Furrion installation documentation
Fitment and install notes
This rooftop unit is not a “ducted only” or “non-ducted only” SKU by itself. Furrion/Lippert documentation lists it with a separately sold low-profile ADB mounting frame C-FACR12SA-A03 / 2025065952 and compatible quiet air distribution box FACT11QV3-PS / 2025056045. The compatible Q-ADB documentation states it works with ducted and non-ducted RVs, so the final ducted/non-ducted setup depends on the matching ADB/control components used with this rooftop unit.
Important refrigerant note: R32 air conditioning equipment must be matched with R32-designed components. Do not mix R32 components with older R410A-only air conditioner components unless Furrion/Lippert documentation specifically confirms the conversion path for your setup.
Common pairings
- Compatible Furrion quiet air distribution box / Q-ADB: FACT11QV3-PS / 2025056045 for ducted or non-ducted RVs
- Low-profile ADB mounting frame: C-FACR12SA-A03 / 2025065952 — sold separately
- Furrion thermostat and controller components for the intended zone setup
If you are replacing an older rooftop unit, match the model number, refrigerant type, color, roof opening, control system, and ducting layout before purchasing. AI Live Chat can help compare the part number on your existing unit against this listing.
