Elkhart Plastics - RV Holding Tank - 60" x 24" x 7" - Left Hand Side Drain - H1117002

Finding the right RV holding tank with a left hand side drain configuration can be challenging when you need a reliable replacement that fits your specific RV layout. The Elkhart Plastics RV Holding Tank (H1117002) delivers professional-grade performance with its 60" x 24" x 7" profile and left hand side drain with 1-inch lip design, engineered specifically for waste management systems requiring this exact footprint and drain positioning.

Features & Specifications

• Precise Dimensions: 60" length x 24" width x 7" height with left hand side drain and 1-inch lip configuration as printed; match the complete profile, supports and connection clearances for fitment
• Premium Roto-Molded Construction: Black LLDPE with a 0.150-inch wall thickness specified on the drawing
• Optimal Capacity: Capacity is not specified on the retained print
• Left Side Drain Design: Strategically positioned left hand side drain with 1-inch lip for compatibility with specific RV plumbing configurations
• Drawing Assembly: The print lists a female 3-inch ABS adapter (380), gear clamp (O56), and two OS-12 spin-patch vent tubes; OS-12 is explicitly not shown in the drawing
• Health & Safety Certified: Manufactured to meet quality and health safety standards with fewer impurities for secure waste storage
• Impact Resistant: Roto-molded process creates durable construction that withstands road vibration, temperature extremes, and physical impacts
• OEM Grade Quality: Elkhart Plastics reputation for manufacturing tanks trusted by RV manufacturers and professional technicians nationwide

Why Choose the Elkhart Plastics RV Holding Tank H1117002?

The retained H1117002 drawing identifies a left-side drain tank with a 1-inch lip, black LLDPE construction and a sloped lower profile. Verify the existing part number, support arrangement, outlet orientation and all plumbing clearances against the complete print. Outer dimensions alone do not establish interchangeability.

Compare 60" Length RV Holding Tanks

Not sure which 60" holding tank is right for your RV? Compare the specifications of similar length tanks to find the perfect fit for your space and drain configuration:

Pro Tip: Always measure your existing tank compartment carefully before ordering, paying special attention to drain positioning. Left side vs. right side drain placement is critical for proper installation and plumbing compatibility. If you're unsure about fitment, our AI Live Chat can help verify compatibility.

Technical Specifications

• Part Number: H1117002
• Dimensions: 60" L x 24" W x 7" H
• Estimated Capacity: Not specified on retained print
• Material: Black LLDPE; 0.150-inch wall per drawing
• Construction: Seamless roto-molded
• Drain Position: Left hand side drain with 1-inch lip
• Fittings: Drawing lists adapter 380, clamp O56, and two OS-12 tubes
• Weight: 19 lb assembled weight on print; 18 lb shot weight listed separately
• Color: Black polyethylene
• Application: Black water, gray water, or holding tank replacement
• Manufacturer: Elkhart Plastics/Ameri-Kart

What's Included

• One (1) Elkhart Plastics RV Holding Tank - H1117002
• Assembly drawing lists female 3-inch ABS adapter, gear clamp and two OS-12 tubes
• Elkhart Plastics quality certification and manufacturing standards compliance
• Note: Fittings, drain valves, vent caps, and mounting hardware sold separately - browse our fittings kits to complete your installation
• Warranty: Backed by Elkhart Plastics manufacturing quality standards

Compatible Models & Alternatives

Compare exact part identity and the complete drawing to your installation. Related configurations are linked below for comparison, not as verified interchangeable substitutes.

• Similar Capacity Alternative: MAKS 120083001 - 60" x 24" x 7" Left Side Drain
• Fittings & Hardware: Browse our complete selection of RV tank fittings, drain valves, vent caps, and installation accessories
• Different Dimensions: Explore our full collection of Elkhart Plastics holding tanks in various sizes and configurations
• Installation Supplies: Tank mounting straps, sealants, and plumbing connectors available

Frequently Asked Questions

How do I install this RV holding tank?

Compare the original print to your existing tank and plumbing before installation. The drawing lists adapter 380, clamp O56 and two OS-12 spin-patch vent tubes. OS-12 locations are not shown; do not assume arbitrary drilling or connection locations from the rendered views. Use qualified RV plumbing installation procedures.

Is this compatible with my RV model?

A matching compartment size does not establish fitment. Verify H1117002 identity, the left-side outlet, supports and connection clearances against the full original print.

What does "1-inch lip" mean on this tank?

The "1-inch lip" refers to a raised edge or flange on the tank that provides additional structural support and mounting options. This design feature helps with secure installation and proper alignment during mounting.

What fittings do I need for installation?

You'll need drain fittings, vent fittings, inlet fittings, and potentially a tank monitor sensor depending on your RV's configuration. Browse our fittings kits or contact us via AI Live Chat with your specific requirements for personalized recommendations.

Can this be used for both black water and gray water?

Yes, this tank is suitable for black water (toilet waste), gray water (sink/shower drainage), or holding tank applications. The print specifies black LLDPE; suitability depends on the complete installation and plumbing configuration.

What's the difference between left side and right side drain tanks?

The drain position refers to where the drain outlet is located when viewing the tank from a specific orientation. Left side vs. right side drain placement must match your RV's existing plumbing configuration for proper installation. Always verify your current tank's drain position before ordering a replacement.

Why Buy from Elkhart RV Parts?

As the only authorized online retailer for Elkhart Plastics RV tanks, we guarantee 100% authentic OEM grade parts - never aftermarket imitations. Every tank ships with verified quality certifications and meets the same exacting standards used by RV manufacturers. Our expert team understands RV plumbing systems and can help you select the right tank, fittings, and accessories for your specific installation. We offer fast shipping, secure packaging for large items, and comprehensive support from selection through installation.

Dimensioned Print and Gallery Views

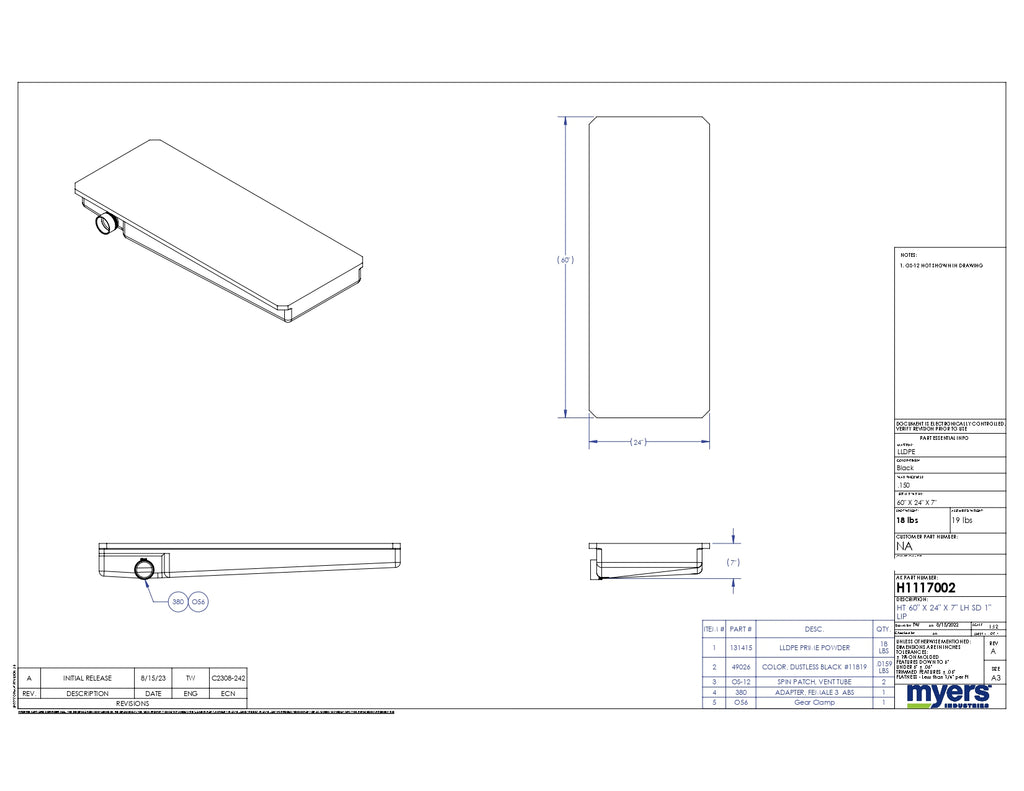

The original H1117002 drawing, revision A dated August 15, 2023, gives a 60 x 24 x 7-inch tank profile with a left-side drain and 1-inch lip. It specifies black LLDPE, 0.150-inch wall thickness, 18 lb shot weight and 19 lb assembled weight. Shot and assembled weights are not verified packed shipping weights. No capacity is stated on this print.

The parts list includes female 3-inch ABS adapter 380, gear clamp O56 and two OS-12 spin-patch vent tubes. OS-12 is explicitly not shown in the views, so its locations were not invented in the model.

The four views and rotatable model are print-based reconstructions, not measured manufacturing CAD. Undimensioned corner chamfers, body inset, outlet recess and projection, floor slopes and adapter/clamp exterior details are illustrative. Retain the original blueprint as the fitment reference.
