The retained Renegade drawing identifies Ameri-Kart H1027003 / Renegade 1600128 as a 75-US-gallon black holding tank. Compare its complete stepped profile and connection locations with your existing tank before ordering.
Features & Specifications
- Capacity: 75 Gallons
- Dimensions: 37" x 26-1/2" x 24-9/16"
- Outlet: 3" outlet with 2 x 1-1/4" FPT fittings (noted as "B" in drawing)
- Wall Thickness: 0.180" black polyethylene
- Part Numbers: Myers (EPI) # 1600128 / H1027003
- Material: High-density black polyethylene — UV-resistant and odor-resistant
- Compliance: Manufactured to meet quality and health safety standards
Why Choose This 75-Gallon RV Holding Tank?
The original Renegade drawing shows this specific part and its connection positions. A matching capacity or outer footprint alone does not establish interchangeability; check the part number, underside clearance and plumbing locations.
The 0.180" black polyethylene construction resists cracking, UV degradation, and chemical exposure from waste contents. With a 3" outlet and pre-installed 1-1/4" FPT fittings, this 75-gallon RV holding tank is shown in the original drawing; installation must match your RV plumbing.
Elkhart Plastics and Ameri-Kart are among the most trusted names in RV tank manufacturing — the same brands that OEM chassis builders rely on for new production units.
Compare RV Holding Tanks
Not sure if this is the right size? Here's how this 75-gallon unit compares to other holding tanks in our catalog:
| Model / Part # | Capacity | Dimensions (L x W x H) | Best For | View Details |
|---|---|---|---|---|
| 1600128 / H1027003 (This Item) | 75 Gallons | 37" x 26-1/2" x 24-9/16" | Renegade RV Replacement | Current Page |
| ICON H3979 / B50567 | 20 Gallons | 28" x 21" x 18" | Mercedes Freespirit 22SS | View Details |
| EPI 450H / H1260 | 9 Gallons | 22.5" x 16.5" x 9" | Compact RV / Class B | View Details |
Tip: Always verify your existing tank's part number and dimensions before ordering. Holding tanks are not universally interchangeable — outlet placement and mounting points vary by chassis.
Technical Specifications
| Part Number | 1600128 / H1027003 |
| Capacity | 75 Gallons |
| Dimensions (L x W x H) | 37" x 26-1/2" x 24-9/16" |
| Outlet Size | 3" |
| Included Fittings | 2 x 1-1/4" FPT fittings |
| Wall Thickness | 0.180" |
| Material | Black Polyethylene |
| Manufacturer | Elkhart Plastics / Ameri-Kart (Myers/EPI) |
| Primary Application | Renegade RV Holding Tank Replacement |
What's Included
- 1 x 75-gallon black polyethylene holding tank
- 2 x 1-1/4" FPT fittings (pre-installed, noted as "B" in manufacturer drawing)
- 3" outlet port
Compatible Models & Alternatives
This tank is a popular replacement for Renegade RVs (Rev Group). If you're unsure whether this is the correct tank for your unit, cross-reference your existing tank's part number (1600128 or H1027003) or measure your current tank's footprint against the 37" x 26-1/2" x 24-9/16" dimensions.
Browse related holding tanks and RV plumbing components:
Frequently Asked Questions
What RVs use the 1600128 / H1027003 holding tank?
This tank is a factory-specified holding tank used in Renegade RVs (Rev Group). Always verify by matching the part number stamped on your existing tank.
Is this a black water or gray water tank?
The retained drawing identifies a black holding tank. It does not establish universal gray-water interchangeability; match the part number and plumbing configuration.
What size outlet does this 75-gallon holding tank have?
It features a 3" outlet, which is the standard size for most RV waste systems. It also includes two 1-1/4" FPT fittings shown as ports B in the drawing.
How do I know if this tank will fit my RV?
Measure your existing tank's length, width, and height and compare to 37" x 26-1/2" x 24-9/16". Also verify outlet and fitting locations match your existing plumbing connections.
Does this tank ship via freight?
Due to its size and weight, this 75-gallon holding tank typically ships via freight carrier. Our team will contact you with freight details after your order is placed.
Is this an OEM-grade replacement part?
Yes. Elkhart Plastics/Ameri-Kart manufactures tanks to OEM specifications and health safety standards, making this a direct factory-equivalent replacement.
Why Buy from Elkhart RV Parts?
- Authorized distributor of Elkhart Plastics and Ameri-Kart products
- 100% authentic OEM-grade parts — no knockoffs or gray-market inventory
- Nationwide shipping including freight delivery for large tanks
- Rated 4.9/5 stars by verified customers
- Expert support available via AI Live Chat for fitment questions
Use our AI Live Chat to confirm compatibility with your specific RV model before purchasing. We're here to make sure you get the right tank the first time.
Dimensioned Print and Gallery Views
The retained Renegade drawing 18-0065, revision A dated July 20, 2021, identifies H1027003 /1600128, 75 US gallons, and overall dimensions of 37 x26 1/2 x24 9/16 inches. The upper body is 15 3/4 inches deep; the lower body is stepped, with a 12 1/2-inch lower width and a 2-inch setback.
Port A is the 3-inch outlet. The two B connections are 1 1/4-inch FPT ports, with drawing reference 70103SWF. The front view locates the outlet center 3 inches from the left edge. The B ports are located 20 1/2 and 8 1/4 inches from the right edge. The Tornado tank-flush location is 7 inches from the side-view right edge and 1 1/2 inches below the top. Use the full print for all height and clearance references.

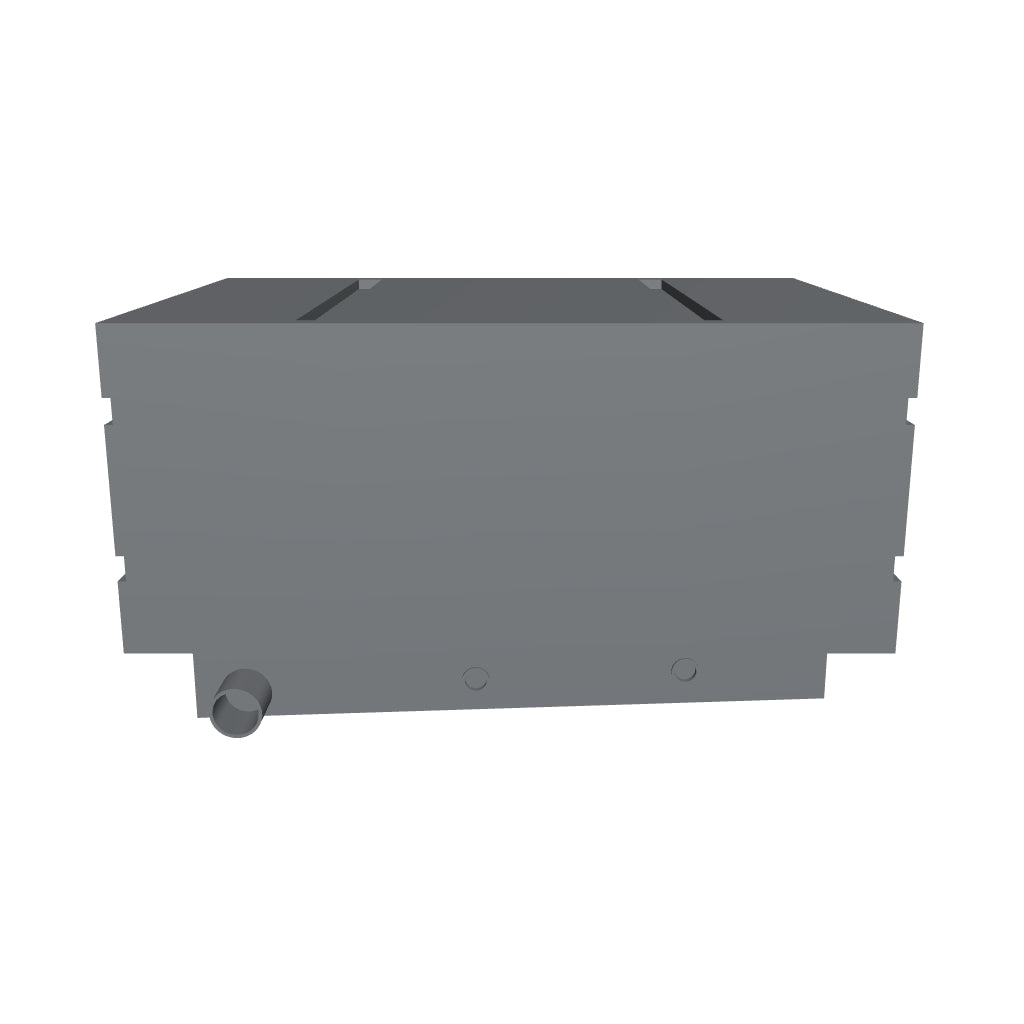

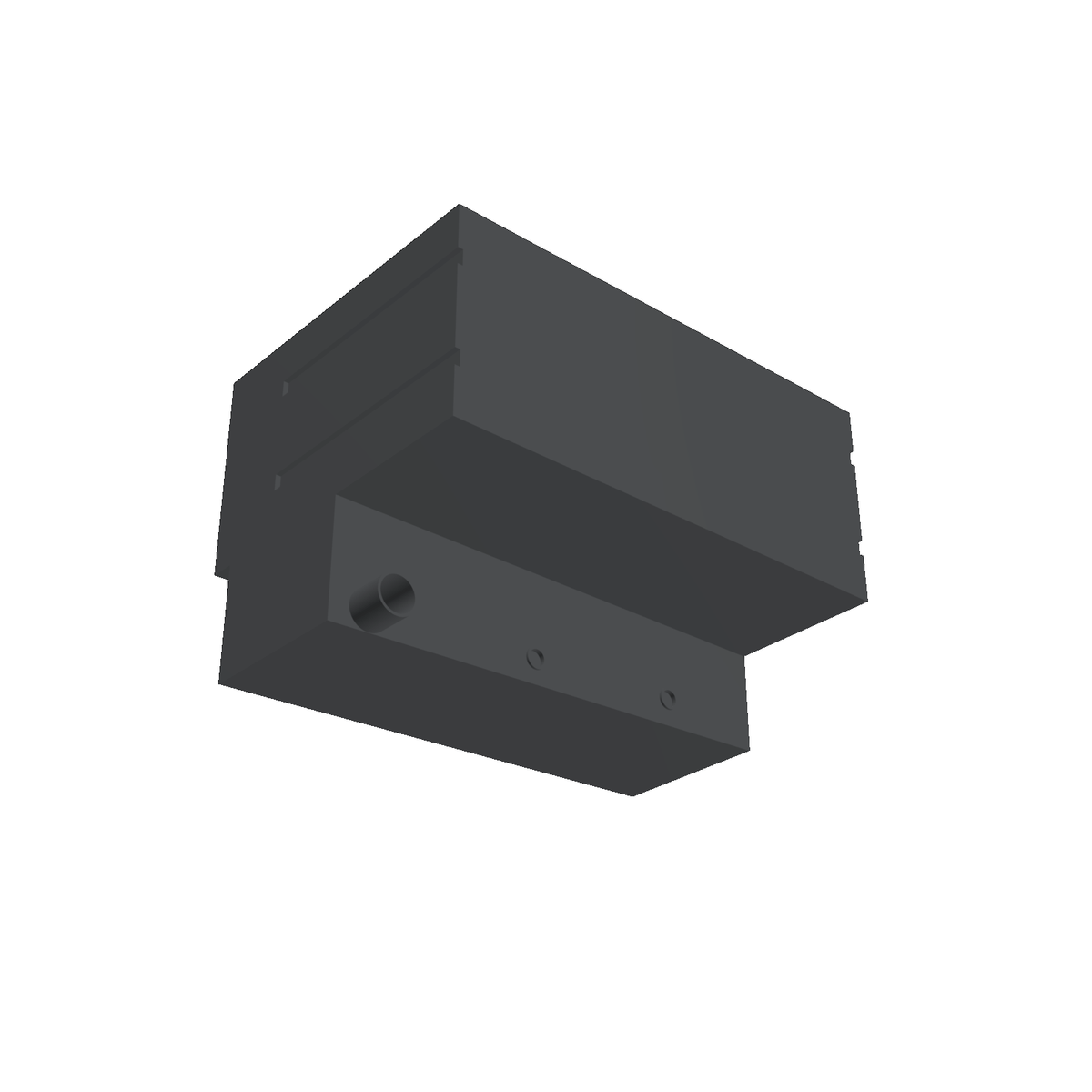

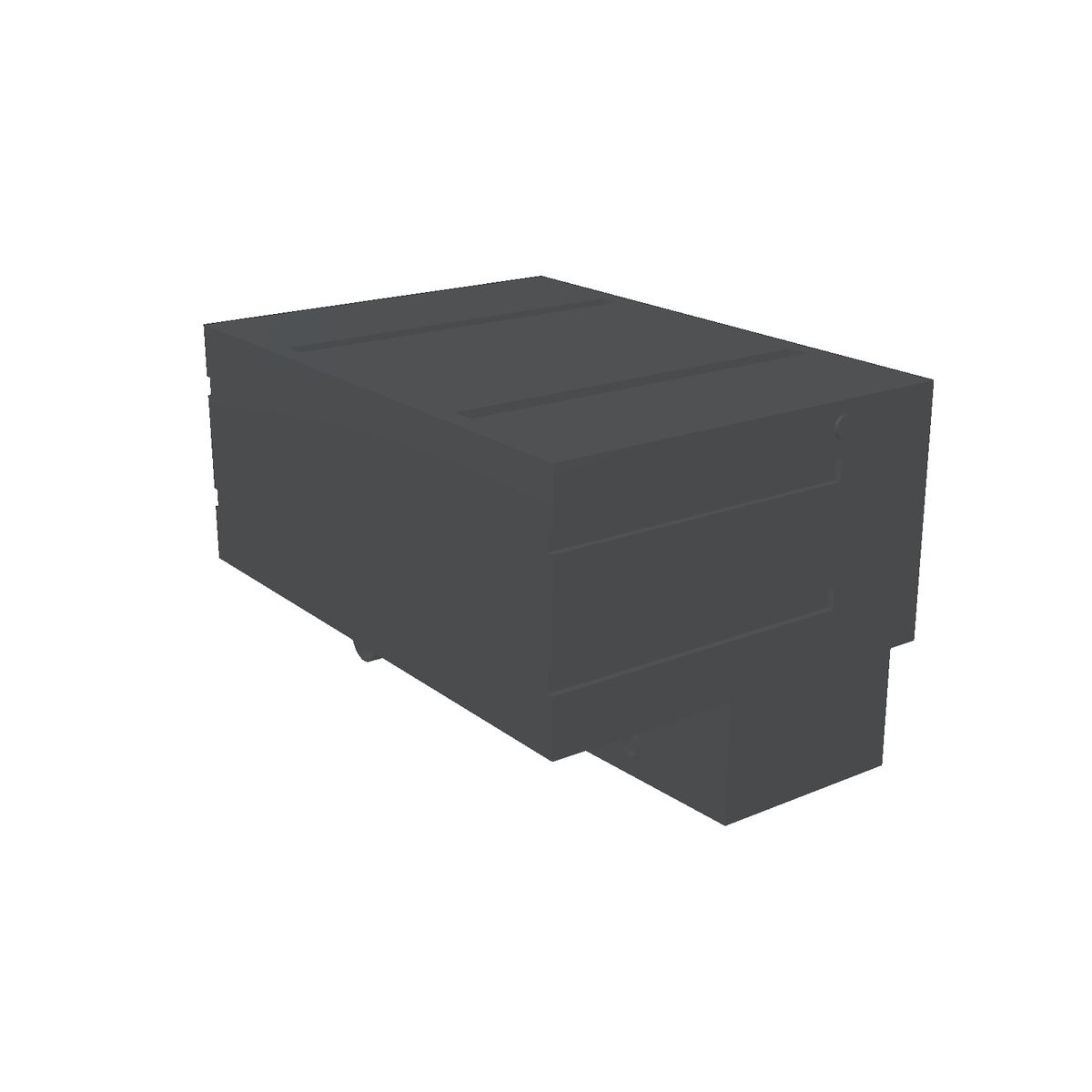

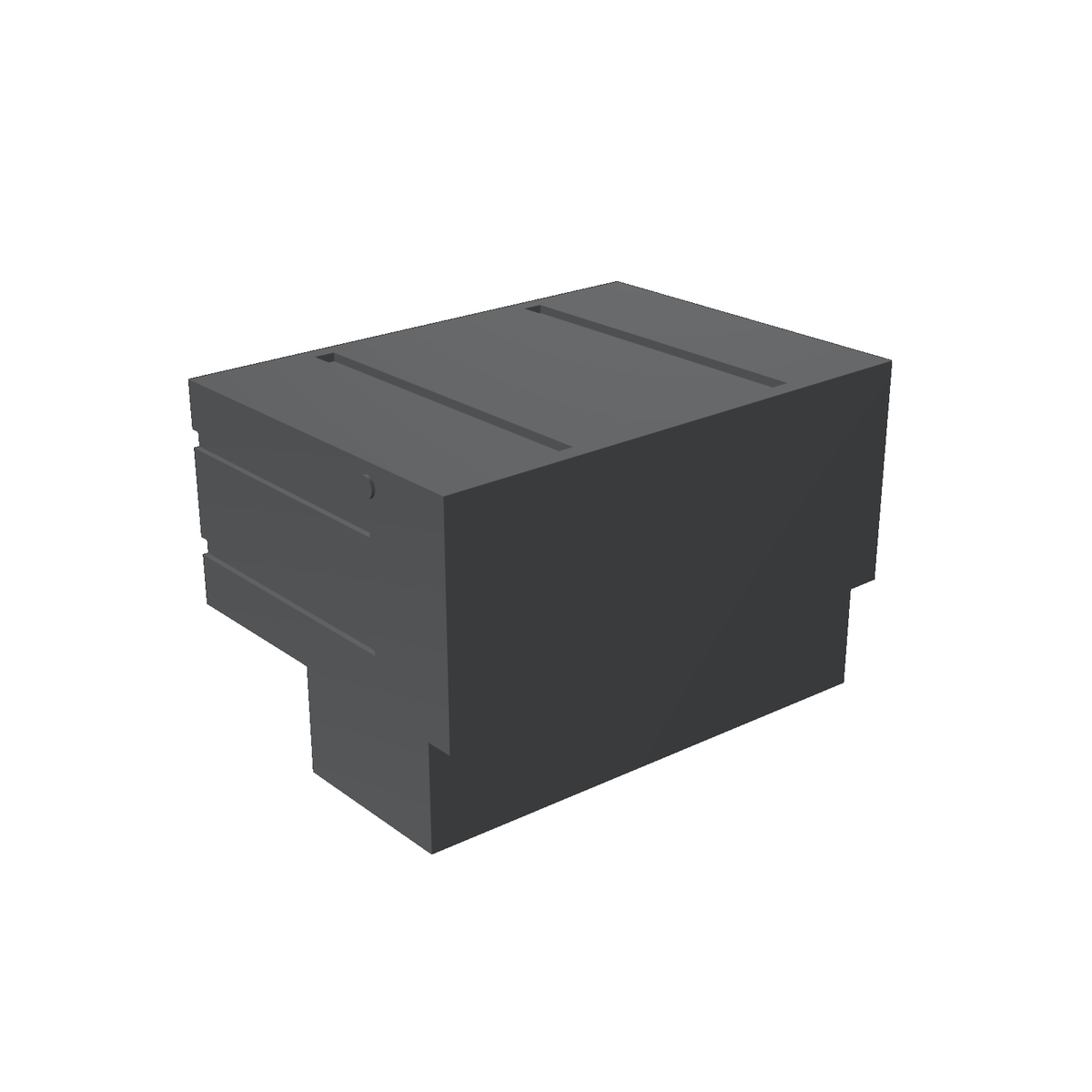

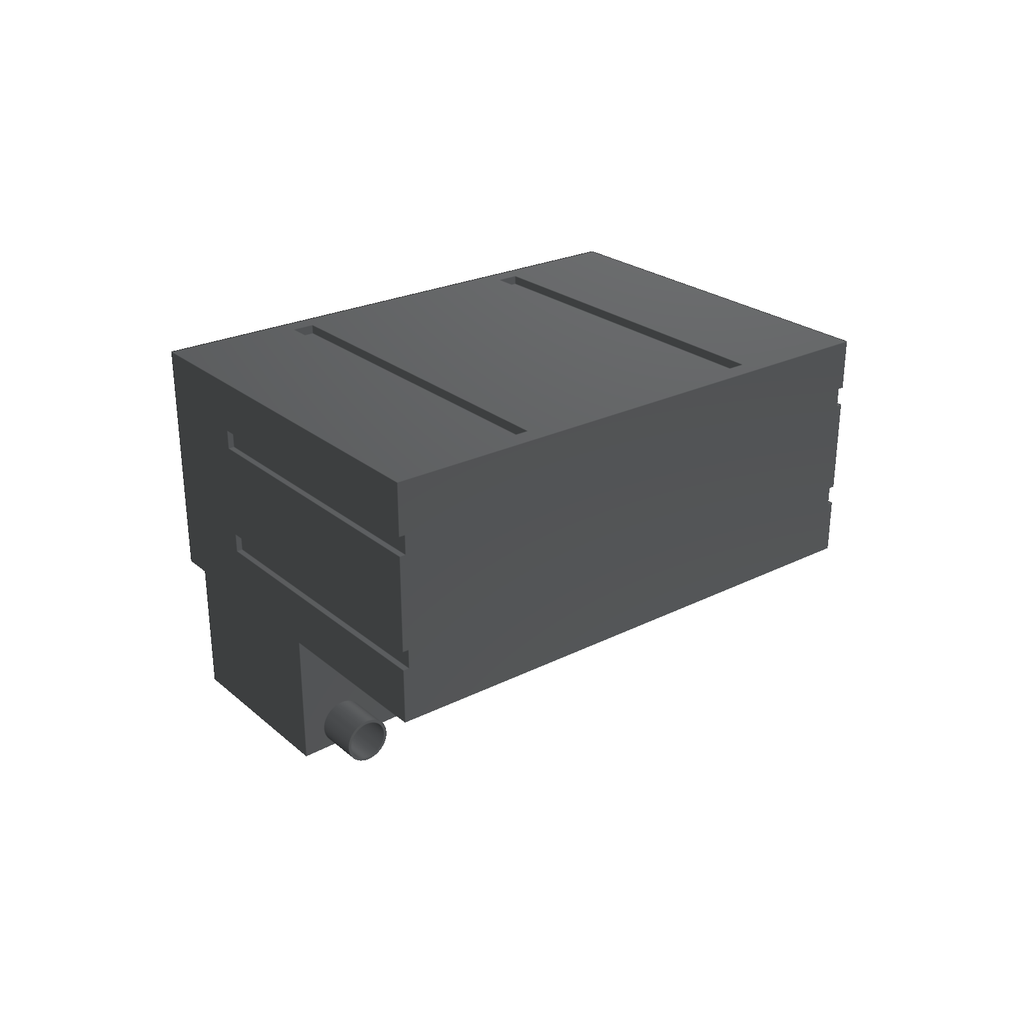

The four views and rotatable model are reconstructed from the print, not measured manufacturing CAD. Undimensioned channel proportions, corner treatment, floor transitions, connection projections and bores are illustrative; threads are not modeled. No top hole locations or level sensors were invented. The original dimensioned print remains the fitment reference.
| QAI Certification | REC 559-1 |
|---|---|
| Part number | 1600128/H1027003 |
| Capacity (gallons) | 75 |
| Dimensions (inches) | 37 x 26-1/2 x 24-9/16 |
| Lead time | |
| Best for | Renegade RV holding tank replacement |
- What is the capacity of this rv holding tank? The RV holding tank has a capacity of 75 gallons.
- What are the dimensions of the 75 gallon rv holding tank? The dimensions of the tank are 37 inches by 26-1/2 inches by 24-9/16 inches.
- What material is the holding tank made from? The tank is made from black polyethylene with a wall thickness of 0.180 inches.
- Does this holding tank come with any fittings? Yes, it includes 2 each 1-1/4 inch Female Pipe Thread (FPT) fittings.
- What does the original print show? Renegade drawing 18-0065 identifies Ameri-Kart H1027003 / Renegade 1600128 as a 75-US-gallon black holding tank. It shows a stepped lower body, a 3-inch outlet, two 1 1/4-inch FPT ports and an end-face Tornado tank-flush location.
