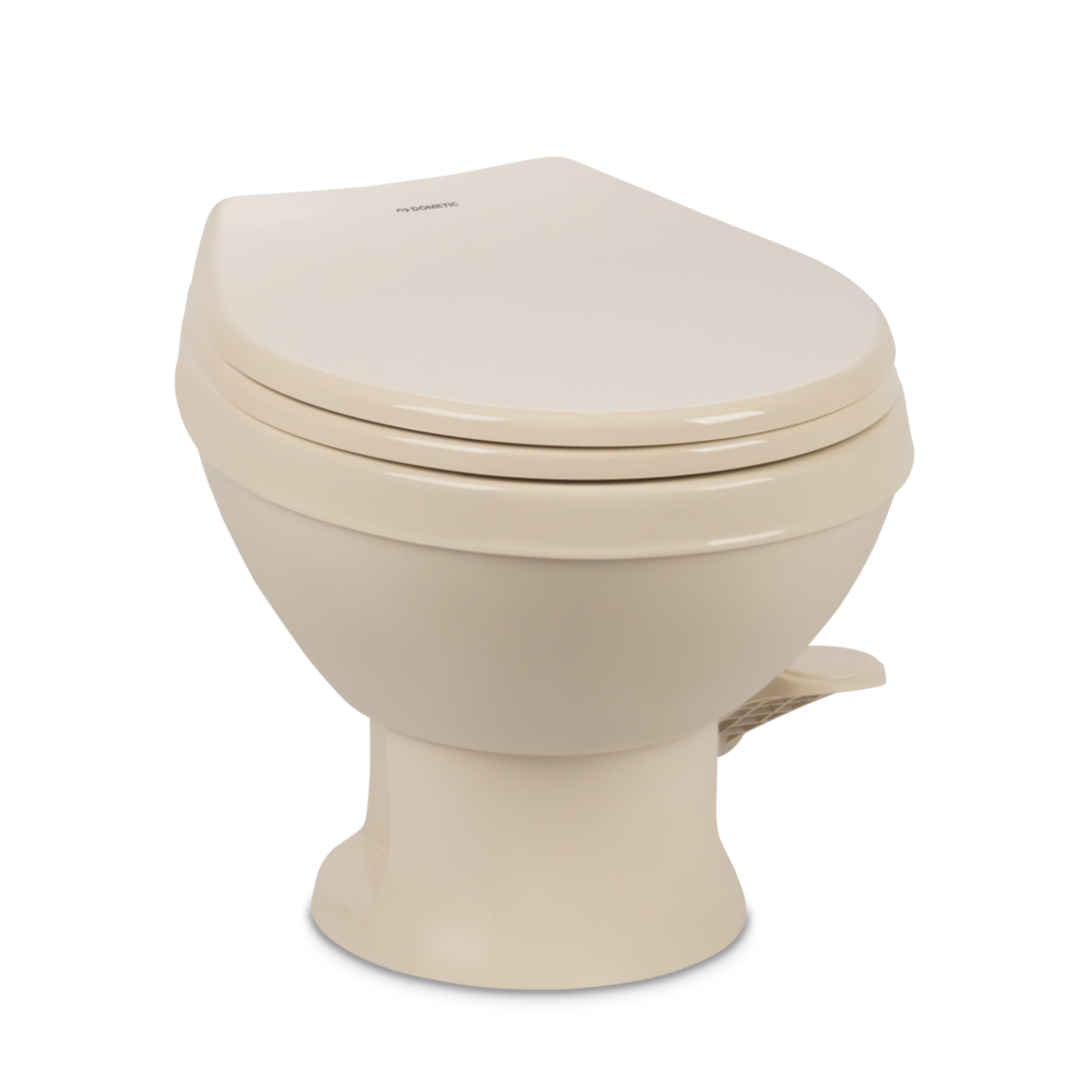

Dometic GV401 RV Toilet - Bone - Gravity Flush - Part# 9610008279
Key Features

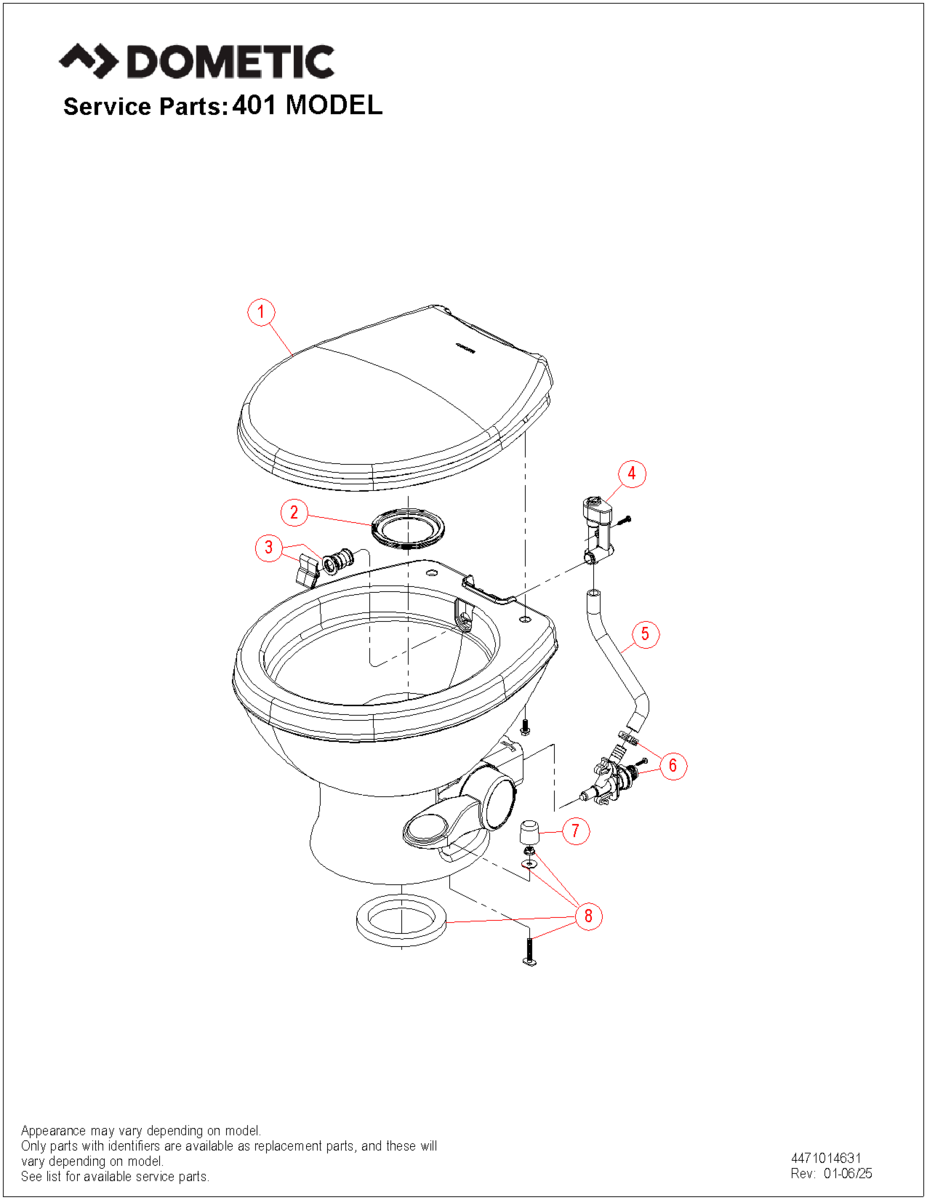

SPARE PARTS
Select your PNC How to find the right PNC PNC ID PNC PERSISTENT ID MODEL ON LABEL 970335751 970335751 401
WARRANTY INFORMATION
Please see Warranty Policy and Procedures Manual for further information from the date of sale.
DOCUMENTS
Download
COMPACT FIT. STRONGER BUILD. GREATER COMFORT.
Designed with a shortened rear profile, the 400 Series reclaims valuable bathroom space while delivering 2X the front-load strength of leading competitors. Every model provides residential-style seating and quiet, soft-close comfort in a compact footprint.
ONE PLATFORM. MULTIPLE OPTIONS.
The Dometic 400 Series offers plastic or porcelain bowls and round or elongated models. A shared mounting pattern does not guarantee a direct replacement: compare the exact model, floor flange, water connection and available bathroom space before ordering.
SIMPLIFIED INSTALLATION & SERVICE.
These gravity-flush toilets install directly above an RV waste holding tank. Dometic specifies a minimum 7-5/8-inch rough-in from the floor-flange centerline to the back wall and recommends 8 inches. Check door swing and foot-pedal clearance. A floor-fed water line requires an elbow adapter kit; a four-bolt installation requires a universal mounting kit. A recessed floor flange may require a taller seal. Follow the linked installation manual for the existing flange and water supply.
PROVEN PERFORMANCE, ASSEMBLED IN THE USA.
Each model is tested to withstand 150,000 flush cycles and 2X competitor weight load capacity, reducing claims and ensuring reliability on the road. Assembled in the USA, the 400 Series delivers consistent quality, faster supply, and reliable performance.
COMPACT FIT. STRONGER BUILD. GREATER COMFORT.
The Dometic Essential 401 is a low-profile, foot-pedal-operated gravity-flush RV toilet with a round polypropylene bowl and base. It has a soft-close seat and lid. Check the installation requirements in the linked manual against your existing toilet and bathroom before choosing a replacement.
Specifications
General
| SKU / Part Number | 9610008279 |
Performance
Logistics
Documents & Downloads
PDF — Click to view or download 📄 SHORT OPERATING MANUAL Dometic 400-421 Series - Short Operating Manual AMER3
PDF — Click to view or download 📄 PRODUCT LEAFLET 400 Series Toilets AM Leaflet
PDF — Click to view or download
| Brand | Dometic |
|---|---|
| Model | GV401 |
| Product type | RV Toilet |
| Part number | 9610008279 |
| Finish color | Bone |
| Flush type | Gravity Flush |
| Power required | No (Electric-Free) |
| Installation type | Replacement requires fit checks |
| Compatible models | GV401 BNE |
| Oem part | Yes |
| Installation notes | Check the flange, water connection, rough-in and clearances. Follow Dometic instructions; discard existing floor-mounting T-bolts. Floor-fed lines require an elbow adapter kit and four-bolt installations require a universal mounting kit. |
Product Documents & Manuals
