CPI LD69L Spinweld Drive Tool — Verify Patch and Shank Fit
Ready to order
CPI LD69L Spinweld Drive Tool — Verify Patch and Shank Fit
---
Identify the LD69L driving tool before choosing a patch
This listing is for one CPI spin-weld driving tool recorded under operational SKU LD69L. The patch is sold separately. The prior store description associated it with #69 and #69L patches and described a 4-1/2-inch patch and 3-1/8-inch hole. Those are legacy patch/application labels, not verified dimensions of this tool or confirmed cutting instructions. An exact manufacturer LD69L cross-reference, engagement drawing and stock measurement have not been verified.
Patch identity and engagement remain unconfirmed
CPI's manufacturer #69 detail identifies a patch with a 3.120-inch pilot and 4.500-inch outside diameter. It does not identify LD69L, define the L suffix or establish that the store's #69 and #69L use this same driver. The 69L listing has its own unresolved pilot and closed/open-center configuration claims. A similar name, shared outside-diameter label or close numerical hole size does not establish a matching tool.
Before selecting equipment, confirm the actual patch part number, driving-post or recess geometry, spacing, engagement depth, clearances and matching driver specification. Exact LD69L body diameter, thickness, overall length, shaft diameter, shaft length, runout and engagement dimensions are unverified. Do not use a patch's nominal diameter as the tool's width. No compatibility with #50, #76, #51AD, #71B or another patch is established by the former comparison table.
What the current image can show

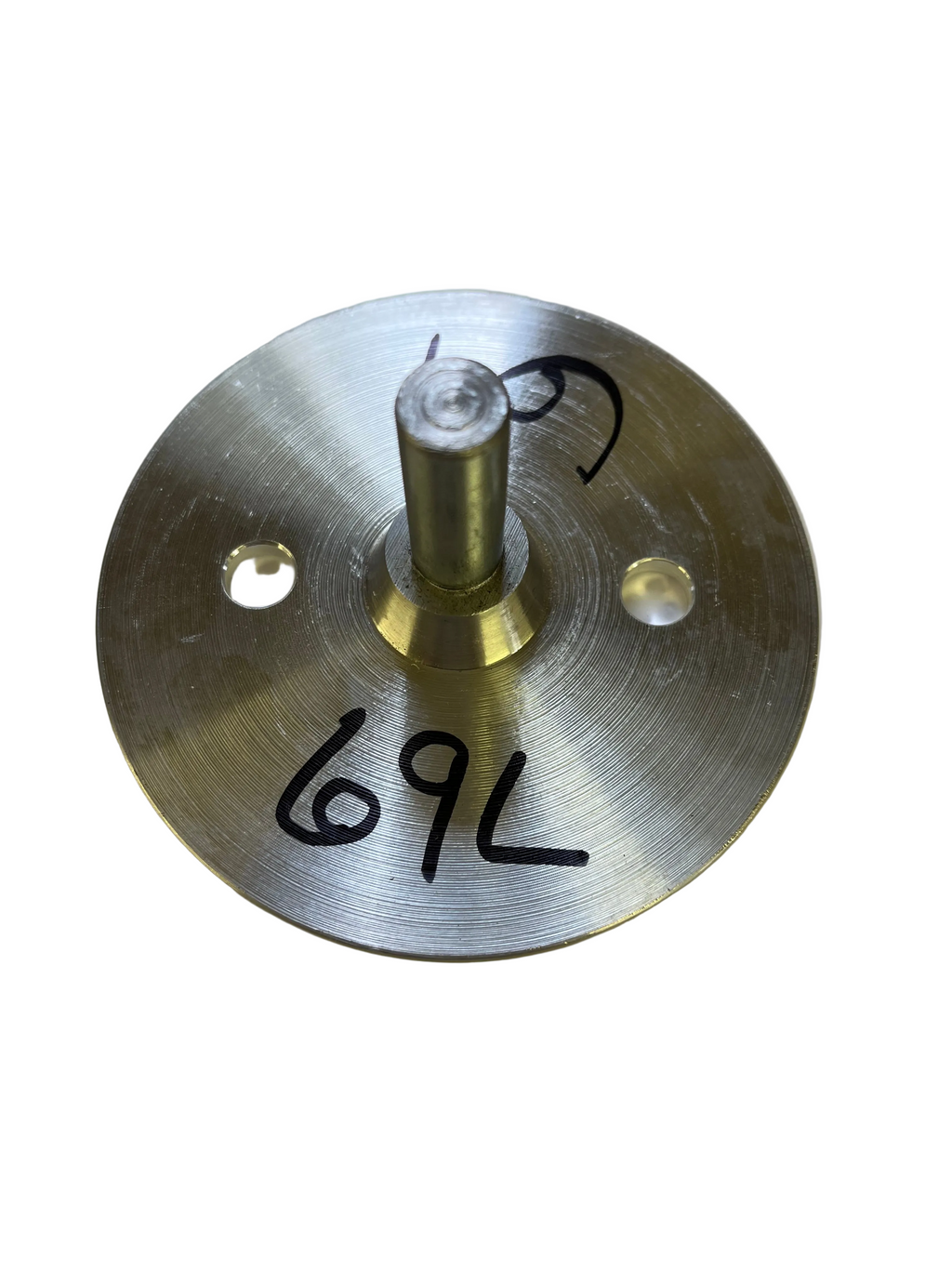

The current image shows a circular metallic-looking face, a central cylindrical shaft, two holes and a handwritten 69L marking. There is no measurement scale or view proving the mating face, hole spacing or working clearance. Its catalog image metadata labels it representative rather than an exact product photograph, so provenance and actual supplied geometry remain unconfirmed. The photograph does not certify dimensions, alloy, shaft size or a patch pairing.
Router, shank and installation requirements
CPI's general driving-tool description describes aluminum bodies with steel shanks and notes that shanks can be made to specified sizes. This is general manufacturer information, not a verified material certificate or shank measurement for stocked SKU LD69L. Confirm the actual shaft and correct collet engagement before selecting a router.
CPI's spin-welding process guidance uses suitable electric routers and states a general 18,000–25,000 RPM range. It gives power and shank groups by fitting size; those groups do not establish LD69L's exact shaft, router model or weld settings. CPI does not recommend a hand drill, drill press or pneumatic router for this process. The former drill-driven installation instructions are not supported.
Spin welding requires compatible fitting and tank materials, a suitable flat sound weld area and free rotation of the fitting and tool. CPI calls for an opening slightly larger than the actual fitting pilot; it does not make the legacy 3-1/8-inch label an approved hole-saw instruction for every #69 or #69L. CPI does not recommend spin welding cross-linked polyethylene. A qualified installer must confirm the patch, tank, opening, driver and equipment together before cutting or welding.
Included scope and service limits
The recorded sale is tool only. No patch, router, collet, tank, adhesive, sensor or repair kit is identified as included. Exact tool material, dimensions, tank-model fit, wall limits, process settings and service ratings remain unconfirmed. A tool does not establish fresh-water, potable-water or holding-tank certification, and no leak-free repair result is guaranteed.
Separate listings for identification
- CPI 69L patch listing: review its qualified dimensions and differing gallery configurations; LD69L fit is unconfirmed.
- Separate CPI #69 drive-tool listing: a distinct operational SKU, not a verified equivalent or replacement for LD69L.
These links support identification only. Do not choose a patch, tank or driver from a shared brand, similar number or automatic recommendation without confirming the exact mating geometry and installation requirements.
| Operational sku | LD69L |
|---|---|
| Store vendor | CPI |
| Listed component | Spin-weld driving tool |
| Sale scope | One tool only; patch separate |
| Legacy patch label | 4-1/2 inches; not a measured tool diameter |
| Legacy hole label | 3-1/8 inches; not a confirmed cutting instruction |
| Patch pairing | #69 / #69L unconfirmed; no exact LD69L cross-reference verified |
| Separate #69 tool | Distinct catalog SKU; equivalence to LD69L unverified |
| Engagement geometry | Post/recess form, spacing, depth and clearance unverified |
| Tool dimensions | Body diameter, thickness and overall length unverified |
| Shank / collet | Actual diameter, length and engagement unverified |
| General manufacturer materials | Aluminum body / steel shank; exact stock material unconfirmed |
| General process equipment | Suitable electric router; exact LD69L setup unverified |
| Hand drill / drill press | Not recommended by CPI |
| Tank preparation | Compatible materials, sound flat weld area and free rotation required |
| Unverified limits | Tank-model fit, wall limits, weld settings, service and potable-water ratings |
- What size patch does the drive tool ld69l work with? The former store label describes a 4-1/2-inch patch and 3-1/8-inch hole, but exact LD69L engagement and patch compatibility are unconfirmed. These are not measured tool dimensions or a cutting instruction. Confirm the actual patch geometry and driver specification.
- Is the ld69l drive tool compatible with patch #69 and #69l? No exact manufacturer LD69L-to-#69 or #69L pairing is verified. CPI publishes #69 patch dimensions but does not identify this driver or define the L suffix. Similar labels do not prove engagement, clearance or interchangeability.
- What type of product is the ld69l? It is listed as one spin-weld driving tool under operational SKU LD69L. Exact shaft, mating geometry, body dimensions and stock material remain unverified. It is not the patch or a complete repair kit.
- Who is the vendor for the drive tool ld69l? The store vendor is CPI. CPI publishes general spin-weld tool and process guidance, but the exact LD69L manufacturer cross-reference and engagement drawing have not been verified.
- Does the ld69l include the patch or is it only the tool? The recorded sale is one tool only. The patch is separate; no router, collet, tank, adhesive, sensor or kit is identified as included. Confirm the actual contents and matching equipment before selection.
- Can i run this tool in a hand drill or drill press? CPI does not recommend a hand drill or drill press because the process requires high speed. Its general guidance describes electric routers at 18,000–25,000 RPM and size-based power/shank groups, not verified settings or a shaft specification for LD69L. Confirm the exact driver, shaft and collet first.
- Does the image verify the shaft size and material? No scale or mating-face view is provided. The image shows a circular face, central shaft, two holes and handwritten 69L marking, while its metadata calls it representative. CPI generally describes aluminum tool bodies and steel shanks, including custom sizes; actual LD69L dimensions and material remain unconfirmed.
- Will it repair any fresh-water or holding tank without leaks? No universal tank fit or repair result is established. Verify compatible tank and fitting materials, sound flat weld area, actual pilot clearance, matching driver and process. CPI does not recommend spin welding cross-linked polyethylene. Potable-water certification and service ratings are unconfirmed.
