Alpha - 77 Gallons Fresh Water Tank - 61" x 44 1/2" x 8 1/2" * - VR44617WBLANK
Pairs well with
Ready to order
Alpha - 77 Gallons Fresh Water Tank - 61" x 44 1/2" x 8 1/2" * - VR44617WBLANK
Frequently needed together
- This item: Alpha - 77 Gallons Fresh Water Tank - 61" x 44 1/2" x 8 1/2" * - VR44617WBLANK $714.17
- Elkhart RV Parts - Universal Fresh Water Tank Fittings Kit with Water Level Sensors for RV Tanks $44.95
- Adcoseal - B-100 Butyl Rubber Sealant - 10.3 oz Cartridge - Black - Exterior RV Tank Sealant $28.95
Total price $788.07
---
- 100% Authentic OEM-Quality Parts: These rotational molded fresh water tanks are crafted to meet or exceed factory standards, making them a perfect upgrade or replacement for your RV, horse trailer, or marine vessel.
- Premium FDA-Approved Material: Made from high-quality, durable polyethylene that's fully approved for safe drinking water storage—better than many stock tanks installed in factory-built RVs.
- Seamless One-Piece Construction: Engineered without seams or joints for superior strength and leak-proof reliability, outlasting and outperforming typical OEM tanks.
- Stain, Corrosion, and Rust Resistant: Designed to stay clean and functional even after years of use, ensuring your water stays fresh and your tank stays dependable.
- Versatile Compatibility: Ideal for RV enthusiasts, horse trailer owners, or marine adventurers looking for a long-lasting, hassle-free water storage solution.
- Enhanced Durability: Built tougher than many standard factory-installed tanks, offering peace of mind whether you're replacing an old tank or upgrading your setup.

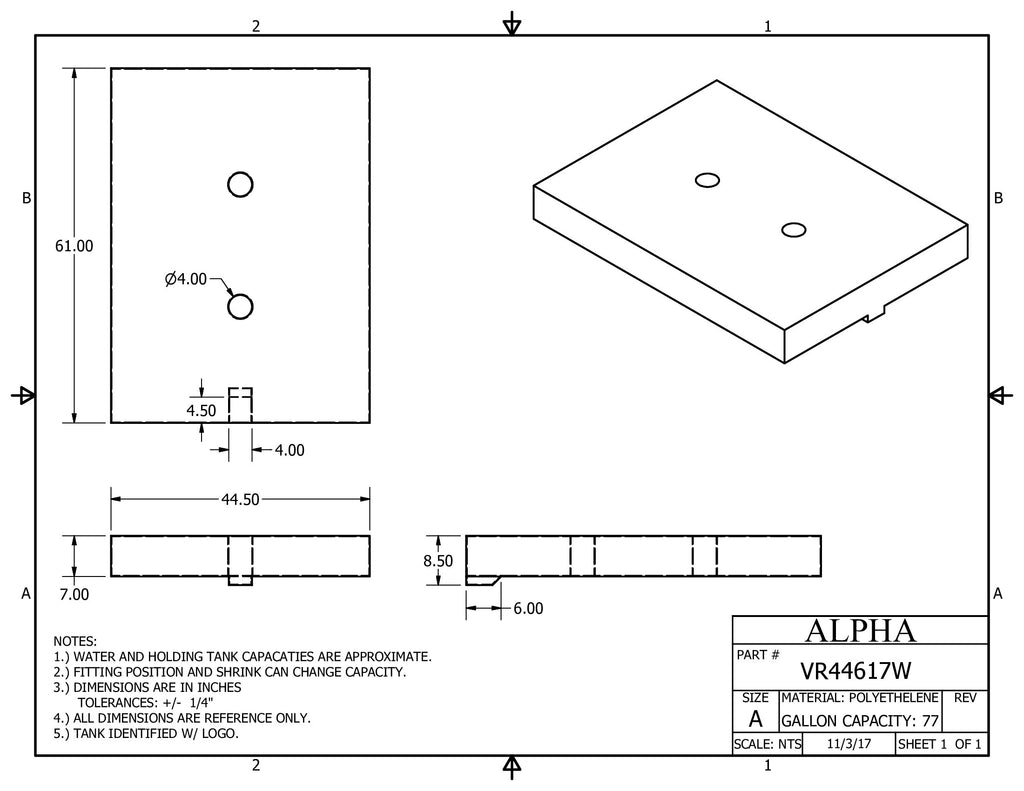

Original Blueprint and Gallery Views
The retained Alpha VR44617W drawing dated November 3, 2017 specifies approximately 77 US gallons and a 61 x 44.5-inch plan. The body is 7 inches deep and the lower projection gives an 8.5-inch maximum depth. The lower section is 4 inches wide, with a 4.5-inch flat and a 6-inch total terminal run. The drawing shows two 4-inch circular passages with wall lines continuing through the body. These molded features are represented in the gallery model; no separate plumbing fittings are added. Allow clearance for the lower profile.

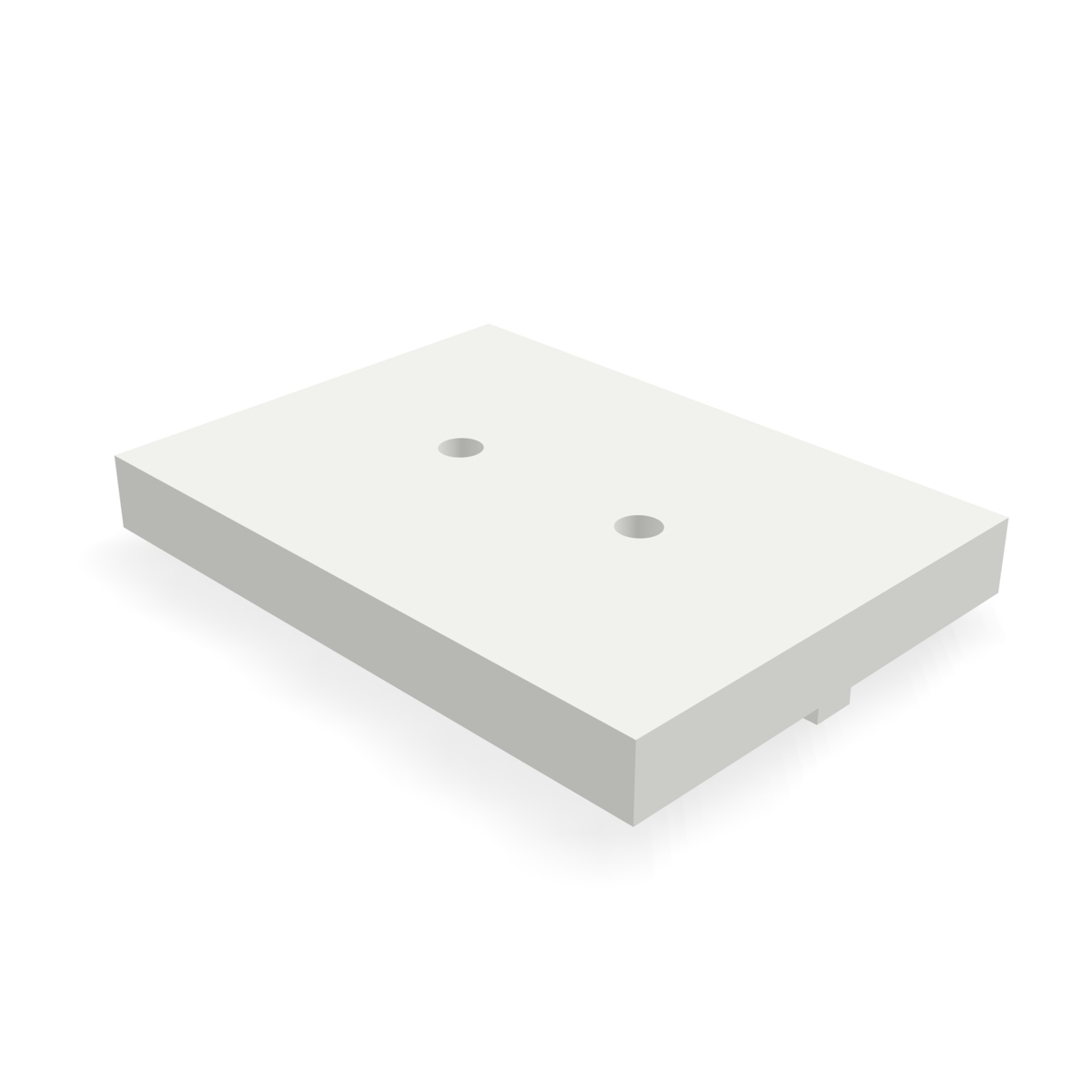

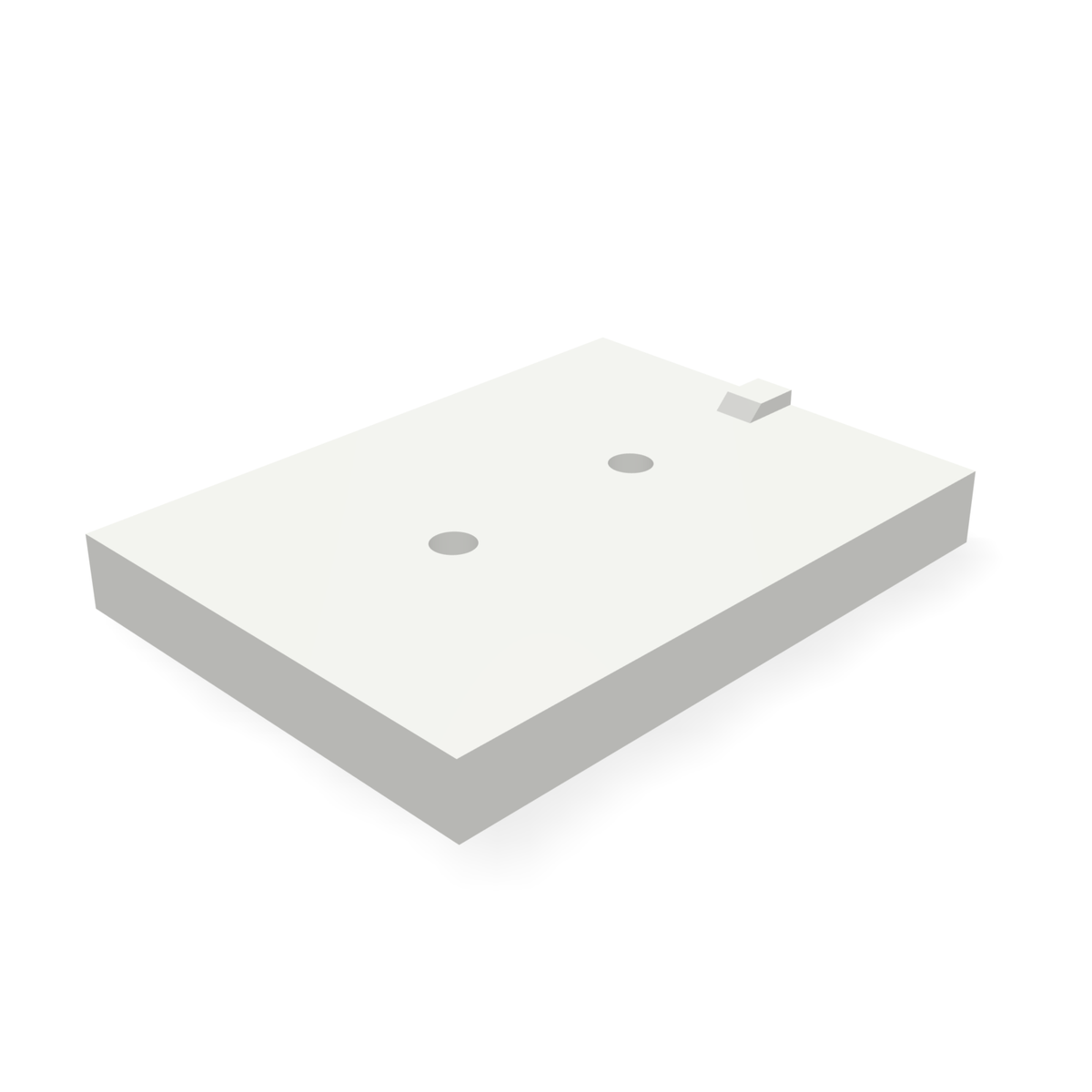

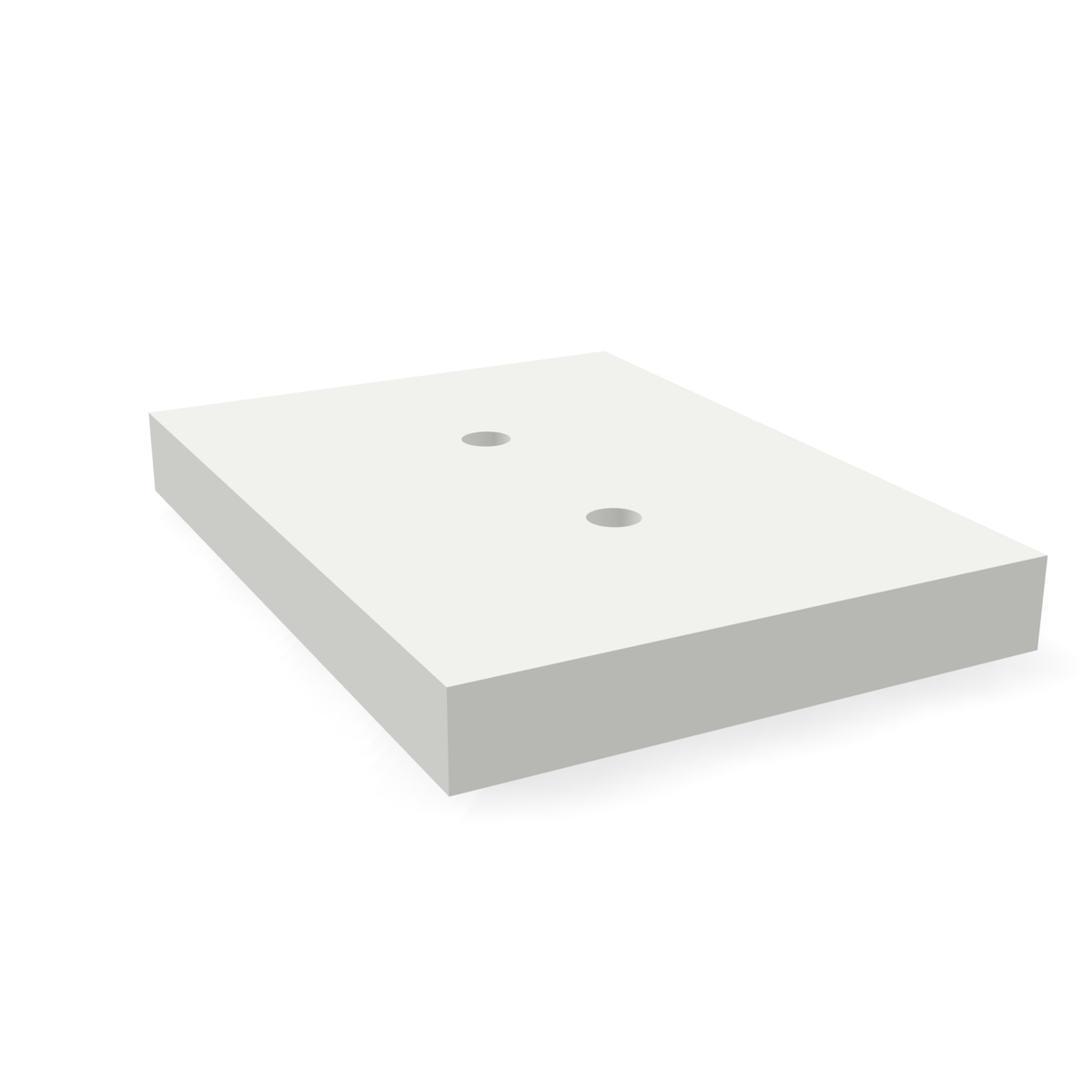

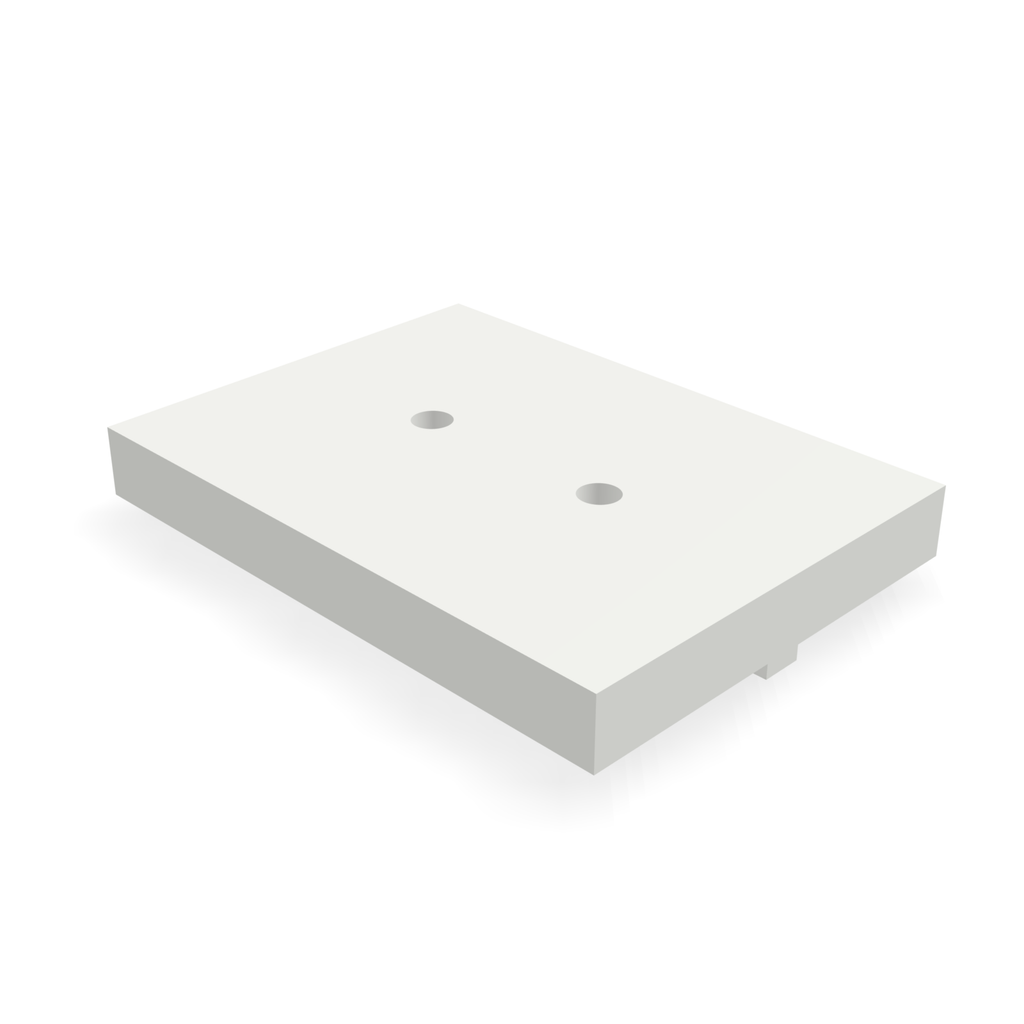

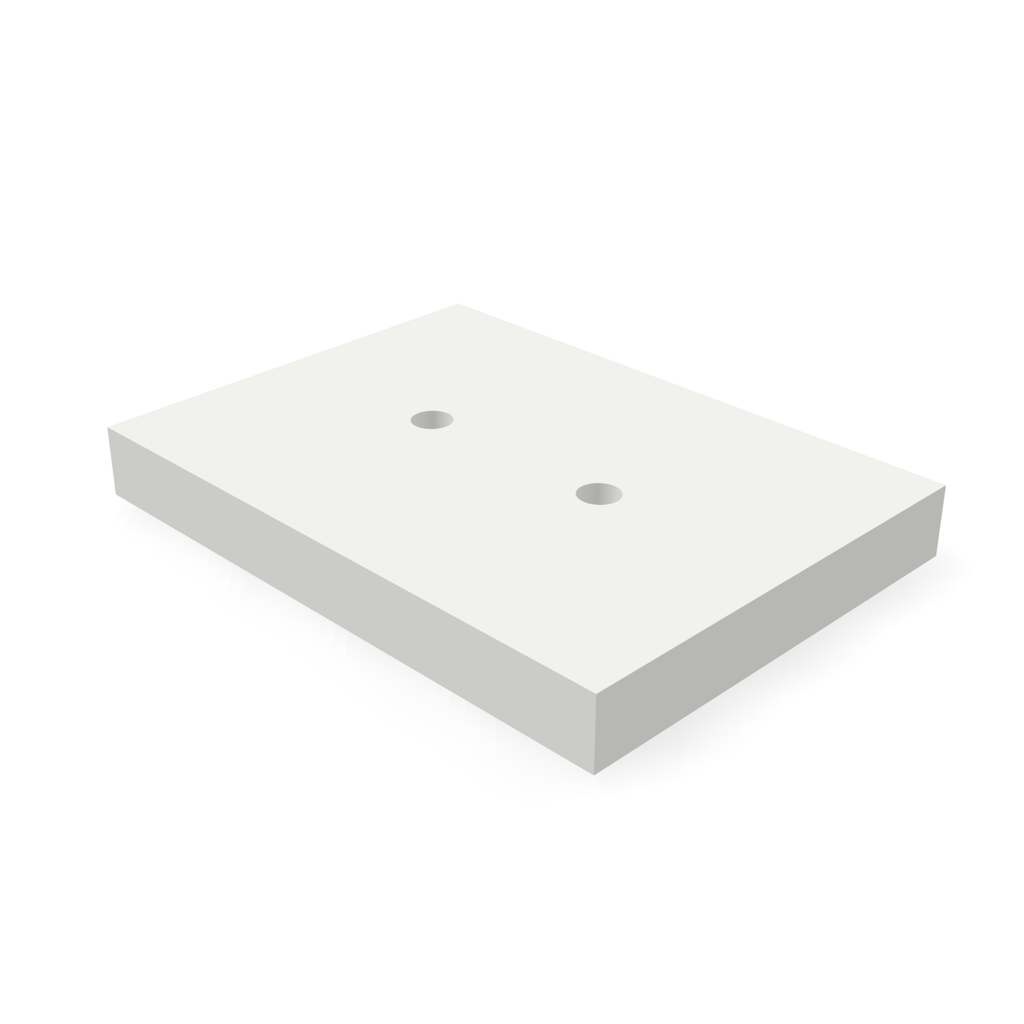

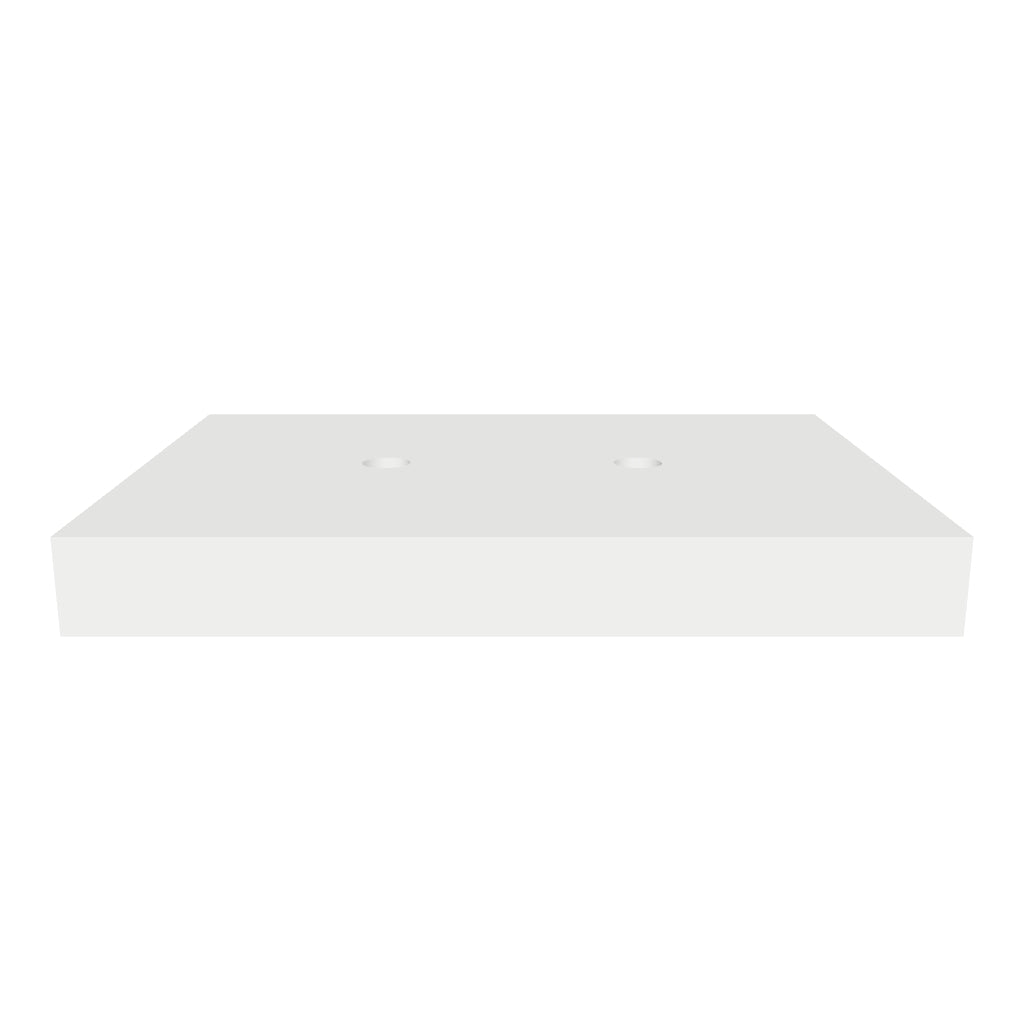

The four shadowed views and native rotatable model reconstruct this individual print. Passage centers are traced from the plan view, not separately dimensioned, so verify exact placement against the original part before installation. Natural polyethylene color and finish are illustrative. The underside view is flipped for display. Reference dimensions have ±1/4-inch tolerance and capacity is approximate. Use the original drawing and exact part identity to verify fitment; this is not measured manufacturing CAD.
| Product type | Fresh Water Tank |
|---|---|
| Brand | Alpha |
| Model | VR44617WBLANK |
| Capacity | 77 Gallons |
| Dimensions | 61" x 44 1/2" x 8 1/2" |
| Material | Polyethylene |
| Construction type | Seamless One-Piece Rotational Molded |
| Fda approved | true |
| Suitable for | RVHorse TrailerMarine Vessel |
| Quality standard | OEM-Quality |
- What is the capacity of the alpha fresh water tank? The Alpha fresh water tank has a capacity of 77 gallons.
- What are the dimensions of this fresh water tank? The tank measures 61 inches in length, 44 1/2 inches in width, and 8 1/2 inches in height.
- Is the material used for this tank safe for storing drinking water? Yes, the tank is made from premium FDA-approved polyethylene material, making it safe for storing drinking water.
- Does this water tank have seams or joints that might leak? No, the tank features a seamless one-piece construction which ensures superior strength and leak-proof reliability.
- Can this fresh water tank be used for rvs and marine vessels? Yes, it is designed to be versatile and compatible with RVs, horse trailers, and marine vessels.
