Alpha - 44 Gallons Fresh Water Tank - 63" x 24" x 9 1/4" * - VR24637WBLANK

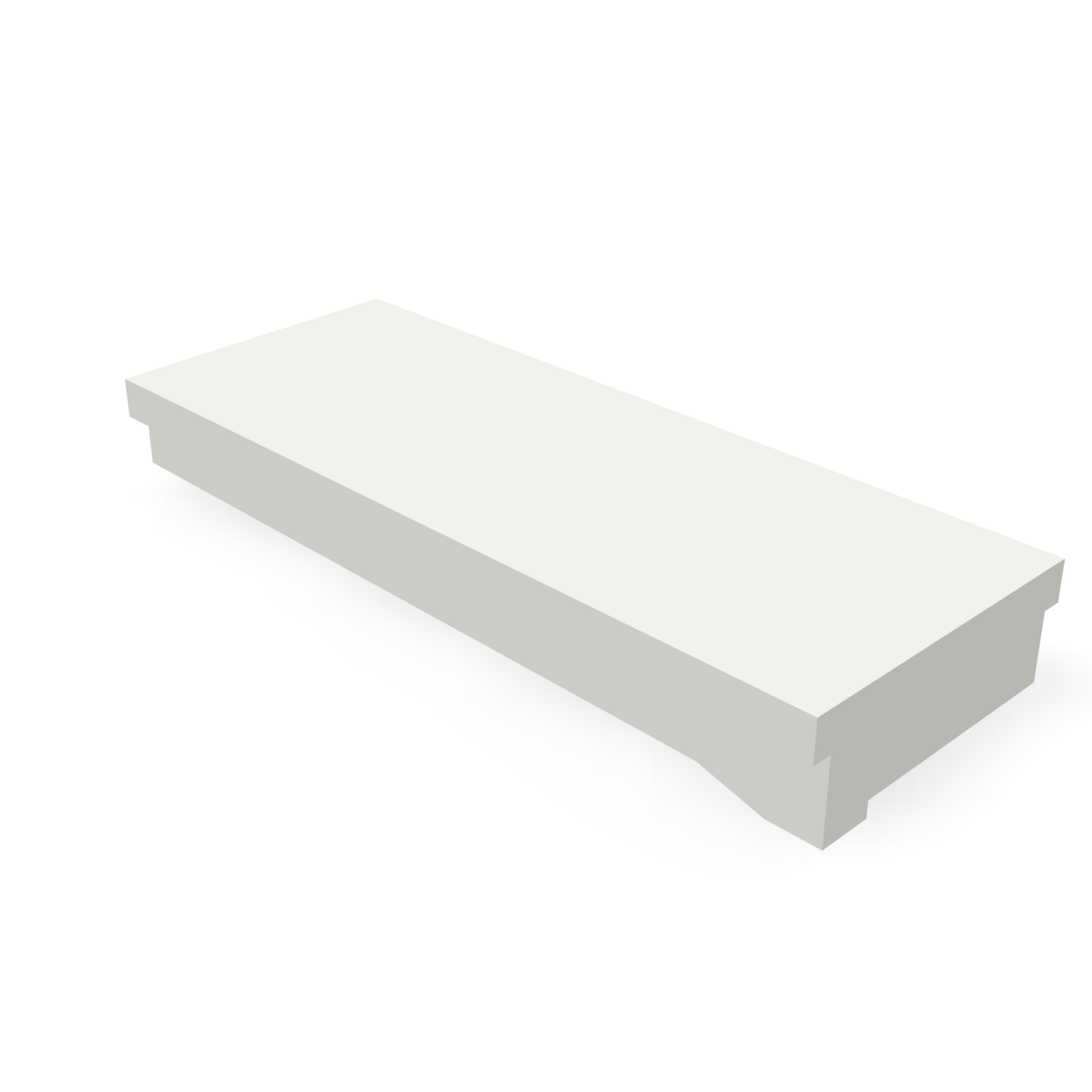

Alpha VR24637WBLANK — print-based front view

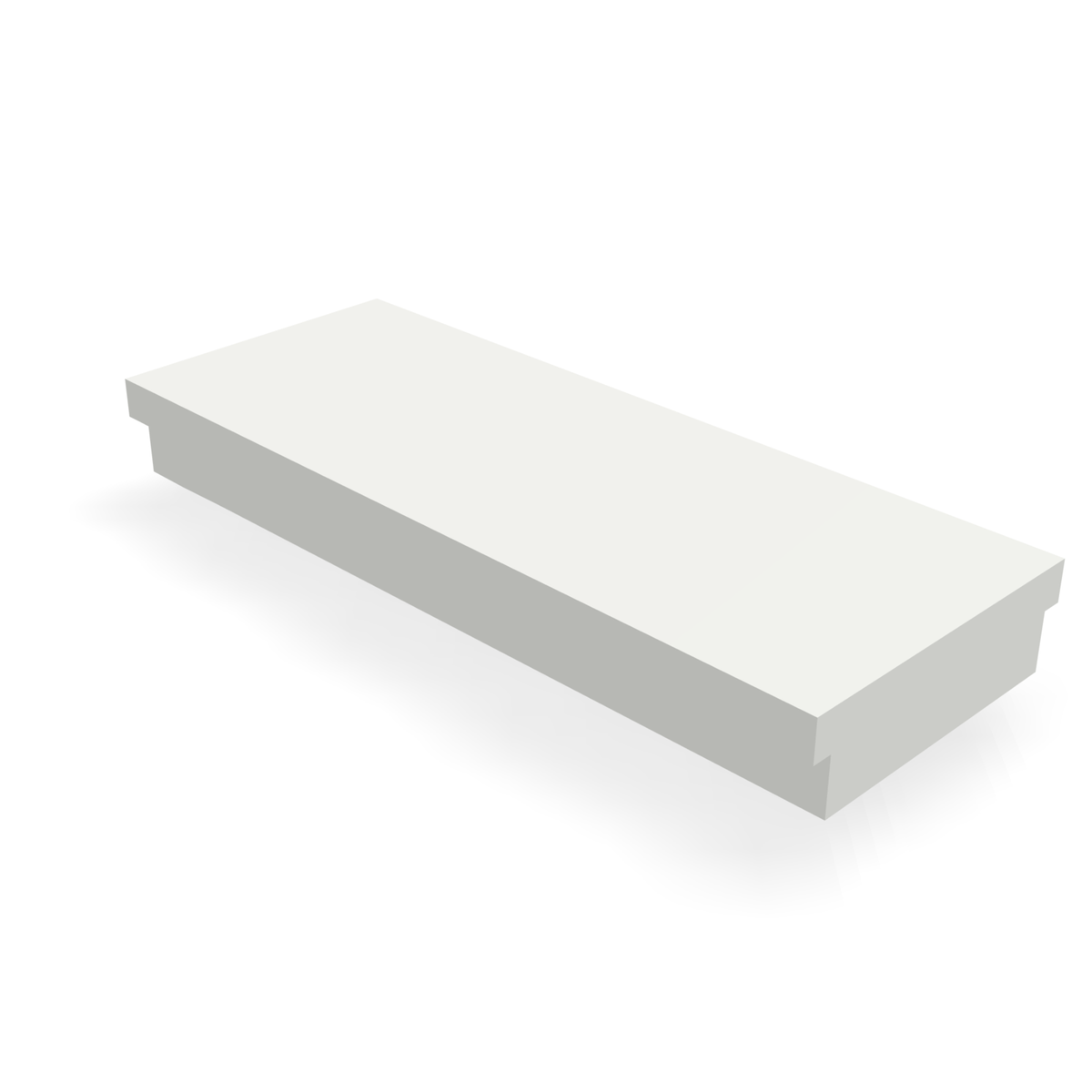

Alpha VR24637WBLANK — print-based rear view

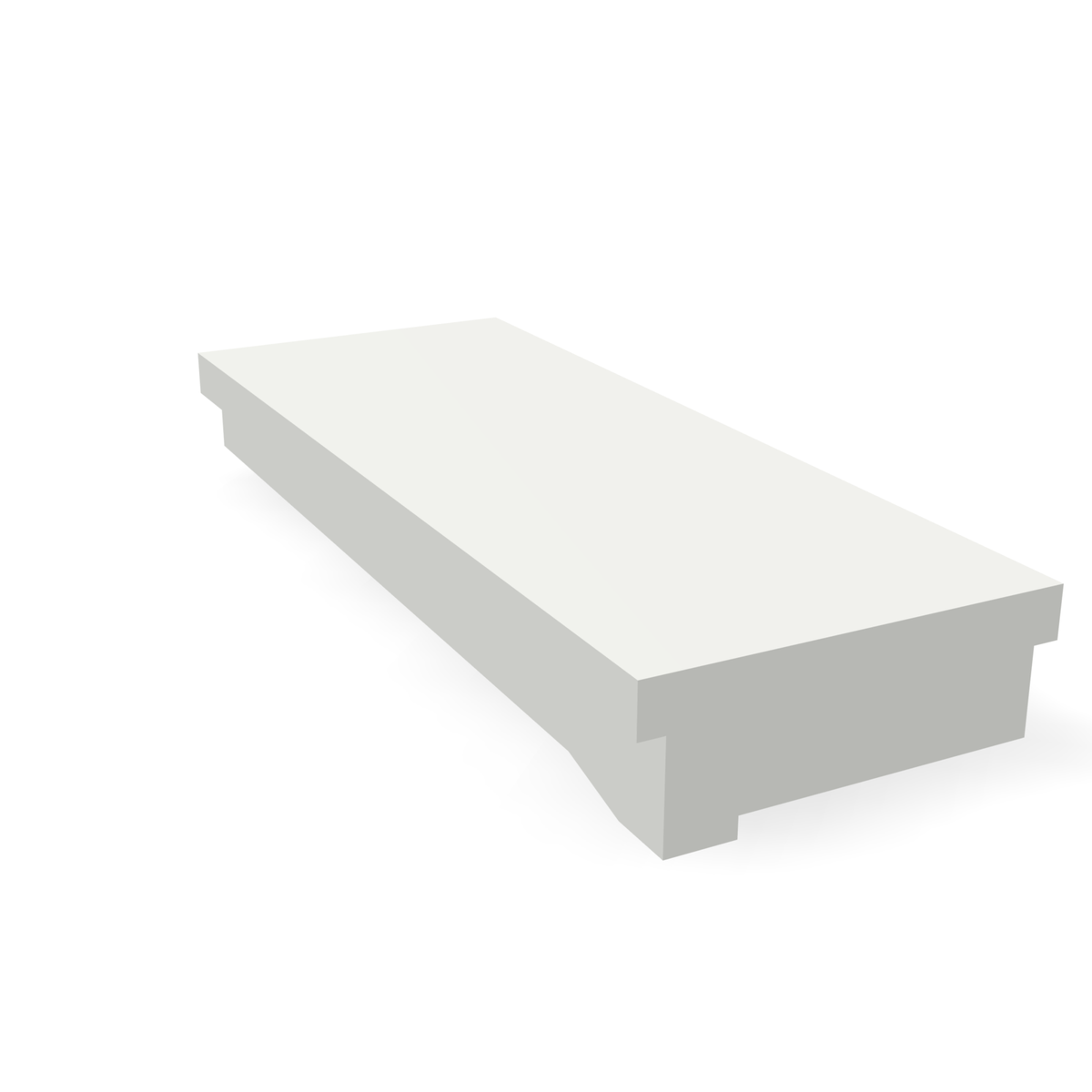

Alpha VR24637WBLANK — print-based side view

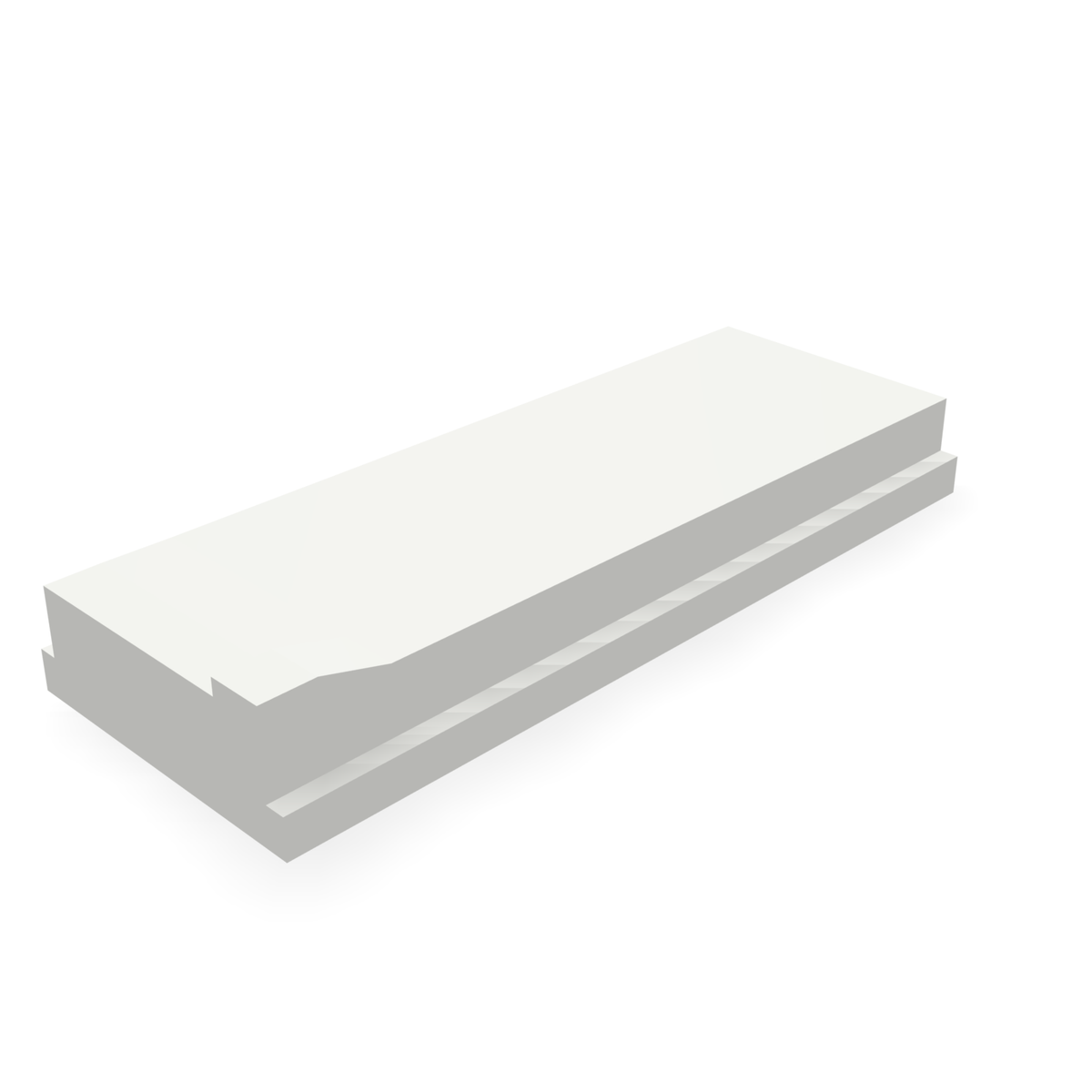

Alpha VR24637WBLANK — print-based underside view of stepped blank body
Alpha - 44 Gallons Fresh Water Tank - 63" x 24" x 9 1/4" * - VR24637WBLANK
Roll over image to zoom in Click on image to zoom

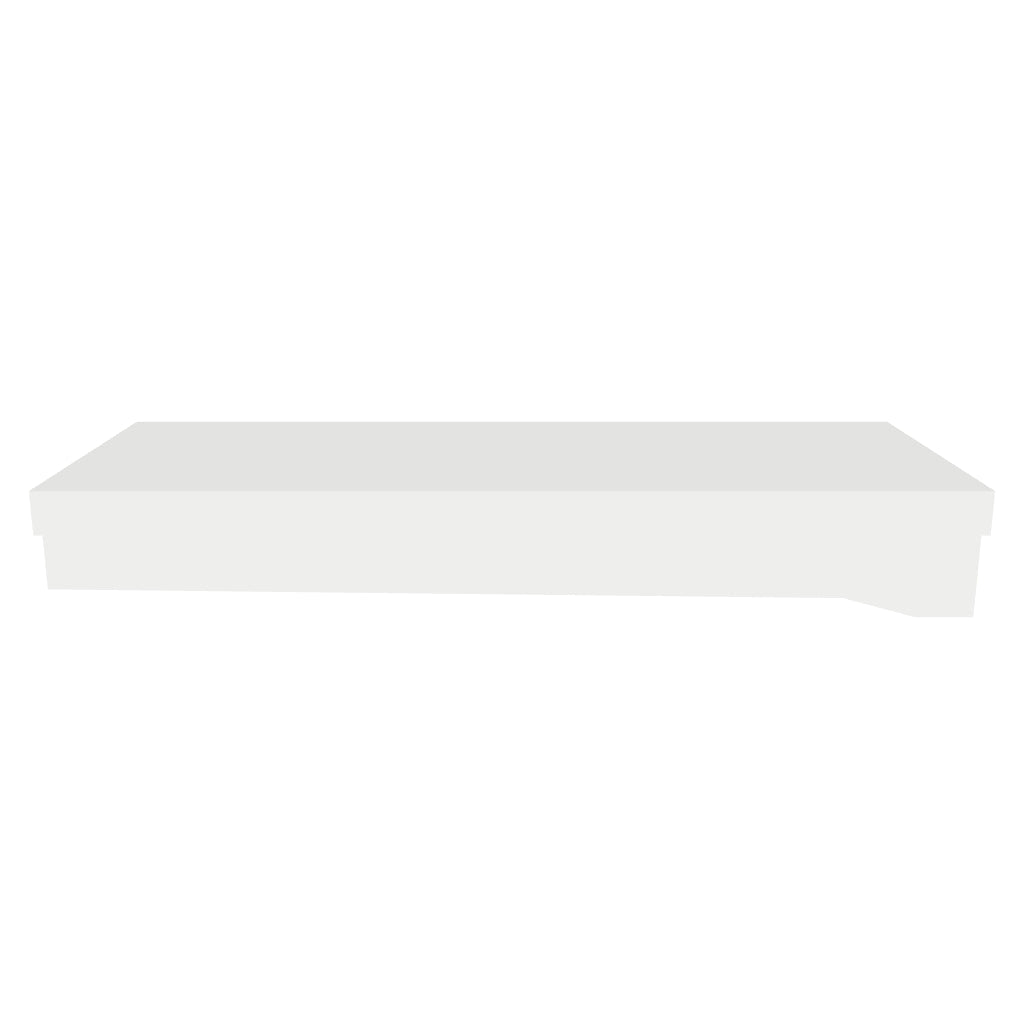

Alpha VR24637WBLANK — print-based front view Alpha VR24637WBLANK — rotatable print-based stepped blank tankAlpha VR24637WBLANK — print-based rear viewAlpha VR24637WBLANK — print-based side viewAlpha VR24637WBLANK — print-based underside view of stepped blank bodyAlpha - 44 Gallons Fresh Water Tank - 63" x 24" x 9 1/4" * - VR24637WBLANK

Pairs well with

Elkhart RV Parts - Universal Fresh Water Tank Fittings Kit with Water Level Sensors for RV Tanks
Elkhart RV Parts Elkhart RV Parts - Universal Fresh Water Tank Fittings Kit with Water Level Sensors for RV Tanks
$44.95 $55.48
205 ordered
Adcoseal - B-100 Butyl Rubber Sealant - 10.3 oz Cartridge - Black - Exterior RV Tank Sealant
Elkhart RV Parts Adcoseal - B-100 Butyl Rubber Sealant - 10.3 oz Cartridge - Black - Exterior RV Tank Sealant
$28.95 $45.95
263 ordered
1/2" Spin FPT 7/8" Hole size Part # 53 cleaned product image 1
CPI 1/2" Spin FPT 7/8" Hole size Part # 53
$4.99
34 ordered
SKU: VR24637WBLANK
Added to catalog: March 18, 2025
Last product update: July 13, 2026 at 9:20 PM
$527.54 $784.57
| Found it cheaper? Get an answer in seconds.
Available to order
FREE Delivery Estimate October 25 – November 4
1-Hour Cancellation Window

1-Hour Cancellation Window

You'll have 1 hour after placing your order to update your shipping address or cancel completely.

After that, we begin coordinating with our vendors to fulfill your order — at that point, cancellations and address changes usually aren't possible.

If you're unsure about anything, please reach out before ordering or cancel within the window.

Read full policy →
Saved items

About this item

  • Capacity: 44 Gallons
  • Material: Polyethylene
44 gal · 63 x 24 x 9 1/4 · VR24637WBLANK
Tank Type
Fresh Water $527.54 Selected
Capacity
40 gal $216.40 41 gal $416.28 42 gal $424.86 43 gal $375.94 44 gal $527.54 Selected 46 gal $475.53 48.5 gal $508.07 50 gal $329.95 52 gal $678.55 54 gal $571.93 55 gal $439.95 57 gal $590.27
Dimensions
39 x 18 x 14 $216.40 42 x 23 1/2 x 10 $363.47 54 x 19.75 x 9 $345.09 59 x 24 x 9 1/4 $469.48 53 1/2 x 27 3/4 x 8 5/8 $416.28 48 x 24 x 12 $424.86 48 x 24 x 9 $397.73 35 1/2 x 22 3/4 x 13 $375.94 59 3/4 x 31 3/4 x 8 1/2 $539.53 63 x 24 x 9 1/4 $527.54 Selected 54 x 38 x 6 1/2 $475.53 53 x 24.75 x 11 $508.07 38 x 22 1/4 x 14 $400.01 57 x 31 x 9 $329.95 54 x 45 x 6 1/2 $678.55 63 x 27 1/2 x 8 3/4 $547.79 59 x 29 1/2 x 8 7/8 $571.93 59 x 31 x 8 7/8 $466.39 56 x 32 x 7 1/2 $439.95 67 x 38 1/2 x 6 3/4 $590.27
Part Number
388BLANK $216.40 VR234210WBLANK $363.47 VR20549WBLANK $345.09 VR24597WBLANK $469.48 VB28547WBLANK $416.28 502BLANK $424.86 833BLANK $397.73 203BLANK $375.94 VR326055WBLANK $539.53 VR24637WBLANK $527.54 Selected 672BLANK $475.53 427BLANK $508.07 205BLANK $400.01 VR31577WBLANK $329.95 742BLANK $678.55 VR27638WBLANK $547.79 VR295975WBLANK $571.93 192BLANK $466.39 475BLANK $439.95 349BLANK $590.27

Frequently needed together

Alpha - 44 Gallons Fresh Water Tank - 63" x 24" x 9 1/4" * - VR24637WBLANK Elkhart RV Parts - Universal Fresh Water Tank Fittings Kit with Water Level Sensors for RV Tanks Adcoseal - B-100 Butyl Rubber Sealant - 10.3 oz Cartridge - Black - Exterior RV Tank Sealant

Total price $601.44

Stay Hydrated on the Go with the Ultimate 44-Gallon Fresh Water Tank
Dimensioned print for Alpha - 44 Gallons Fresh Water Tank - 63" x 24" x 9 1/4" * - VR24637WBLANK
Upgrade your RV or boat with this 44-gallon Alpha fresh water tank, crafted from FDA-approved polyethylene for safe, clean drinking water. Its seamless, one-piece design ensures lasting strength and leak resistance, while the stain- and corrosion-resistant build stands up to rugged travel. Perfectly sized for RVs, horse trailers, and marine vessels, this OEM-quality tank is built to exceed factory standards.
---
  • 100% Authentic OEM-Quality Parts: These rotational molded fresh water tanks are crafted to meet or exceed factory standards, making them a perfect upgrade or replacement for your RV, horse trailer, or marine vessel.
  • Premium FDA-Approved Material: Made from high-quality, durable polyethylene that's fully approved for safe drinking water storage—better than many stock tanks installed in factory-built RVs.
  • Seamless One-Piece Construction: Engineered without seams or joints for superior strength and leak-proof reliability, outlasting and outperforming typical OEM tanks.
  • Stain, Corrosion, and Rust Resistant: Designed to stay clean and functional even after years of use, ensuring your water stays fresh and your tank stays dependable.
  • Versatile Compatibility: Ideal for RV enthusiasts, horse trailer owners, or marine adventurers looking for a long-lasting, hassle-free water storage solution.
  • Enhanced Durability: Built tougher than many standard factory-installed tanks, offering peace of mind whether you're replacing an old tank or upgrading your setup.

Original Blueprint and Gallery Views

The retained Alpha VR24637W drawing dated June 4, 2018 specifies approximately 44 US gallons and a 63 x 24-inch plan. The shallow end is called out as 7.25 inches deep and the end view shows an 8-inch main-body depth. The inset lower body is 21 inches wide. The lower drain section is 4 inches wide, with a 9-inch terminal transition including a 4-inch flat section. Check the rim, sloped underside and lower drain profile when planning supports; the listed 9.25-inch maximum depth must not be mistaken for a uniform rectangular body.

The four shadowed views and native rotatable model reconstruct this individual print for the VR24637WBLANK listing. Undimensioned rim height, slope and lower projection details are traced from the depicted views for visualization; the existing listed maximum depth is retained, rather than treated as a separately dimensioned manufacturing callout. Natural polyethylene color and finish are illustrative. No ports or fittings are added. The underside view is flipped for display. Reference dimensions have ±1/4-inch tolerance and capacity is approximate. Use the retained original drawing and exact part identity to verify fitment; this is not measured manufacturing CAD.
