- 100% Authentic OEM-Quality Parts: These rotational molded fresh water tanks are crafted to meet or exceed factory standards, making them a perfect upgrade or replacement for your RV, horse trailer, or marine vessel.
- Premium FDA-Approved Material: Made from high-quality, durable polyethylene that's fully approved for safe drinking water storage—better than many stock tanks installed in factory-built RVs.
- Seamless One-Piece Construction: Engineered without seams or joints for superior strength and leak-proof reliability, outlasting and outperforming typical OEM tanks.
- Stain, Corrosion, and Rust Resistant: Designed to stay clean and functional even after years of use, ensuring your water stays fresh and your tank stays dependable.
- Versatile Compatibility: Ideal for RV enthusiasts, horse trailer owners, or marine adventurers looking for a long-lasting, hassle-free water storage solution.
- Enhanced Durability: Built tougher than many standard factory-installed tanks, offering peace of mind whether you're replacing an old tank or upgrading your setup.
Original Blueprint and Gallery Views
The retained Alpha VR28606WBLANK drawing specifies approximately 37 US gallons and a 59.75 x 27.75-inch plan. The main body is 5.5 inches deep; overall height is 8.5 inches including the raised top section and lower sump at the same short end. Each projects 1.5 inches beyond the main body and is 4 inches wide, extending 5.5 inches inward with a 4-inch flat section before its ramp. Allow clearance above and below the body for these features.

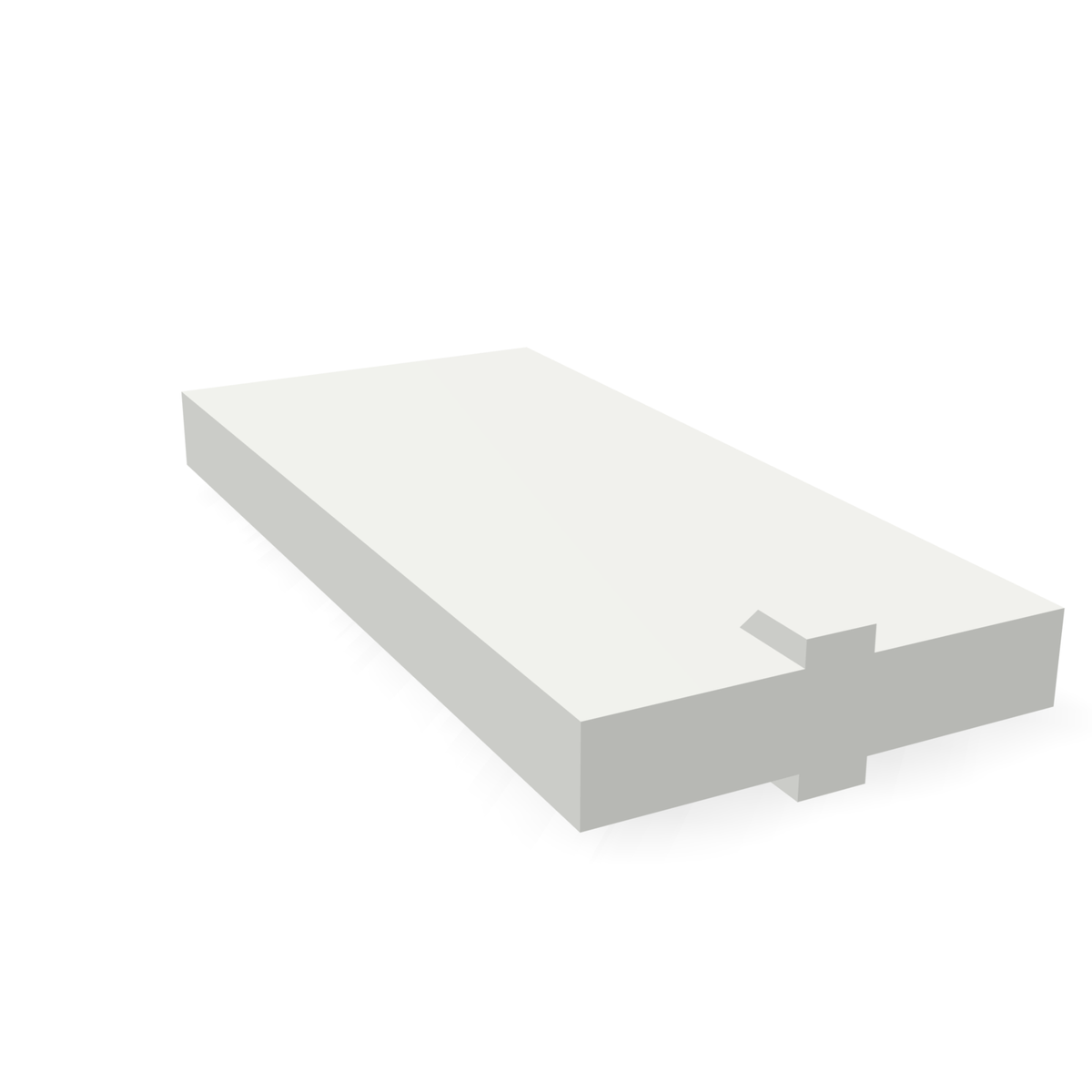

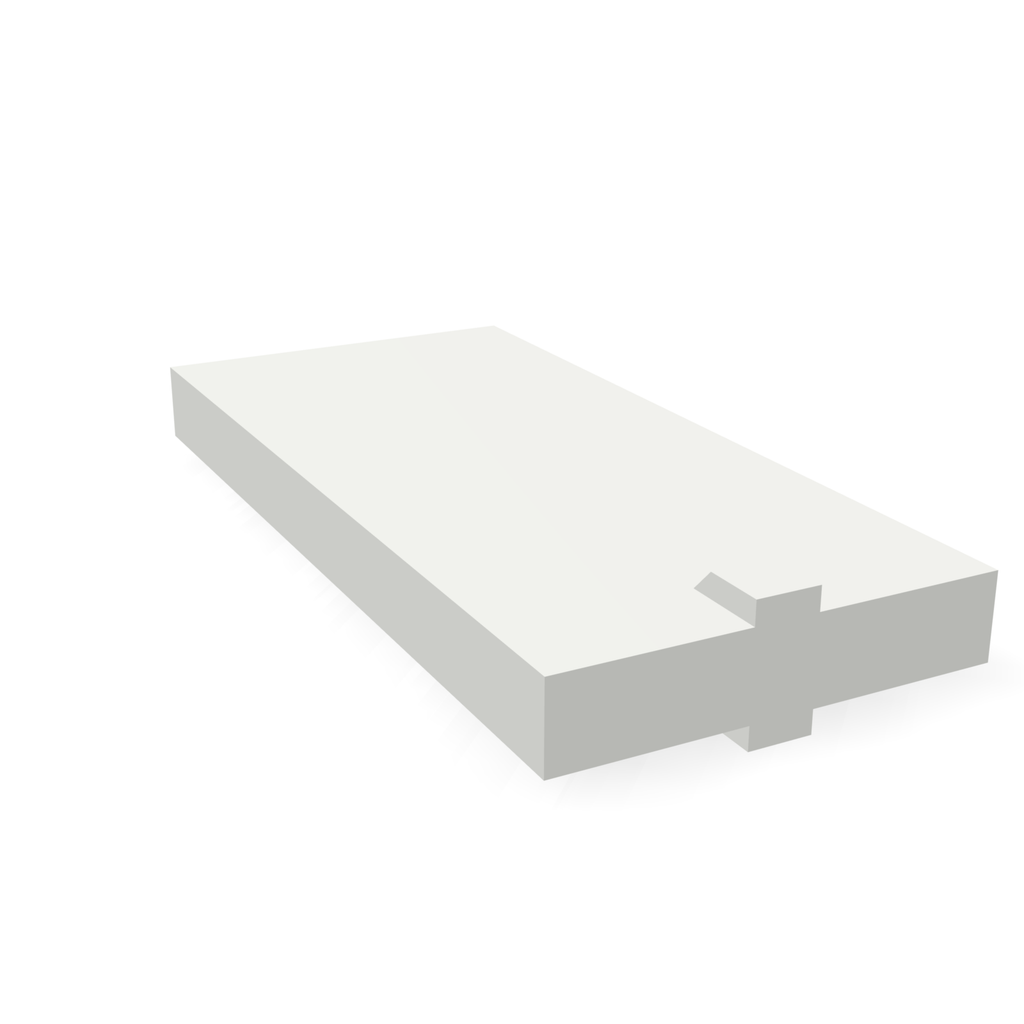

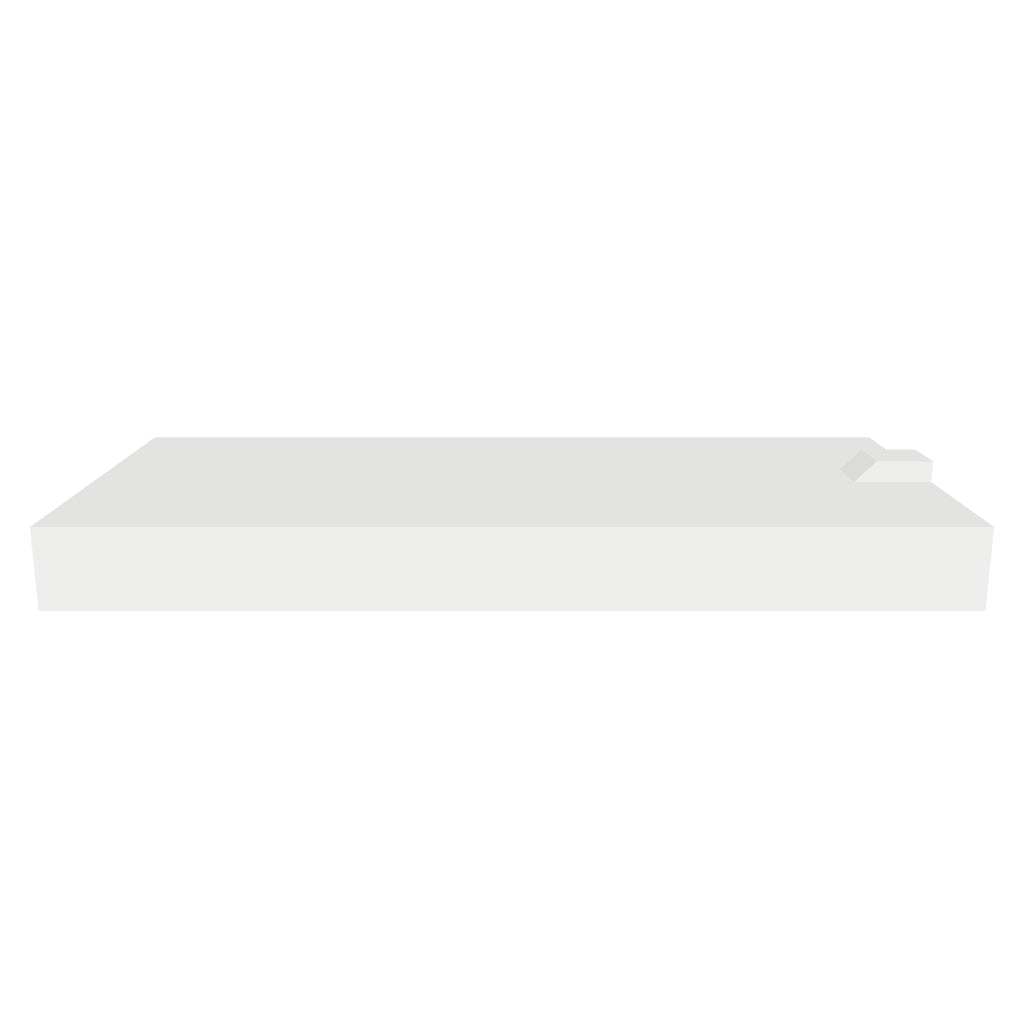

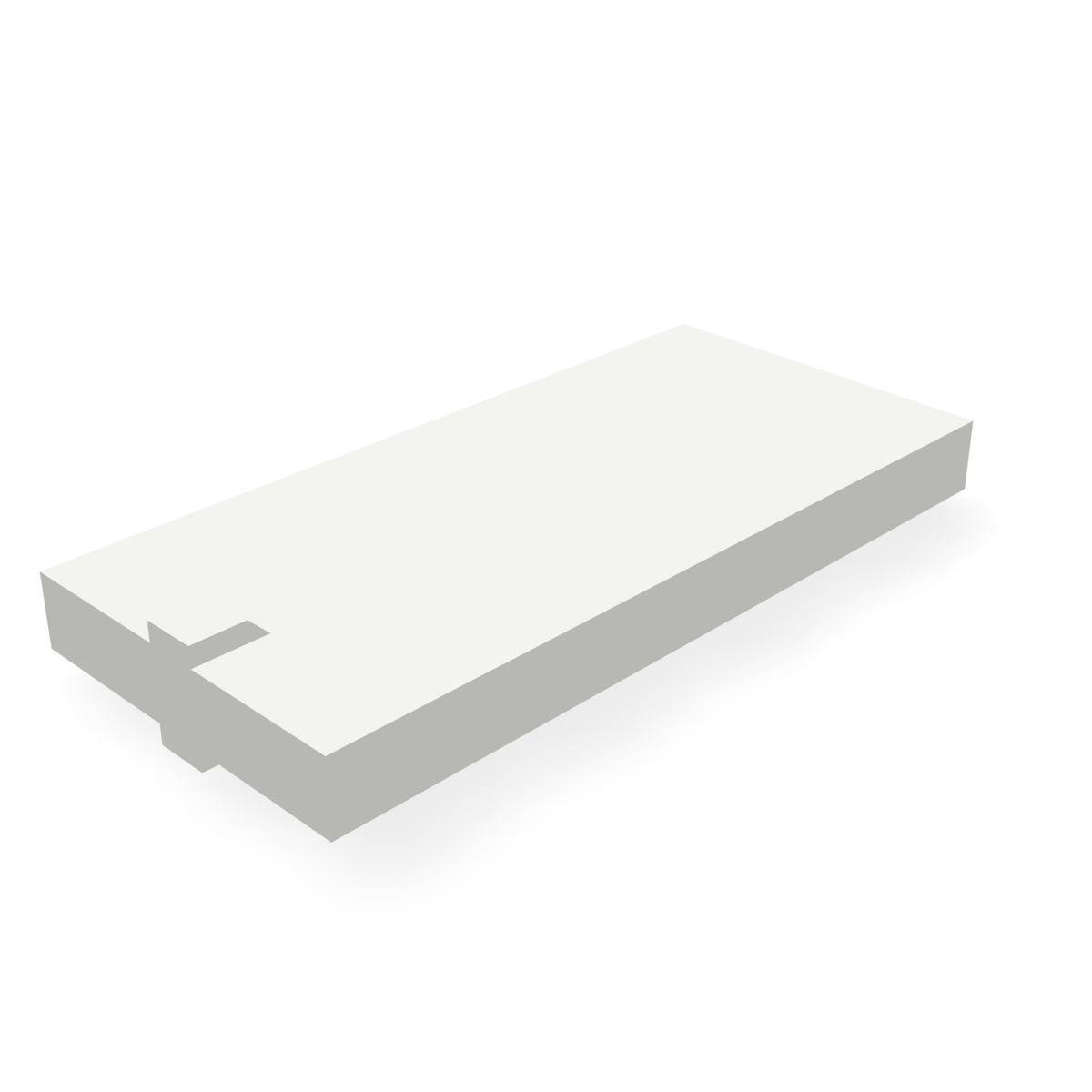

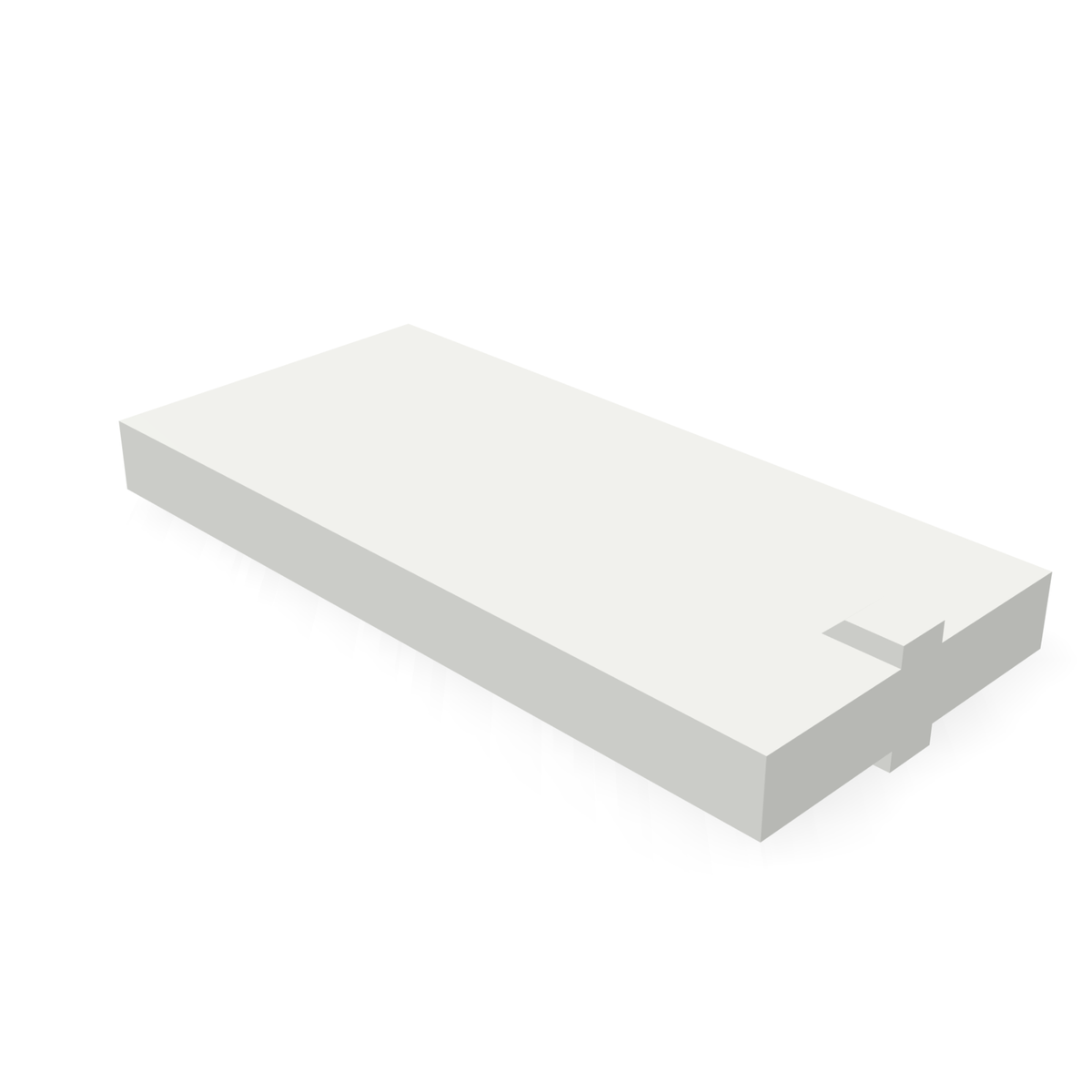

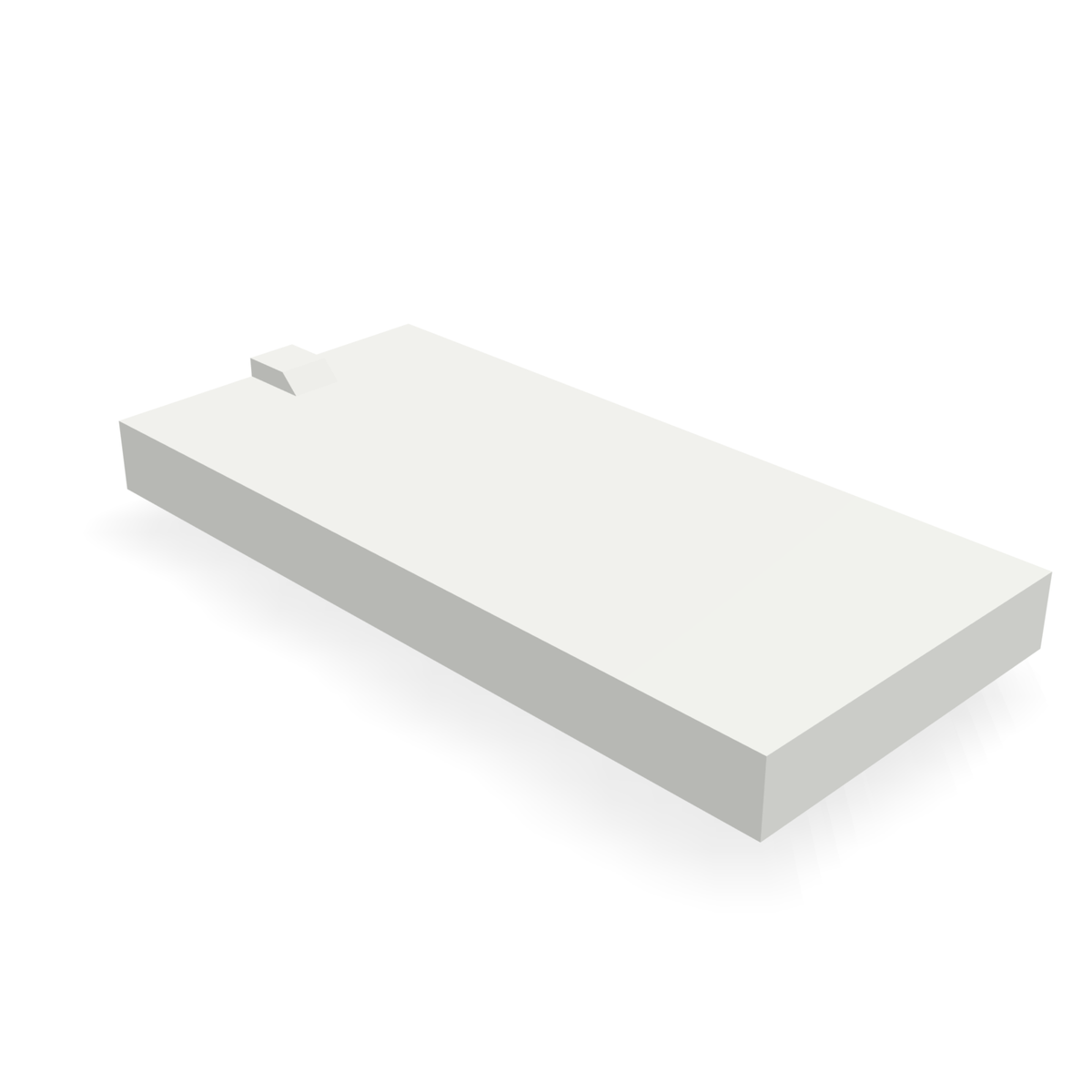

The four shadowed views and native rotatable model reconstruct this individual blank-tank print. Features are centered across the short end as depicted; their transverse location is not separately dimensioned. Natural polyethylene color and finish are illustrative. No ports or fittings are added. The underside view is flipped for display. Reference dimensions have ±1/4-inch tolerance and capacity is approximate. Use the retained original drawing and exact part identity to verify fitment; this is not measured manufacturing CAD.
| Product type | Fresh Water Tank |
|---|---|
| Capacity | 37 Gallons |
| Dimensions | 59 3/4" x 27 3/4" x 8 1/2" |
| Material | Polyethylene |
| Construction type | Seamless One-Piece |
| Fda approved | true |
| Oem quality | true |
| Applications | RVHorse TrailerMarine Vessel |
| Model number | VR28606WBLANK |
- What is the capacity of the alpha fresh water tank? The Alpha fresh water tank has a capacity of 37 gallons.
- What are the dimensions of this fresh water tank? The tank measures 59 3/4 inches in length, 27 3/4 inches in width, and 8 1/2 inches in height.
- Is this water tank safe for storing drinking water? Yes, it is made from premium FDA-approved polyethylene material, making it safe for storing drinking water.
- Can this tank be used for rvs and marine vessels? Yes, this fresh water tank is ideal for RVs, horse trailers, and marine vessels.
- What makes this tank more durable compared to standard oem tanks? This tank features seamless one-piece construction, is stain, corrosion, and rust resistant, and is built tougher than many standard factory-installed tanks, providing superior strength and leak-proof reliability.
