75 Gallon RV Holding Tank 28" x 26" x 22 1/2" w/3" outlet. (Includes 4 level sensors noted in drawing) Myers (EPI) Tank # 1261432/H-1221
A popular holding tank used in Renegade RV's.
Wall thickness is 0.180" in black polyethylene
Ameri-Kart/Meyers are manufactured to meet quality and health safety standards. With fewer impurities, these tanks are strong enough to take the bumps and bangs without compromising the security of your black-water holding system. Ameri-Kart/Meyers uses a process called roto-molding in which high-density plastic is rotated and molded into shape. This process creates a seamless tank in which the walls are of equal thickness, with no weak spots to cause trouble later. It is this process that has earned Elkhart Plastics the reputation for quality tanks.
PLEASE NOTE: All returns are subject to approval.
Dimensioned Print and Gallery Views
The retained Renegade drawing 18-0026, revision D dated July 27, 2021, identifies Ameri-Kart model H-1221 and 80 US gallons. Earlier listing text stated 75 gallons and conflicting dimensions; these display specifications now follow the original print. The upper body is 15 3/4 inches deep, with a stepped lower region. Overall dimensions are 37 x 26 1/2 x 24 9/16 inches.

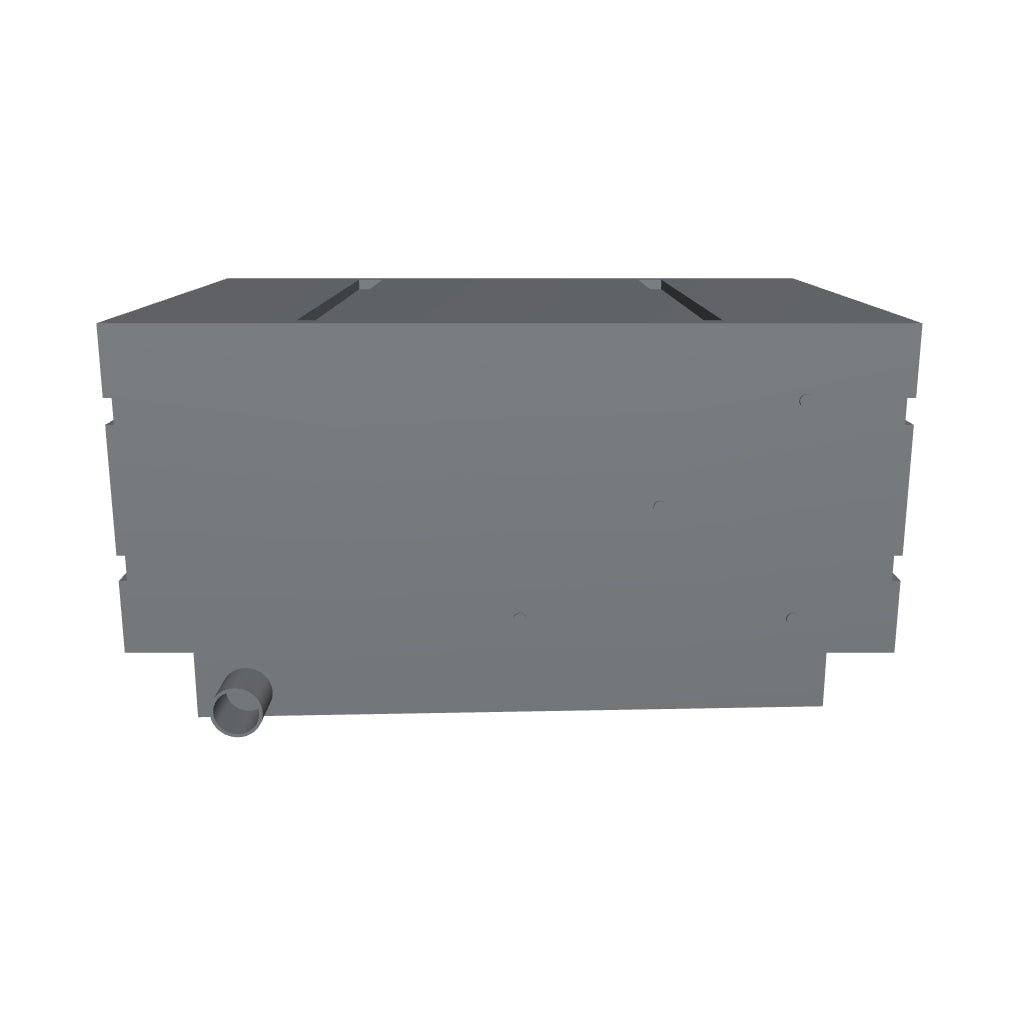

The front view locates the outlet center 3 inches from the left edge and 1 5/8 inches above the bottom. Four level sensors and the end-face Tornado tank-flush location are shown. The stepped underside and connection positions matter for fitment; do not assume interchangeability from capacity alone. The print does not show arbitrary top inlet or vent hole locations.

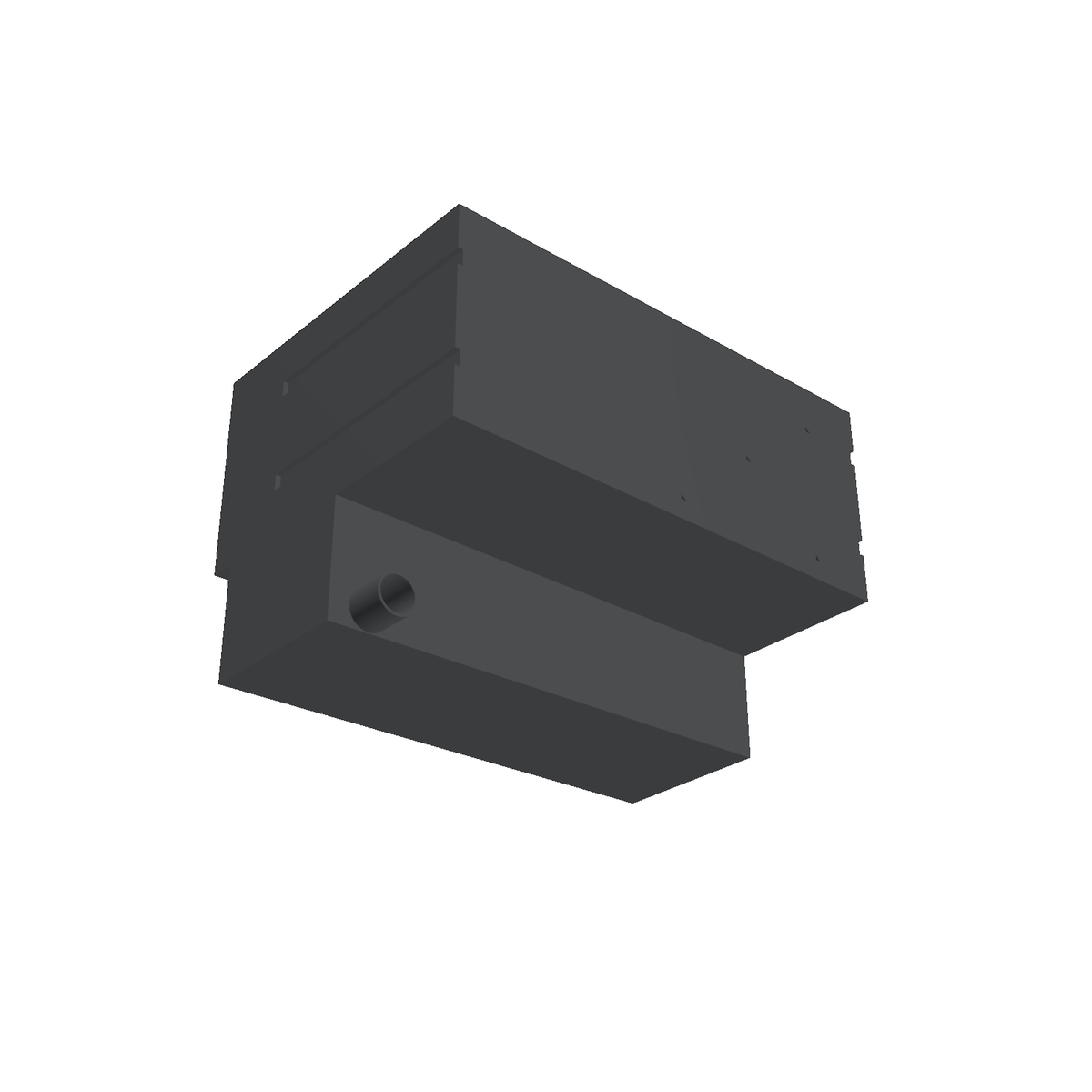

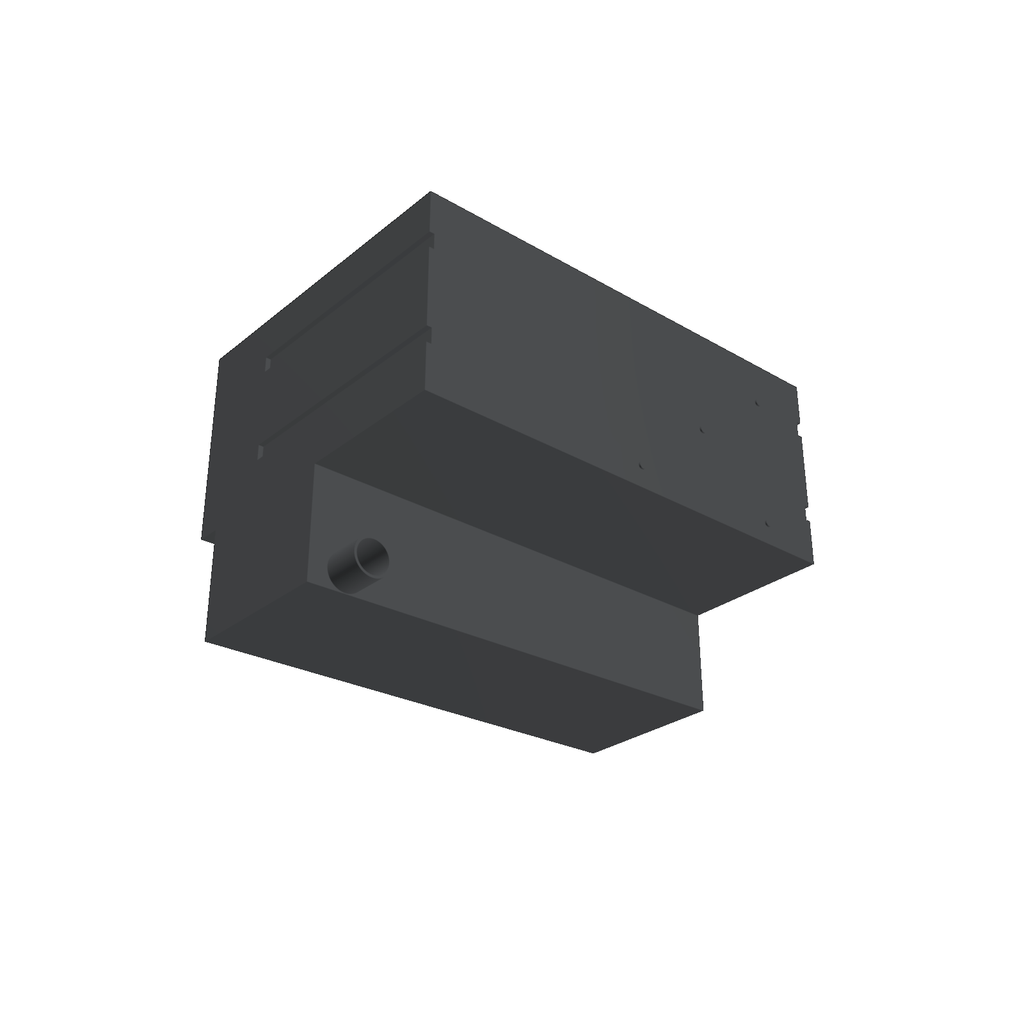

The four views and rotatable model are reconstructions from the print, not measured manufacturing CAD. Undimensioned channel widths and depths, edge rounding, floor taper and connection exterior details are illustrative. The original dimensioned blueprint remains the installation and fitment reference.
| QAI Certification | REC 559-1 |
|---|---|
| Part number | 1261432/H1221 |
| Capacity (gallons) | 80 |
| Dimensions (inches) | 37 x 26-1/2 x 24 9/16 |
| Lead time | Approx 2 Weeks |
| Best for | RV black-water holding applications; compare H-1221 print |
- What are the dimensions of the 80-us-gallon rv holding tank? The tank measures 37 inches by 26-1/2 inches by 24 9/16 inches.
- What material is the holding tank made of? The tank is made of black polyethylene with a wall thickness of 0.180 inches.
- Does this holding tank include level sensors? Yes, it includes 4 level sensors as noted in the product drawing.
- What manufacturing process is used for this holding tank? The tank is made using a roto-molding process, which creates a seamless tank with walls of equal thickness and no weak spots.
- What capacity is stated on the original h-1221 drawing? The retained Renegade drawing 18-0026, revision D, identifies H-1221 as 80 US gallons. Earlier listing text stated 75 gallons; the print is the reference for the corrected specifications.
- What connection and sensor locations does the print show? The print shows a lower recessed outlet, four level sensors on the front face, and a Tornado tank-flush location on the end face. Compare the complete drawing to your installation; dimensions alone do not establish interchangeability.
