Description

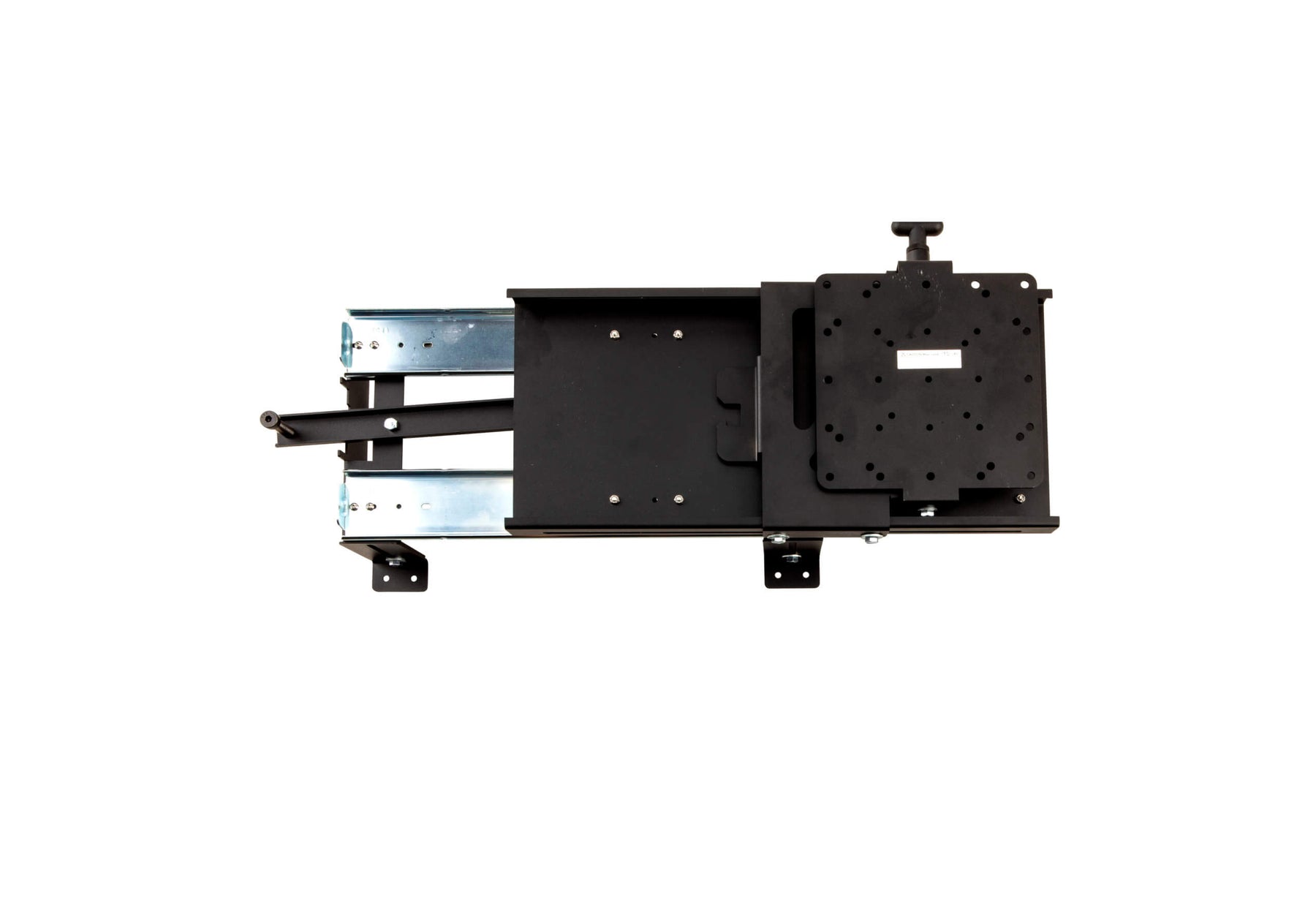

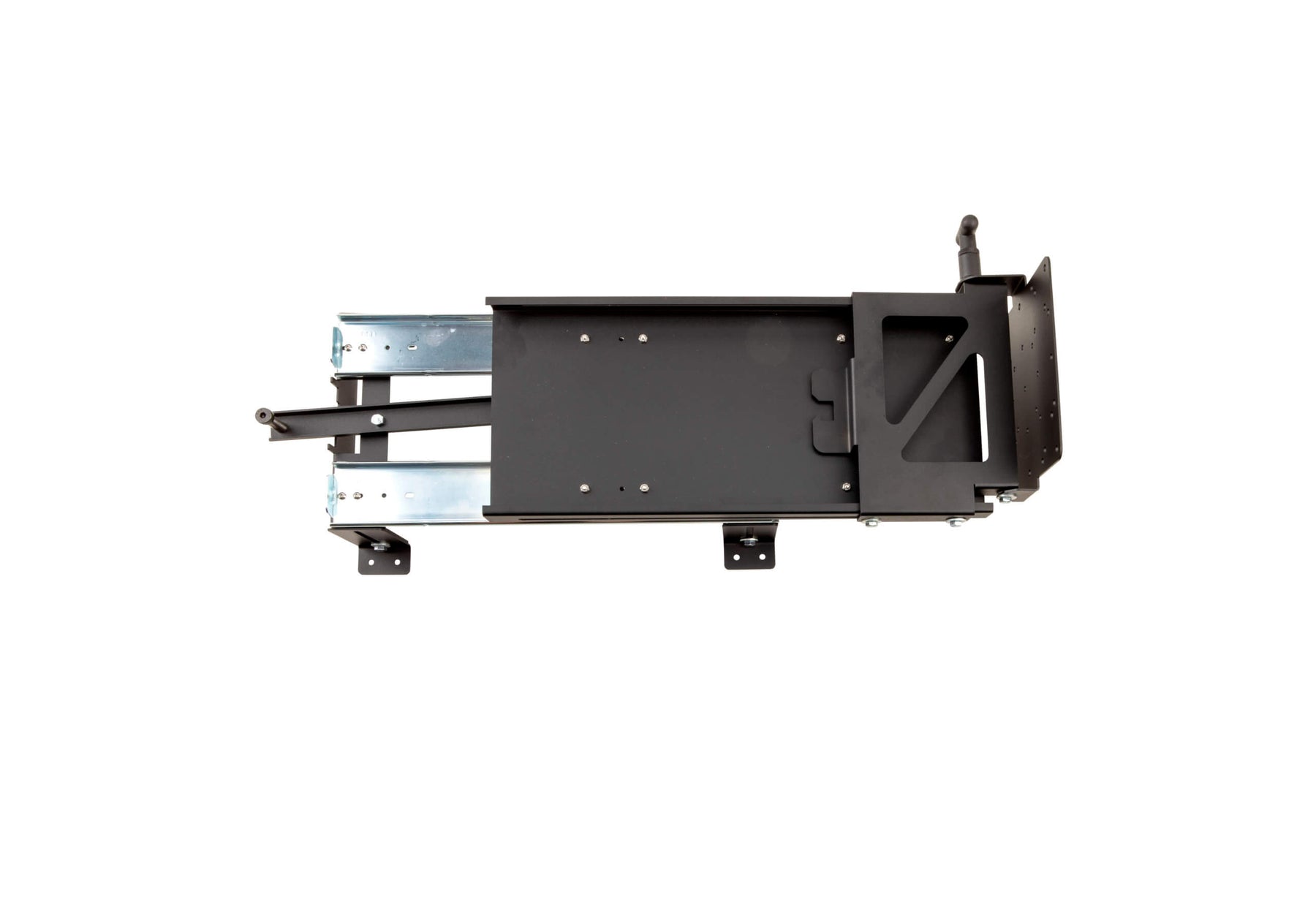

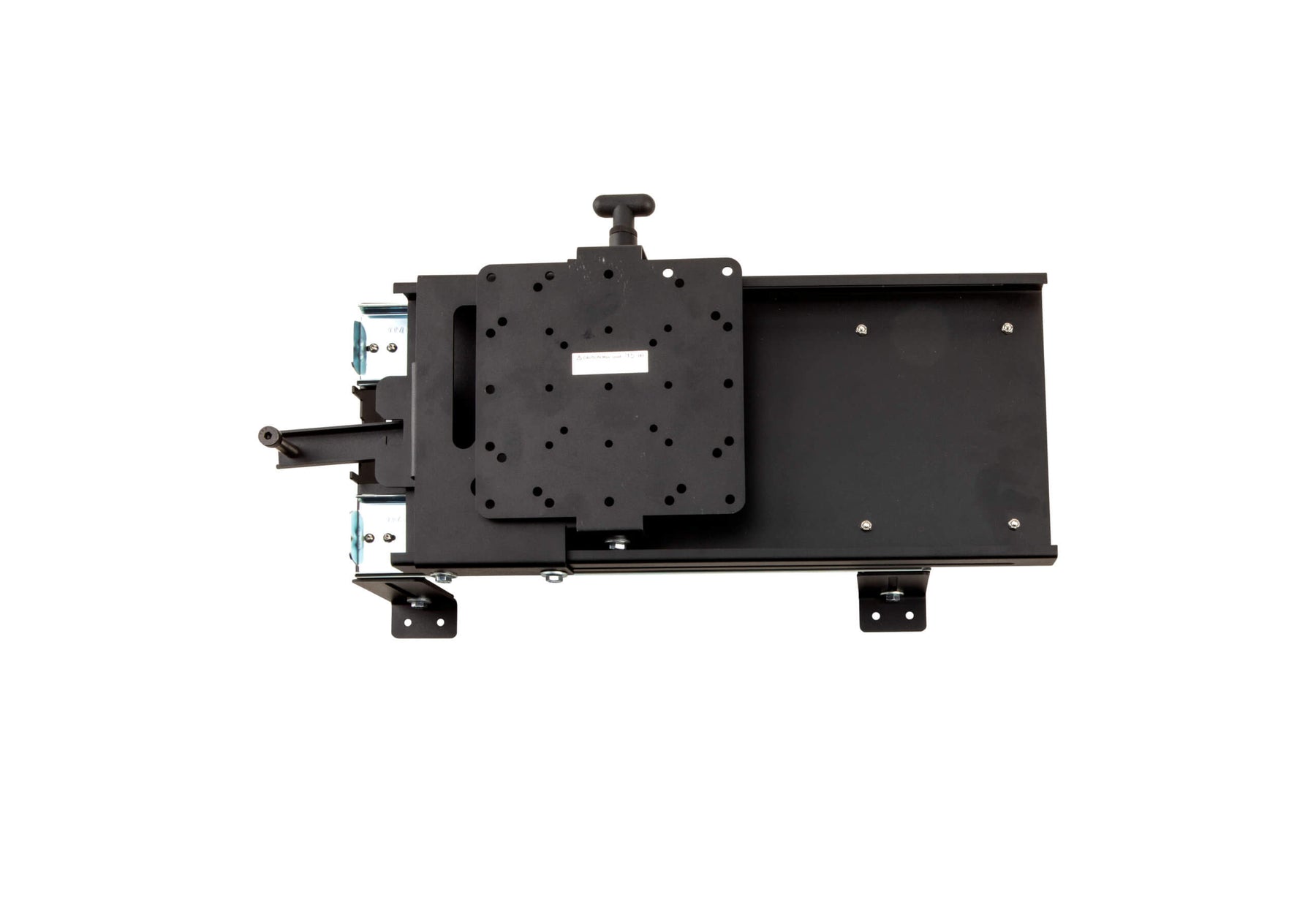

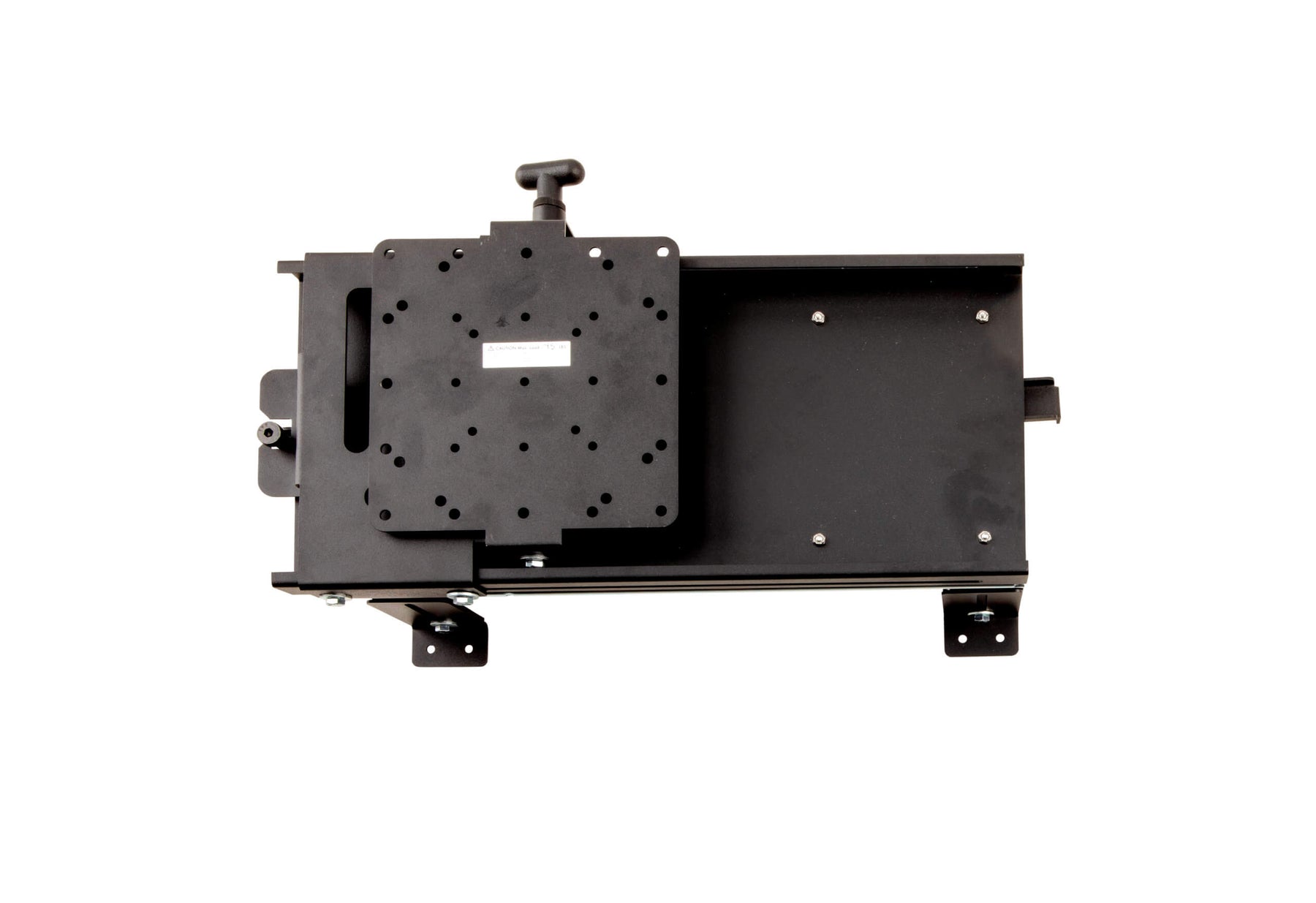

Horizontal Sliding TV Mount
The versatile design of this horizontal sliding TV mount gives you options to adjust the depth to easily slide past door frames or other obstacles. With a 20.5-inch sliding feature and 120º pivot range, you can swivel your TV into the right viewing position. A locking mechanism holds your TV or monitor securely in place during travel.
- Adjustable depth up to 3"
- Slide-out extends TV 36"
- Swivels 120º left to right
- 50 lb. weight capacity
- Locking mechanism
- TV mount (fully assembled)
- Mounting hardware
- Installation hardware
- Installation instructions
Watch TV inside or out with this horizontal sliding TV mount for your RV. Easily clear a door handle or frame by adjusting the depth of the slide from the wall. For ideal viewing, simply slide out your TV or monitor and swivel into position. Safely lock your TV in place with a spring-loaded locking mechanism when it’s time for travel.
WATCH TV WHERE YOU WANT, even outside, with cargo bay pull-out slide
KEEP TV CLEAR OF OBSTACLES like door handles or frames with adjustable mount depth
EASILY PULL INTO POSITION with 36″ sliding extension
GET THE RIGHT TV ANGLE with a 120º pivot range
SAFELY LOCK TV in place for travel
DIMENSIONS
- Overall: 13″H x 24″W x 6.5-9.5″D
VESA MOUNTING PATTERNS
- 200×200*
OPTIONS :
Adapter plate* 200mm x 400mm
Installation Tip
Make sure your ceiling structure is reinforced to support the size and weight of your TV plus the weight of the mount. Please see installation instructions for more information.
MORryde is responsible for the design and manufacture of product parts. The company is not responsible for the structure used to mount the product.
